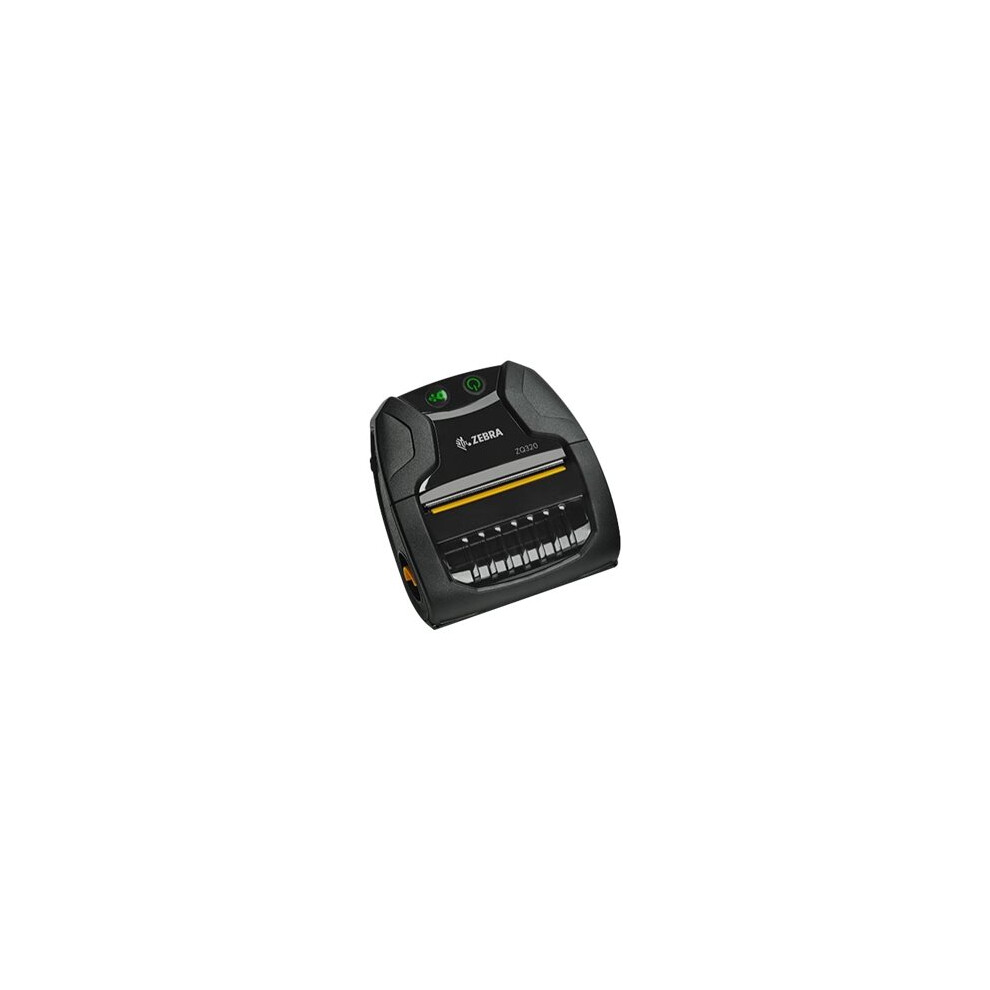

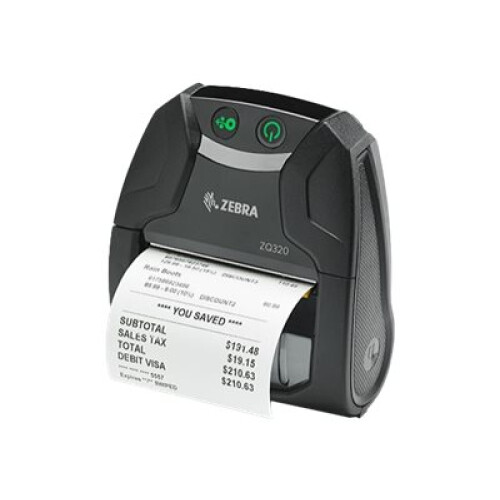

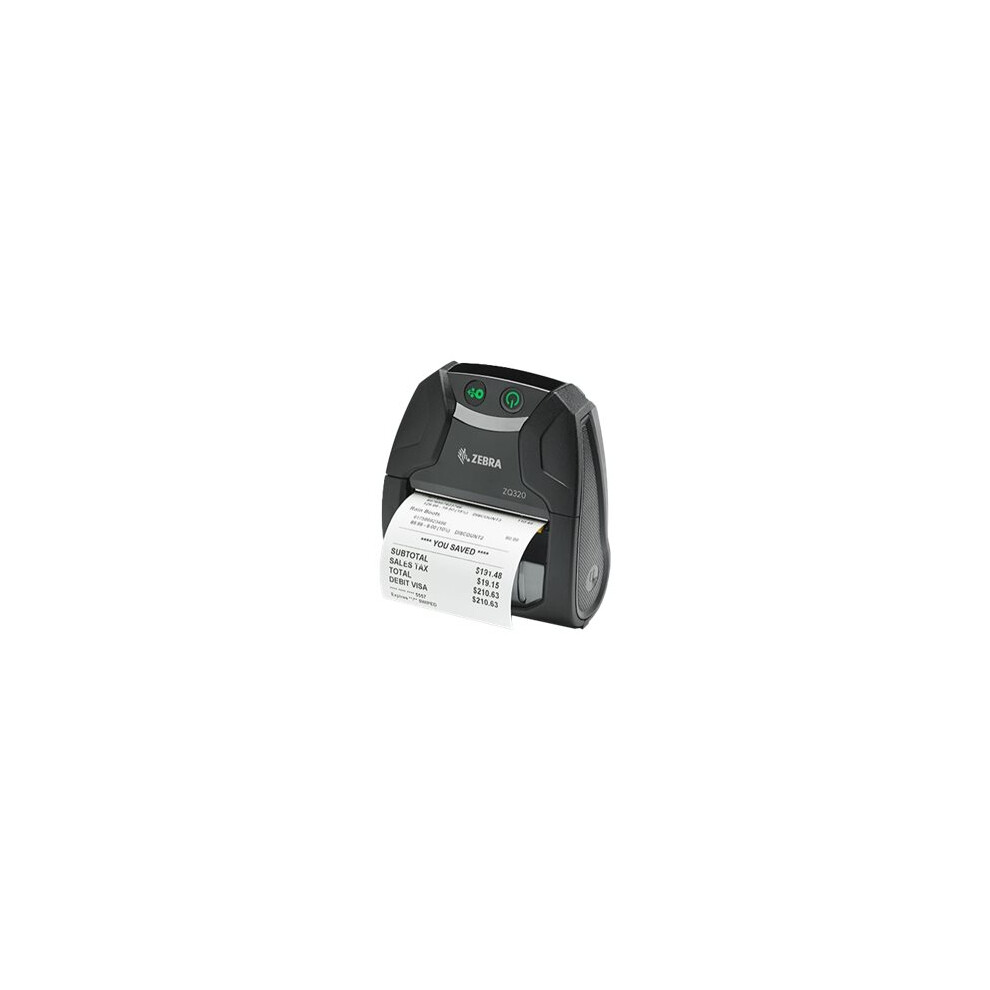

Zebra ZQ320 DT WiFi Outdoor

Zebra ZQ320 DT WiFi Outdoor Description

Product information

Zebra ZQ320 Mobile Receipt Printer - Receipt printer - direct thermal - Roll (8 cm) - 203 dpi - up to 100 mm/sec - USB 2.0, NFC, Bluetooth 4.0 LE - tear bar - black

Basic Specifications

Manufacturer's Part NumberZQ32-A0E02TE-00EAN8436575532981RAM Installed (Max)128 MBFontsCG Triumvirate Bold CondensedLanguage SimulationZPL, Comtec Printer Control Language (CPCL)System RequirementsMicrosoft Pocket PC, Microsoft Windows Mobile for Pocket PC 2002, Microsoft Windows CE .NET, Microsoft Windows Mobile for Pocket PC 2003 Second Edition, Microsoft Windows NT / 2000 / XP, Android 2.3, Apple iOS 5, Android 4.0, Android 4.1 (Jelly Bean), Apple iOS 6, Apple iOS 7, Apple iOS 10Printer TypeReceipt printer - direct thermal - B/WMax Media Size (Custom)80 mm x 12.5 mmBarcodesCode 93, Code 39, UCC/EAN-128, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Interleaved 2 of 5, PDF417, Data Matrix, TLC39Form FactorPortableDimensions (WxDxH)11.77 cm x 13 cm x 4.95 cmMax Resolution (B&W)203 dpiManufacturer Warranty1-year warrantyPrint SpeedUp to 100 mm/sec - max speedEnclosure ColourBlackWeight430 gFeaturesTear barProduct DescriptionZebra ZQ320 Mobile Receipt Printer - receipt printer - B/W - direct thermalBatteryRequired 1 Lithium Ion Included Qty 1ModelZebra ZQ320 Mobile Receipt PrinterMax Media SizeRoll (8 cm)InterfaceUSB 2.0, NFC, Bluetooth 4.0 LEMedia TypeReceipt paper, linerless labelsFlash Memory Installed (Max)256 MB

Environmental Parameters

Min Operating Temperature-15 °CMax Operating Temperature50 °CHumidity Range Operating10 - 90% (non-condensing)

Media Handling

Media TypeReceipt paper, linerless labelsMax Media SizeRoll (8 cm)Max Media Size (Custom)80 mm x 12.5 mmMedia SizesRoll (8 cm)Max Printing Width72 mmMedia Thickness Range0.06 mm - 0.16 mmRoll Maximum Outer Diameter40 mmMedia Feeders1 x manual - 1 roll - Roll (8 cm)

General

Printer TypeReceipt printer - direct thermal - monochromeEnclosure ColourBlack

Battery

TypeLithium IonRequired Qty1Included1Capacity2280 mAh

Flash Memory

Flash Memory256 MB

Expansion / Connectivity

Connections1 x USB 2.0 - 24 pin USB-C

Printer

Print SpeedUp to 100 mm/sec - max speedConnectivity TechnologyWirelessInterfaceUSB 2.0, NFC, Bluetooth 4.0 LEMax Resolution (B&W)203 dpiLanguage SimulationZPL, Comtec Printer Control Language (CPCL)FontsCG Triumvirate Bold CondensedFeaturesTear barFonts IncludedBitmapped ¦ ScalableBarcodesCode 93, Code 39, UCC/EAN-128, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Interleaved 2 of 5, PDF417, Data Matrix, TLC39

RAM

RAM Installed (Max)128 MB

Manufacturer Warranty

Service & SupportLimited warranty - parts and labour - 1 year

Dimensions & Weight

Width11.77 cmDepth13 cmHeight4.95 cmWeight430 g

Software / System Requirements

OS RequiredMicrosoft Pocket PC, Microsoft Windows Mobile for Pocket PC 2002, Microsoft Windows CE .NET, Microsoft Windows Mobile for Pocket PC 2003 Second Edition, Microsoft Windows NT / 2000 / XP, Android 2.3, Apple iOS 5, Android 4.0, Android 4.1 (Jelly Bean), Apple iOS 6, Apple iOS 7, Apple iOS 10

Miscellaneous

Included AccessoriesBelt clipCables Included1 x USB cableCompliant StandardsTUV, VCCI, C-Tick, NOM, IEC 60950, EN55022 Class B, CCC, FCC Part 15, IC, PSE Mark, IP54
