0-999s/Min/Hour DC 24V 480W Digital Time Delay Switch Relay T2310 Open Control Module Power Supply

0-999s/Min/Hour DC 24V 480W Digital Time Delay Switch Relay T2310 Open Control Module Power Supply Description

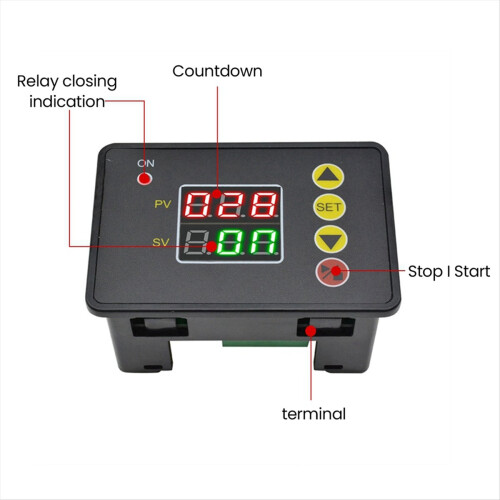

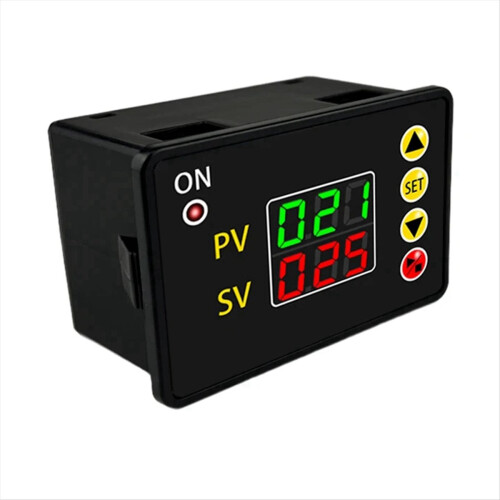

T2310 is a time-controlled relay with 1 normally open relay
Fixed bit pass, off timing display Settings, independent timing unit, so that large time span can be realized
Optimized setting operation, timing on, timing off, infinite cycle switch setting more convenient, more intuitive
1-999 times alternate work and infinite cycle work independent setting, the maximum extent to meet the needs of use

Timing range: 0-999 (seconds, minutes, hours)
Minimum unit: 1 second Error: 20ppn
Timing type: non - clock countdown
Timed startup: Supported
Timed shutdown: Supported
Infinite loop: Supports infinite switching loop
Quantitative cycle: Support 1-999 cycle switch
Independent timing unit: Supported
Program trigger: Support automatic trigger and manual trigger switch, factory default automatic trigger
Setting Lock: Supported
Power-off save: Only the latest Settings are automatically saved.
Relay type: 1 channel normally open relay
Output type: contact live, active output
Product size: 67x45x34mm
Installation hole size: 63x42mm (embedded installation)

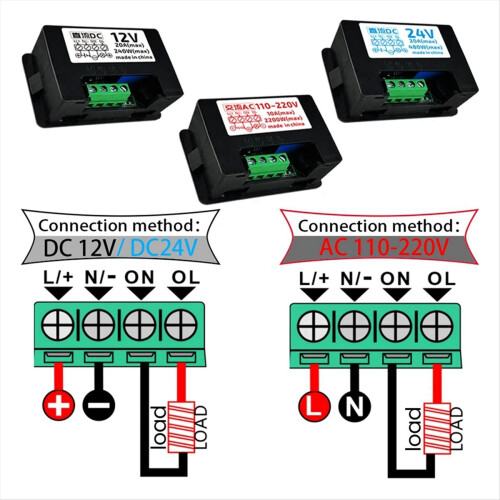

Operating voltage = Input voltage = Output voltage = label voltage
Note: Due to different production batches, there may be slight differences in products.
Colour:Black
Material:ABS
Type:DC 24V 480W

Package Contents:
1x Time Relay

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
