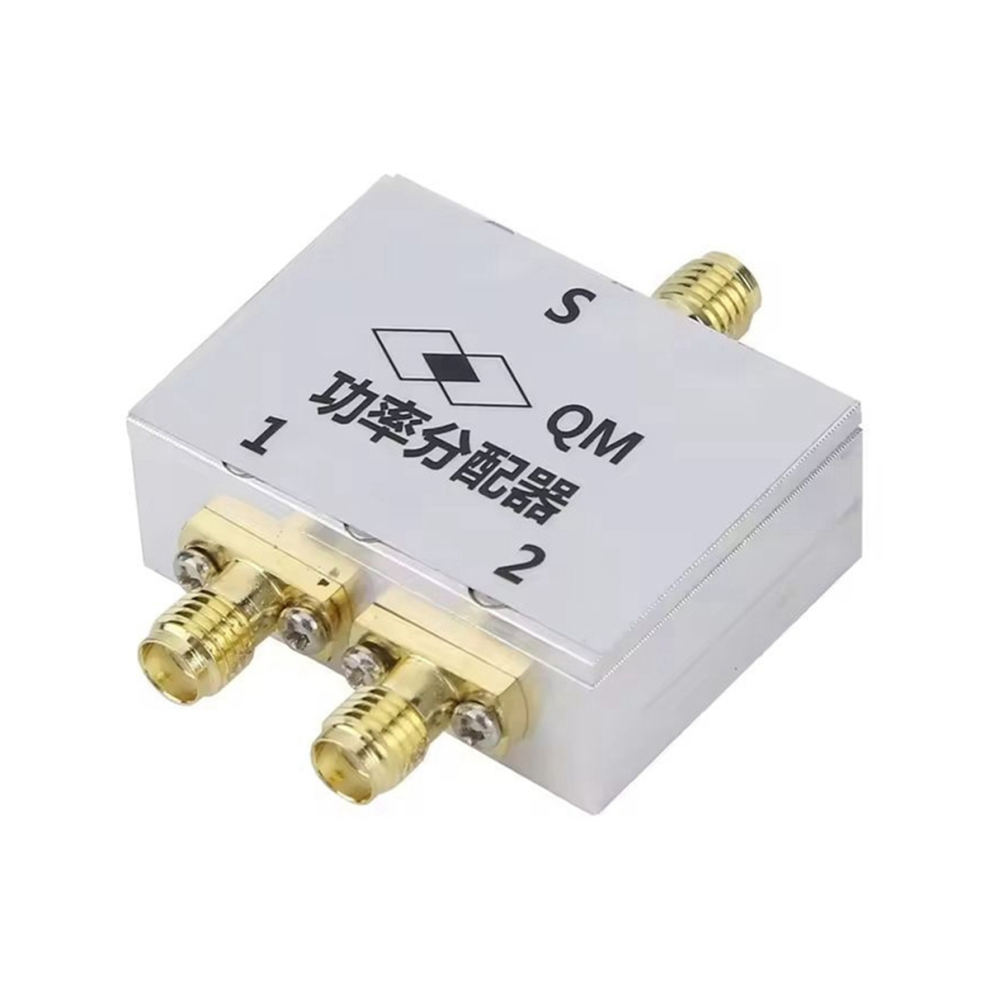

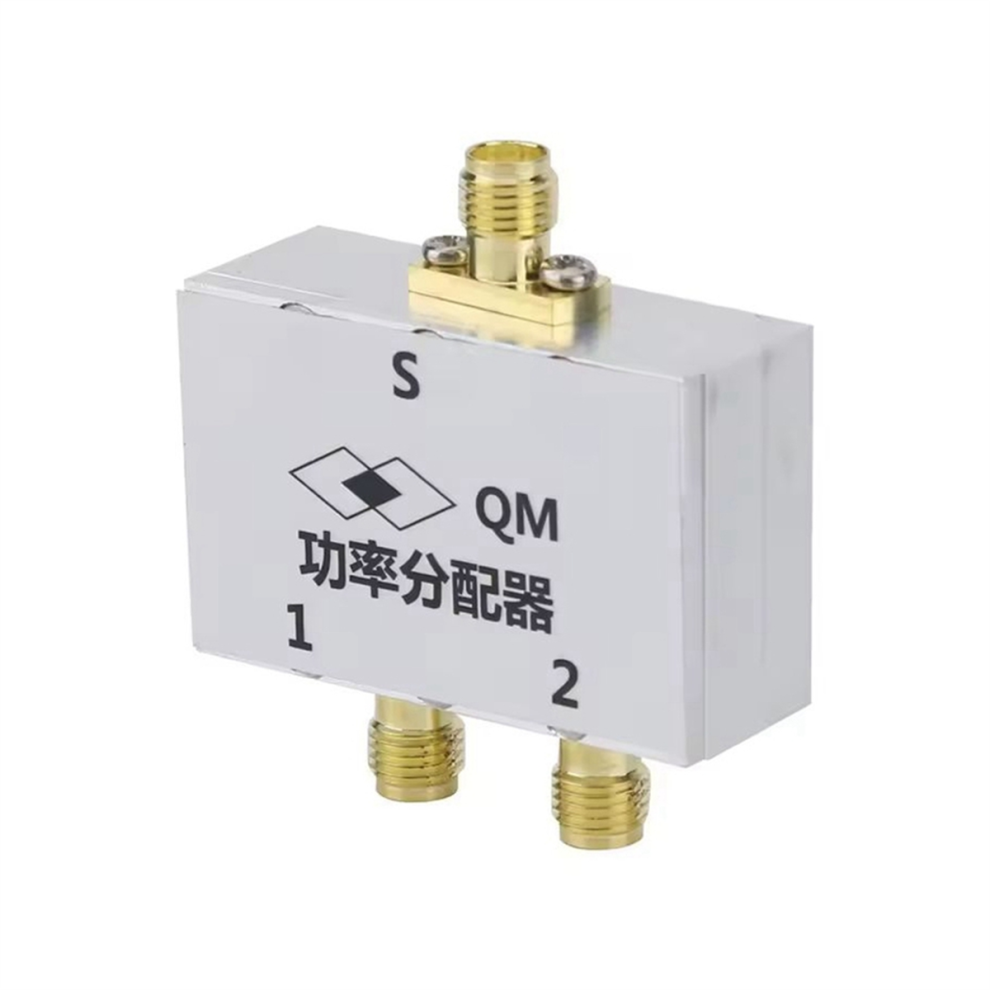

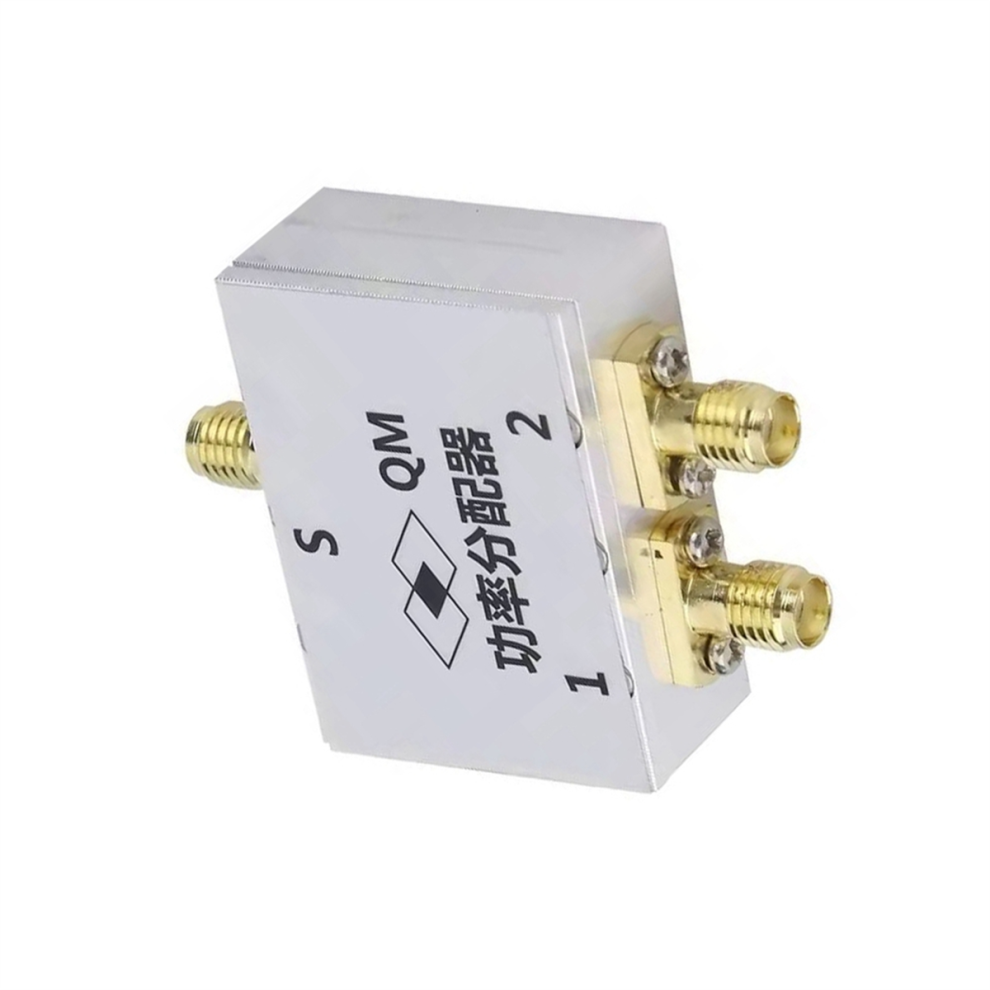

1-700MHz Power Divider 2Way Combiner Power Splitter Clock Splitter

1-700MHz Power Divider 2Way Combiner Power Splitter Clock Splitter Description

Power divider (referred to as power divider) is a basic circuit in and microwave circuit system. The module covers the frequency range of 1MHz-700MHz, covering FM, 325M, 433M and other clock distribution of typical frequency points, to achieve equal power sharing,
at the same time can be used as a combiner, widely used in clock distribution of multiple outputs, IF signals, such as the occasion of the distribution of the module has a low insertion loss and high isolation of the structure of the compact, easy to integrate with other equipment.

Performance: one and two power equal division, the
Operating frequency: 1MHZ-700MHz.
Typical insertion loss: 0.6dB (excluding 3dB distribution ratio)
Typical isolation of branch port:20dB(typical)
Phase unbalance:2
Amplitude unbalance:0.1dB
Maximum carrying power: 33dBm(2W).
Input/Output Impedance:50Q.
Please note:Slight color difference or difference in kind, does not affect the use, please do not mind, thank you!
Colour:Photo Color
Material:Metal

Package Contents:
1 Divider

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
