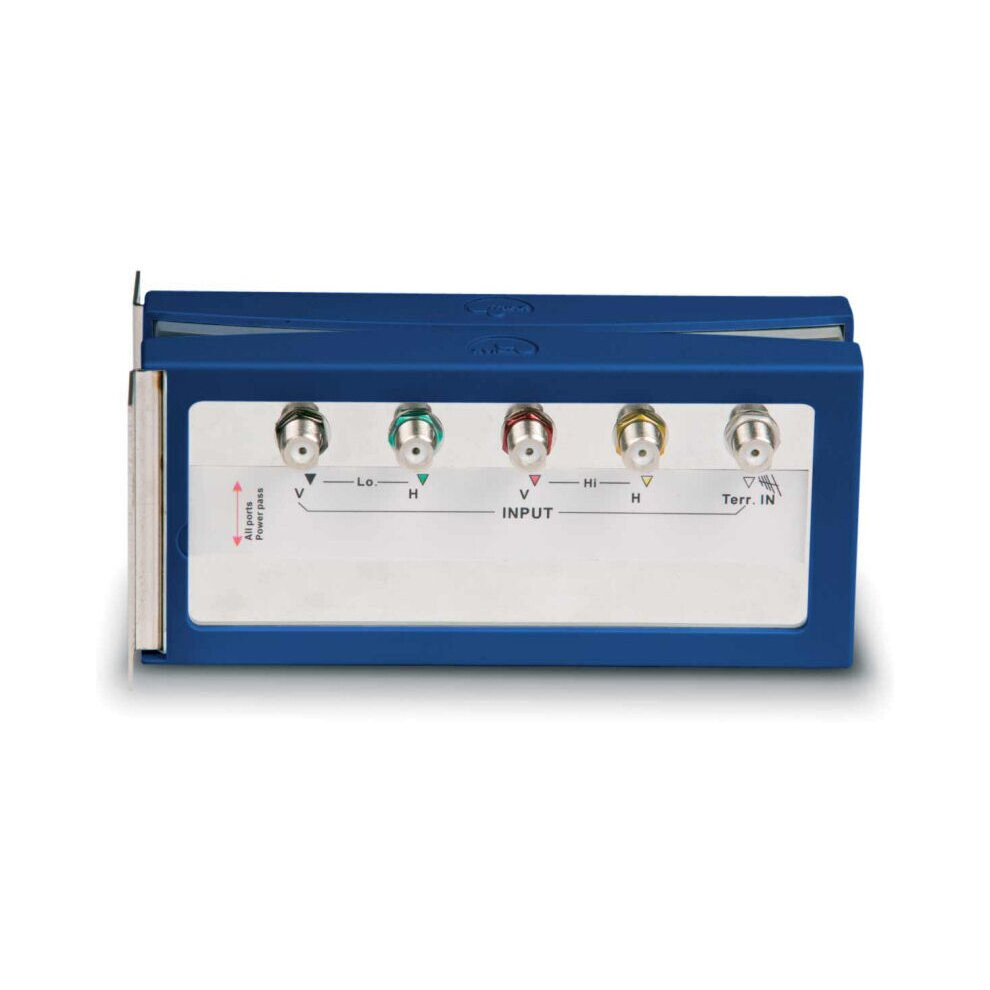

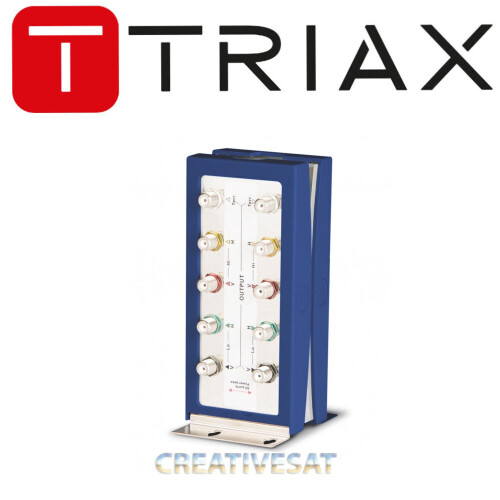

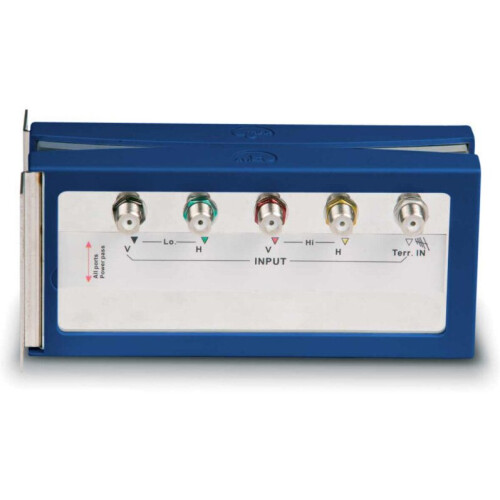

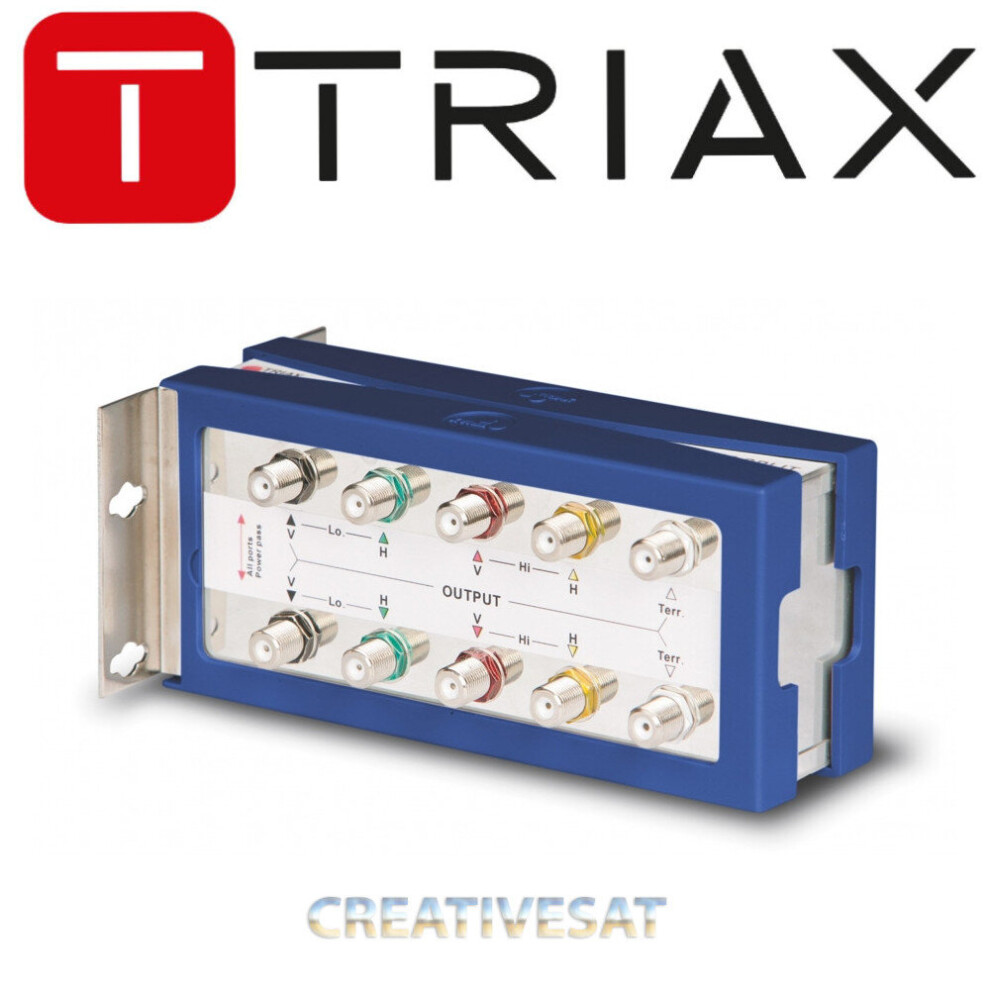

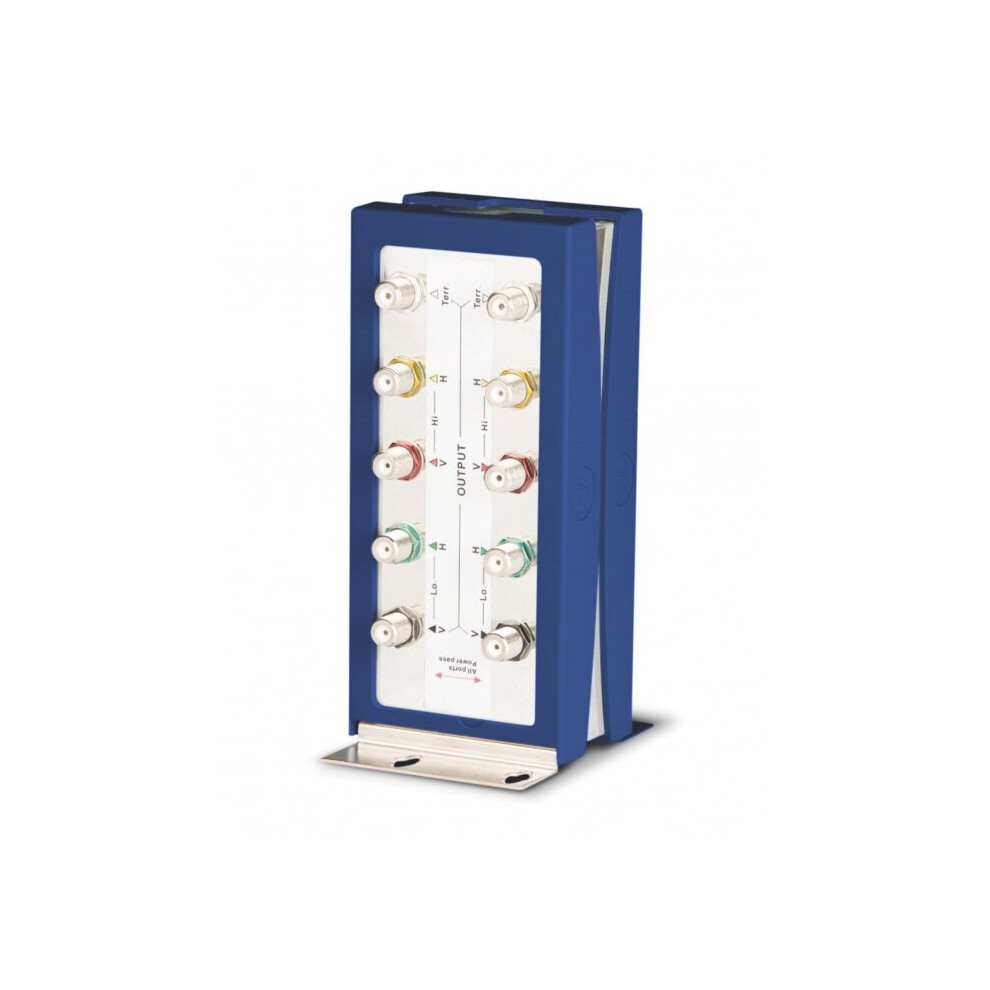

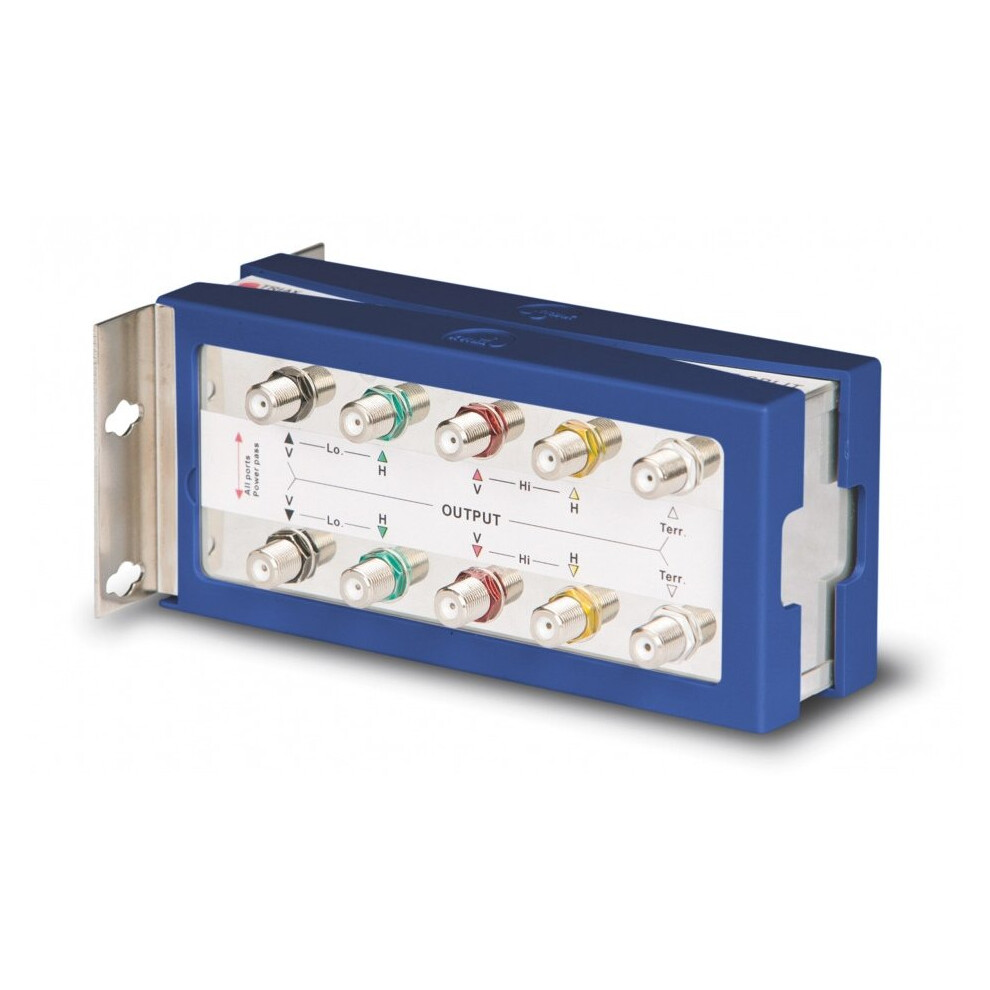

Triax TMM 5 SPLIT x 10 Cascade Splitter Satellite Terrestrial -305319
Brand Triax
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 128,000 Trustpilot reviews and an 'Excellent' rating
£55.95
FREE Delivery
1%
Earn £0.56 instantly
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Wed 15th - Thu 16th Jul
Sold by: Creative Superstore
Returns: 30 days
180-day payment protection
Most Popular in TV Satellite Splitters
Description & Details
Summary
- Triax TMM Splitter for the TMM Cascadable Series
- This splitter splits all 4 polarities plus a TER signal of one complete SAT position into two ways.
- Unit comes complete with screws for wall mounting
- Enables to be positioned to either and orientated horizontally or vertically
- Colour coded inputs and outputs
Triax TMM 5 SPLIT x 10 Cascade Splitter Satellite Terrestrial -305319 Description
Triax TMM 5 SPLIT 5x10 Multiswitch Cascade Splitter Satellite Terrestrial -305319
Triax TMM Splitter for the TMM Cascadable Series. This splitter splits all 4 polarities plus a TER signal of one complete SAT position into two ways.
Product Overview:
-
Unit comes complete with screws for wall mounting
-
Enables to be positioned to either and orientated horizontally or vertically
- Colour coded inputs and outputs
Technical Specifications:
FREQUENCY:
Frequency range UHF: 470-862 MHz
Frequency range: 47-2150 MHz
LOSS:
Insertion loss - SAT: 4.5 dB
Insertion loss - TER: 4.3 dB
Through loss SAT: 4.5 dB
Through loss TER: 4.3 dB
ISOLATION:
Isolation out-out SAT: > 20.0 dB
Isolation out-out TER: > 22.0 dB
RETURN LOSS:
Return loss SAT: 13 dB
Return loss TER: 15 dB
Return loss TER outputs: In 15.0/out 15.0 dB
ELECTRICAL:
Impedance: 75 Ω
OPERATIONAL:
Environment: Indoors Use
DC Passthrough: Yes
Temperature range: 0...+55 °C
CONNECTORS:
Number of trunk inputs: 4 x SAT, 1 x TER
Number of trunk outputs: 2x4 SAT, 2x1 TER
Colourcoding of IF and TER inputs: Yes
Connector Type: F-female
MECHANICAL:
Material: Plated steel housing with blue plastic end cheeks
Height (mm): 190 mm
Depth (mm): 78 mm
Width (mm): 105 mm
Weight (kg): 0.49 kg
Details:
- Model : TMM 5 SPLIT
- Brand: Triax
- Part No: 305319
What's included:
1 x Triax TMM SPLIT 5 x 10 Multiswitch Cascade Splitter Satellite Terrestrial -305319
This item is recommended to be installed mainly by a Professional Engineer.
Details
| OPC | P72GGB9 |
|---|---|
| Brand | Triax |
| Codes | 5702663053199 (EAN) |
| MPN | 305319 |
| Rank | #8 TV Satellite Splitters |
| #47 TV Satellite Equipment |
Detailed Product Information
| Width | 105mm |
|---|---|
| Length | 78mm |
| Height | 190mm |
| Material | Plated steel housing with blue plastic end cheeks |
| Weight | 0.49kg |
| Colour | Blue and Silver metal |
