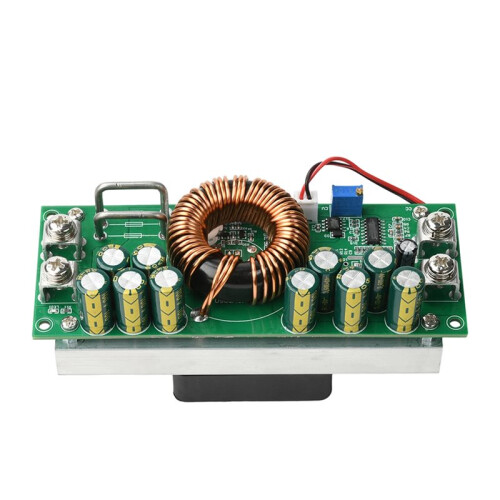

1200W Synchronous Rectification Buck Module DC15V-90V to DC2.5V-72V Constant Voltage Adjustable Power Supply Module

1200W Synchronous Rectification Buck Module DC15V-90V to DC2.5V-72V Constant Voltage Adjustable Power Supply Module Description

Synchronous rectification technology delivers high efficiency and savings, significantly reducing power loss

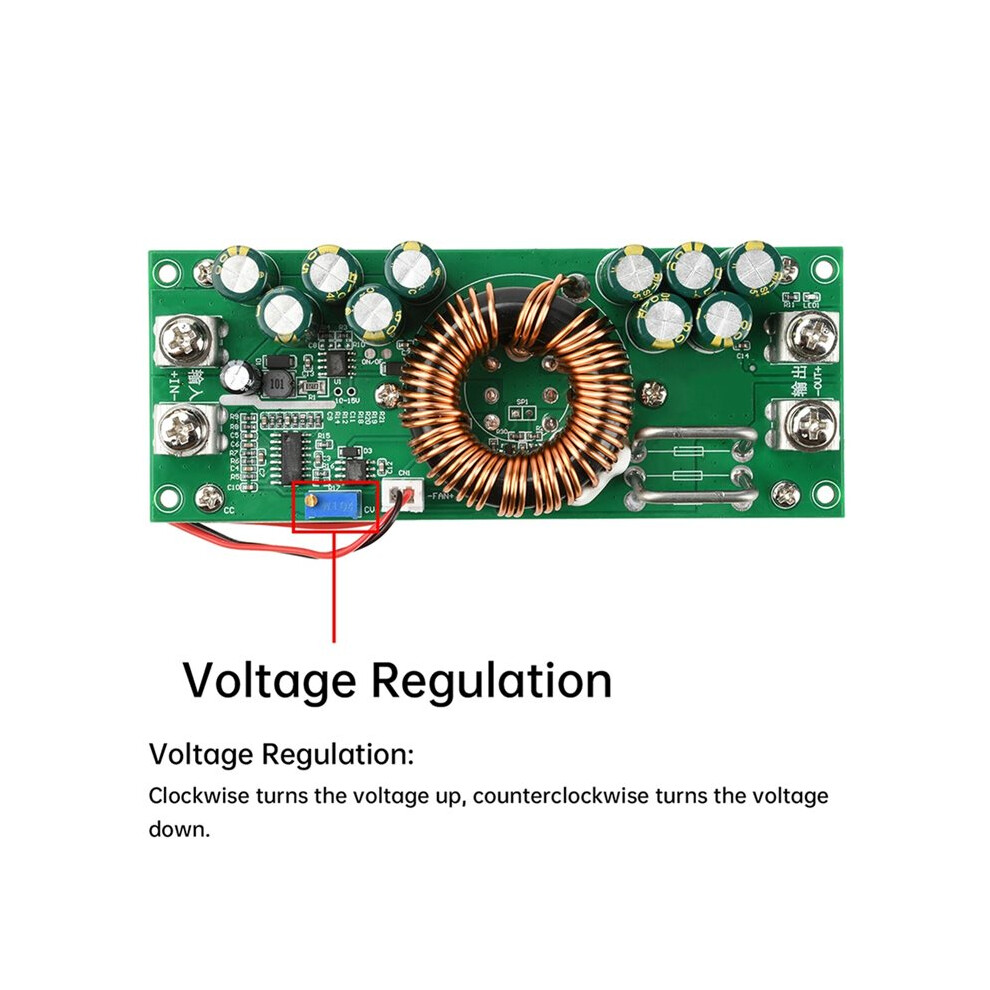

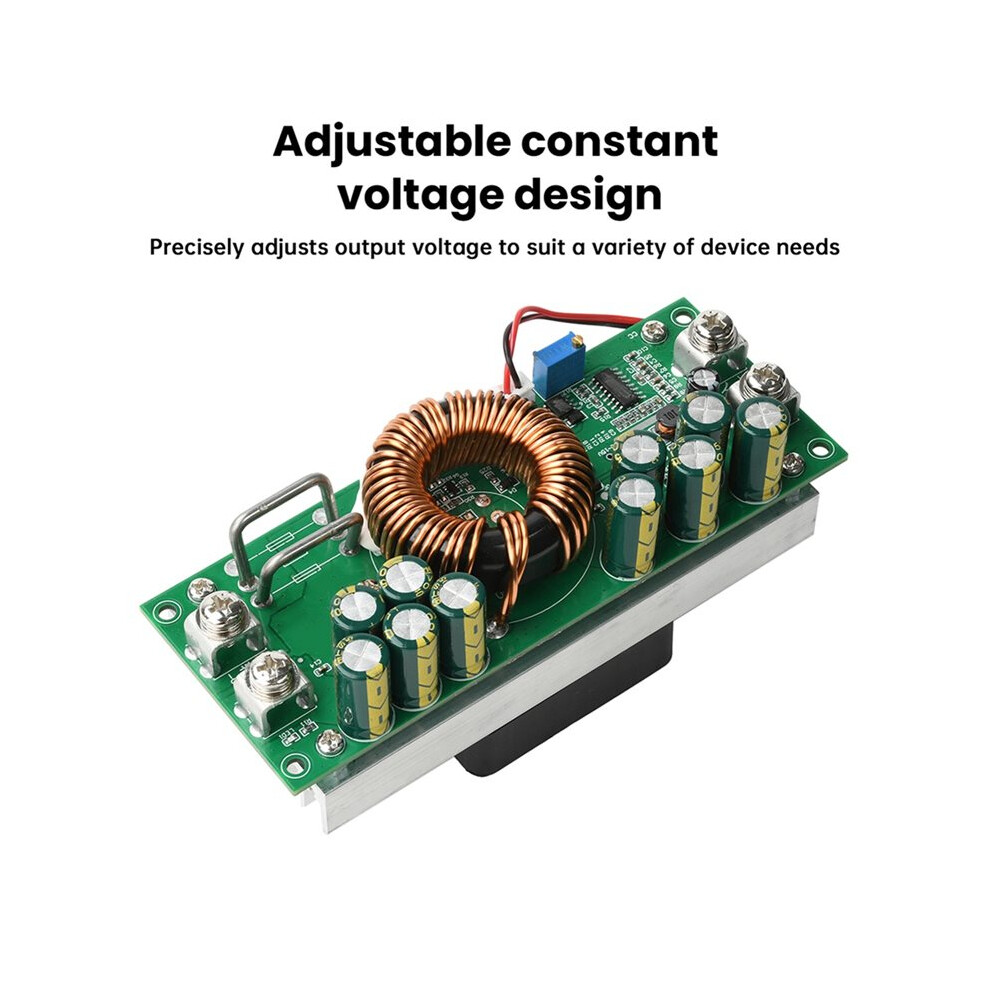

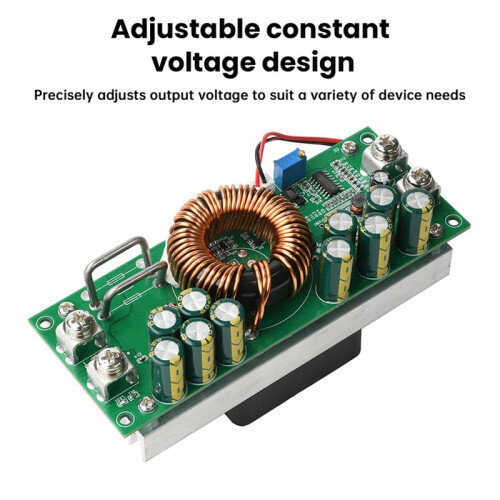

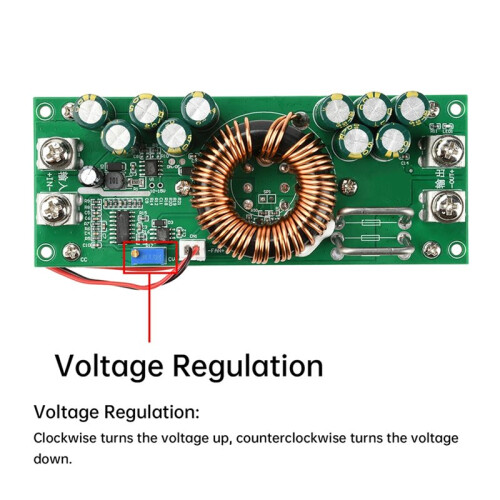

Constant voltage adjustable design enables precise output voltage regulation to accommodate multiple device requirements
Integrated module structure facilitates straightforward installation, saves space, and enhances system stability

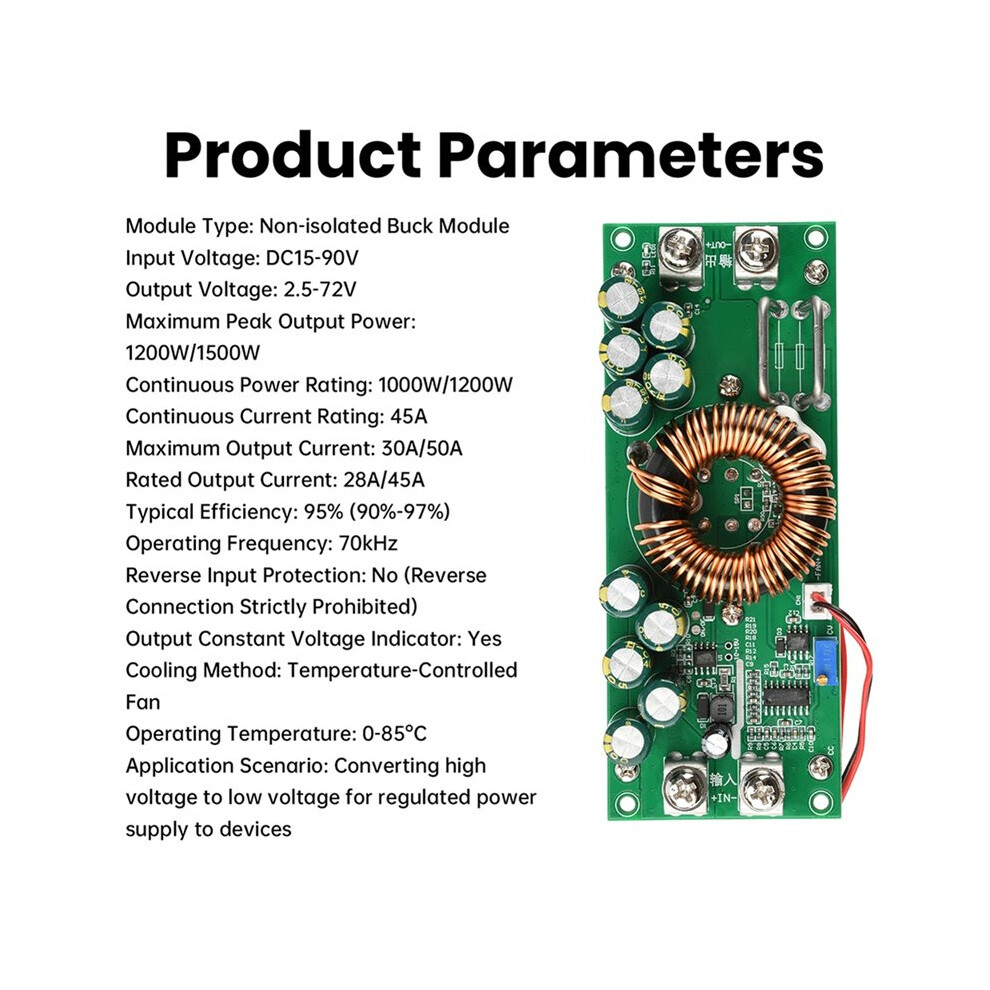

Product Specifications:
Module Type: Non-isolated buck converter (BUCK)
Input Voltage: 15-90V
Output Voltage: 2.5-72V

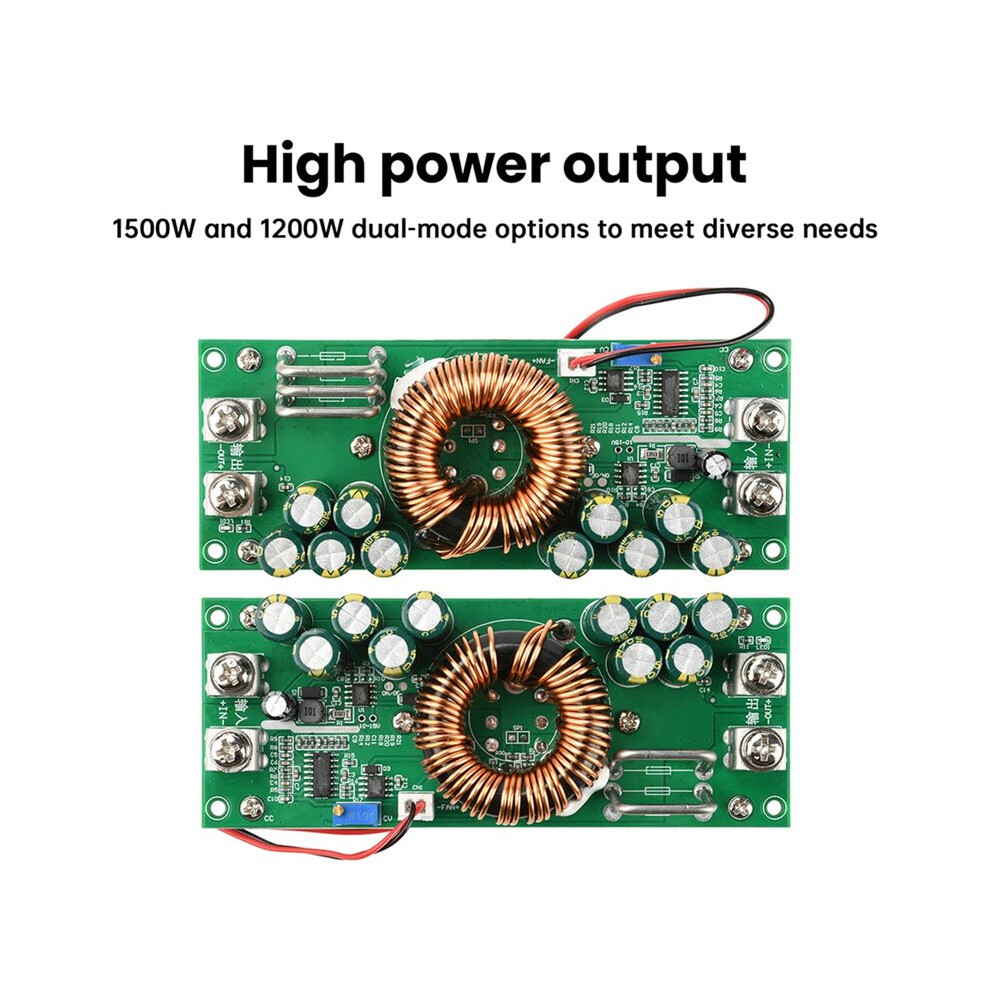

Maximum Output Power: 1200W
Continuous Rated Power: 1000W/1200W
Maximum Output Current: 30A/50A
Rated Output Current: 28A/45A
Typical Efficiency: 95% (90%-97%)
Operating Frequency: 70kHz
Input reverse polarity protection: None (reverse connection strictly prohibited)
Output constant voltage indicator: Yes

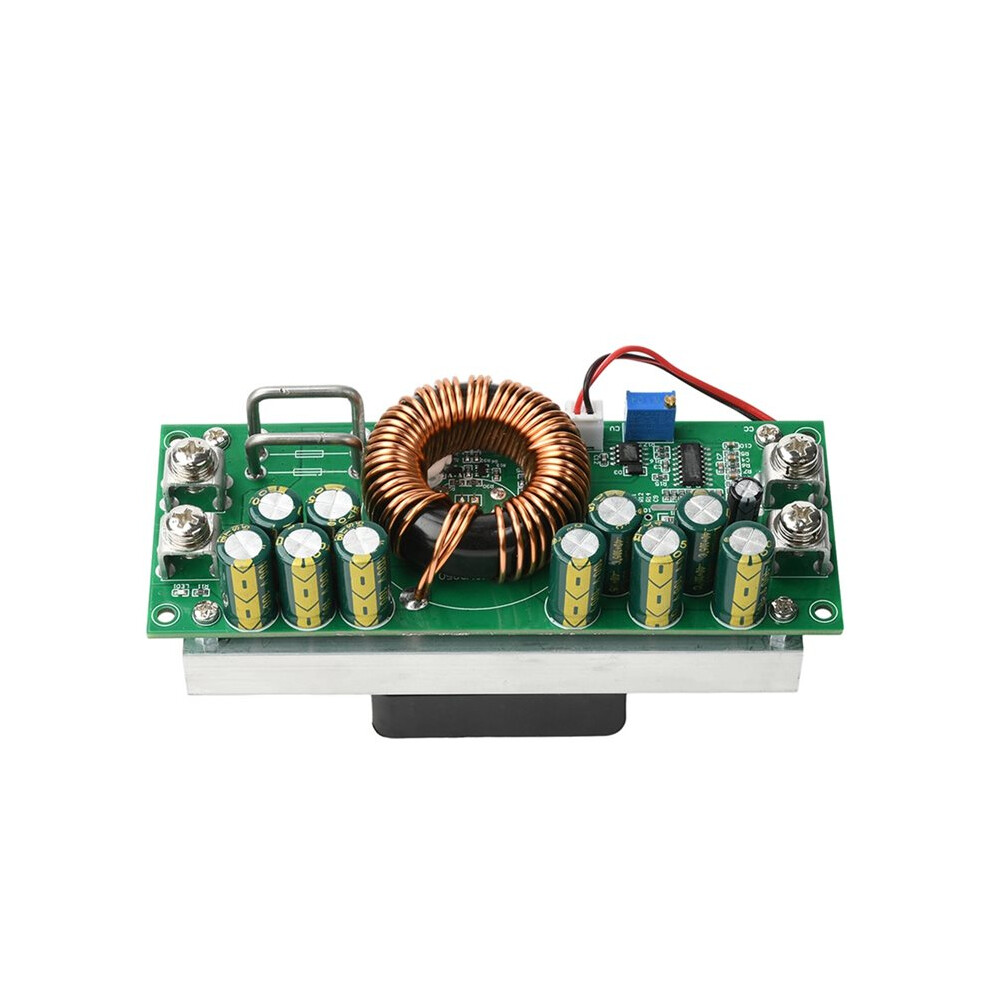

Cooling method: Thermally controlled fan cooling
Operating temperature: 0-85C
Application scenario: Converts high voltage to low voltage for regulated power supply to equipment

Important notes:
1. This power supply is a step-down converter; it can only reduce voltage, not increase it.
2. Input polarity must not be reversed.
3. This is a constant-voltage power supply with non-adjustable output current. Not recommended for constant-current battery charging or LED constant-current driving.
4. When connecting to a motor, series-connect a Schottky diode rated for 50A or higher at 100V across the positive output terminal to prevent back-current. Avoid prolonged operation at maximum power/current; maintain at least 20% reserve capacity during extended use.
Color: As Shown
Material: Plastic+Metal

Package Contents:
1* Buck module
