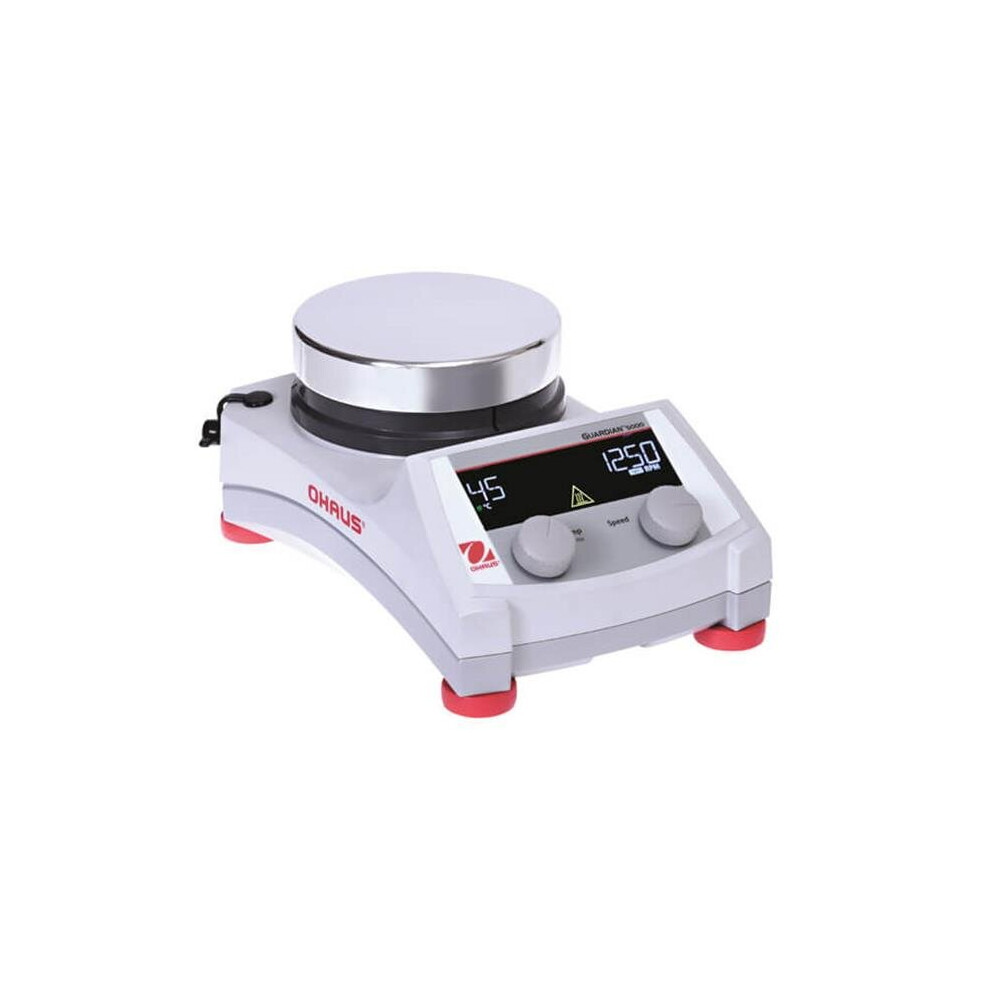

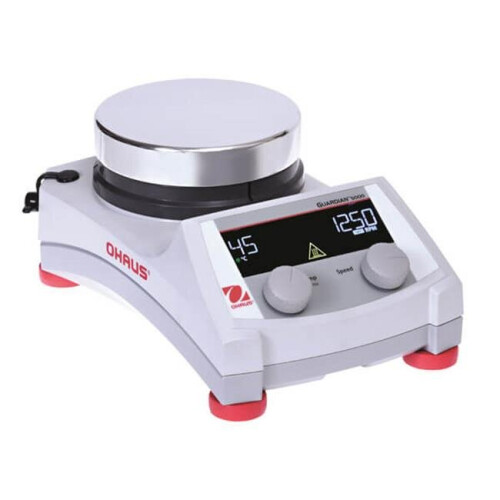

120V US Digital Control Hotplate-Stirrer, E-G51HSRDM

120V US Digital Control Hotplate-Stirrer, E-G51HSRDM Description

Guardian 5000 Hotplates Stirrers are designed for safety and simplicity in all research, academic and industrial applications. The design ensures proper mixing and temperature control of the top plate or your sample when using the optional temperature probe. Heating models include a Single Point Calibration feature for multiple setpoints. Select from five models with three plate sizes for your everyday heating and stirring applications.

Applications:

• Boiling Water, Water/Oil Bath Preparation, Sample and Solution Preparation, Dissolving Buffers and Reagents, Preparing Media, Concentrating Samples

Display:

• Backlit LCD Display for temperature and speed, green indicator lights when unit is heating and stirring, prominent hot top indicator light, probe in use icon, Single Point Calibration icon

Design Features:

• Hot top indicator light, audible alarm, SafetyHeat protection shuts off the heater in the event of a malfunction, temperature calibration feature for 3 probe and 3 plate setpoints

Construction:

• Probe connection, SmartHousing stays cool to the touch and is chemical resistant, IP21 Ingress Protection, polycarbonate front panel, control knobs, On/Off switch for heater disconnect, built-in support rod holder, easy to clean ceramic or aluminum tops

Operation:

• Stirring from 60 to 1600 rpm, Temperature range of ambient +5°C to 500°C (ceramic top) or 380°C (aluminum top), power cord (included), stirring models include a 15" (38 cm) PTFE coated stir bar

Specifications

• Function: Heating and Stirring
• Capacity: 20 L
• Plate Construction: Aluminum
• Plate Size: 5.3 in.
• Temperature Range: Ambient + 5°C - 380°C
• Speed Range: 60 rpm - 1,600 rpm
• Calibration: Temperature calibration
• Control: Digital
• Dimensions: 5 x 10.5 x 6.8 in.
• Display: Custom Backlit LCD
• Power: 120V, 8.3A, 50/60Hz
• Power Consumption: 896 W
• Speed Range: 60 to 1600 rpm
• Speed Stability: +/-2%
• Temp. Stability: +/-3% Plate, below 100°C +/-2°C and +/-1% Probe, below 100°C +/-1°C
