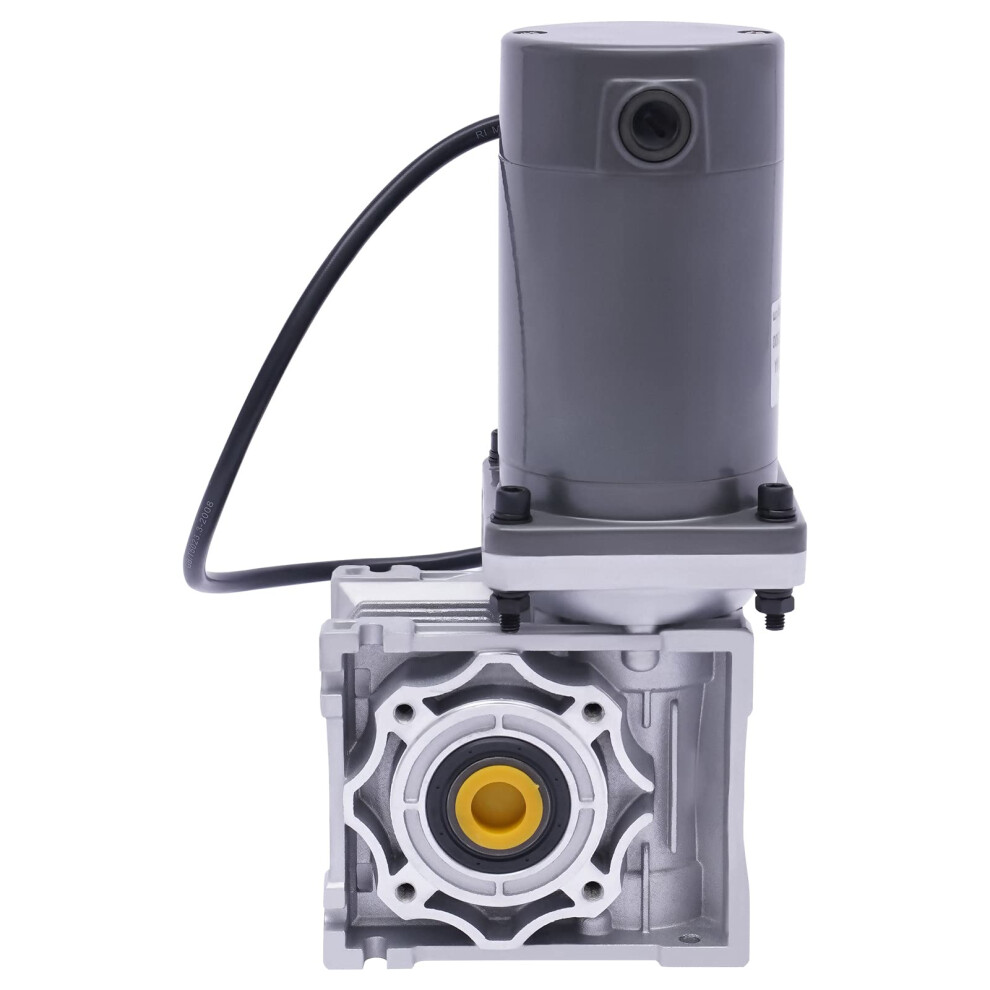

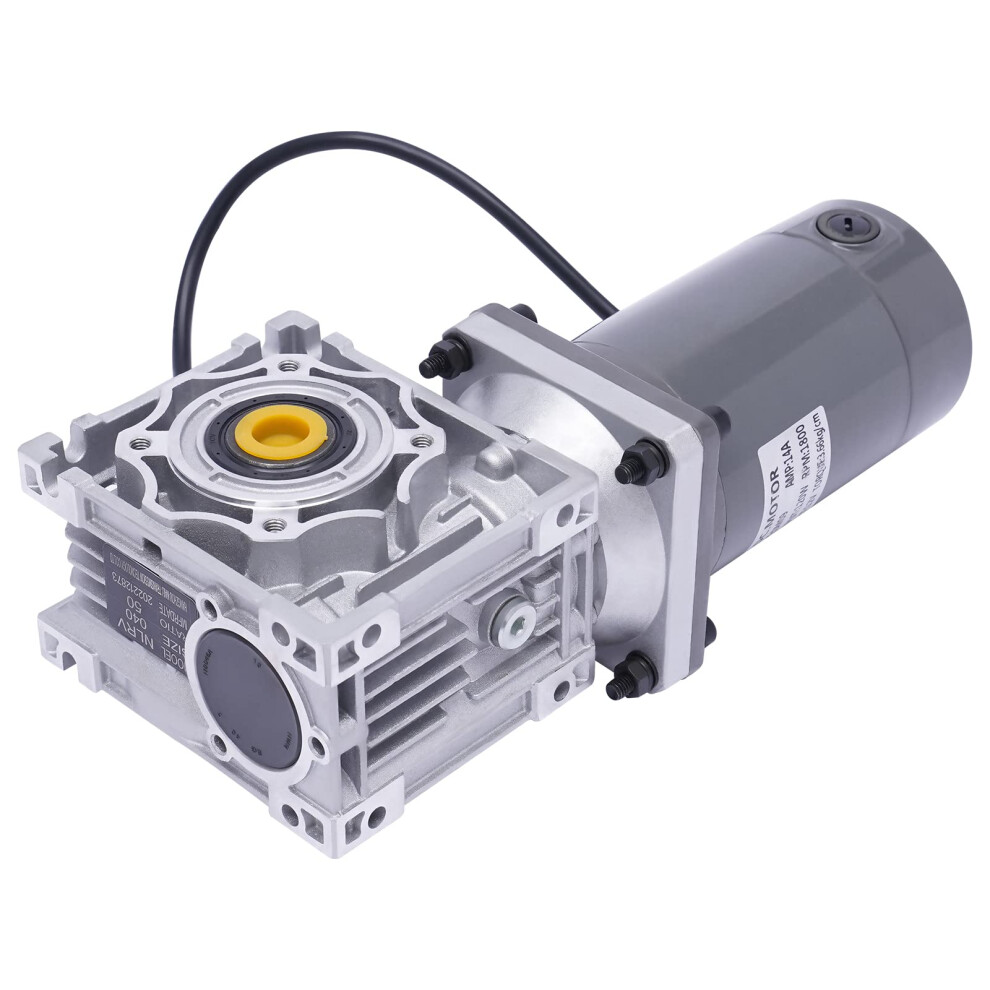

120W DC 12V Worm Gear Reducer Motor, Self-Locking Adjustable Speed Gearbox 914cm

120W DC 12V Worm Gear Reducer Motor, Self-Locking Adjustable Speed Gearbox 914cm Description

Product description

Details

Power Cable: The power cable uses pure copper coils, featuring good conductivity and a large current carrying capacity.

Cap: The yellow cap can effectively protect the output bore when not in use. After removing it, you can insert the shaft in the hole.

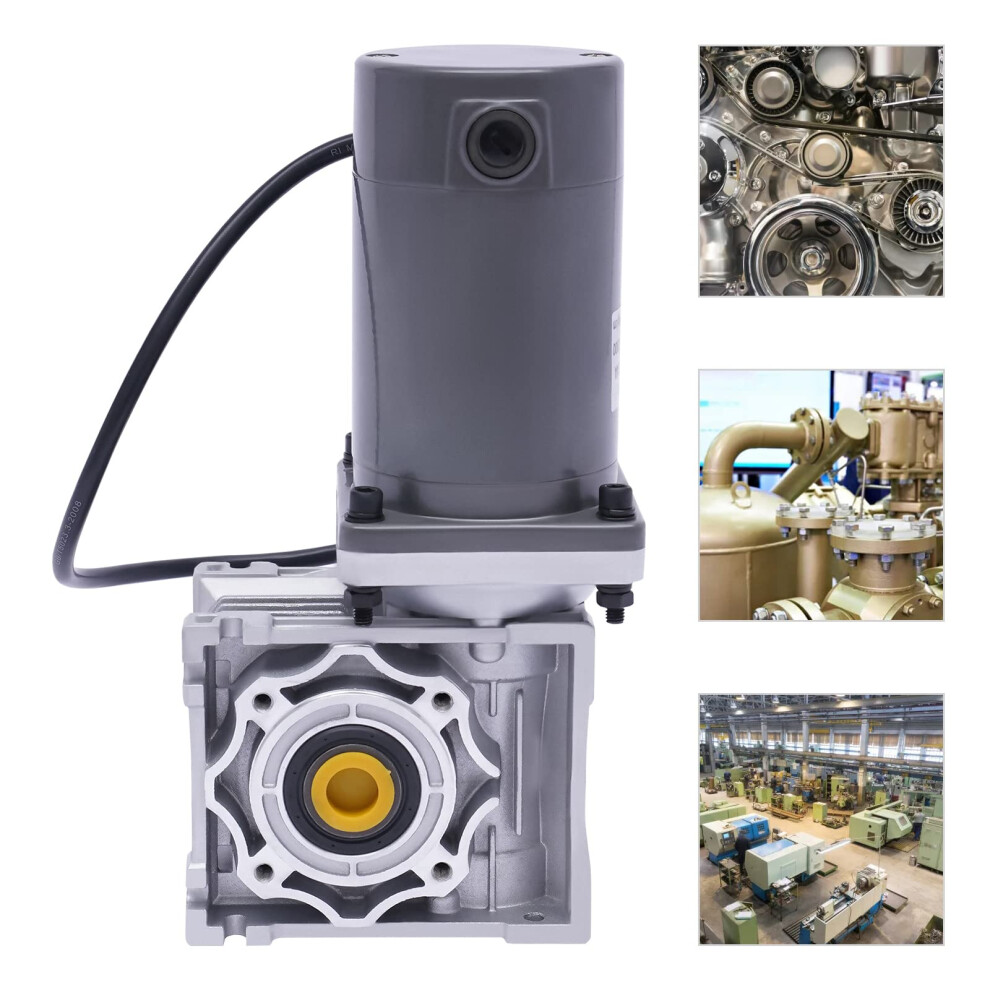

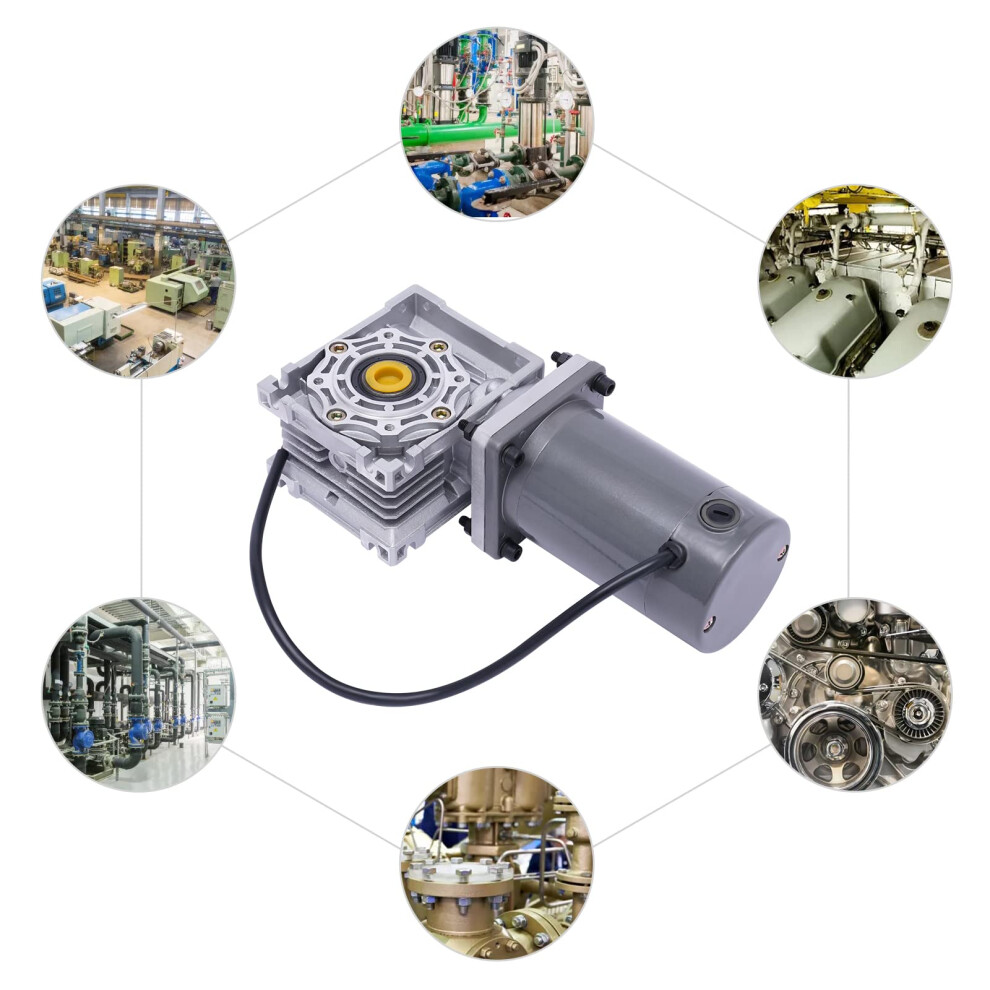

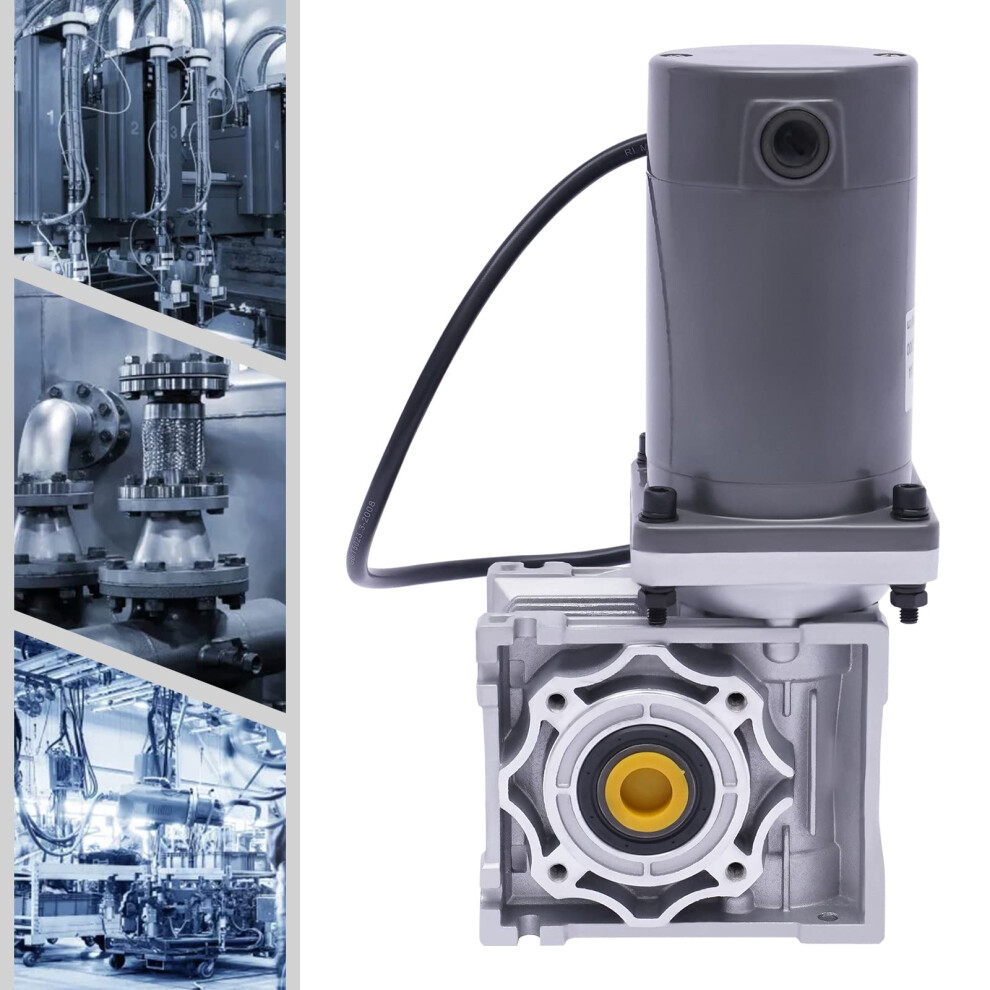

Application

It is widely used in automatic barbecue/mixing/doors/windows, conveyor belts, conveyors, feeders, calender, extruders, peeling machines, blenders, cargo lifts, packaging machines, textile/printing/food machinery, vending machines, office/medical equipment, etc.

Specifications

Type: DM09

Model: NLRV

Gearbox: NLRV-040

Color: Gray

Material: Cast Aluminum, Hollow Steel Tube

Processes: Die-casting, Heat Treatment

Shape: Square, Round

Feature: Portable

Type: DC Motor

Gearbox Type: Worm Gearbox

Motor: Pure Copper Motor

Noise: About 50-60db

Output Type: Hollow Bore

Torque: 3.66kg/cm

Voltage: DC 12V

Power: 120W

Speed: 1800RPM

AMP: 14A

Ratio: 1:50 (50K)

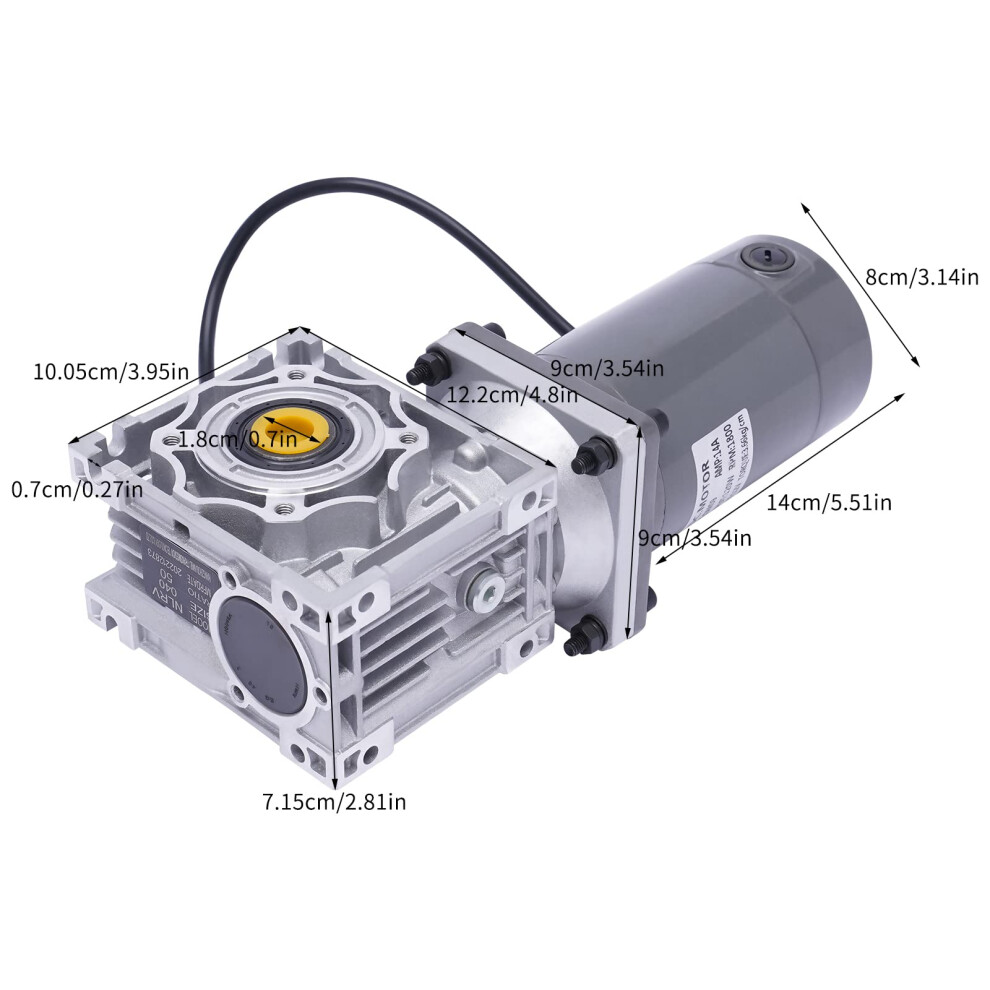

Input/Output Flange Size: 9*9cm/3.5*3.5inch

Output Bore Diameter: 18mm/0.7inch

Installation Hole: 7mm/0.27inch

Gear Motor Size(L*H): 9*14cm/3.5*5.5inch

Connect Interface Size: 9*9cm/3.5*3.5inch

Package Size: 30*14.5*10cm/11.8*5.7*3.9inch

Net Weight: 5kg/lbs

Gross Weight: 5.5kg/lbs

Package Included

1* 120W Gear Motor

Notes

1.It is not suitable for positioning applications. Please note that the product does not include a speed controller.

2.Based on the industrial standard, to meet the different needs of customers, our motor does not include a power cord. You need to purchase a power cord to connect.

3.Please do not plug&unplug the power cable when the power is on. Please do not knock or beat the machine.
