125Khz EM4100 RFID Card Key ID Reader RF Module with Key Tag For

125Khz EM4100 RFID Card Key ID Reader RF Module with Key Tag For Description

Description:

Independent crystal oscillator.
Coil pluggable.
Simultaneous output of serial port and Wiegand: Both communication modes are compatible and powerful.
Mini size, can be installed to any occasion.
Light instructions: Under normal conditions, the indicator light on the board is always on, when the detection of the card into the card reader area, the indicator light flashes.
Copper Pour.
Square coil: suitable for use in building intercom and access control.
SMT batch processing, stable quality, beautiful appearance.

Specification:

Support Card Type: Read-only ID Card EM4100, 4001
Support card frequency: 125Khz
Reading distance: 3-10cm
Card reading time: <0.2s
Output Interface: Wiegand; Serial UART Out, TTL Level
Power Requirements: 5V
Working temperature: -55 - 125 C
Relative Humidity: Work: 20%-90% RH; Storage: 10%-90% RH
Coil Size: approx. 5 x 2.9cm
Module Size: approx. 2.7 x 1.8cm

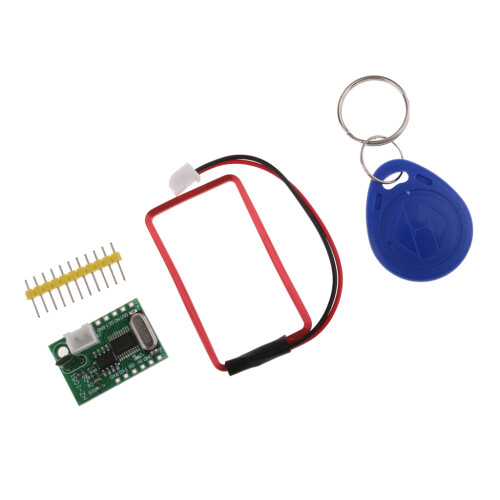

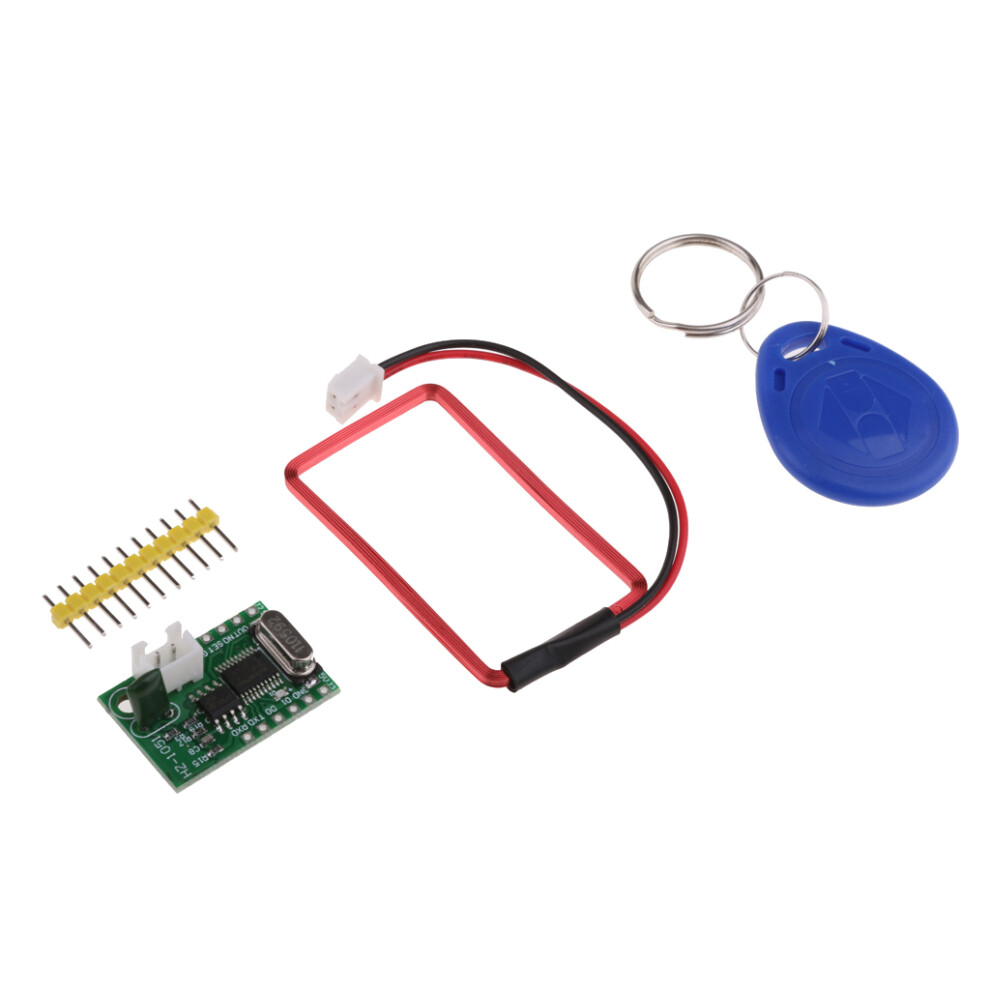

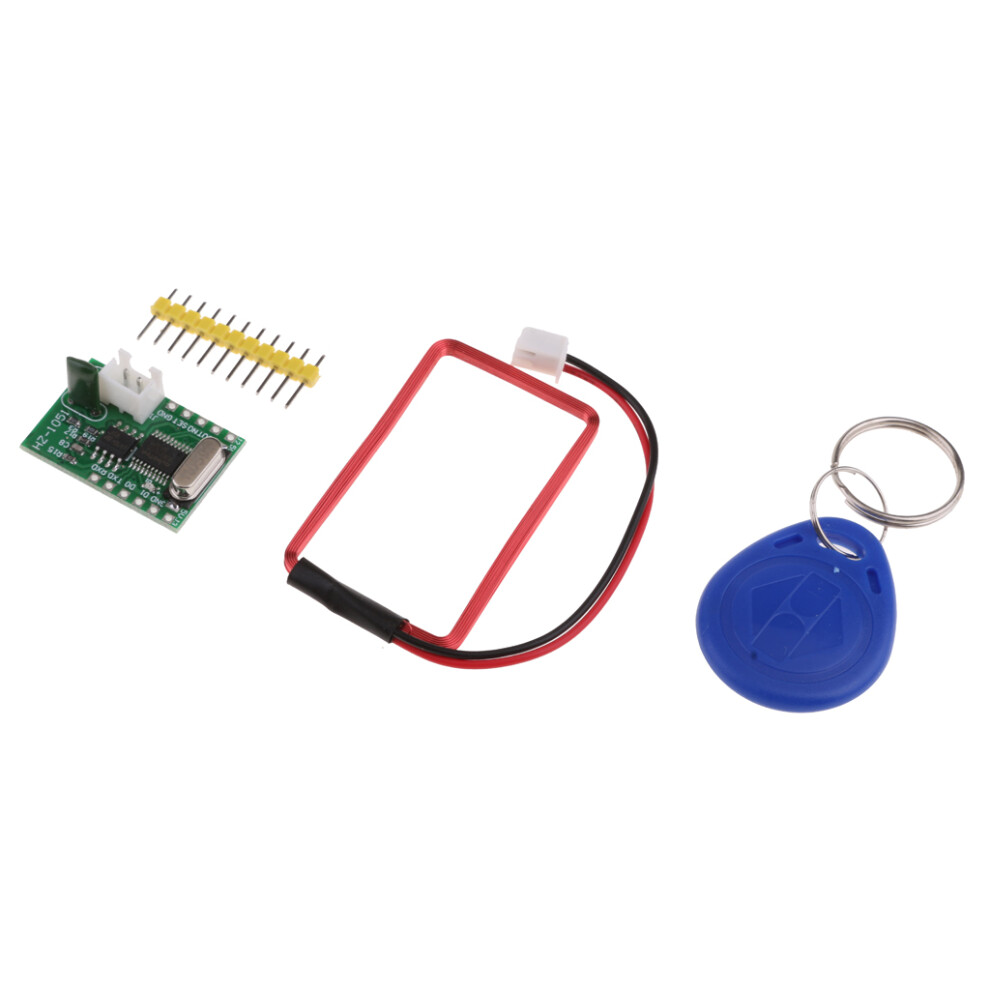

Package Includes:

1 Piece Module
1 Piece Pin
1 Piece Coil
1 Piece Key Tag

Note:

Color maybe slightly different due to different monitor.
The above size is measured by hand, please allow slightly difference. Thanks !
