12V 24V Wind Turbine Generator Kit Gourd Shaped

12V 24V Wind Turbine Generator Kit Gourd Shaped Description

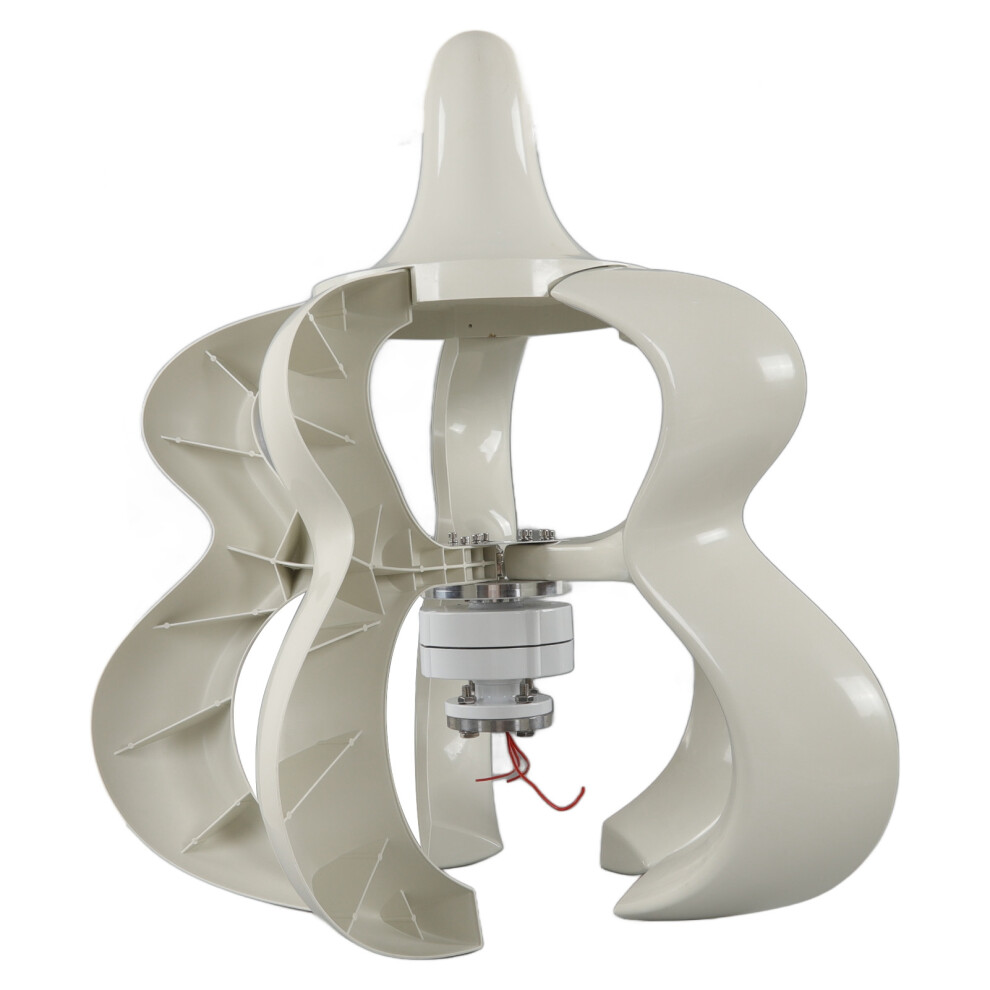

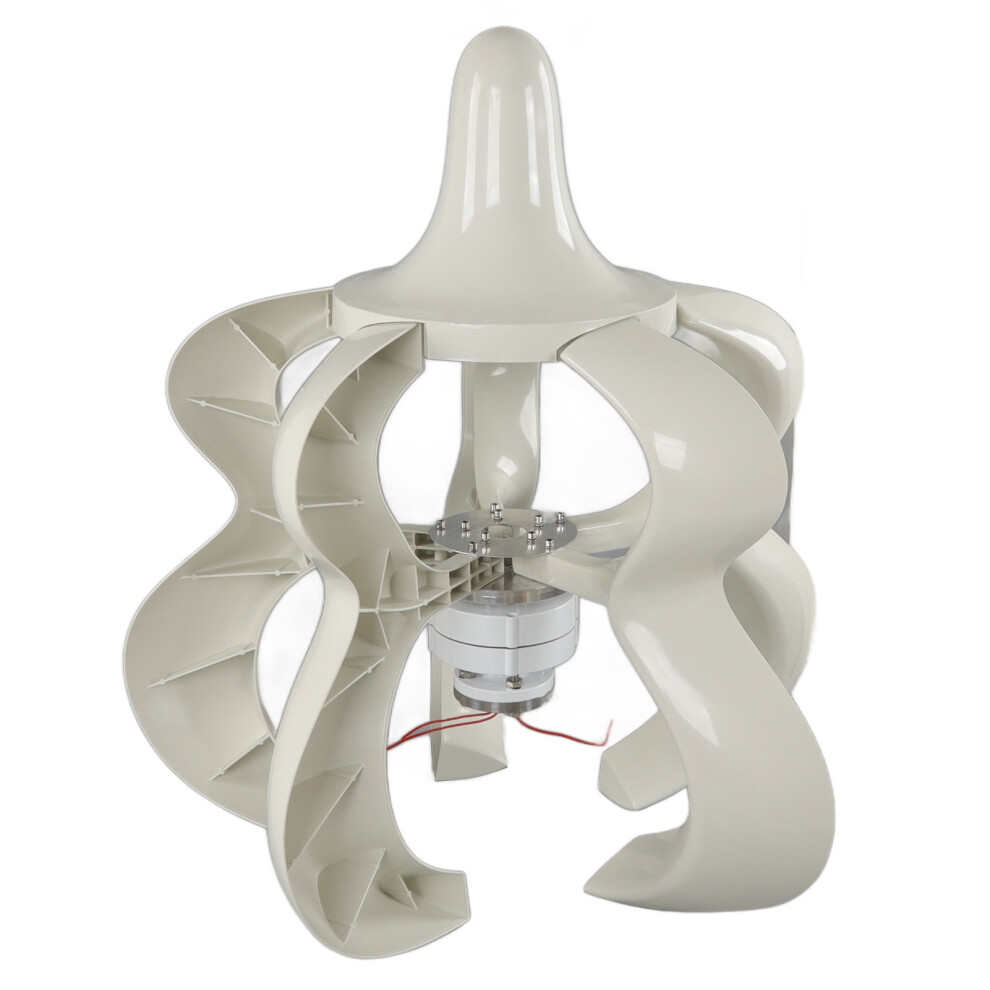

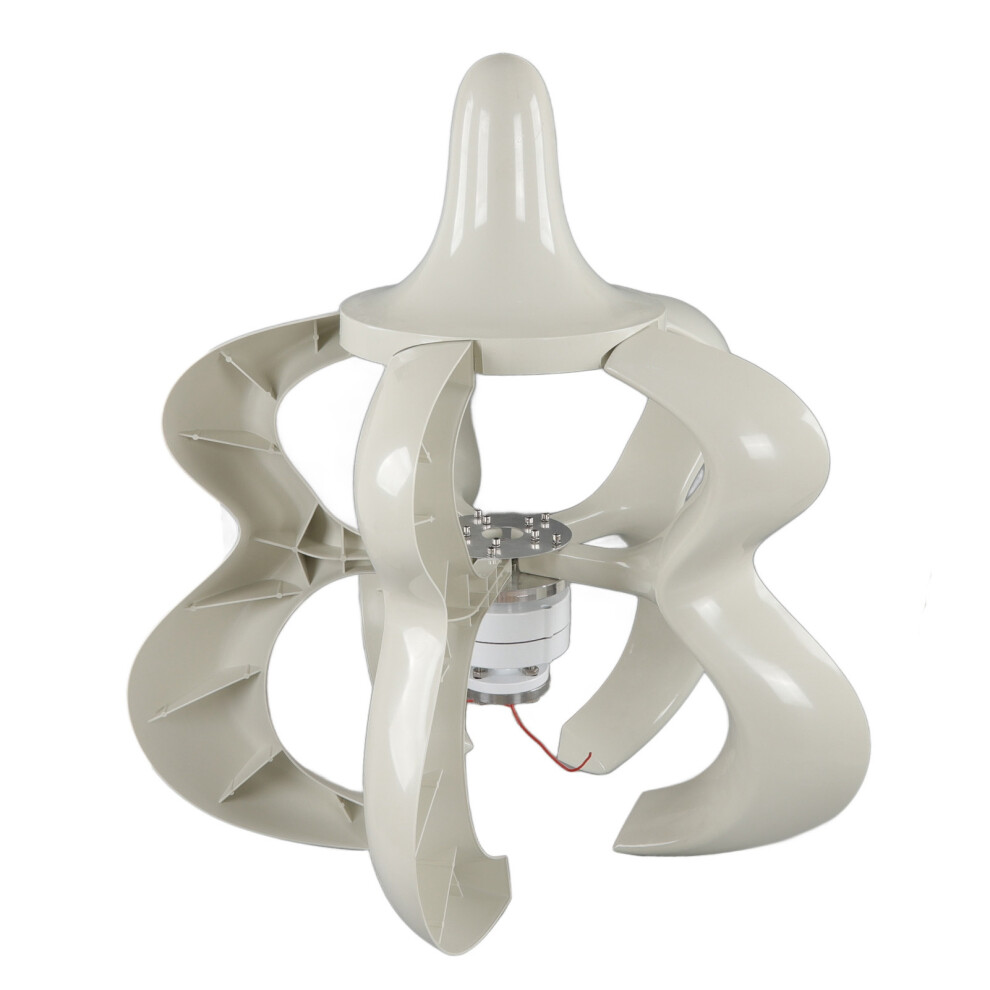

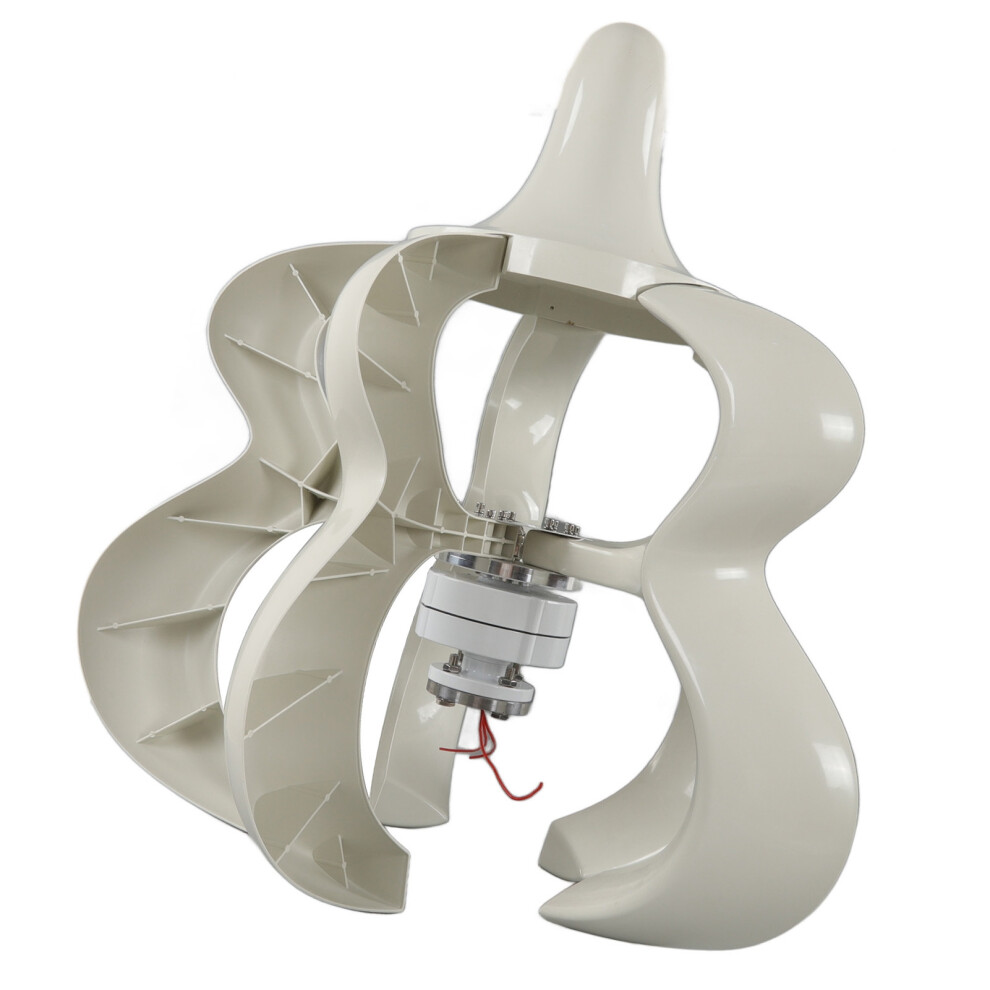

12V 24V Wind Turbine Generator Kit Gourd Shaped Generator 5 Blades Vertical Shaft with Controller 200W

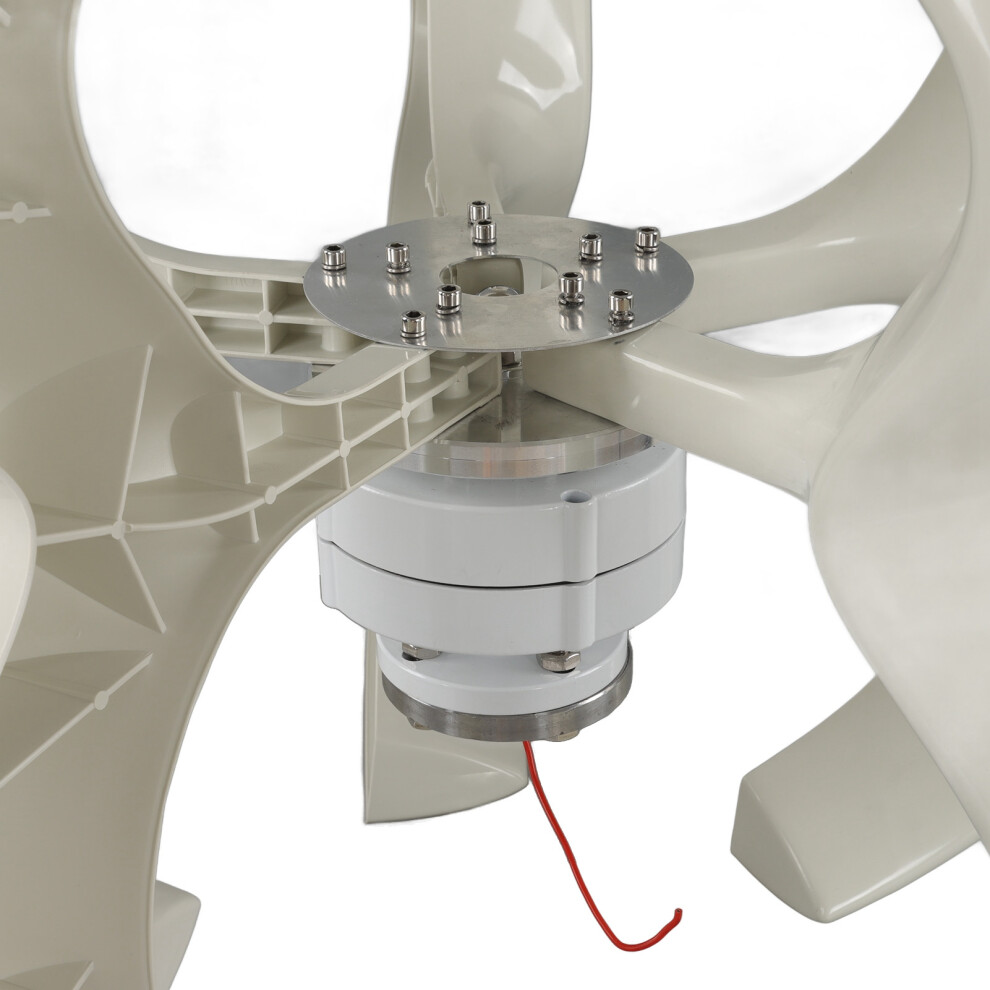

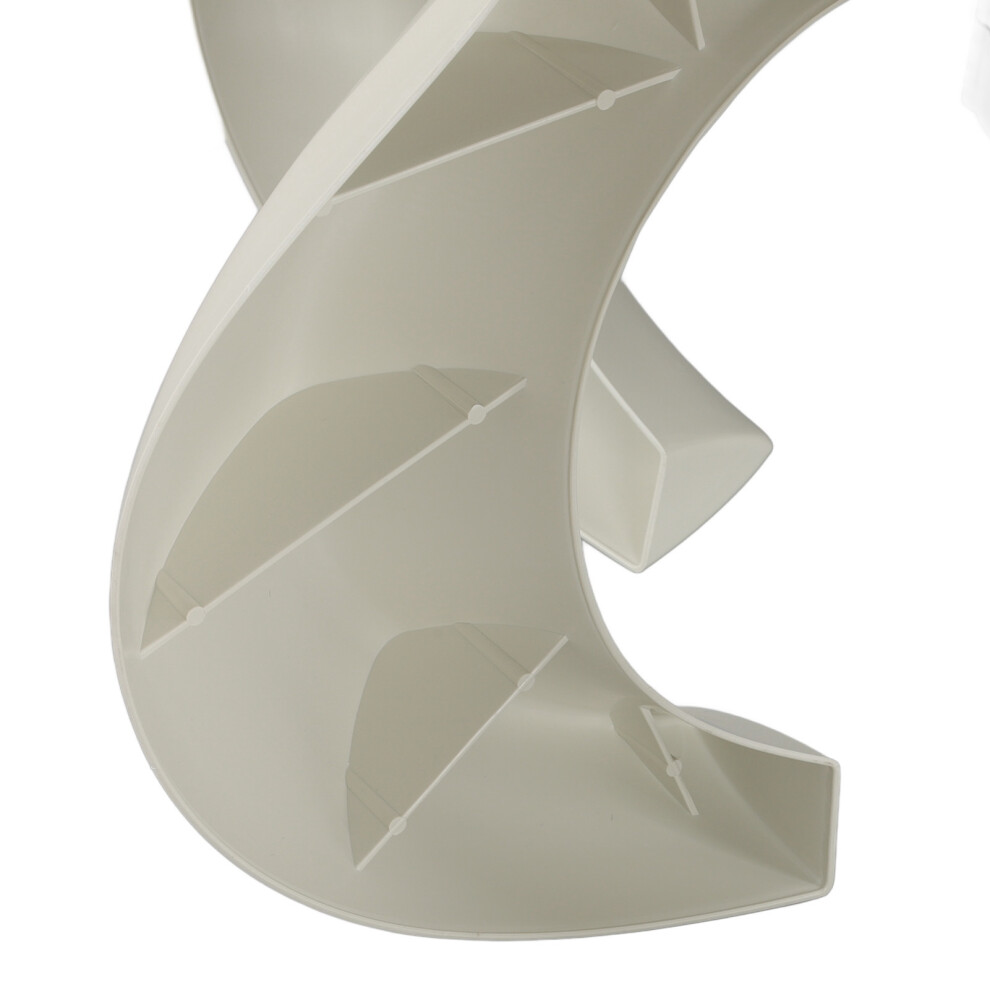

1、5 Blades and Flanged Mounting: Equipped with 5 double shaft vertical blades for high safety. Because the blades are fixed inside by flanges, there is no danger of blades falling off. 2、Efficient Utilization: The wind blades are made of reinforced fiber nylon, which is more durable and has strong wind resistance. Especially optimized aerodynamic shape and structural design for high wind energy utilization. The wind generator can start in light wind and adapt to 360 degree wind without yawing system. 3、Quiet Rotation: Vertical wind turbines are quieter than horizontal shaft turbines. Double bearings make the wind generator more stable and less prone to shaking when working. 4、Three phase permanent magnet: Three phase permanent magnet alternator can effectively reduce the resistance torque of wind generator. It also makes the wind turbines and generator match better and work more reliably. 5、Easy Installation: Vertical shaft wind generator can use helical pile foundations. Compared to concrete installation, it saves cost and is easy and fast to install. Helical pile bases can be fully recycled at the end of their service life. An environmentally friendly and low carbon approach.



Item Type: Wind Generator Material: Nylon fiber, aluminum alloy, stainless steel Weight: Approx. 10250g/361.56oz Single Blade Size: 60x37cm/23.62x14.57in Controller Voltage: 12V 24V (automatic identification) Controller Protection Level: IP67 Installation Method: Flange installation Blade Number: 5 pieces Rated Wind Speed: 11m/s Safety Wind Speed: 45m/s Generator: Three phase AC permanent magnet synchronous generator Adjustment Mode: Wind angle automatic adjustment Scope of application: Suitable for home, ship, marine, monitoring use, solar and wind energy hybrid system.



5 x Wind Generator Blade 1 x Wind Generator Cap 1 x Retainer 1 x Flange 1 x Mounting Plate 1 x Generator Controller 1 x Hex Wrench 2 x Accessories 1 x Instruction Manual
