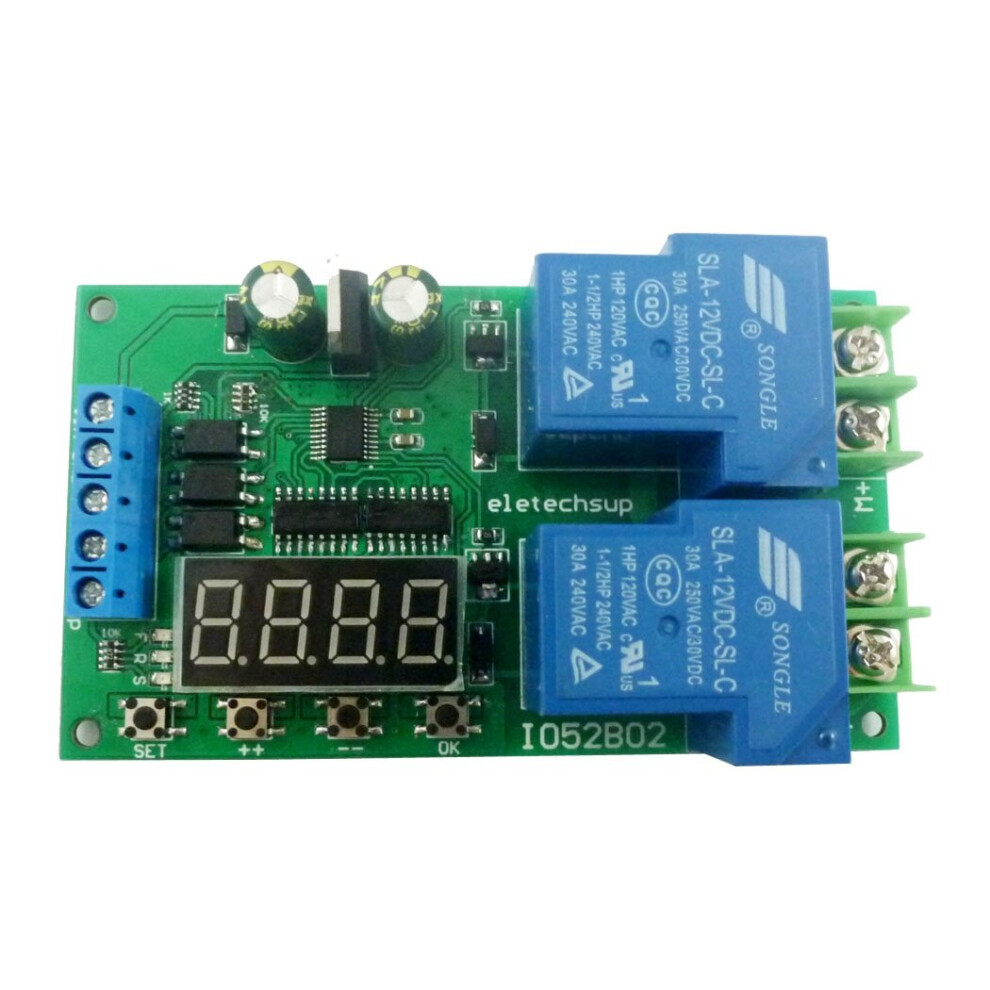

12V 30A Multifunction DC/AC Motor Controller Relay Board Forward Reverse Control Automatic Delay Cycle Start Stop Switch Module

12V 30A Multifunction DC/AC Motor Controller Relay Board Forward Reverse Control Automatic Delay Cycle Start Stop Switch Module Description

Description:

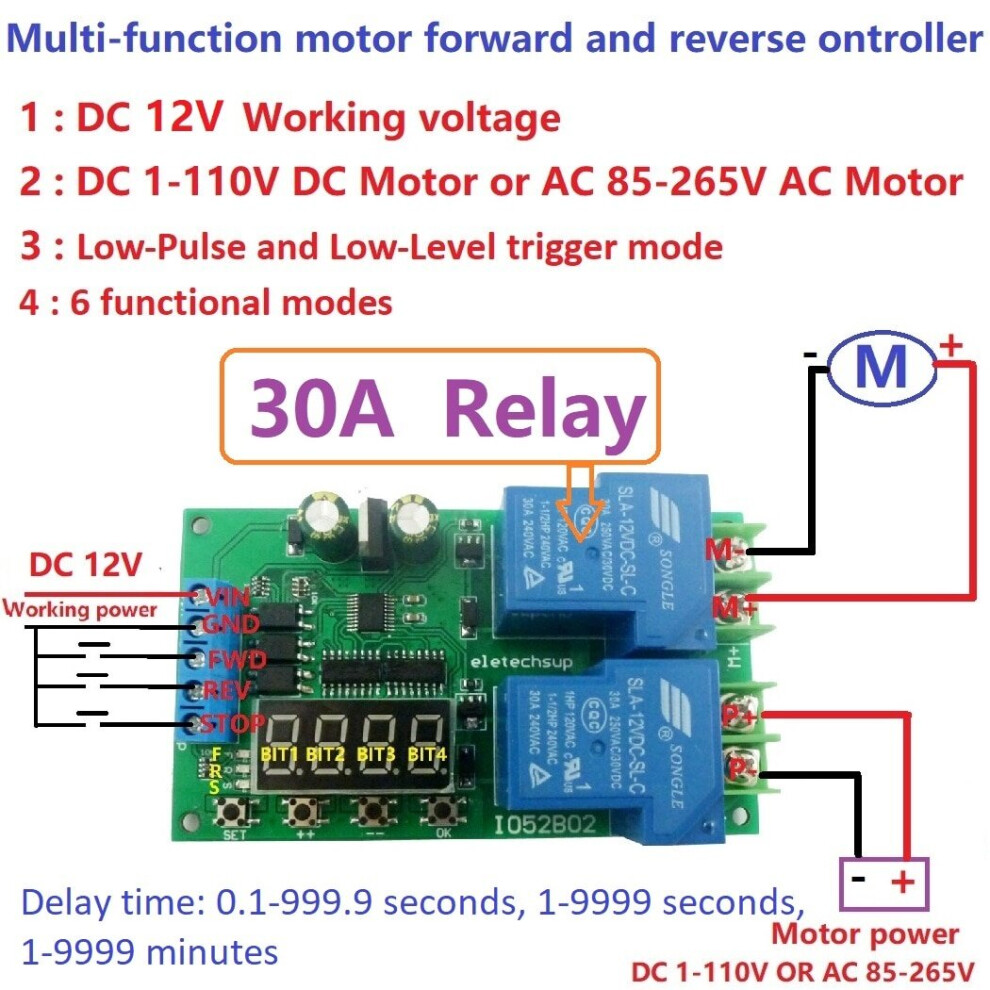

1 Working voltage: DC 12V
2 Working current: (Normal Mode) standby current 22mA, working current 109mA;
(Energy-Saving mode) Standby current 7mA, working current 76mA.
3 There are three input control ports: forward control(FWD), reverse control(REV), and stop control(STOP).
4 Two input trigger modes, Low-Pulse trigger mode, Low-Level trigger mode
5 Delay time: 0.1-999.9 seconds, 1-9999 seconds, 1-9999 minutes.
6 Cycle times: no cycle, 2-99 cycles, always cycle.
7 Three indicators: forward indicator(F LED), reverse indicator(R LED), stop indicator(S LED).
8 6 functional modes.
9 Relay load current: 30A 250VAC/30VDC
10 Size: 97.5*56*24mm
11 Weight: about 87 grams

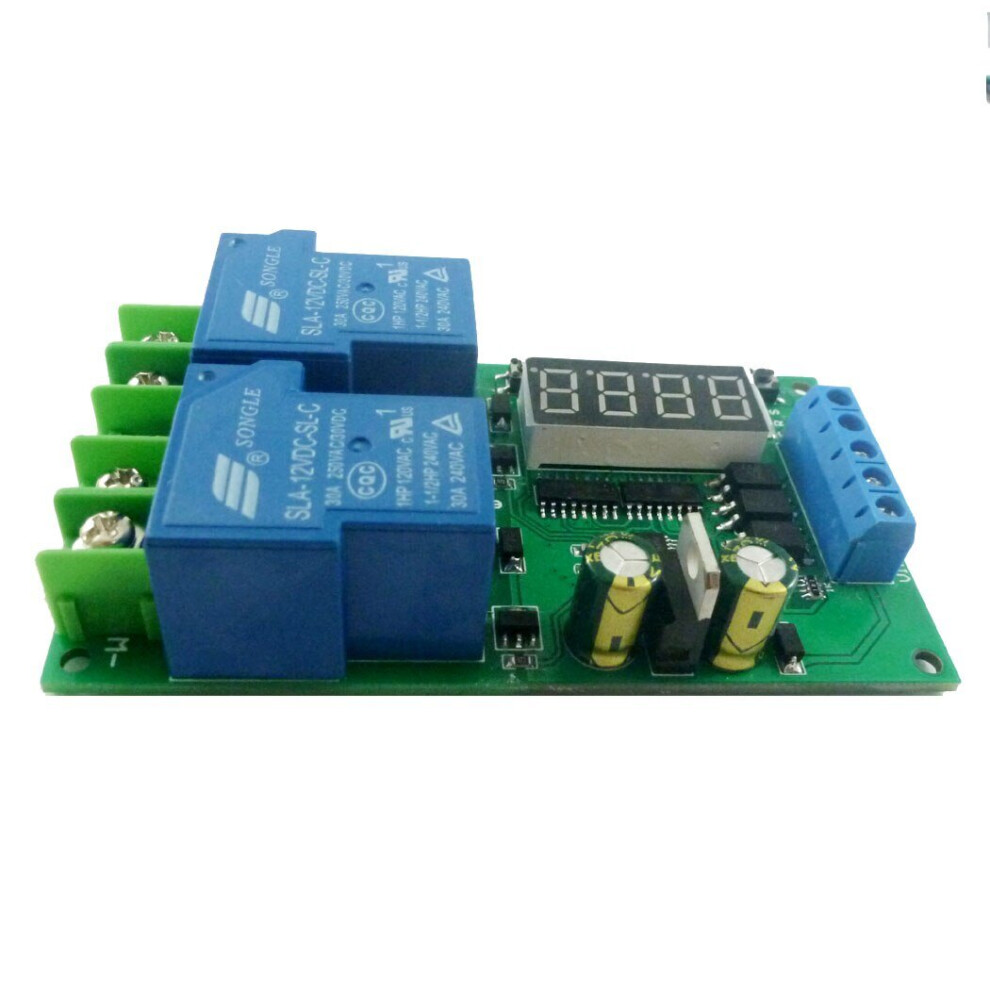

This is a 30A multi-function DC/AC motor forward and reverse controller with multiple control modes. Many control functions can be derived through reasonable settings.

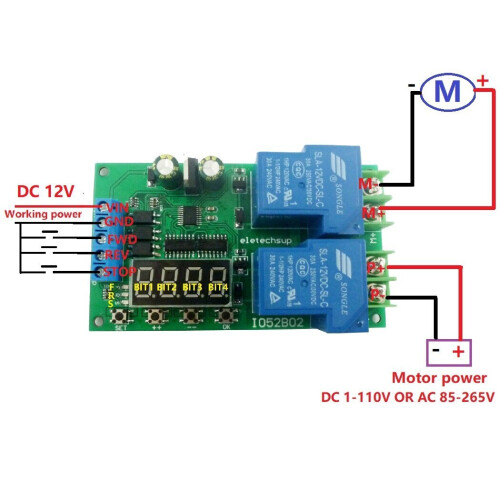

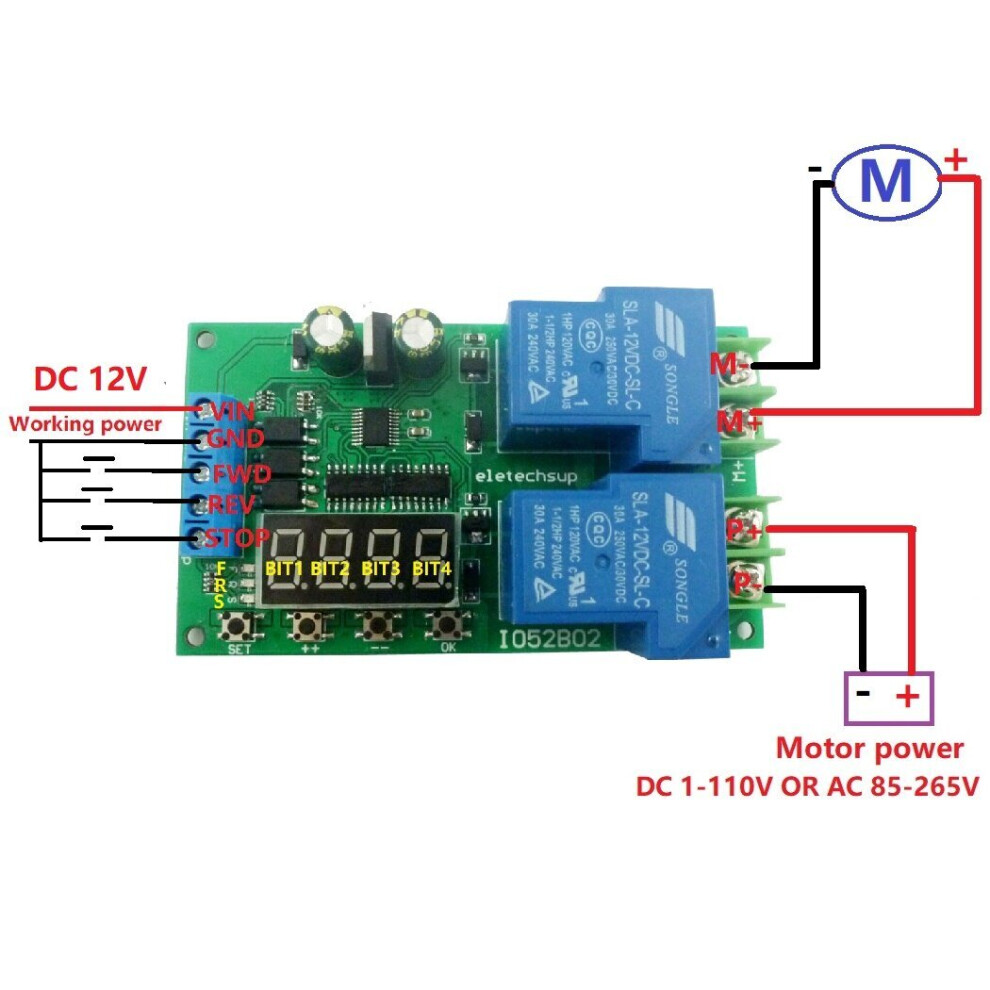

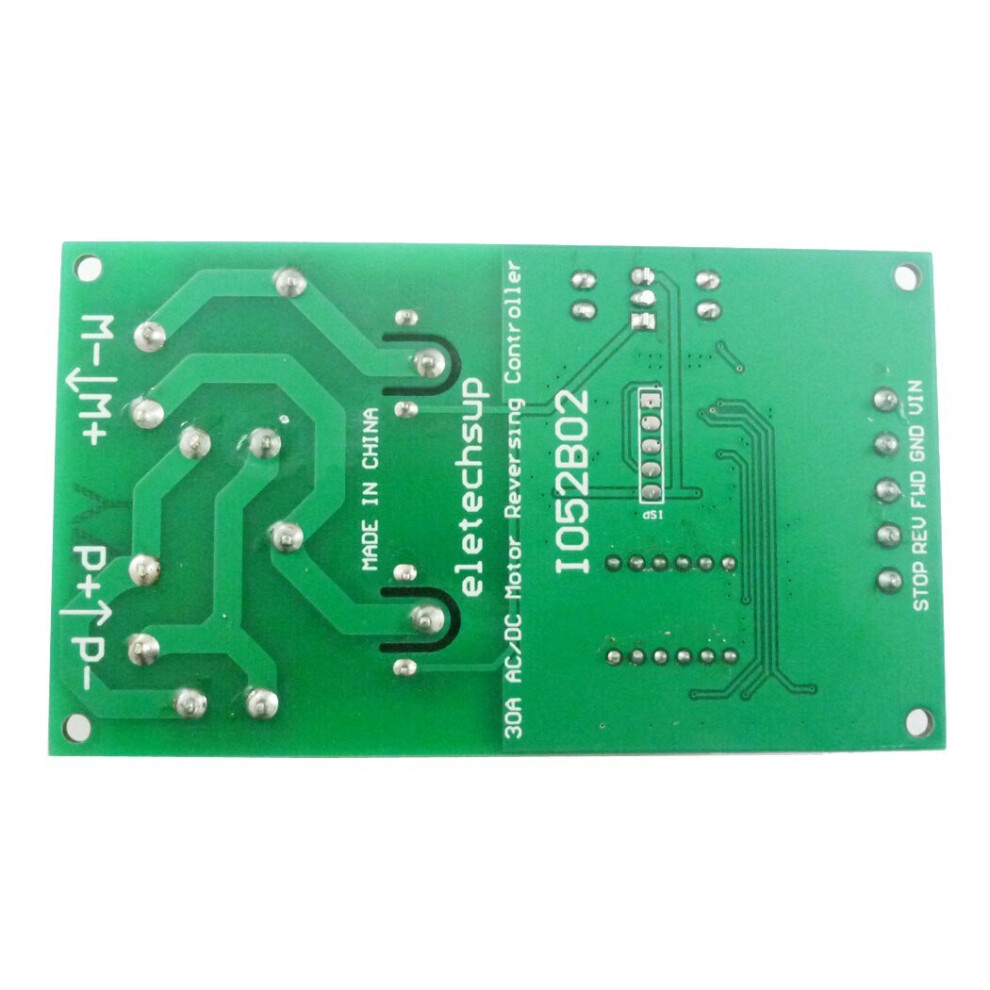

Port:

VIN    :Power supplypositive DC 12V
GND  : Power supply  negative
FWD  : Forward input control (partial Function-Mode is invalid)
REV   : Reverse input control (partial Function-Mode is invalid)
STOP : Stop input control (partial Function-Mode is invalid)
M+  : Motor positive
M- : Motor negative
P+ : Positive motor power supply
P- : Negative motor power supply

Package inlcuded:1 PCS30A Multifunction AC/DC motor Reversible controller
