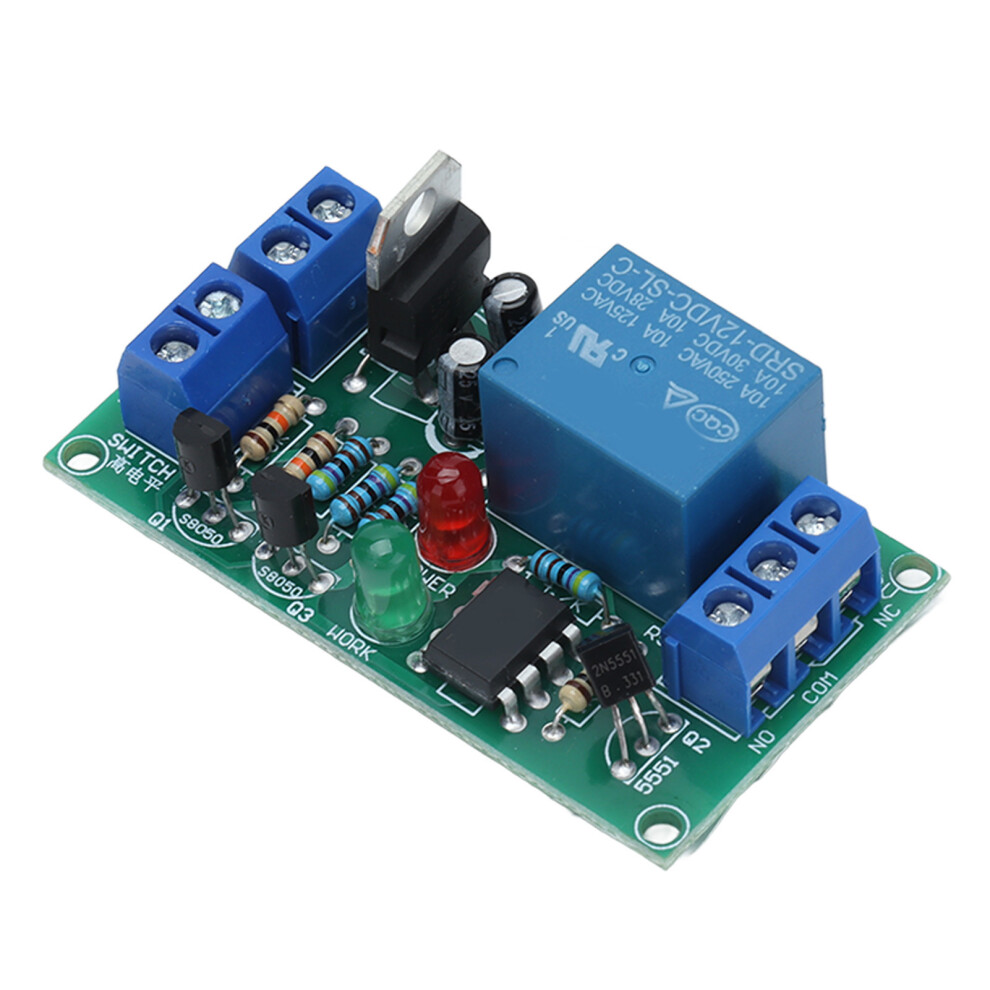

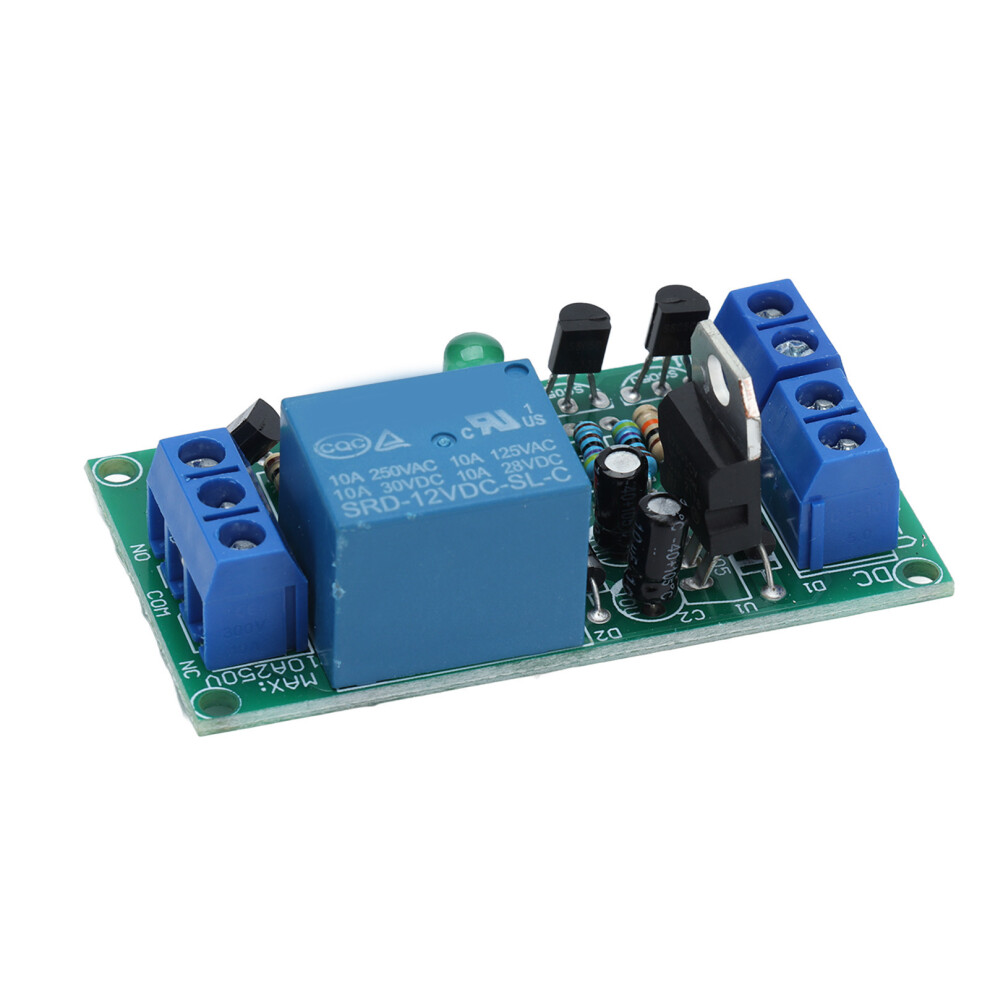

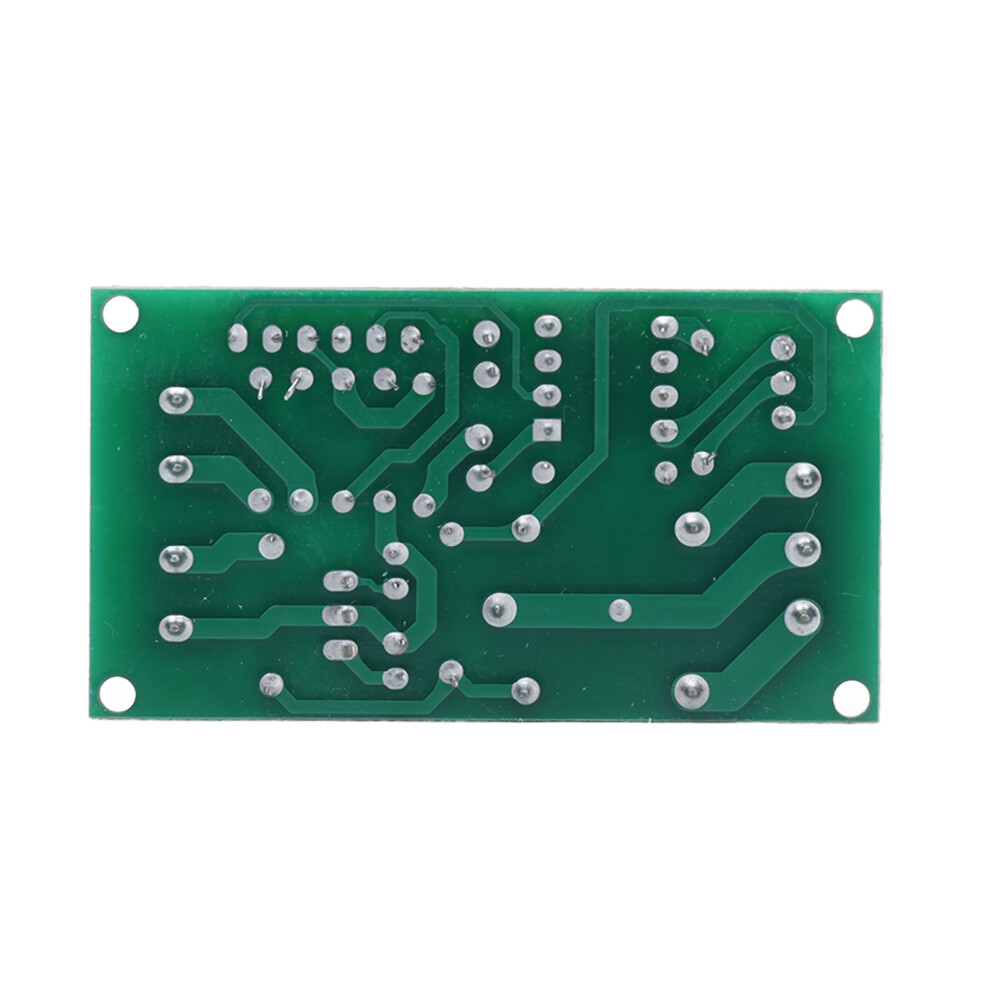

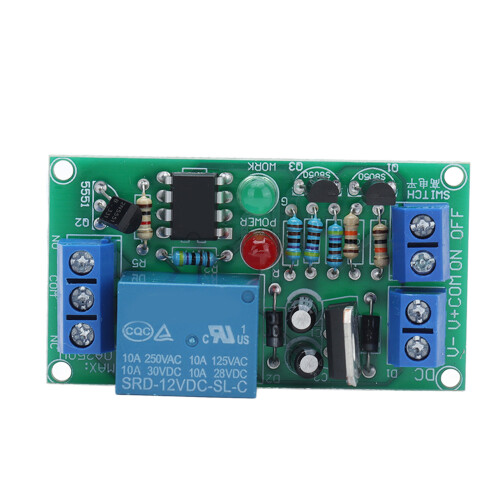

Relay Module 2 Button Switch ON OFF High Level Trigger Circuit Power Board DC 12V K71RS
New
Hurry only 1 left
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 126,000 Trustpilot reviews and an 'Excellent' rating
£9.83
£12.94
24% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Fri 12th - Mon 15th Jun
Sold by: Grarnstore, there is 1 other seller
Returns: 30 days
180-day payment protection
Most Popular in Car Relays
![12V 200A Relay Car Truck Engine Automobile Boat Car Heavy Duty Split Charging ZL180 with 2 Pin + 2 Terminal - [1 Set]](https://cdn.onbuy.com/product/9bc1be2659524f6db4d329a26bcdb36c/500-500/pdnxs8x.jpg)
Description & Details
Summary

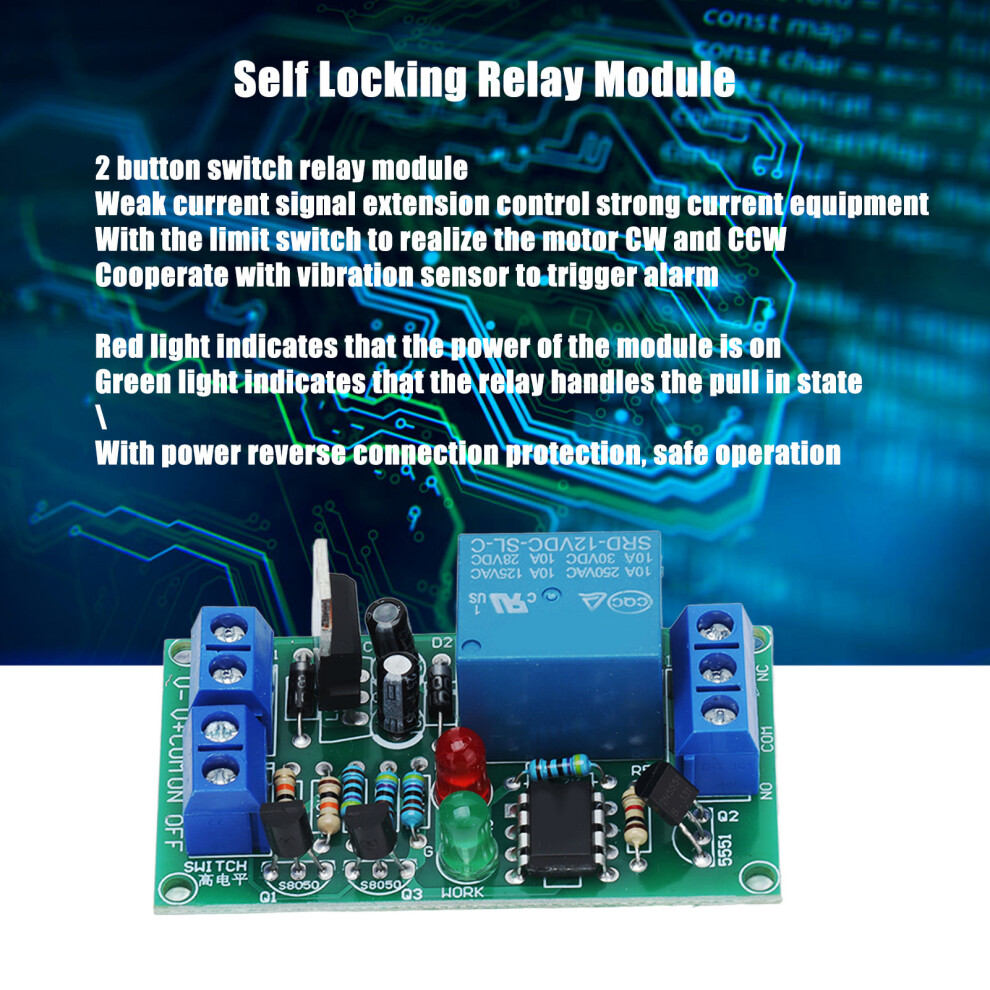

- [2 BOTTON CONTROL] 2 button switch relay module, suitable for various situations where 2 buttons are used to control on and off respectively.
- [FOR MOTOR] Cooperate with the travel switch to realize the CW and CCW of the motor, so that the travel is within a fixed range.
- [TRIGGER ALARM] Combine the power button with the vibration sensor to trigger the alarm, that is, automatically trigger the alarm and stop manually.
- [GOOD PROTECTION] The relay module has power supply reverse connection protection, and the module will not be damaged when the power supply is reversed.

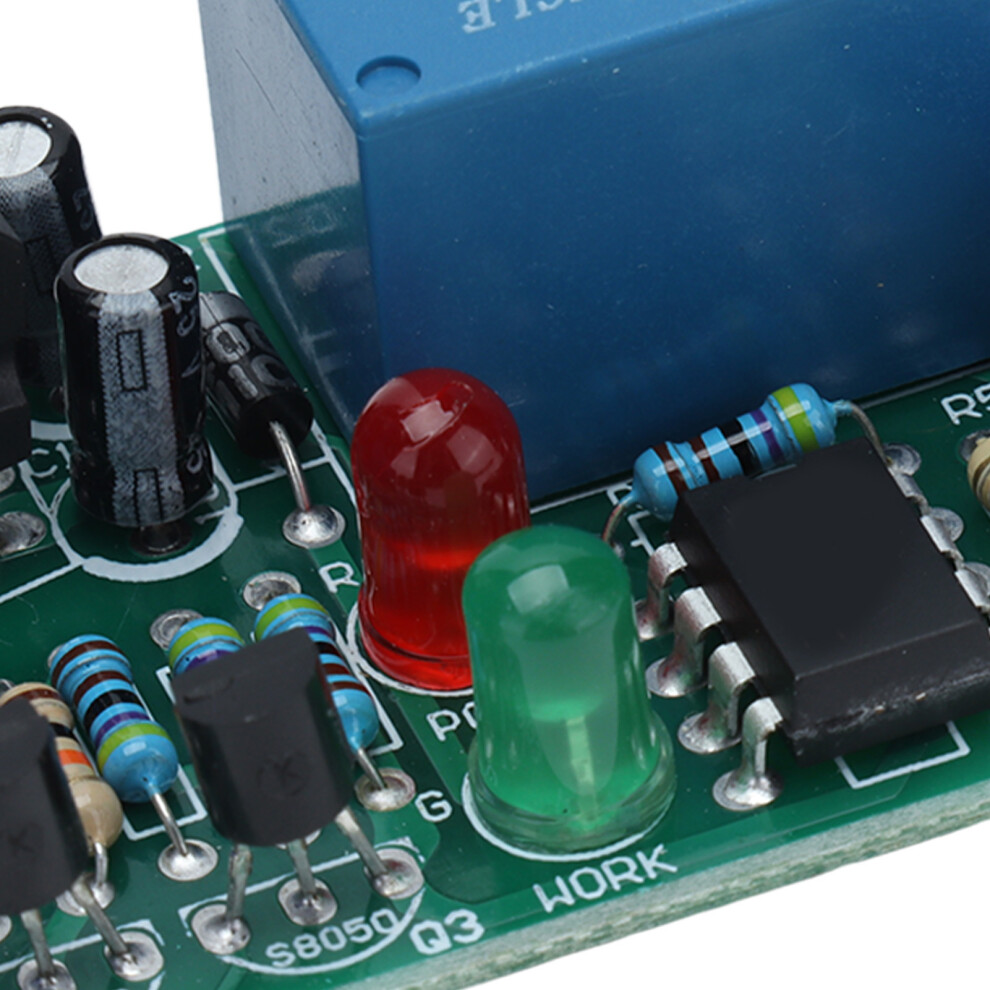

- [WITH INDICATORS] The red light is on, it means the power of the module is on, and the green light is on, it means the relay is processing the pull in state.
Relay Module 2 Button Switch ON OFF High Level Trigger Circuit Power Board DC 12V K71RS Description

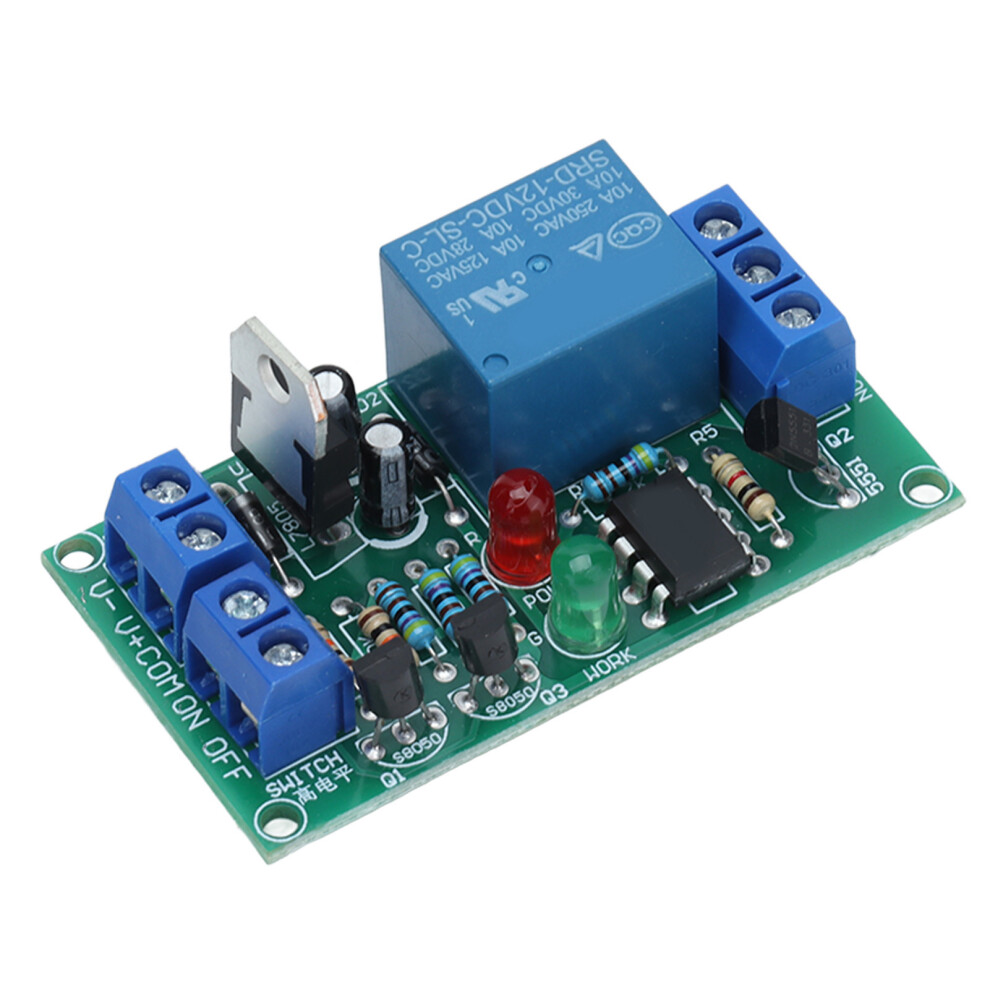

Relay Module 2 Button Switch ON OFF High Level Trigger Circuit Power Board DC 12V K71RS
Item Type: 12V Relay Module
Working Voltage: 12V DC (10V-15V)
Quiescent Current: 2mA (with power indicator light), 0.5mA (without indicator light)
Working Current: 45mA at 12V
Input Mode: High level trigger, that is, above 2.0V is considered to be connected. The switching signal voltage range is up to 30V.
Anti Interference: The interference time of the input switch is 20ms, that is, when the switch is less than 20ms, it is considered as an interference signal and will be ignored.

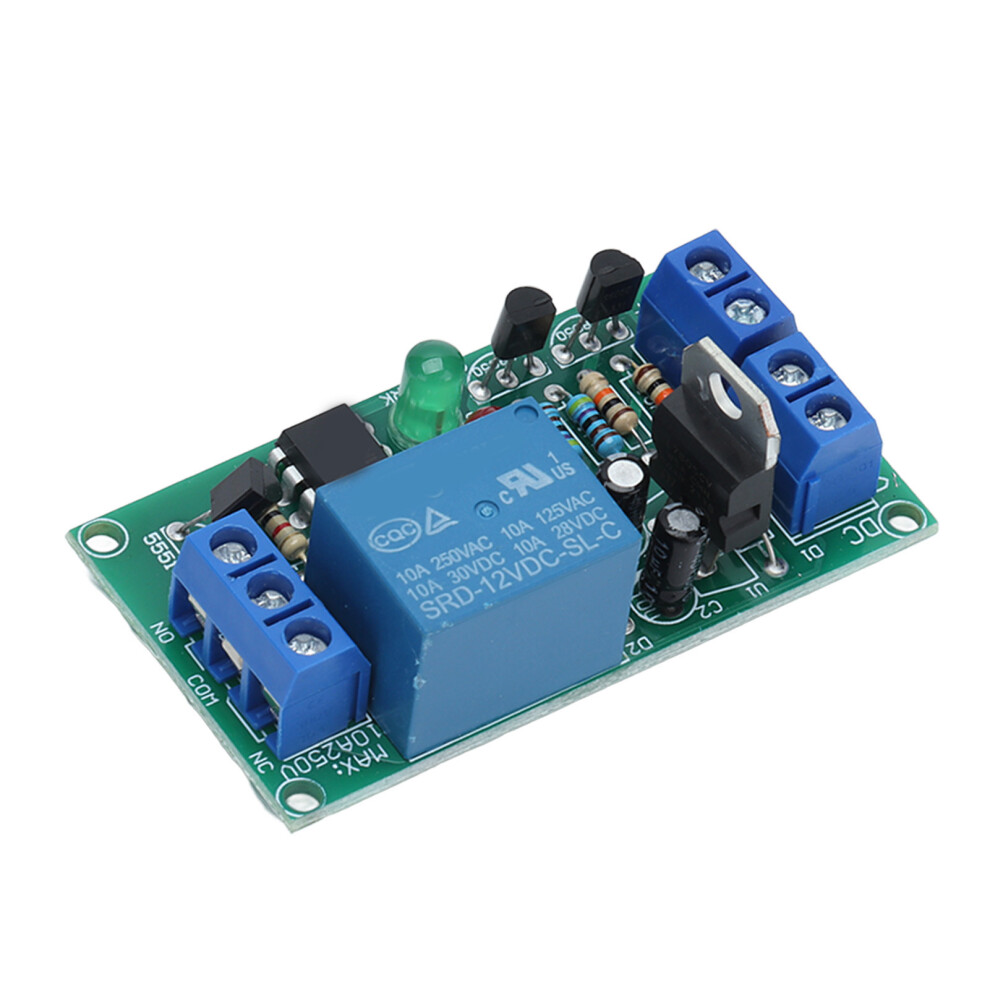

Output Mode: Relay contact, no electricity (dry contact)
COM: Public
NO: Normally open, that is, the module is disconnected from COM when it is not connected to power (or closed).
NC: Normally closed, that is, the module is connected to COM when it is not connected to power (or closed).
Output Capacity: Maximum 10A 250V AC, or 10A 30VDC
The resistive load control capacity under 220V voltage is 2200W, and the motor load is recommended to be used below 1200W.
Module Size: Approx. 58 x 32mm / 2.3 x 1.3in, Height: Approx. 18mm / 0.7in
Mounting Hole: Approx. 54 x 28mm / 2.1 x 1.1in, Aperture: Approx. 2.6mm / 0.1in

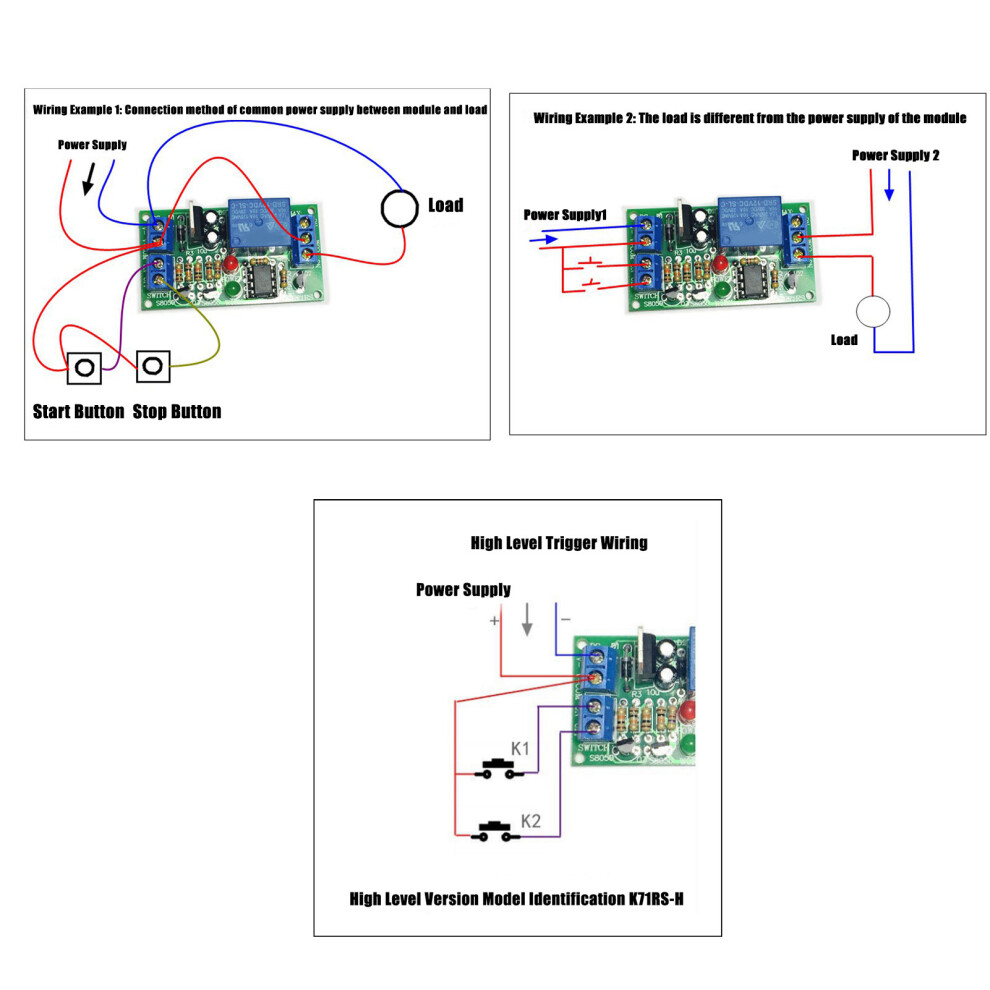

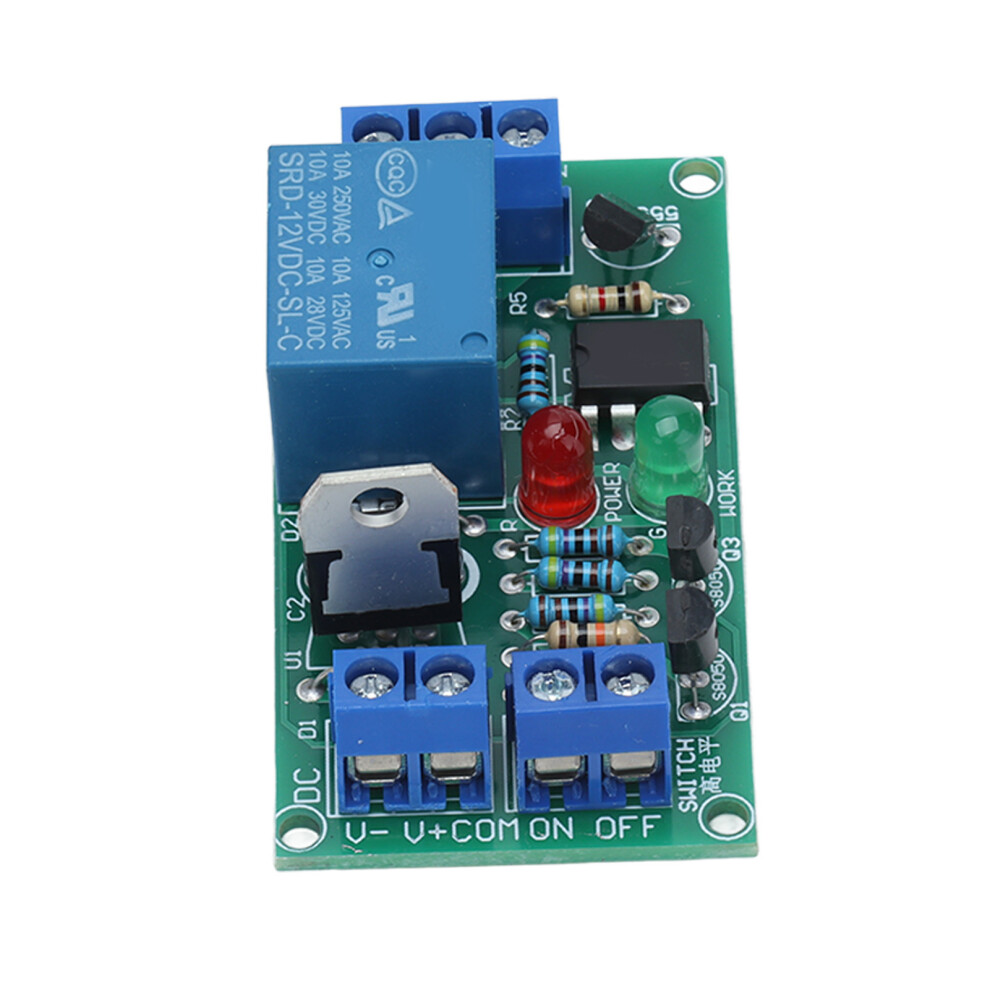

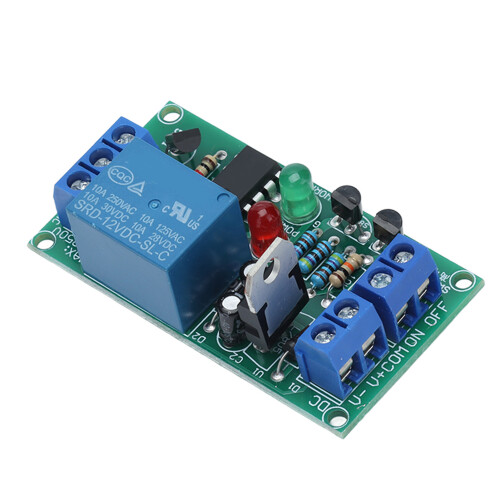

Terminal Description:
V+COM: The positive input of the module power supply, which is also the common line of the 2 switches.
V-: The negative input of the module power supply.
ON: Power on button, press the relay will immediately pull in, and keep pulling in (until the OFF button is pressed).
OFF: Shut down button, press the relay to disconnect immediately
