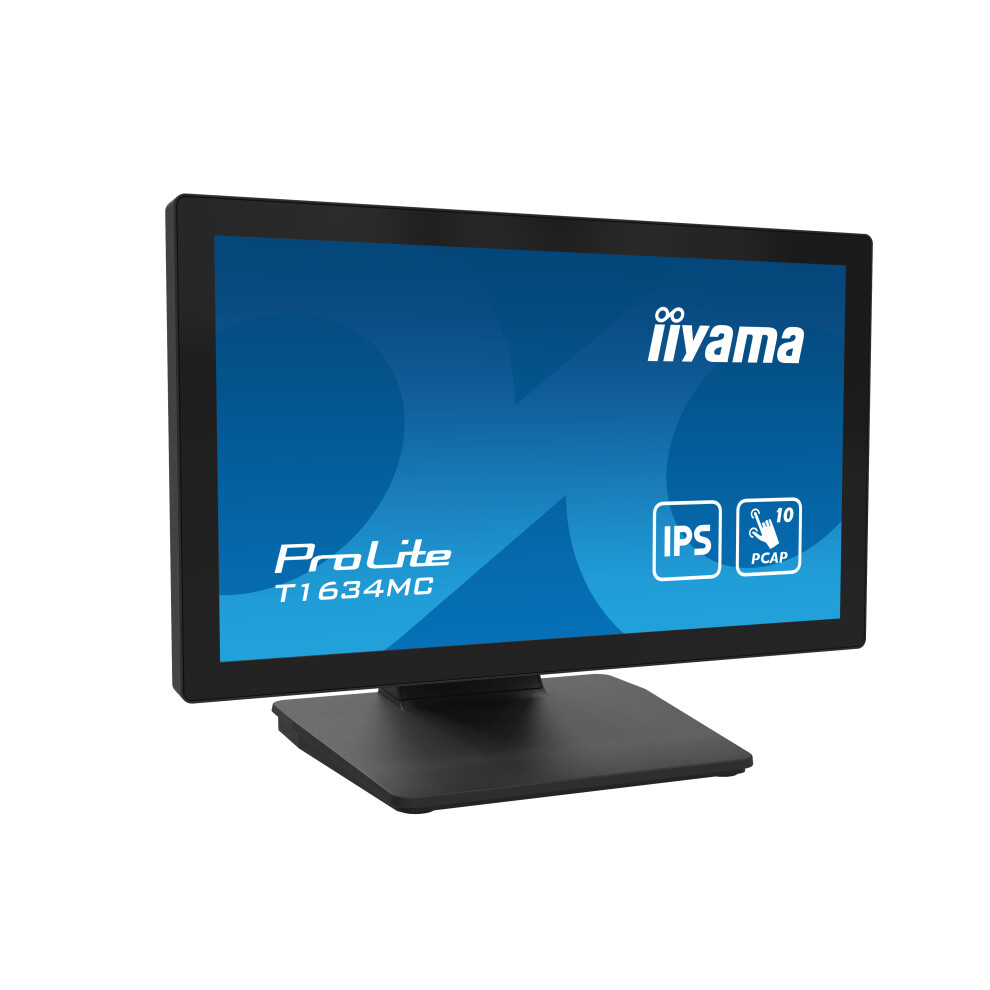

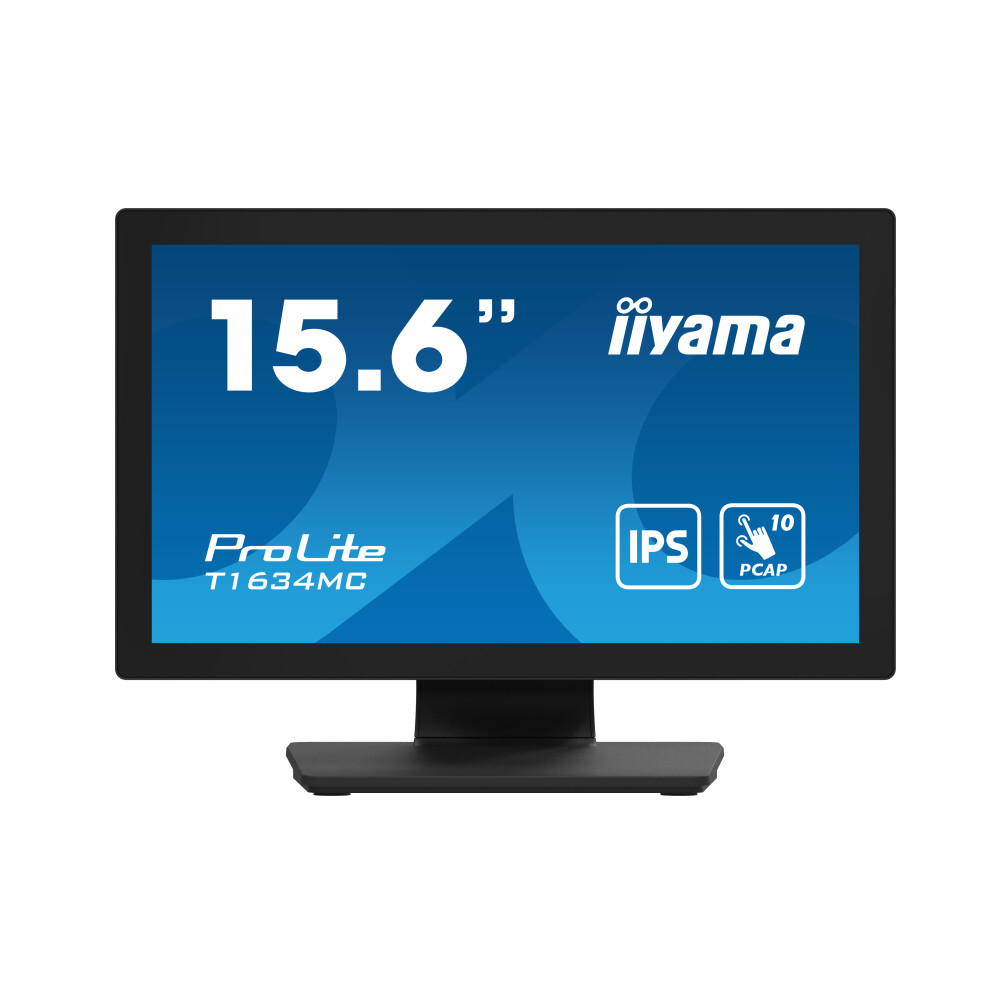

15.6IN TOUCH PCAP IPS PANEL
Brand iiyama
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 126,000 Trustpilot reviews and an 'Excellent' rating
£709.43
FREE Delivery
1%
Earn £7.09 instantly
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Thu 11th - Sat 13th Jun
Sold by: Acacia One London
Returns: 30 days
180-day payment protection
Most Popular in Computer Monitors
Hot
Description & Details
15.6IN TOUCH PCAP IPS PANEL Description
15.6IN TOUCH PCAP IPS PANEL
Details
| OPC | PFYDZZ6 |
|---|---|
| Brand | |
| Codes | 4948570122110 (EAN) |
| Links | iiyama Monitors |
External product information
Disclaimer: The information below is provided by various external sources and should be used as a guide only.
Detailed Product Information
Display
| Pixel pitch | 0.179 x 0.179 mm |
|---|---|
| Contrast ratio (typical) | 700:1 |
| Horizontal scan range | 30 - 84 kHz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Viewable size, horizontal | 34.4 cm |
| Viewable size, vertical | 19.4 cm |
| Display diagonal | 39.6 cm (15.6") |
| Display brightness | 405 cd/m² |
| Response time | 25 ms |
| Colour depth | 6 bit |
| Display resolution | 1920 x 1080 pixels |
| Digital horizontal frequency | 30 - 84 kHz |
| Display diagonal (metric) | 39.5 cm |
| Touchscreen | Yes |
| Maximum refresh rate | 60 Hz |
| Touchscreen technology | Projected capacitive system |
| Display technology | LED |
| Number of simultaneous touchpoints | 10 |
| Native aspect ratio | 16:9 |
| HD type | Full HD |
| Colour gamut | 90% |
| Panel type | IPS |
| Display surface | Matt |
| Screen shape | Flat |
| Display number of colours | 16.2 million colours |
| Surface hardness | 7H |
| Response time (fast) | 25 ms |
| Display brightness (peak) | 450 cd/m² |
| Display brightness (typical) | 450 cd/m² |
| Response time measurement type | GTG (Gray to Gray) |
Other features
| Weight | 3.4 kg |
|---|---|
| User controls | picture (contrast, brightness, H-position, V-position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, position, H-position, V-position, touch switch), option (reset, language, source select, display mode, factory) |
| AC adapter included | Yes |
| Height | 285.5 mm |
| Brightness | 405 cd/m² |
| Width | 381 mm |
| Depth | 200 mm |
| Control panel | Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| International Protection (IP) code | IP65 |
| Packaging content | AC adapter |
| Active display area (W x H) | 344.2 x 193.6 mm |
| Touch method | stylus, finger, glove (latex) |
| Second display effective viewing area | 344.2 x 193.6 mm |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, UKCA, WEEE |
Power
| Power consumption (typical) | 18 W |
|---|---|
| Power supply type | External |
| AC adapter output voltage | 12 V |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 1.5 W |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 10.1 kWh |
| European Product Registry for Energy Labelling (EPREL) code | 1530736 |
Packaging data
| Package weight | 5.18 kg |
|---|---|
| Package depth | 150 mm |
| Package height | 355 mm |
| Package width | 445 mm |
Design
| Product colour | Black |
|---|---|
| Glass thickness | 2.4 mm |
| Front bezel colour | Black |
Packaging content
| Cables included | AC, USB, HDMI, DisplayPort |
|---|---|
| Quick start guide | Yes |
Ergonomics
| Tilt angle range | 90 - 5° |
|---|---|
| On Screen Display (OSD) | Yes |
| Panel mounting interface | 100 x 100 mm |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Tilt adjustment | Yes |
| VESA mounting | Yes |
Ports & interfaces
| VGA (D-Sub) ports quantity | 1 |
|---|---|
| HDMI ports quantity | 1 |
| HDMI | Yes |
| HDCP | Yes |
| DisplayPorts quantity | 1 |
| USB Touch port | Yes |
Weight & dimensions
| Width (with stand) | 381 mm |
|---|---|
| Height (with stand) | 285.5 mm |
| Depth (with stand) | 200 mm |
| Weight (with stand) | 3.4 kg |
Performance
| Palm rejection | Yes |
|---|
Sustainability
| Sustainability certificates | ErP |
|---|
