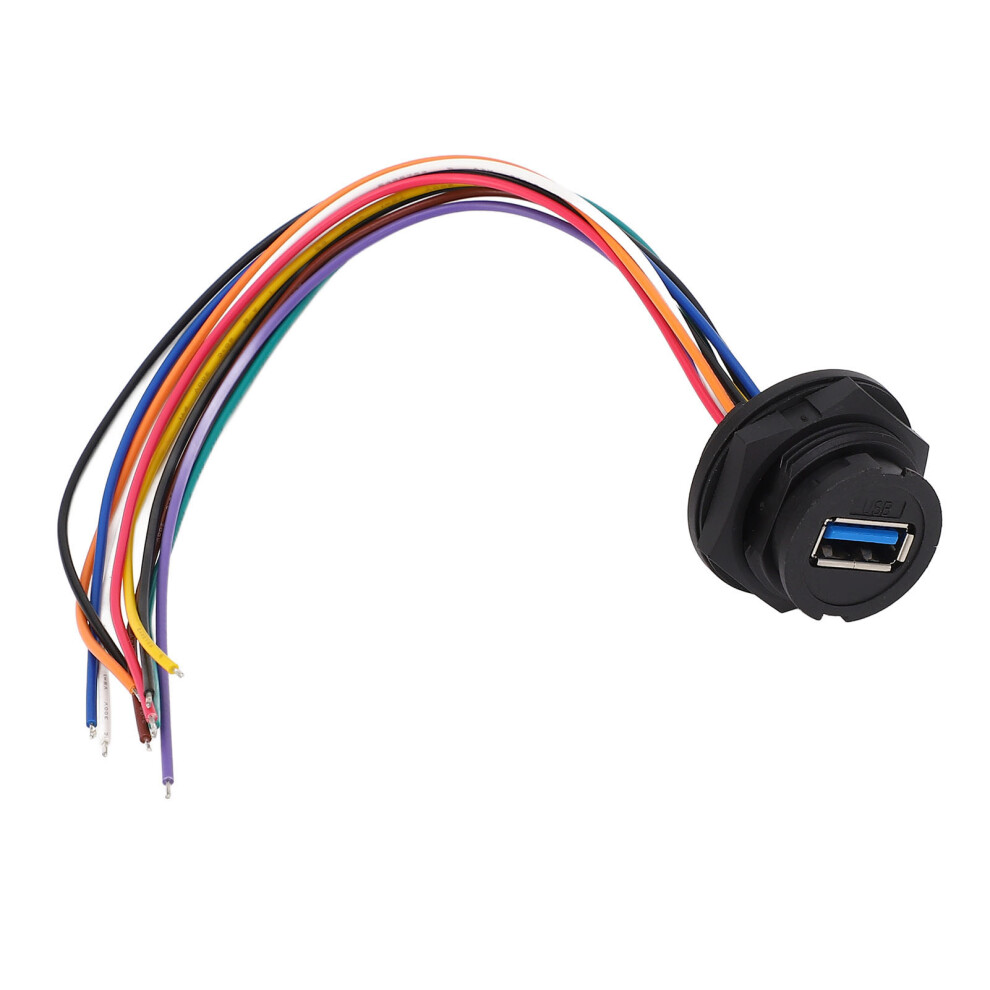

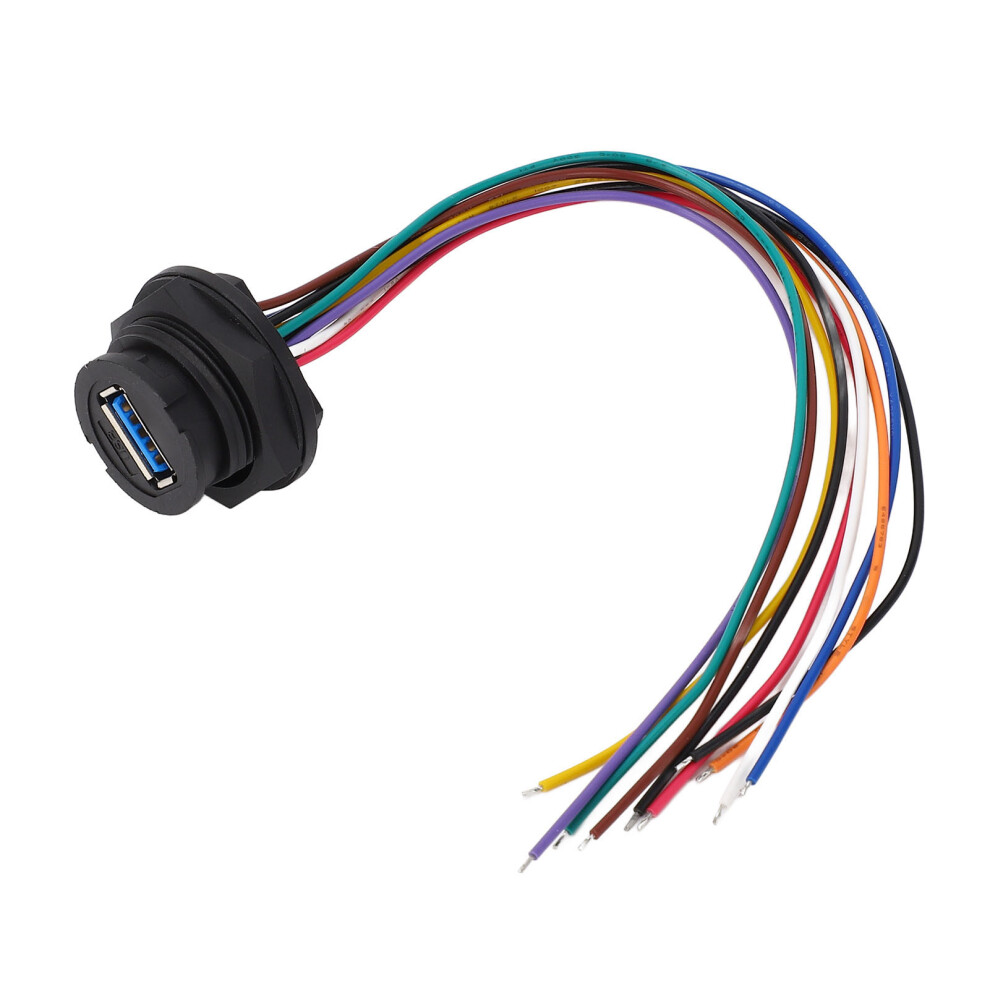

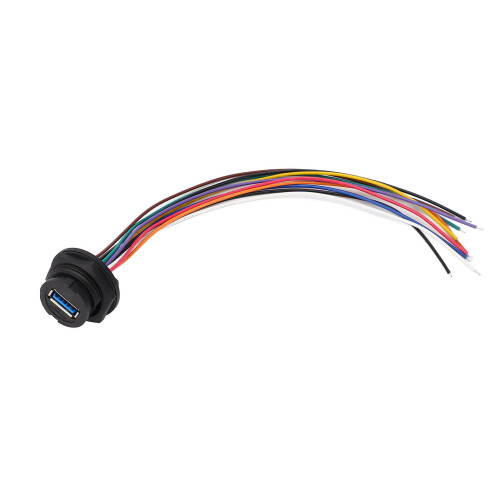

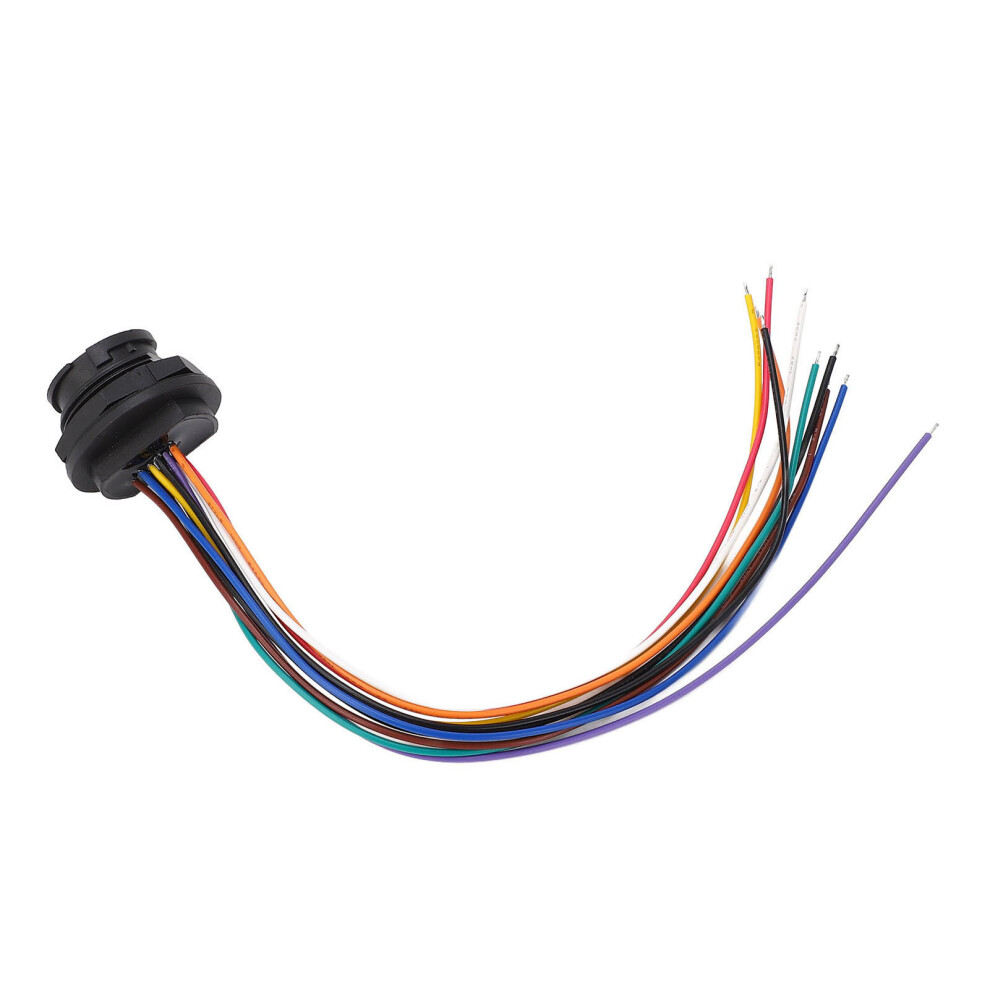

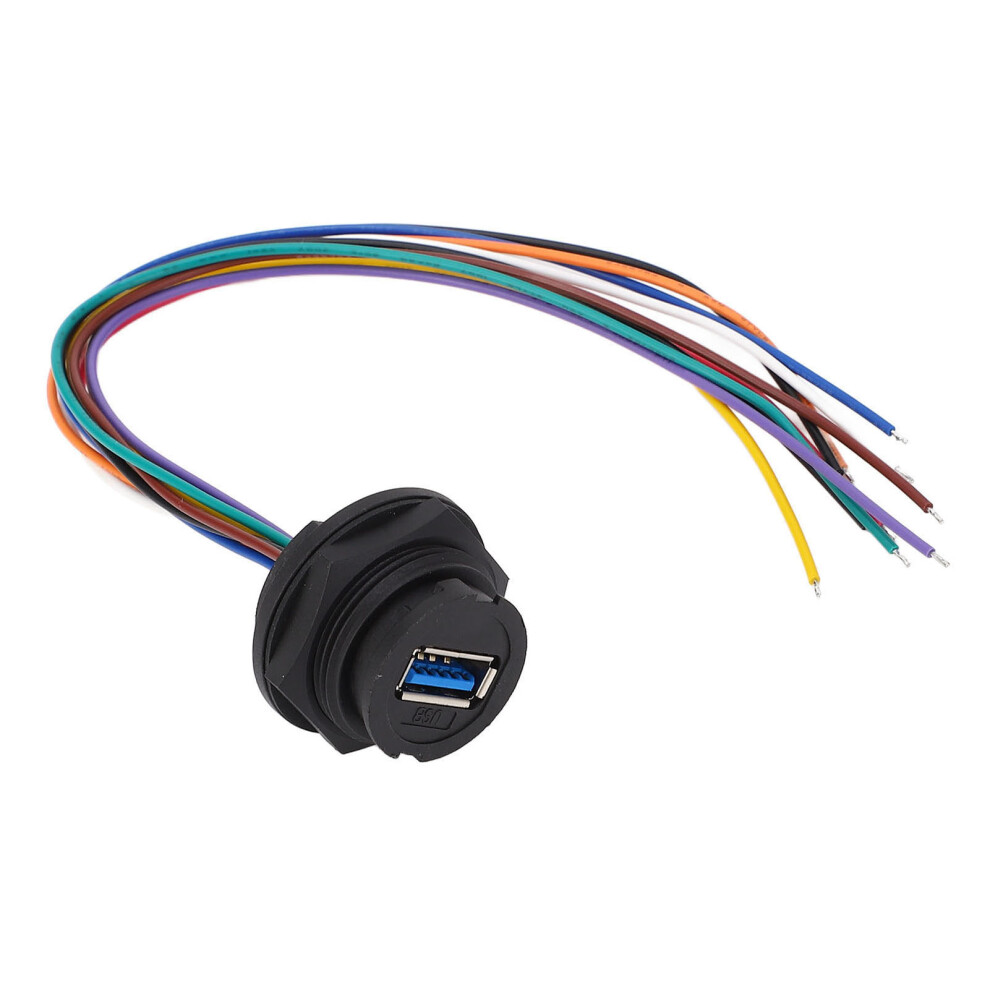

16 Pin Snap USB3.0 Connector 0.2m Wire IP67 Panel Mount

16 Pin Snap USB3.0 Connector 0.2m Wire IP67 Panel Mount Description

1、Specifications: This rear panel mount connector features an independent USB 3.0 receptacle design, with a transmissing speed of up to 5.0Gbps, compatible with USB 2.0, and equipped with a 20cm cable. 2、Snap In Connection: The USB 3.0 mount socket adopts snap on connection, which does not require soldering or other installation tools. It can be applied by simply inserting a standard USB interface. 3、Reliable Materials: This connector features a sturdy plastic housing and copper plated contacts, ensuring excellent fire, explosion, compression, and deformation resistance, suitable for various environments. 4、IP67 Water Proof: The panel mount connector features an IP67 water proof rating, and the sturdy connection system can provide a solution for data transmissing in harsh environments, secure and reliable. 5、Wide Application: This USB 3.0 connector is suitable for mechanical equipment, outdoor devices, lighting devices, comm applications, etc. It can be flexibly applied indoors and outdoors to meet more needs.
Item Type: Snap Connector with Wire
Application: For Communicating
Housing Material: Plastic
Contacts Material: Gold Plated Copper
Specification: USB3.0
Number of Pins: 16 Pin
Wire: 24AWG
Wire Length: Approx. 20cm / 7.9in
Installation Type: Snap In Connection
Insulation Resistance: 100MΩ
Contacting Resistance: 30MΩ
Applicable Temperature: -45-105
Rated Current: 0.5A
Plug and Unplug Time: 500 (Cycles)
Water Proof Rating: IP67
1 x Snap Connector
