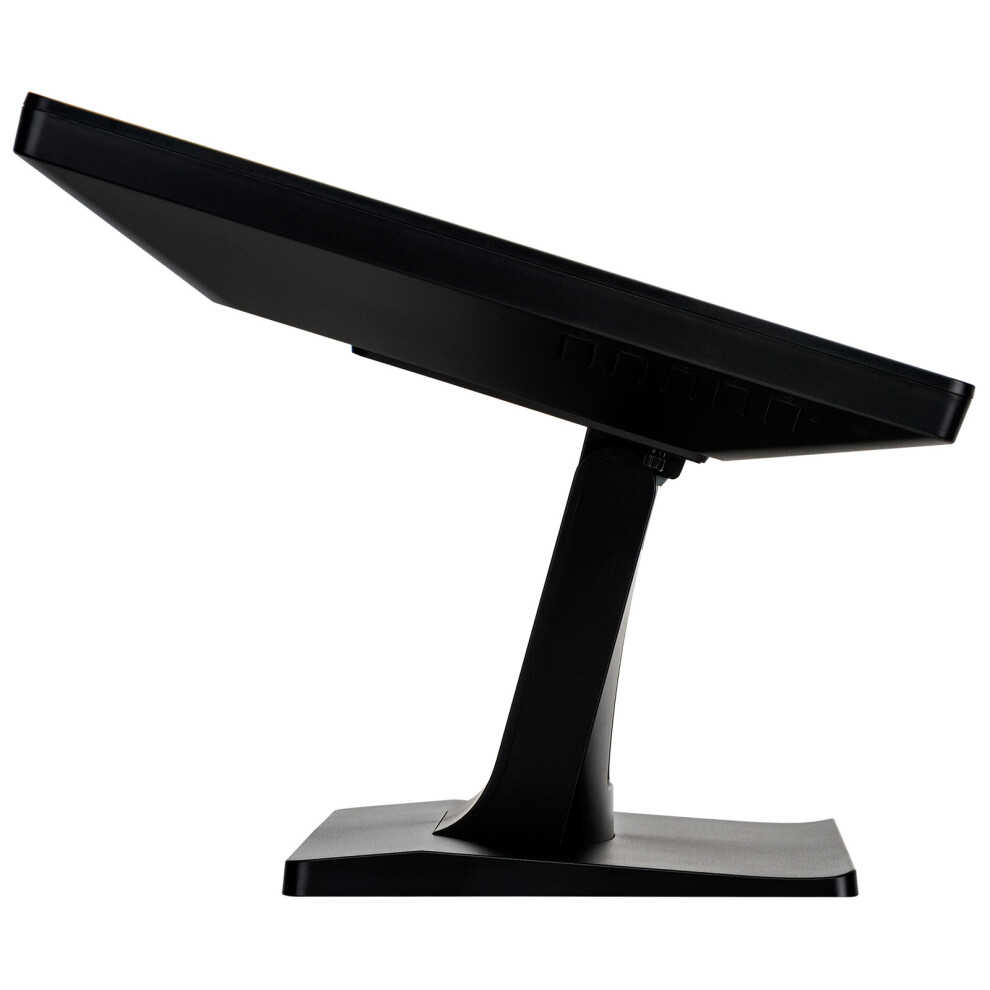

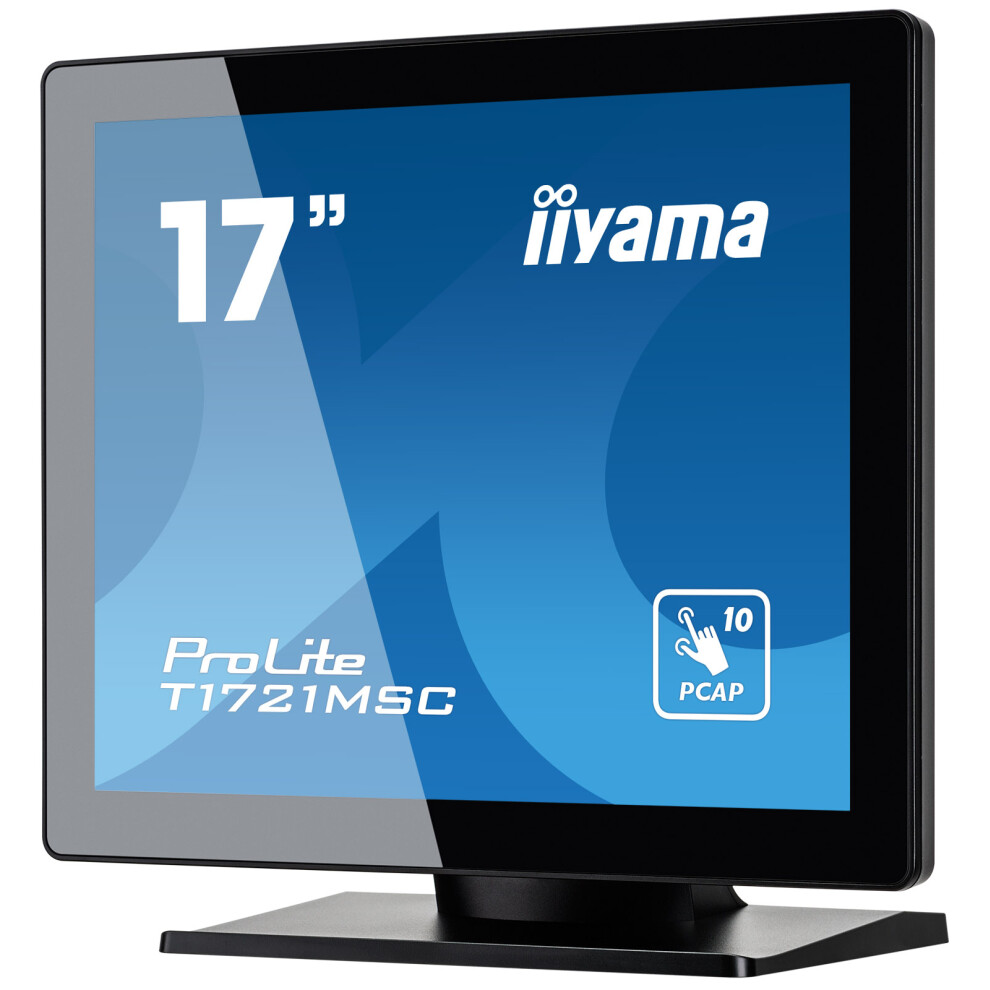

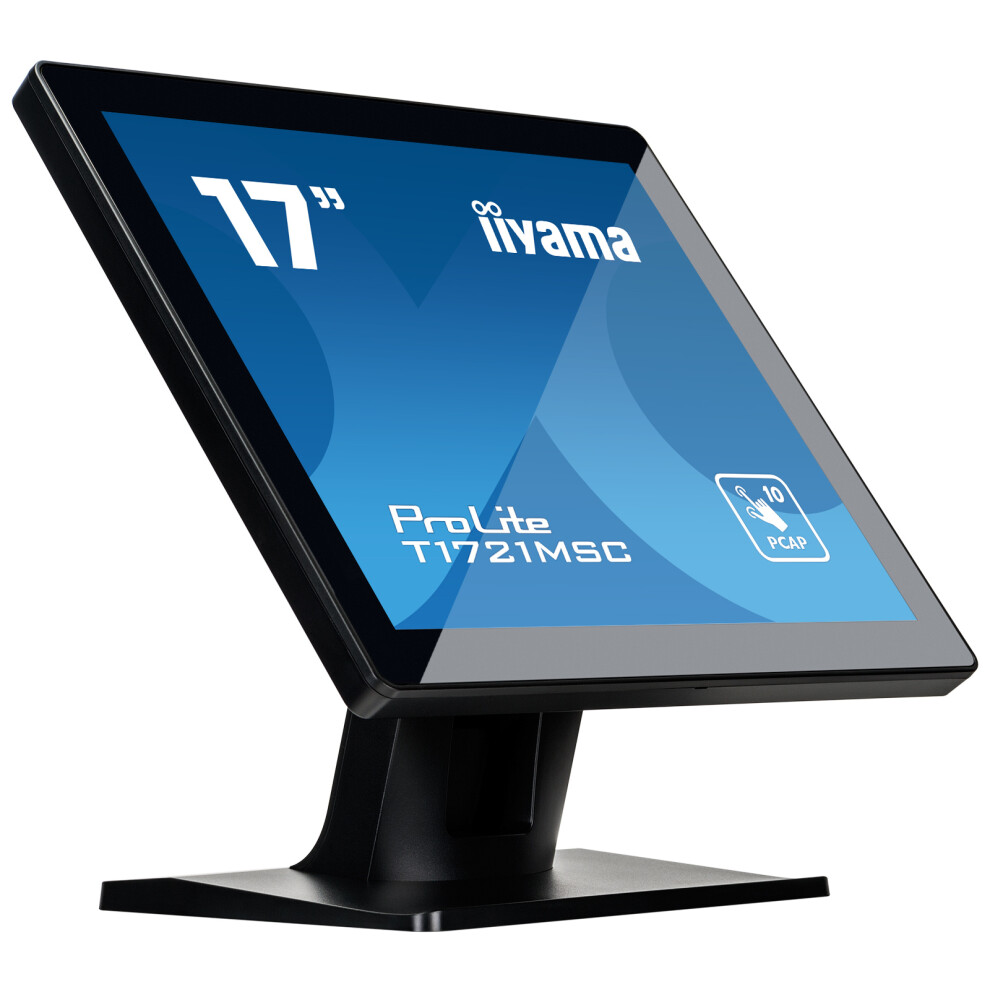

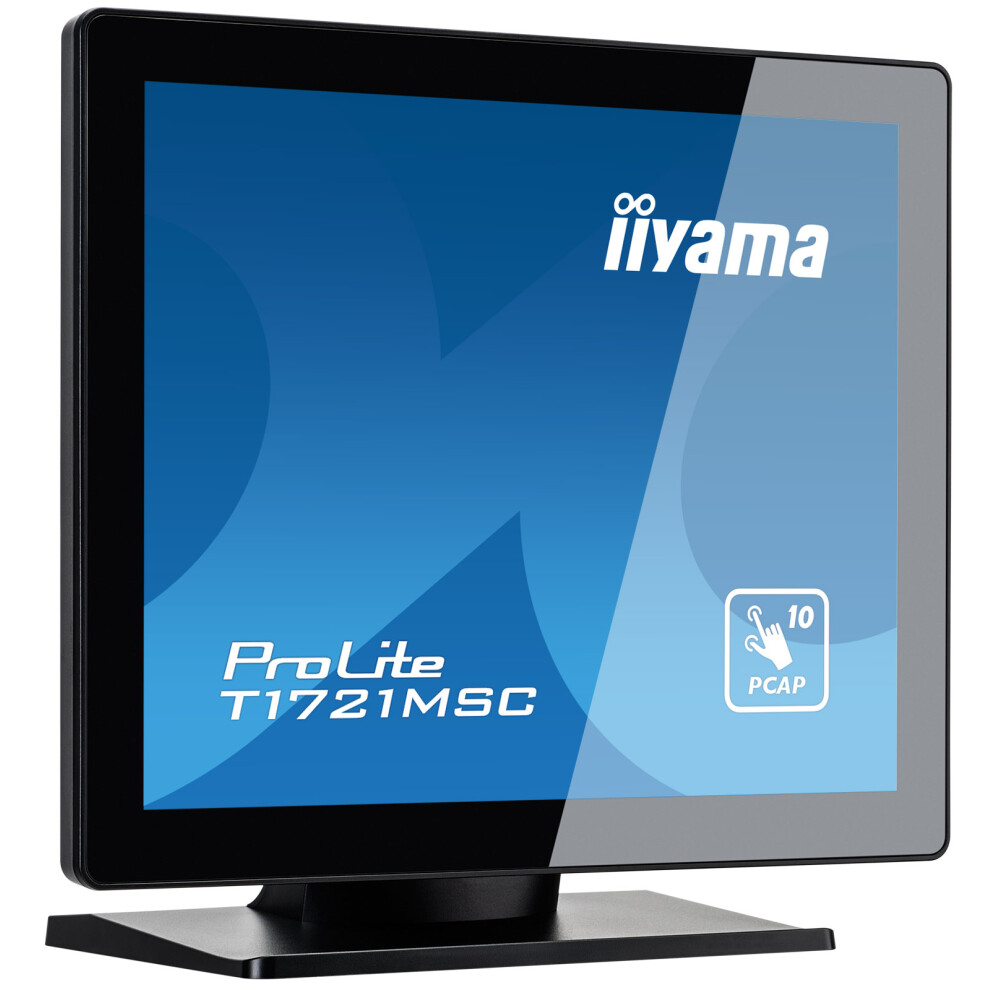

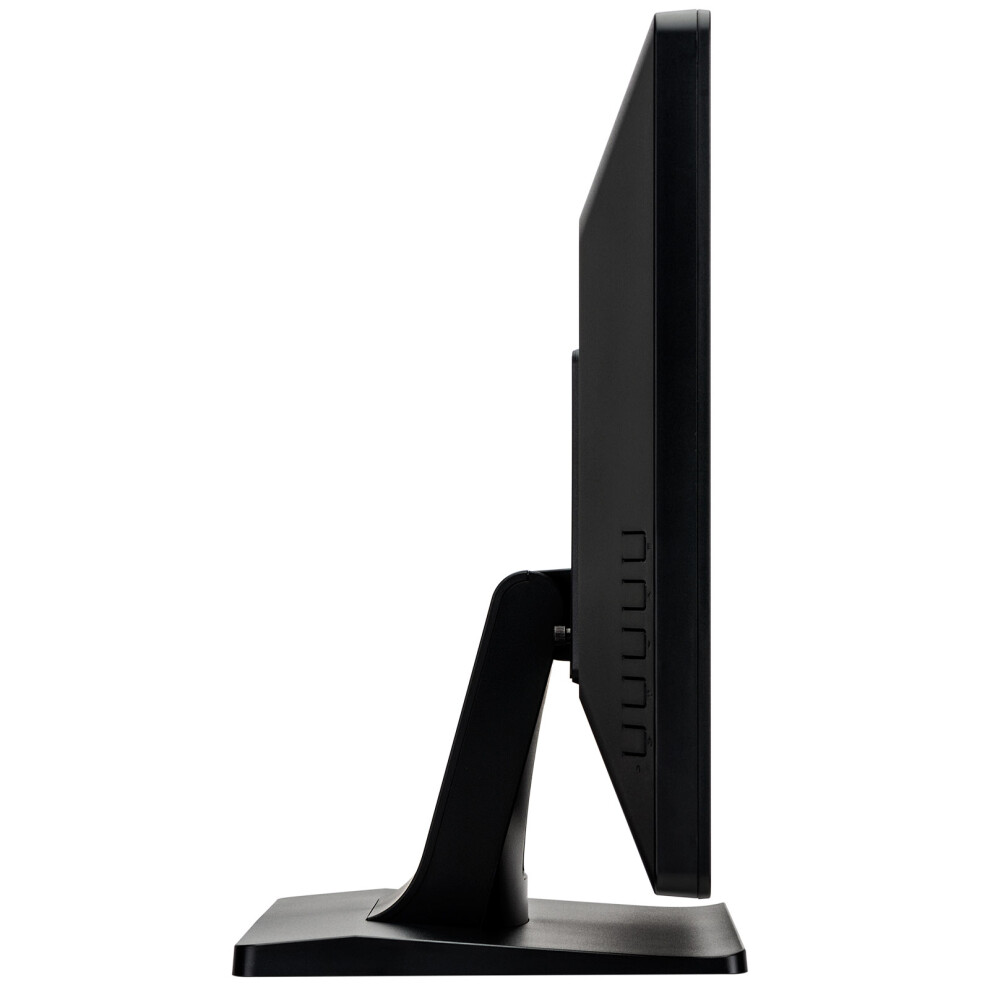

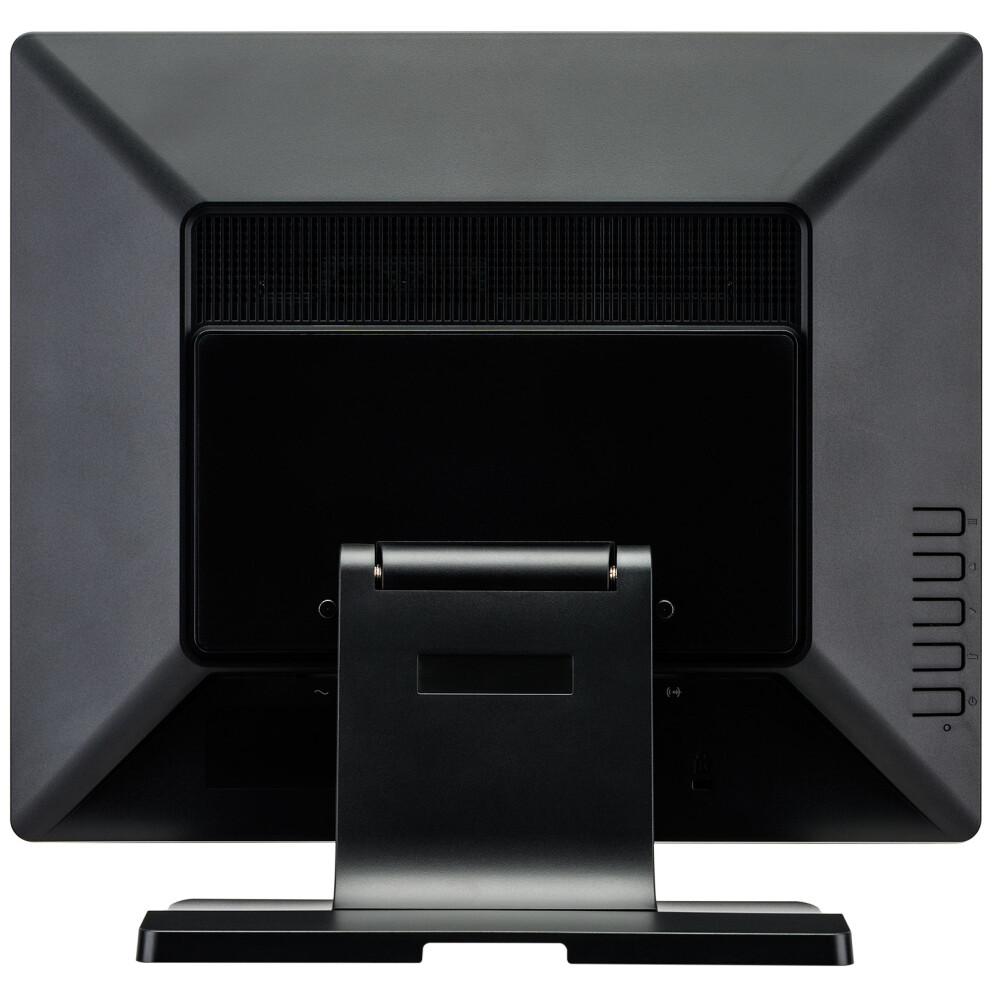

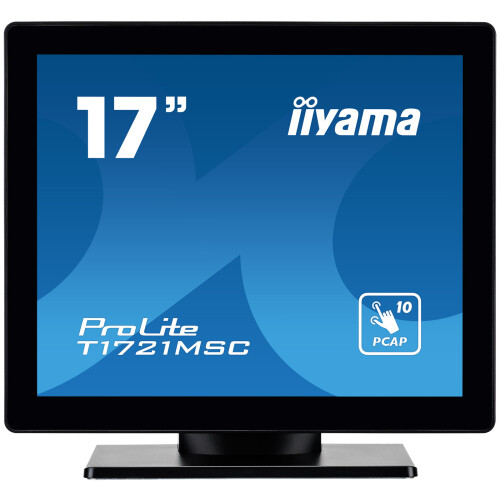

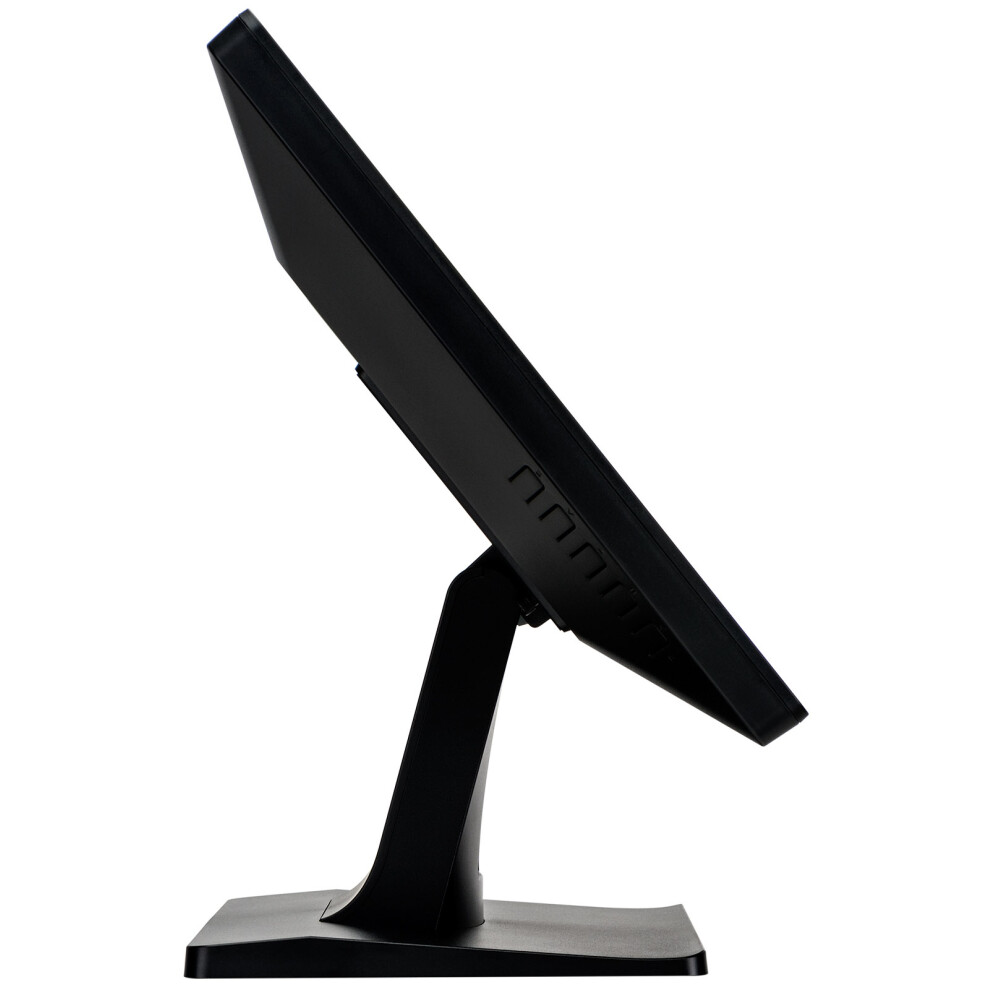

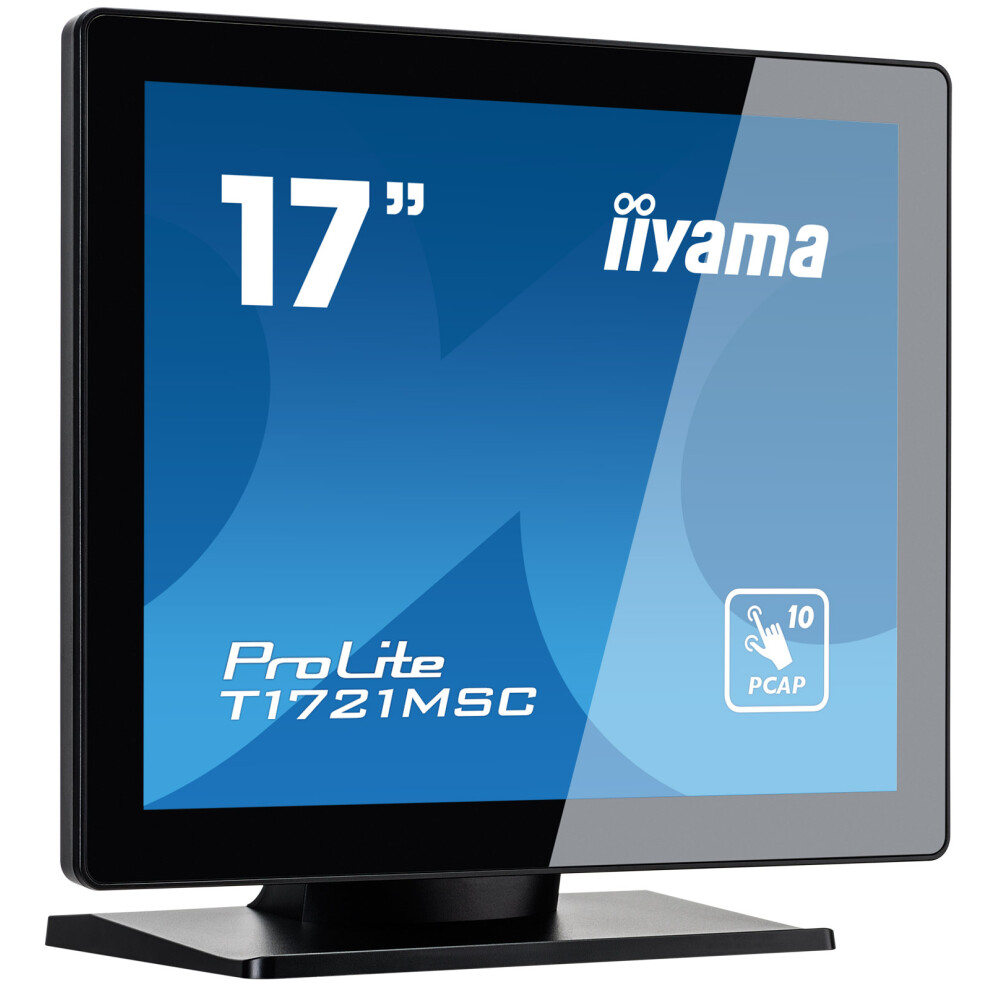

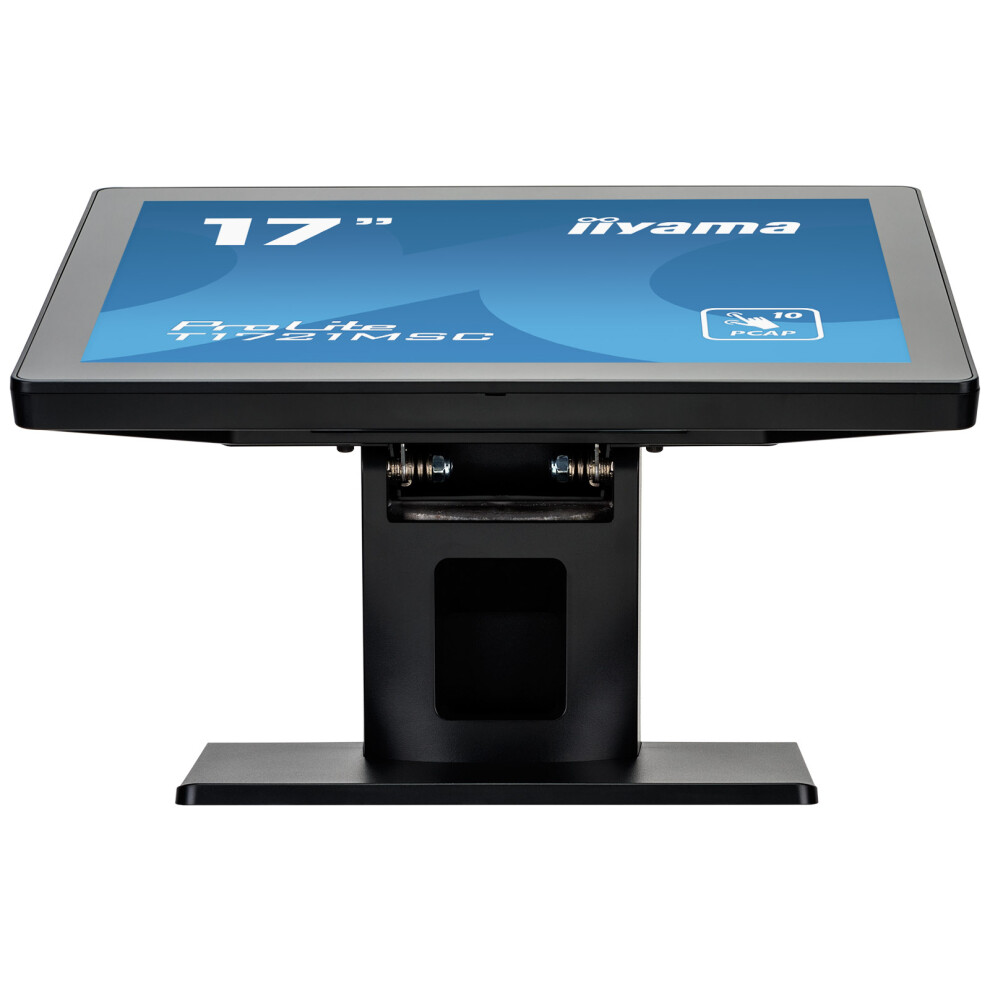

17IN TOUCH PCAP TN PANEL
Brand iiyama
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 126,000 Trustpilot reviews and an 'Excellent' rating
£415.03
FREE Delivery
1%
Earn £4.15 instantly
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Wed 10th - Thu 11th Jun
Sold by: LittleBigEssentialsLimited
Returns: 30 days
180-day payment protection
Most Popular in Computer Monitors
Hot
Hot
Description & Details
17IN TOUCH PCAP TN PANEL Description
17IN TOUCH PCAP TN PANEL
Details
| OPC | PG9NN92 |
|---|---|
| Brand | |
| Codes | 4948570120659 (EAN) |
| Links | iiyama Monitors |
External product information
Disclaimer: The information below is provided by various external sources and should be used as a guide only.
Detailed Product Information
Display
| Pixel pitch | 0.264 x 0.264 mm |
|---|---|
| Contrast ratio (typical) | 1000:1 |
| Horizontal scan range | 31.4 - 80 kHz |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Viewable size, horizontal | 33.8 cm |
| Viewable size, vertical | 27.1 cm |
| Display diagonal | 43.2 cm (17") |
| Display brightness | 230 cd/m² |
| Response time | 5 ms |
| Display resolution | 1280 x 1024 pixels |
| Display diagonal (metric) | 43 cm |
| Touchscreen | Yes |
| Backlight type | LED |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| Touchscreen type | Tabletop |
| Display technology | LED |
| Number of simultaneous touchpoints | 10 |
| Native aspect ratio | 5:4 |
| HD type | SXGA |
| Panel type | TN |
| Display surface | Matt |
| Screen shape | Flat |
| DDC/CI | Yes |
| Display number of colours | 16.7 million colours |
| Surface hardness | 7H |
| Display brightness (peak) | 230 cd/m² |
| Display brightness (typical) | 250 cd/m² |
Other features
| Weight | 4.4 kg |
|---|---|
| Certification | CE, RoHS support, ErP, WEEE, cULus, REACH, UKCA |
| User controls | picture (backlight, brightness, contrast, sharpness) display (auto adjustment, H position, V position, pixel clock, phase) colour (colour temp, picture mode) input, audio (volume, mute, audio source), other (reset, OSD time, OSD H position, OSD V position, language) information |
| Mean time between failures (MTBF) | 50000 h |
| AC adapter included | Yes |
| Height | 364 mm |
| Brightness | 230 cd/m² |
| Width | 392.5 mm |
| Depth | 198 mm |
| Control panel | Menu, Up/Left/ Auto adjustment button, Down/Right button, Return/Exit button, Power |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| International Protection (IP) code | IPX3 |
| Packaging content | AC adapter, mylar sheet (for VESA mount) |
| USB ports quantity | 1 |
| Active display area (W x H) | 338 x 270.5 mm |
| Touch method | stylus, finger, glove (latex) |
| Compliance certificates | CE, cULus, REACH, RoHS, UKCA, WEEE |
Power
| Power consumption (typical) | 20 W |
|---|---|
| Power supply type | External |
| AC adapter output voltage | 12 V |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 1.5 W |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 13 kWh |
| European Product Registry for Energy Labelling (EPREL) code | 1385536 |
Packaging data
| Package weight | 5.8 kg |
|---|---|
| Package depth | 172 mm |
| Package height | 500 mm |
| Package width | 537 mm |
Design
| Product colour | Black |
|---|---|
| Glass thickness | 1.5 mm |
| Feet colour | Black |
| Front bezel colour | Black |
Packaging content
| Cables included | AC, USB, HDMI |
|---|---|
| Manual | Yes |
| Quick start guide | Yes |
| Stand included | Yes |
| Power adapter included | Yes |
Multimedia
| RMS rated power | 4 W |
|---|---|
| Built-in speaker(s) | Yes |
| Built-in camera | No |
| Number of speakers | 2 |
Ergonomics
| Tilt angle range | 10 - 70° |
|---|---|
| On Screen Display (OSD) | Yes |
| Cable management | Yes |
| Panel mounting interface | 100 x 100 mm |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Number of OSD languages | 8 |
| Tilt adjustment | Yes |
| VESA mounting | Yes |
Ports & interfaces
| VGA (D-Sub) ports quantity | 1 |
|---|---|
| HDMI ports quantity | 1 |
| HDMI | Yes |
| HDCP | Yes |
| Headphone out | Yes |
| Built-in USB hub | Yes |
| USB Touch port | Yes |
Weight & dimensions
| Width (with stand) | 392.5 mm |
|---|---|
| Height (with stand) | 364 mm |
| Depth (with stand) | 198 mm |
| Weight (with stand) | 4.4 kg |
Performance
| NVIDIA G-SYNC | No |
|---|---|
| AMD FreeSync | No |
| Low Blue Light technology | Yes |
Sustainability
| Sustainability compliance | Yes |
|---|---|
| Sustainability certificates | ErP |
