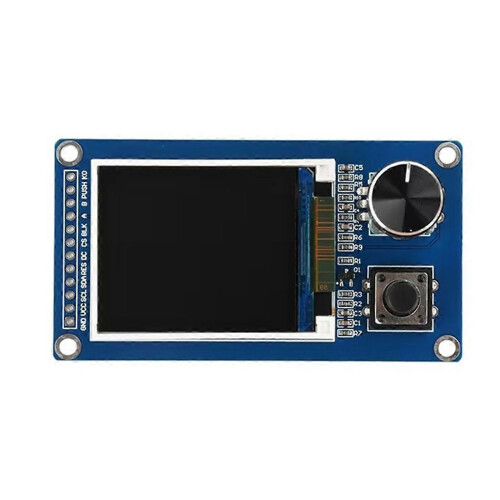

1.8-Inch TFT Display Screen with Ec11 Rotary Encoder Combination Module SPI Interface LCD Screen El

1.8-Inch TFT Display Screen with Ec11 Rotary Encoder Combination Module SPI Interface LCD Screen El Description

1.8-Inch TFT Display Screen with Ec11 Rotary Encoder Combination Module SPI Interface LCD Screen El
1. Integrated design: display screen and encoder are integrated, simple and beautiful, convenient for DIY
2. size: 1.8-inch TFT display screens are provided to meet different needs
3. High-resolution display: 1.8-inch 128x160 resolution, clear and delicate
4. SPI interface support: SPI interface is adopted, with strong compatibility, easy to connect and program
5. Encoder with switch: EC11 rotary encoder, 20 pulses 20 positioning, with switch function
Size:1.8inch
1.8-inch TFT+EC11 rotary encoder:
1.8-inch TFT driver chip: ST7735S
1.8-inch TFT interface: SPI
Resolution: 128x160 RGB
EC11: handle, handle length 15mm, 20 pulses 20 positioning, 5-pin with switch
Touch function: without touch
Description:The module is a combination of a 1.8-inch/2.4-inch SPI interface display module and an EC11 rotary encoder. The two are not related, but are placed on a board to make an integrated module. It is equipped with an additional button, and the button interface is also . You can choose to use it according to the actual use. The integrated design is more simple and beautiful, and convenient for DIY.
Color: blue
Material: Metal+Plastic
Package Contents:
1 x Rotary encoder combination module
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
