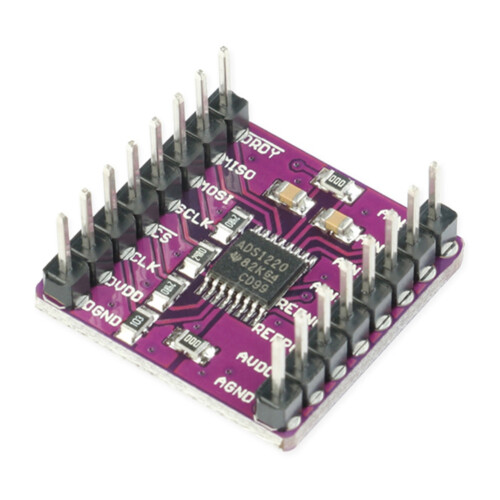

CJMCU-1220 ADS1220 ADC 24 Bit A/D Converter Module I2C Low Power

CJMCU-1220 ADS1220 ADC 24 Bit A/D Converter Module I2C Low Power Description

The DS1220 is a precision 24-bit analog-to-digital converter (ADC) that offers many features to reduce the cost of the integrated system and component count for small sensor signals. The device passes a flexible multiplexer input (MUX), low noise, programmable gain amplifier (), two excitation current sources, a voltage reference, an oscillator, a low side switch and an accurate Temperature sensor for implement two differential or four single-ended inputs.
The device can be converted to a data rate of 2000 samples per second () with a single precipitation cycle. At 20 , the digital filter provides simultaneous 50Hz and 60Hz rejection for industrial applications noise.
The internal provides high gain at 128 V / V. The makes the ADS1220 perfect for measuring small sensor signals such as resistance temperature detectors (RTDs), thermocouples, thermistors, and resistive bridge sensors.
The device supports the measurement of or fully differential signals when using the programmable gate array. Alternatively, the device can be configured to pass through the internal while still providing high input impedance and gain of up to 4 , allowing single-ended measurements.
In the duty cycle mode, when the is disabled, the power consumption is as low as 120pa. The ADS1220 is available in a lead-free VQFN-16 or ATSSOP-16 package and is specified above the -40? to + 125? temperature range.

K type of measuring thermocouple
Low current consumption: starting at 120?A in duty cycle mode (typical)
Power range: 3V ~ 5V
Up to 20 effective resolutions
Two differential or four single-ended inputs
Dual matched programmable current source: 10?A to 1.5mA
Internal 2.048V Reference: 5ppm / C (typical) Drift
Internal 2% precision oscillator
Internal temperature sensor: 0.5 C (typical) precision
SPI compatible interface (mode 1)
Applications:
Measuring temperature sensor:
1. Thermistor
2. Thermocouple
3. Resistance Temperature Detector (RTD): 2-wire, 3-wire or 4-wire type
Sensor measuring bridge:
1. Pressure sensor
2.Strain gauge
3. Libra
Portable tool
Factory automation and process control
