18V21V Power Tool Lithium Battery Protection Board High Current Angle

18V21V Power Tool Lithium Battery Protection Board High Current Angle Description

This product uses a 5-cell lithium battery-specific IC as a processor to detect each battery's voltage, charge and discharge current, and ambient temperature in real time.
Realize battery overcharge, over discharge, discharge overcurrent and other protection functions;
It has protection functions such as short circuit, over-current and temperature protection;

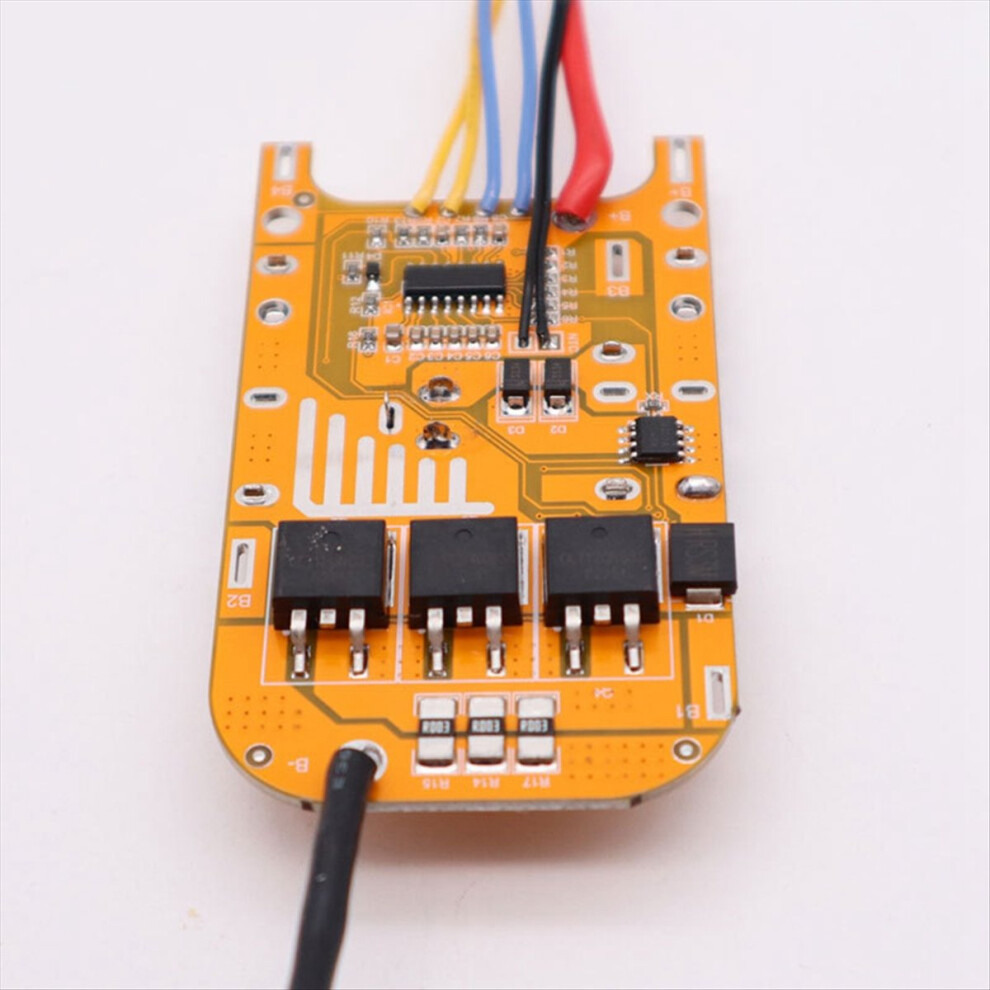

The circuit board is of good quality, and the copper hardware and thickened terminals are ;
It does not generate heat during long-term use and is commonly used in for lithium-electric angle grinder battery packs.

Charging voltage: 19/21V
Single charge voltage: 3.8/4.25V
Continuous discharge current: 8-30A
Overcharge single cell detection voltage: 3.85-4.25V
Overcharge protection delay: 1S
Overcharge single cell recovery voltage: 3.75-4.13V
Overcharge protection release delay: 1mS
Over discharge single cell detection voltage: 2-2.8V

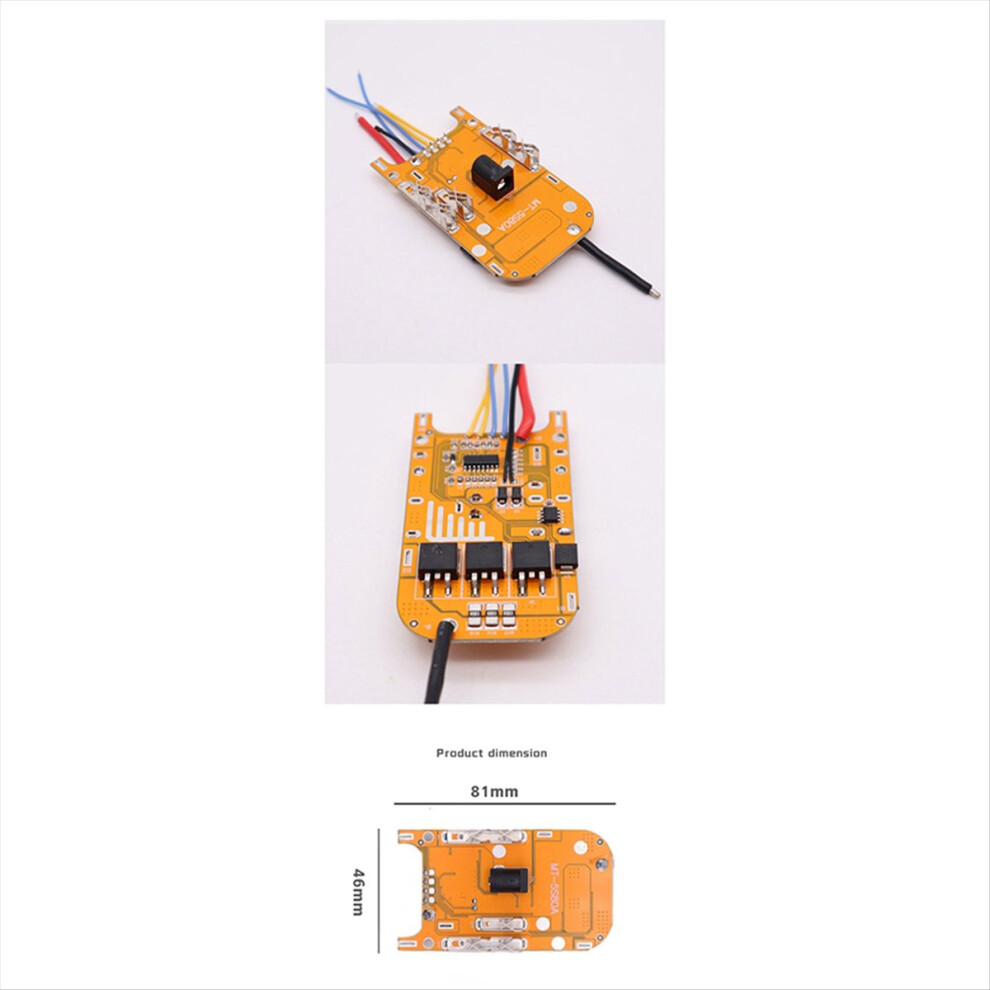

Specification:C:OLT-MT5S90A
Colour:As Shown
Material:PCB

Package Contents:
1 x Battery protection board

Only the above package content, other products are not included.
