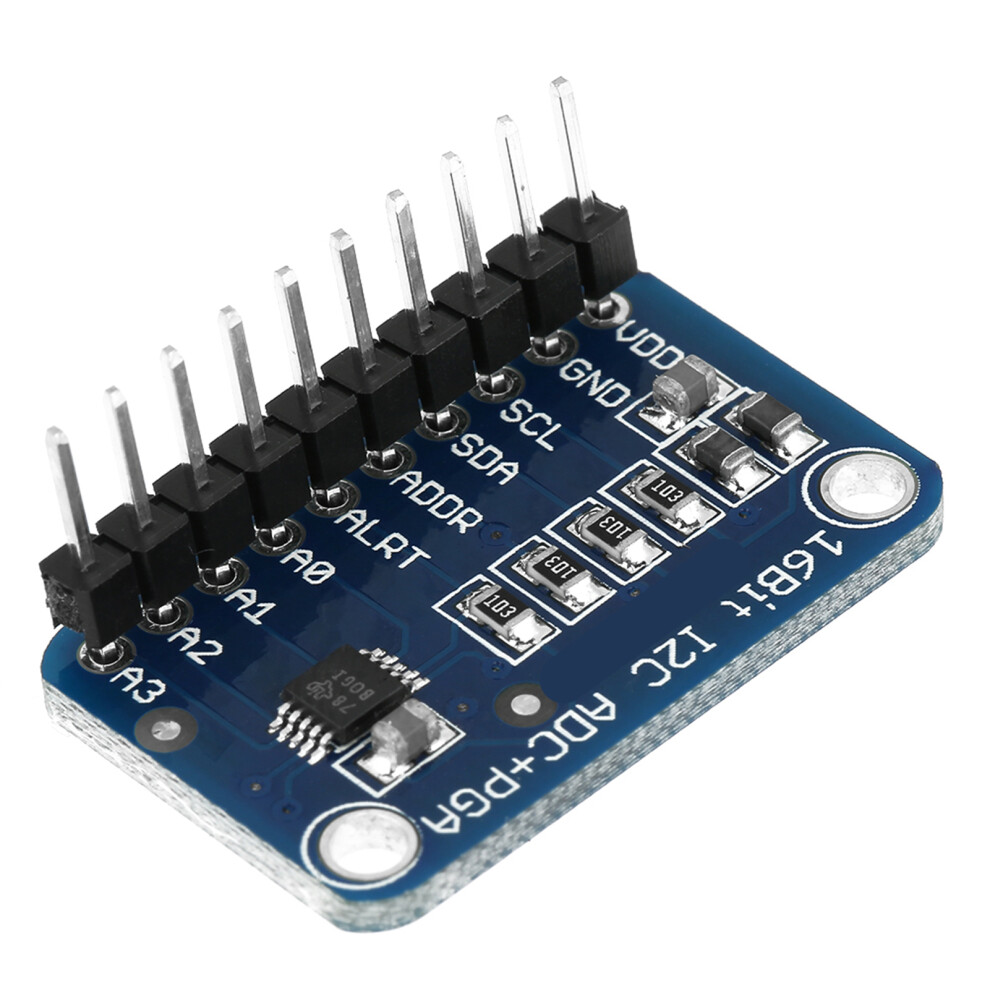

1pc 16-Bit I2C ADC Development Board Analog to Digital Module

1pc 16-Bit I2C ADC Development Board Analog to Digital Module Description

1、For micro‑controllers without an analog‑to‑digital converter or when you want a higher‑precision ADC, provides 16‑bit precision at 860 samples/second over I2C. 2、The chip can be configured as 4 single‑ended input channels, or two differential channels. 3、As a nice bonus, it even includes a programmable gain amplifier, up to x16, to help boost up smaller single/differential signals to the full range. 4、We like this ADC because it can run from 2V to 5V power/logic, can measure a large range of signals and its super easy to use. It is a great general purpose 16 bit converter. 5、The chip's fairly small so it comes on a breakout board with ferrites to keep the AVDD and AGND quiet. Interfacing is done via I2C. The address can be changed to one of four options (see the data‑sheet table 5) so you can have up to 4 connecte
Features:
For micro-controllers without an analog-to-digital converter or when you
want a higher-precision ADC, provides 16-bit precision at
860 samples/second over I2C.
The chip can be configured as 4
single-ended input channels, or two differential channels.
As a nice
bonus, it even includes a programmable gain amplifier, up to x16, to
help boost up smaller single/differential signals to the full range.
We
like this ADC because it can run from 2V to 5V power/logic, can measure a
large range of signals and its super easy to use. It is a great general
purpose 16 bit converter.
The chip's fairly small so it comes
on a breakout board with ferrites to keep the AVDD and AGND quiet. Interfacing is done via I2C. The address can be changed to one of four
options (see the data-sheet table 5) so you can have up to 4 connected on a single 2-wire I2C bus for 16 single ended inputs.
Four single-ended or two differential
inputs. Programmable comparator; internal low-drift
voltage reference; internal oscillator; internal PGA.
This board/chip uses I2C 7-bit addresses between 0x48-0x4B, selectable with jumpers.
Specifications:
Wide Supply Range: 2.0v to 5.5v;
Low Current Consumption: Continuous Mode:
Only 150uA Single-Shot Mode: Auto Shut-Down;
Programmable Data Rate: 8sps to 860sps;
I2C Interface: Pin-selectable addresses;
Size: 2.8*1.8cm/1.1*0.7in
Weight: 5g(approx.)
Package Includes:
1 x Module
1 x Pin Header
