1Pc Trigger Switch Drive Module Support PWM Regulator 0-20khz DC5-36V

1Pc Trigger Switch Drive Module Support PWM Regulator 0-20khz DC5-36V Description

Description:

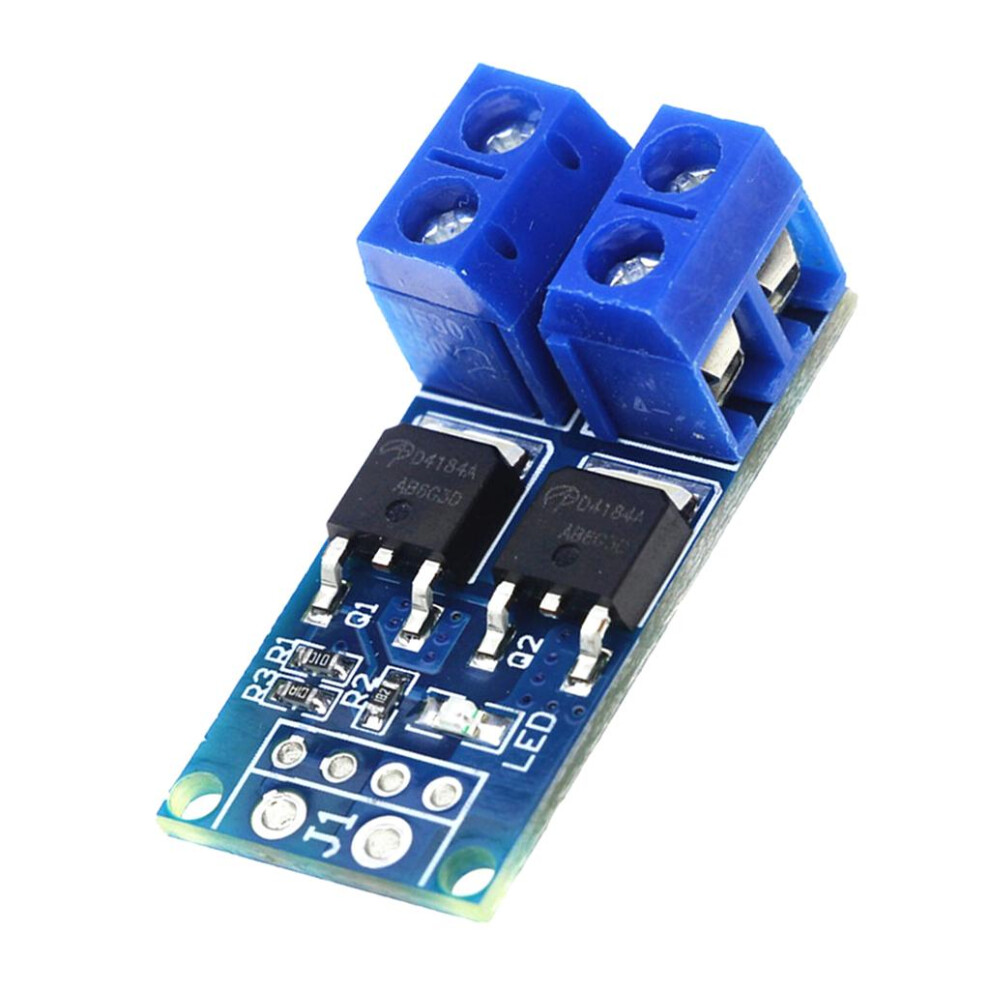

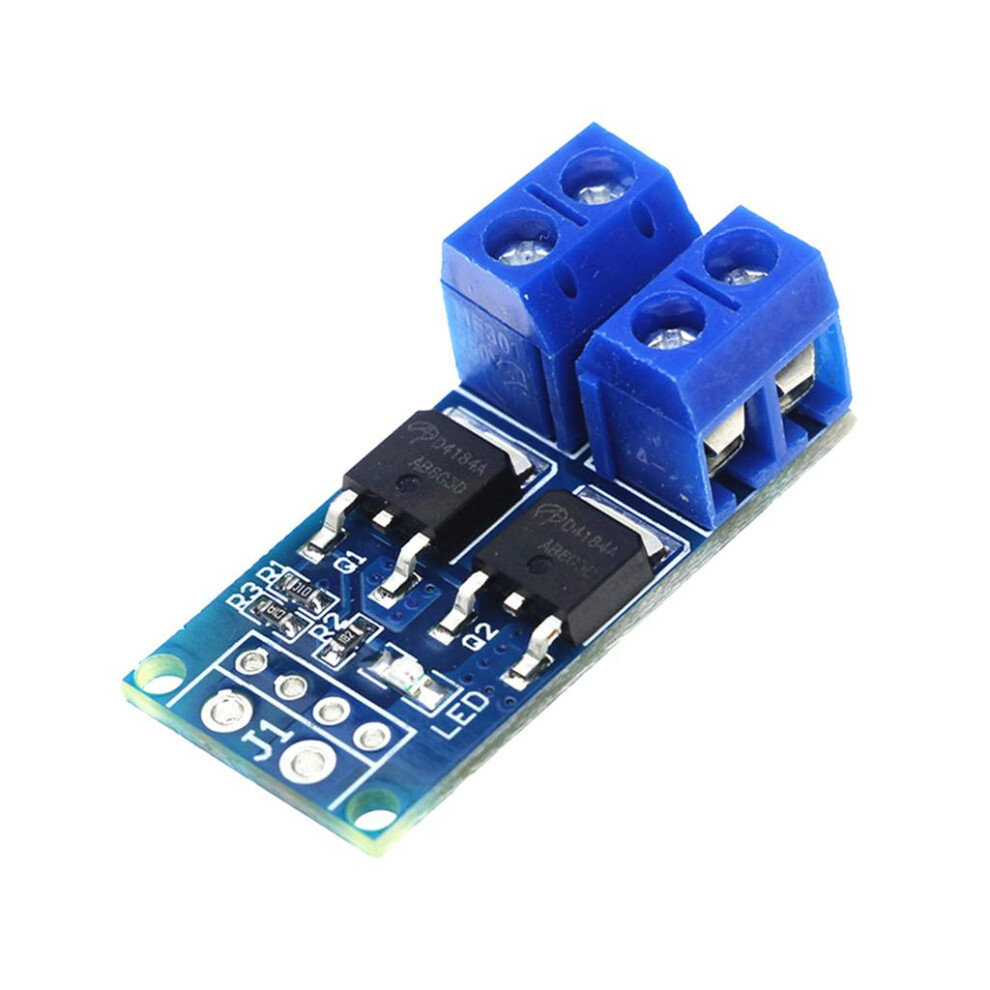

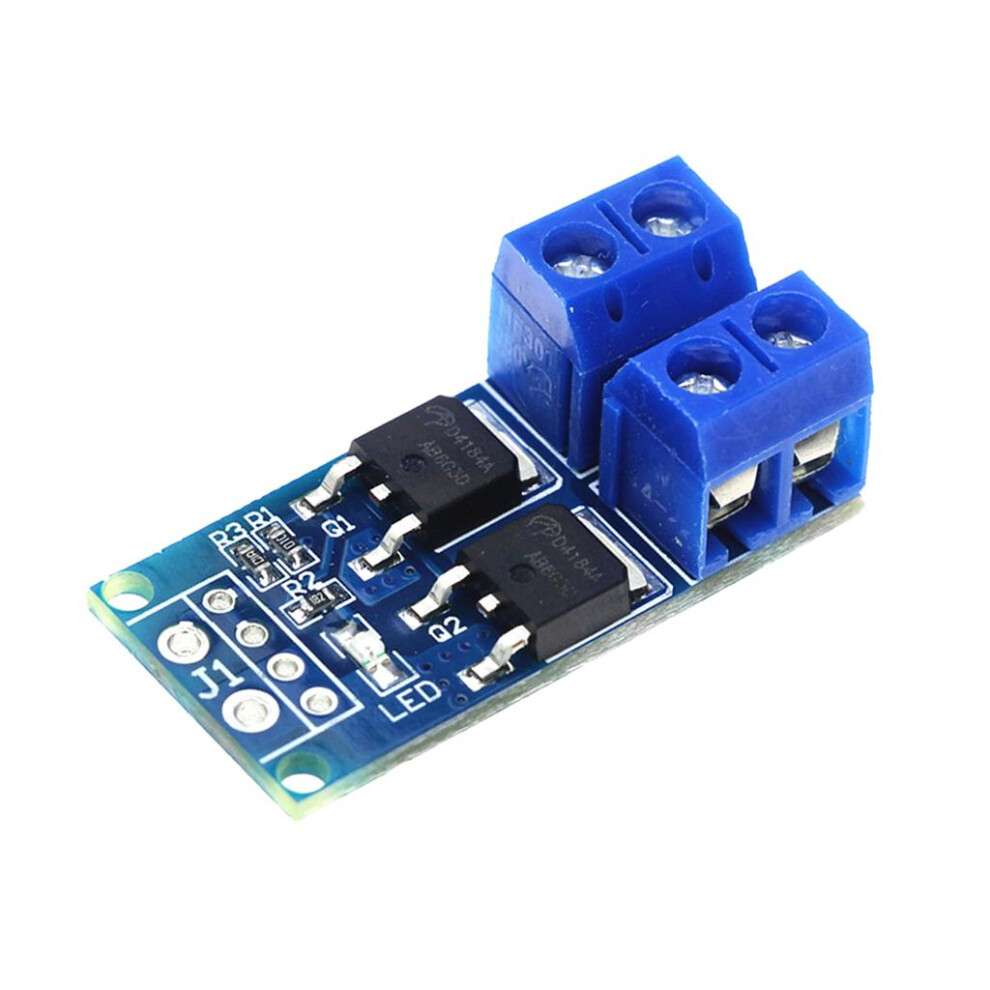

High power MOS field effect tube trigger switch driver module PWM regulating electronic switch panel.
Adopts imported large power dual-mos transistor parallel active output, lower resistance, higher current and strong power.
Perfect support PWM signal: the PWM controller can access PWM signal, which can perfectly supported the frequency of 0-20khz.
This motor control module can tolerate wide input Voltage (DC 5-36v) it can be applied in various high power equipments,
Applications: motor,lamp bulb,LED lamp strip, micro water pump etc.

Specification:

Operating Voltage:DC 5V-36V

Trigger Signal Source: digital high/low level (DC 3.3-20V),can connect with MCU IO port, PLC interface, DC power etc; can connect with PWM signal; support signal frequency 0--20KHz.

Output Power: DC 5v-36v, room temperature sustained current 15A, power 400W! Auxiliary cooling conditions, the maximum current can be up to 30A.

Operating Temperature: -40~85 Celsius

Size(LxWxH): 34x17x12mm/13.39x6.69x4.72in

Package Includes:

1 Piece MOS FET Trigger Switch Drive Modules

Note:

Due to the difference between different monitors, the picture may not reflect the actual color of the item.

Due to manual measurement, there may be 1-2mm error in size.
