2 Port POE Extender 100Mbps with IEEE 802.3Af Stan

2 Port POE Extender 100Mbps with IEEE 802.3Af Stan Description

1. Comply with IEEE 802.3af Power over Ethernet (10/100Mbps Supported). Extender the range of PoE an additional 100 meters
2. Automatically detects and protects PoE equipment from being damaged by incorrect installation. Plug-and Play no configuration required

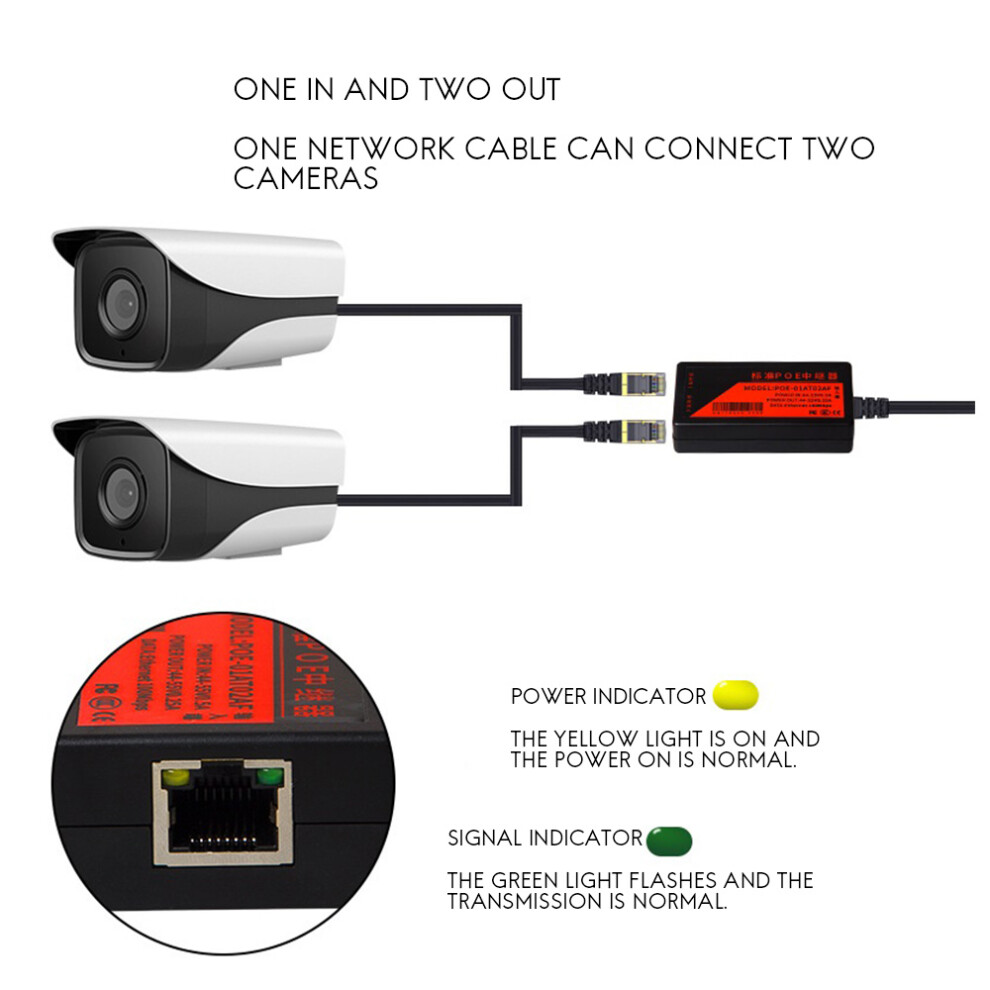

3. 2 Port PoE extender can forward both Ethernet and PoE power for 1 terminal equipment via Cat5 ,Cat5e,Cat6,Cat6e,UTP cable.
4. 2-Port PoE Extender has 3 10/100M Lan ports, among them, one for power input, the other two for power output. Comply with 10/100BASE-TX,IEEE 802.3 af-PoE.

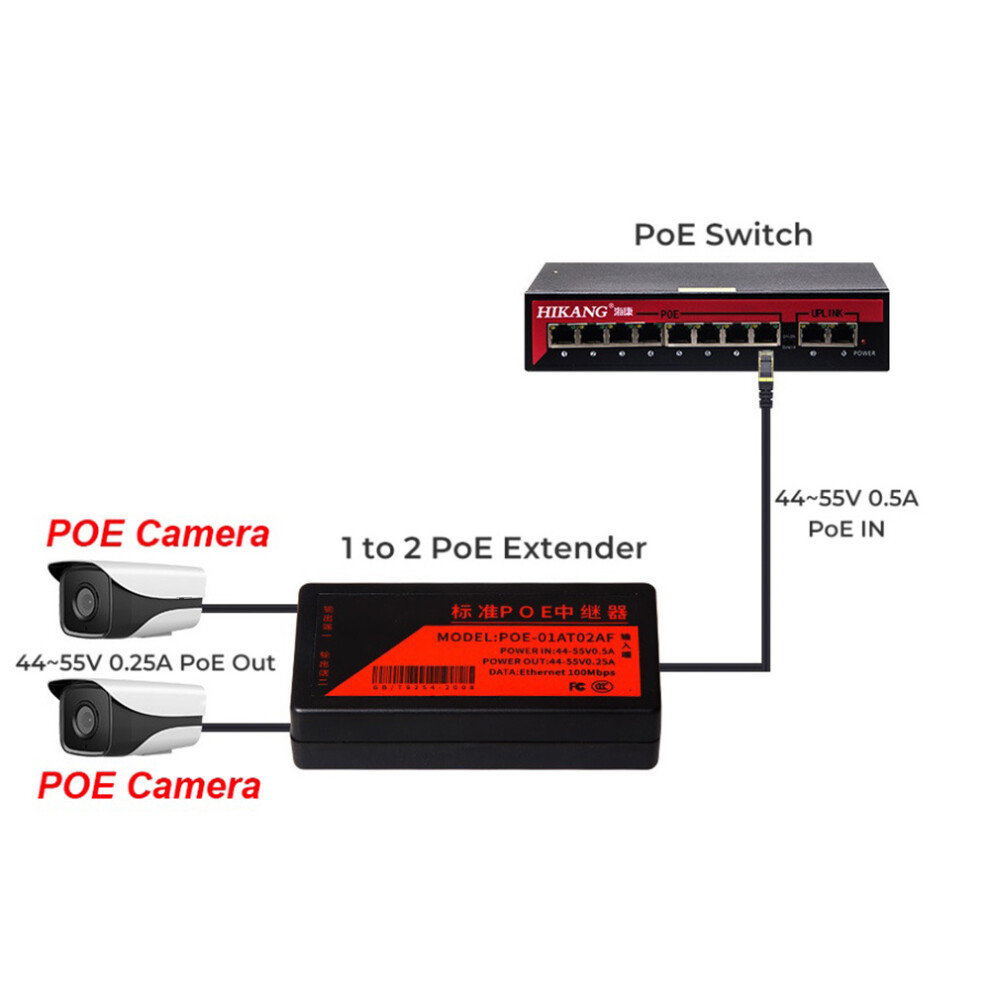

5. Used with AP, IP camera, IP telephone and the other network equipment in the situation of the lack of power line or far away from the power outlets. Installed at hotels, schools, buildings, villages, etc.

POE input: 1 RJ45 port
POE output: 2 RJ45 port
POE Pin Output: 1/2(+), 3/6(-); MAX Power 15W
Network Medium: Cat5 or better UTP cables (less than 120m)
Repeater Mode: Store and forward
Address Table: 2K
Packet Buffer Memory: 48 Byte
Switching Capacity: 1.0Gbps
PoE Standard: IEEE 802.3af
Input power: 13
Output power: 12.2
Input voltage: 44-55V 0.5A
Output voltage: 44-55V 0.525A
Power Supply Type: 1/2+,3/6-,Mode A, End-Span
Network Protocol: IEEE 802.3i-10BASE-T, IEEE 802.3u: 100BASE-TX, IEEE 802.3x-Flow Control, IEEE 802.3af-Power over Ethernet;
Regulation Compliance: FCC Part 15B, ROHS Directive 2011/65/EU, Low Voltage Directive 2014/35/EU,EMC Directive 2004/108/EC;
Working temperature: -10c to 45c
Working Humidity: 5%-90%, No Condensation
color:Black
Material:Plastic + Metal

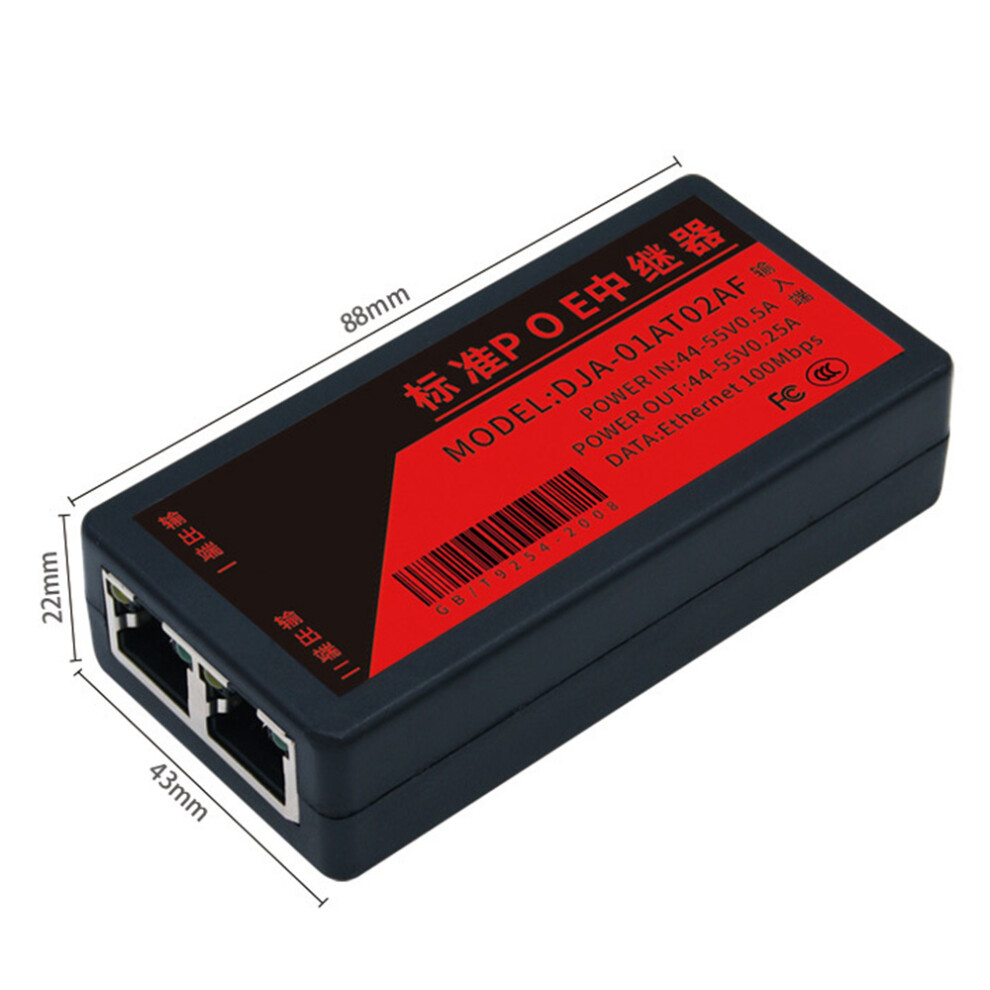

size:88 x 43 x 22mm

Package Contents:
1 x 2 Port POE Extender

Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
