(2) SNAP SEAL COMPRESSION F TYPE PLUG CMX100 CONNECTOR CT100 RG6 WF100 COAX CABLE

(2) SNAP SEAL COMPRESSION F TYPE PLUG CMX100 CONNECTOR CT100 RG6 WF100 COAX CABLE Description

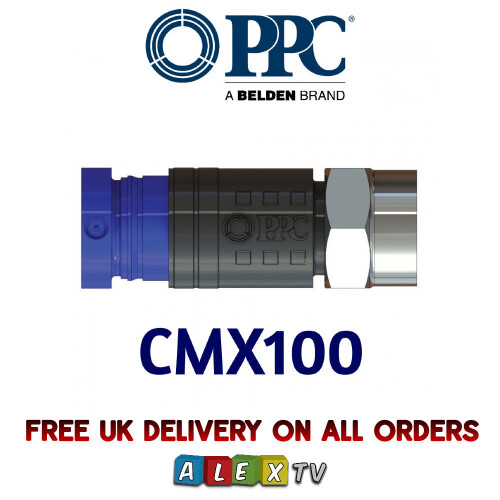

SNAP SEAL COMPRESSION F TYPE PLUG PPC CMX100 CONNECTOR CT100 RG6 WF100 COAX CABLE
This Professional F Connector can be crimped onto a suitable coaxial cable with a compression tool to provide a high-performance connection to F-connector equipment.

The CMX Satellite Series compression connector is designed to excel on TV & Satellite cables. The engineered polymer body and compression ring provide simple installation while maintaining high performance both mechanically and electrically.

Features:

• PPC Belden CMX Satellite Series Compression Connectors
• Professional Compression Snap & Seal F Connectors
• Waterproof Durable
• High performance with Simple Installation

Suitable Coaxial Cable sizes :
CT100
WF100
HT100
RG6

Please Note: You will require a suitable Compression tool to fit these connectors  (not supplied).
Do Not confuse these connectors with cheap brands and inferior quality. These connectors are produced by the top leading Brand and are exactly the same ones used by the UK  Commercial Installation companies.

Product Details:
Brand: PPC Belden
Type: F-Type
Colour: Blue
Part No: CMX100

Technical Specifications:

• Bandwidth 0MHz to 3GHz
• Return loss minimum -25dB to 3GHz
• Insertion loss Less .18dB
• Operating voltage 90V (at 60Hz continuous AC)
• Operating temperature -40 degrees C to 60 degrees C

What's Included:

• PPC Belden CMX100 F Compression Snap & Seal Connectors Blue ( Select Quantity)
