2320W 4 Channel Zone Quad Power Amplifier Pro 2 Ohm Studio Speaker System 19" 2U

2320W 4 Channel Zone Quad Power Amplifier Pro 2 Ohm Studio Speaker System 19" 2U Description

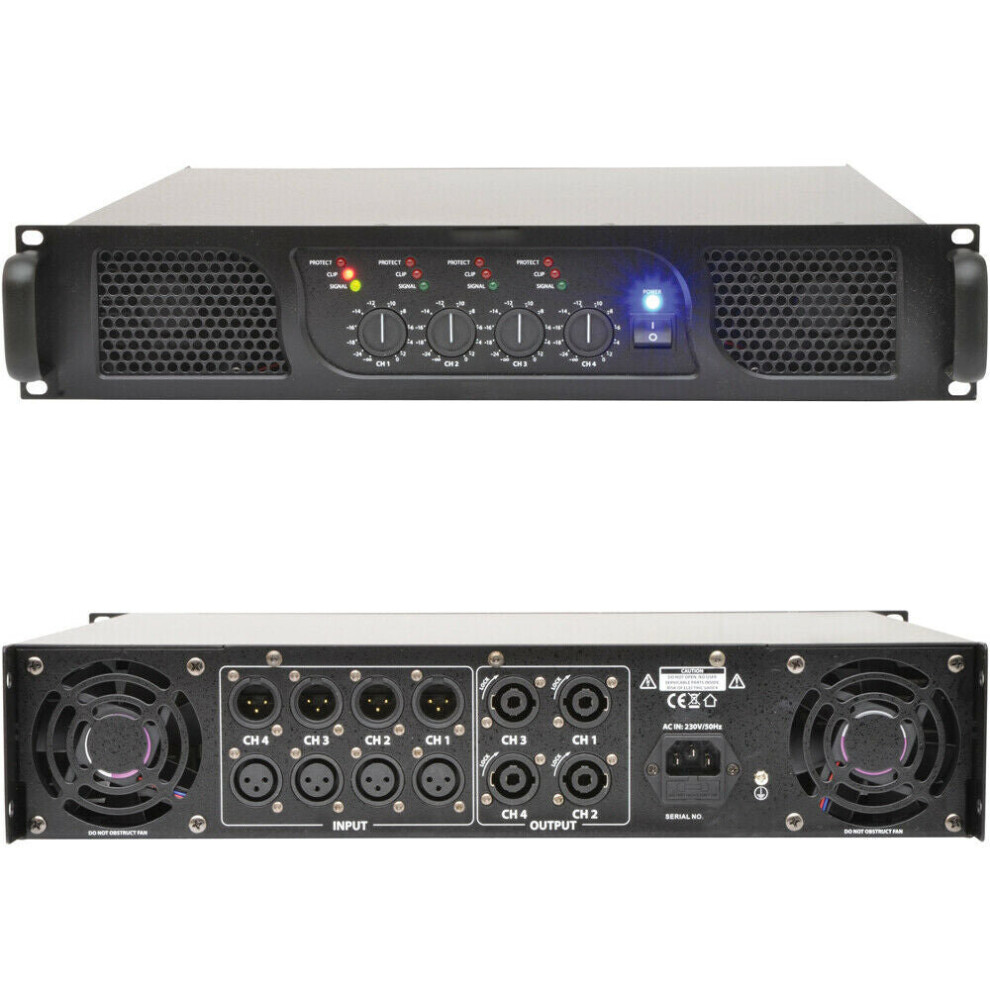

2320W (4x 580W Channels) 2 Ohm Quad/Stereo Power Amplifier

Overview:

Our quad power amplifiers have 4 independent channels with and an individual volume control for each channel. Power amplifiers are usually required when larger, more powerful speakers are needed for an install. Our compact, high quality and versatile power amplifiers also have parallel outputs meaning that you can daisy chain to further amplifiers if required.

Equipped with LED level meters, 4 separate channel volume controls, attractive dials, rack mountable and suitable for use in 2 Ohm resistance levels, they are the choice for most professional/studio installers. We stock a full range of power amplifiers at different wattage ratings, if this one is not quite right for you, please get in touch.

Our range of 2 Ohm power amplifiers will accept speakers on each channel in the following configurations when wired in parallel:

8Î + 8Î = 4Î total

4Î + 4Î = 2Î total

8Î + 8Î + 8Î + 8Î = 2Î total

Features:

4 selectable balanced line inputs
4x â" Parallel signal inputs/outputs â" Male and Female XLR 3Pin Connections

4x â" Speaker/Speakon outputs

4x Channels/zones
4x Volume controls (1 per channel)
Sleek and compact design
Durable metal body with breathable air vents and a dual fan cooling system built in
UK power cable supplied (IEC)
Rack mountable â" Takes up 2U on a 19â rack

Removable handles for a low profile installation.
On/Off switch on the front panel
Protected against - Short-circuit, overload, D.C. and soft-start

Technical information:

Power Supply â" 230V AC, 50Hz (IEC Connection)

Power output RMS per channel at 4 Ohms â" 4x 450W

Frequency response â" 5Hz - 50kHz
Input impedance â" 20K Ohms
THD â" 0.05%
S/N ratio â" >103dB
Slew rate â" 40V/usec
Dimensions â" 483mm x 439mm x 88mm (WxDxH)
Weight â" 23.5KG

Further Information

We also stock the following products that you may need for this type of set-up:

Speakers
Speaker Cable
Banana Plugs
Interconnect Cables (2 RCA cables, Speakon Cables and 6.35mm Cables)
Rack Mount Data Cabinets

If you have any questions about this product or any others in our range, please do not hesitate to get in touch and we will be more than happy to help.
