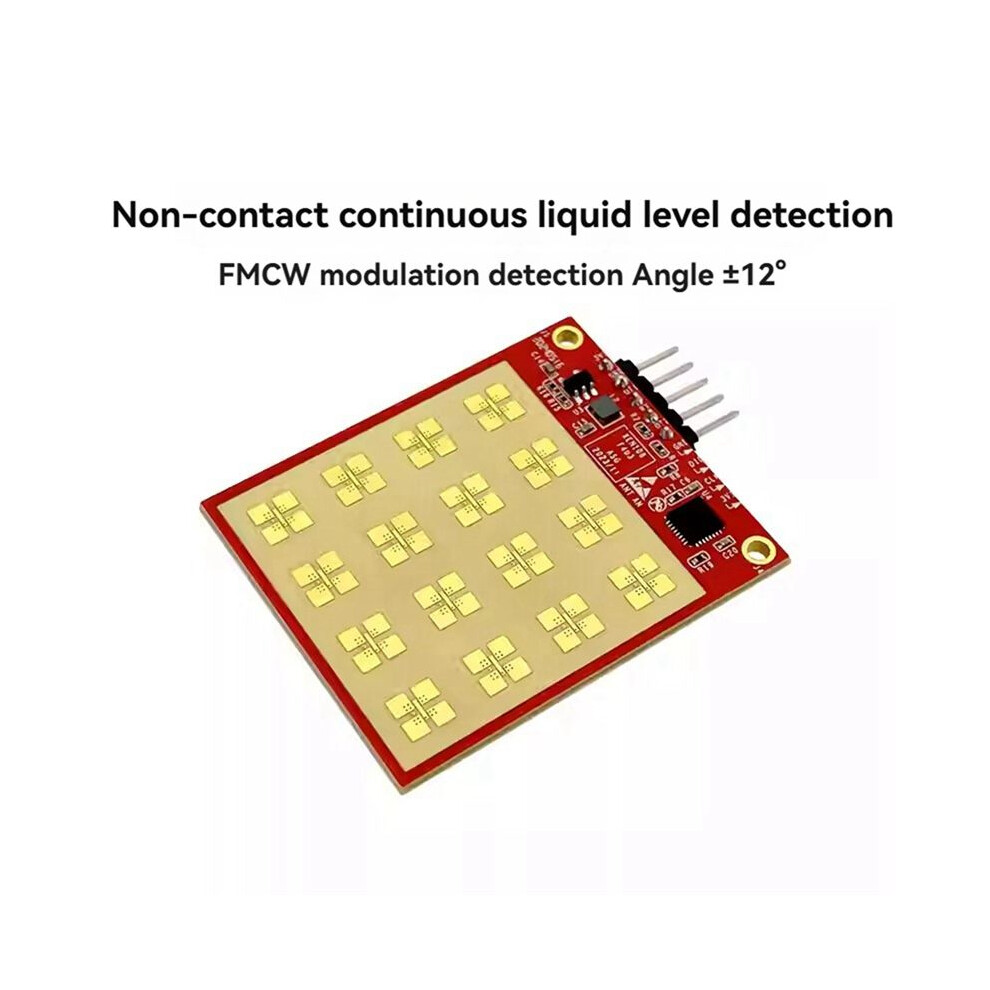

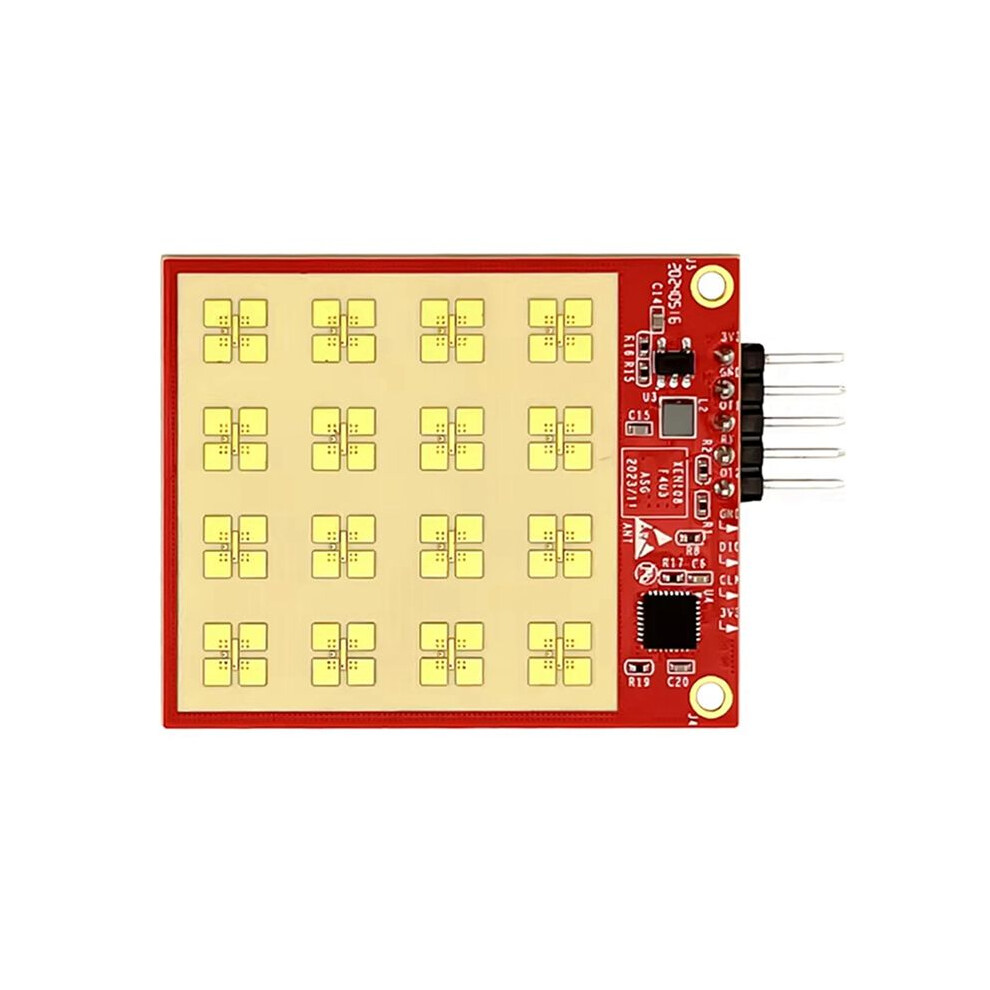

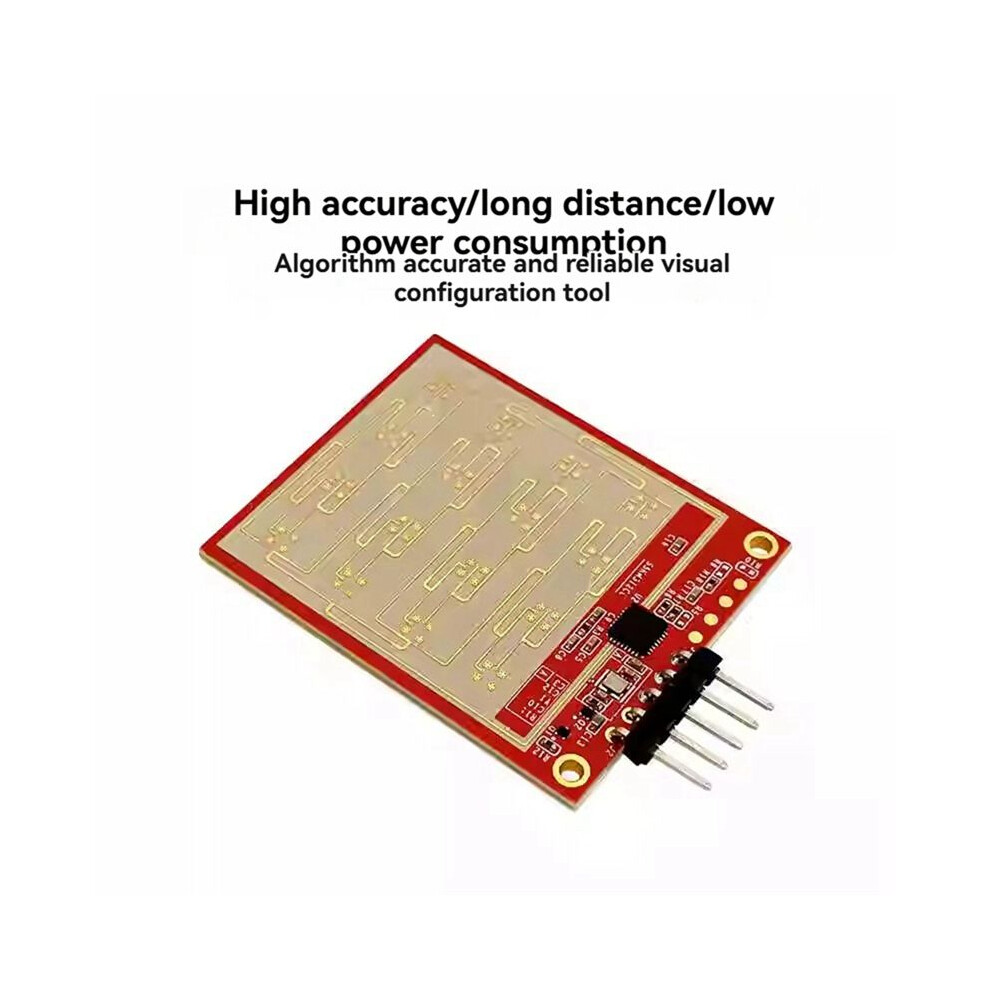

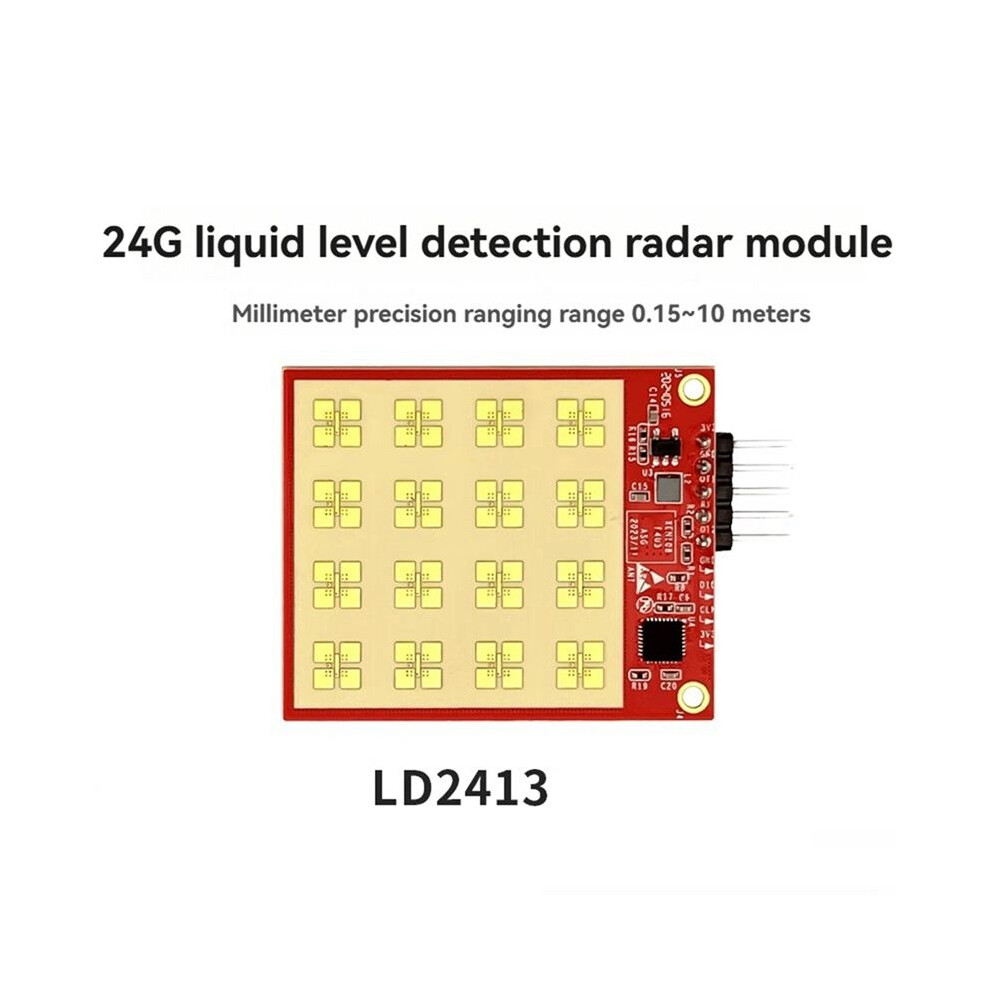

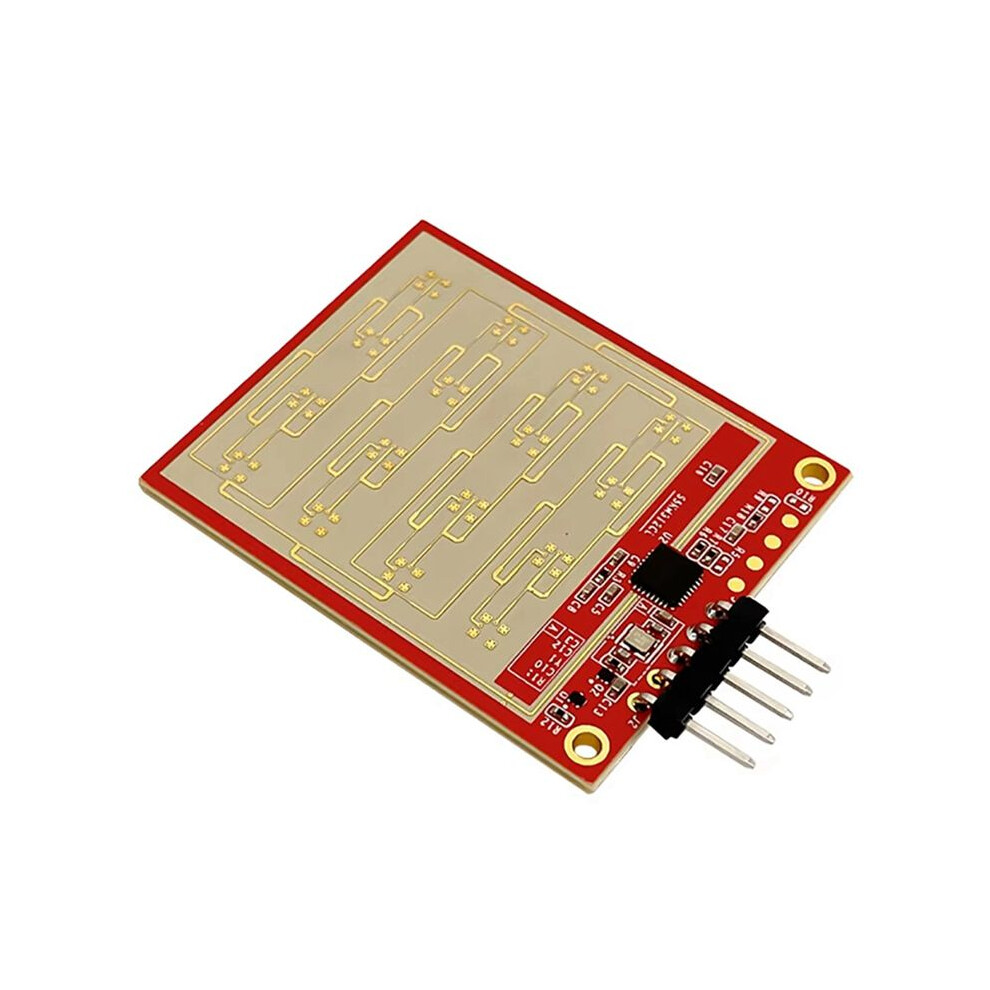

24G Water Level Detection Sensor LD2413 Module Liquid Detection Non-Contact Induction 0.15-10m, Test Kit
Brand Tlily
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 132,000 Trustpilot reviews and an 'Excellent' rating
£17.68
£31.83
44% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Priority (Free) | Thu 27th Aug - Wed 2nd Sep
Sold by: CNNOTEPAD
Returns: 30 days
180-day payment protection
You might also like
Description & Details
Summary
- Using FMCW waveform and chip proprietary advanced radar signal processing, to achieve accurate detection of liquid and material height.
- The product is mainly used in hydrological monitoring, urban pipeline network, water level measurement of fire-fighting water tanks. Support UART output, plug and play, can be flexibly applied to different intelligent scenes.
- Liquid Detection Module
- 24G Liquid Level Detection
- 24G Water Level Detection Sensor
24G Water Level Detection Sensor LD2413 Module Liquid Detection Non-Contact Induction 0.15-10m, Test Kit Description
Using FMCW waveform and chip proprietary advanced signal processing, to achieve accurate detection of liquid and material height.
The product is mainly used in hydrological monitoring, urban pipeline network, water level measurement of fire-fighting water tanks. Support UART output, plug and , can be flexibly applied to different intelligent scenes.
Frequency: 24GHz(23-27GHz)
Modulation mode: FMCW
Scanning bandwidth: 4GHz
Detection distance: 0.15m-10m
EIRP parameter: 11dBm(-6dB dual range)
Horizontal/vertical range: 12
Ranging accuracy: 3mm (theoretical value)
Reporting period: 160ms (50-1000ms/configurable)
Ambient Temperature: -40-+85
Power supply range: 3.3V(3.0-3.6V)@1A
Specifications:Test Kit
Colour:Red & Gold
Material:PCB

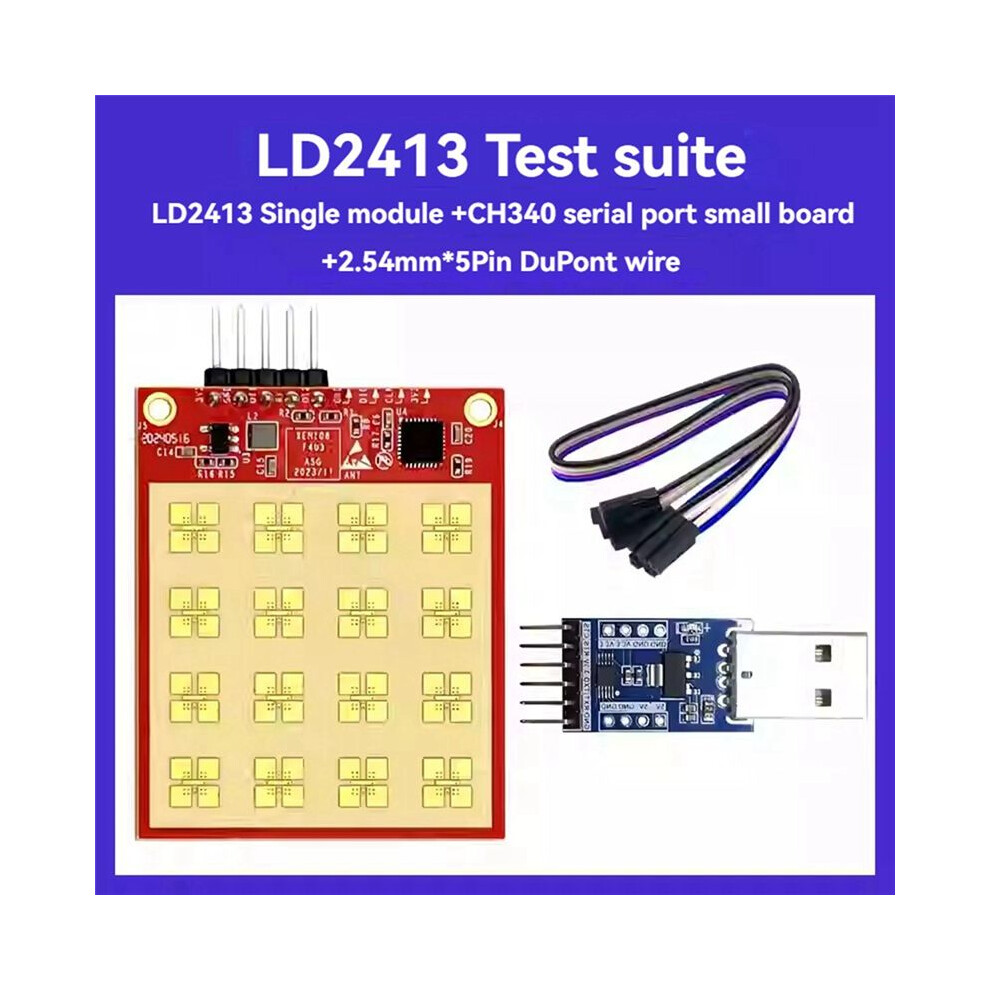

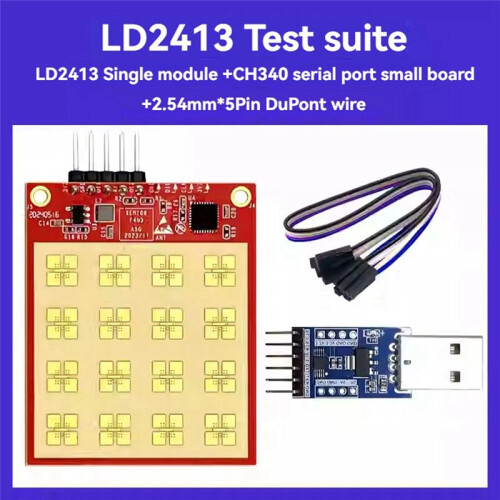

Package Contents:
1 * LD2413 module
1 * CH340 serial port small board

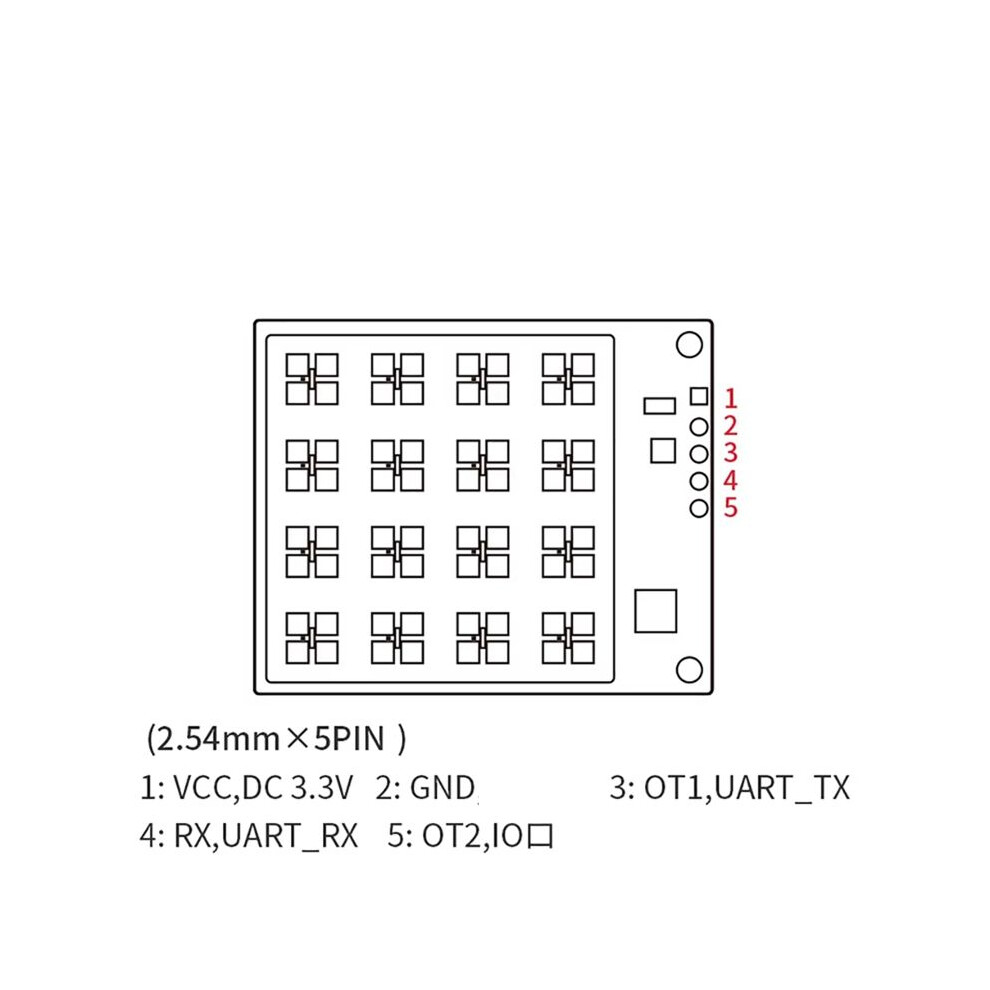

1 * 2.54mm*5Pin Dupont cable(The cable color is random, and the designation is not accepted)
Details
| OPC | PVRYTXH |
|---|---|
| Brand | Tlily |
| Codes | 4713729350931 (EAN) |
Product Data
| Height | 2cm |
|---|---|
| Width | 10cm |
| Length | 12cm |
| Weight | 0.019kg |
| Colour | Red&Gold |
| Size | Test Kit |
| Material | PCB |
