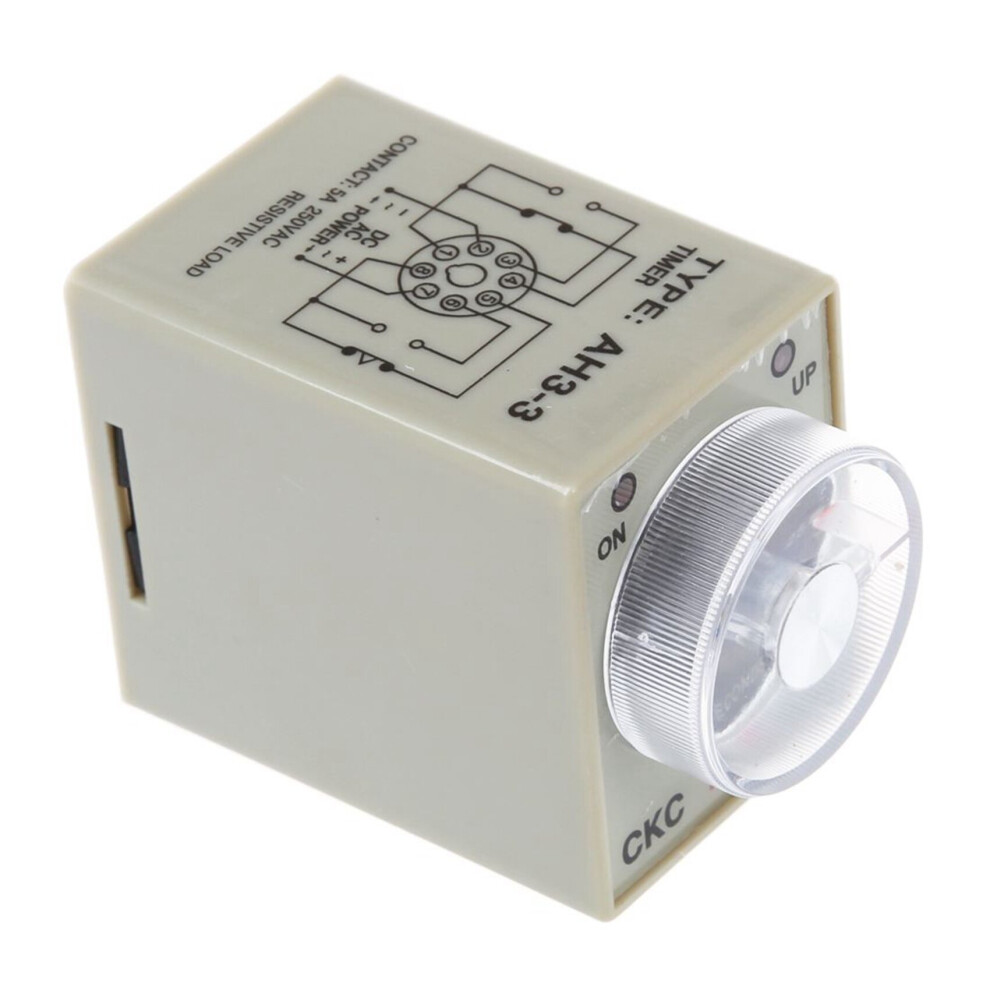

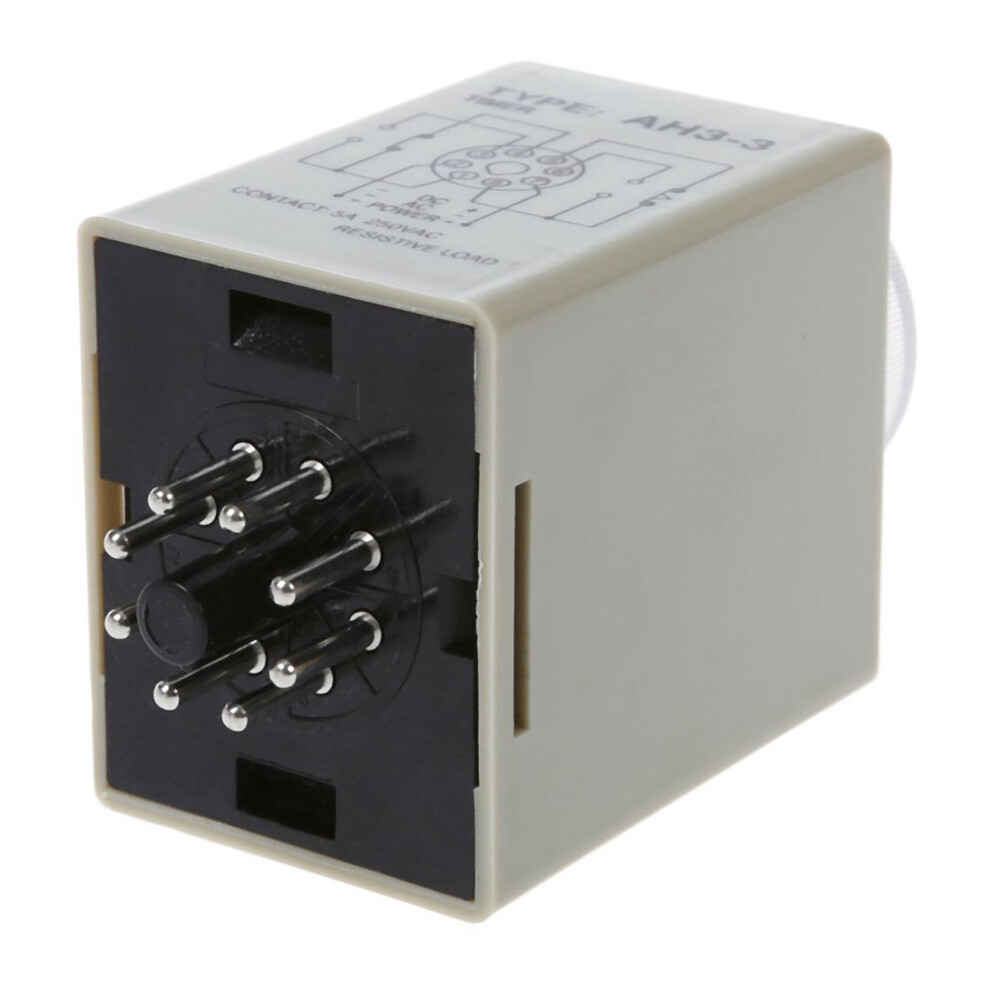

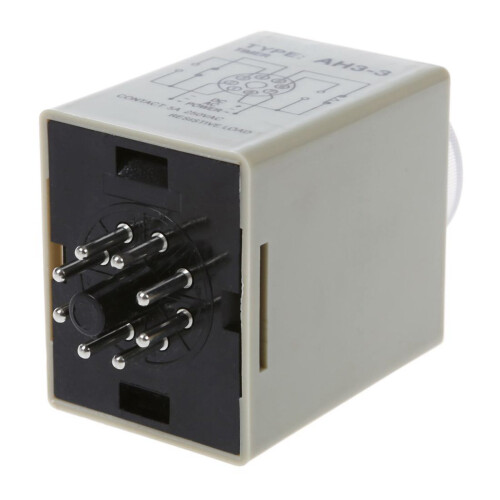

2X DC 12V 0- 30S Electric Delay Timer Timing Relay DPDT 8P W Base

2X DC 12V 0- 30S Electric Delay Timer Timing Relay DPDT 8P W Base Description

Product Name : Time Relay w Base;Type : AH3-3;Coil Voltage : 12V DC
Contact Type : DPDT;Contact : 5A 250VAC Resistive Load;Time Range : 0-
Number of Terminals : 8;Mount Rail Type : DIN Rail;Mount Hole Diameter : 4mm/ 0.157 Inch
Mount Hole Distance : 33mm/ 1.3 Inch (Center to Center);Total Size (.) : 55 x 40 x 87mm/ 2.2 Inch x 1.6 Inch x 3.4 Inch (L*W*H);Color : As Picture Shown
Net Weight : 118g

Power on delay, plus timing. With transparent time setting knob for setting time easily, 8 pin solder terminal for installation.
Time Delay Relay used in industrial automation system and mechanical equipment to delay component. Relay is a kind of automatil electric switch, when supply with an input value, like electric, magnetic, light or thermal signal, it wall transfer the controlled circuit automatically and make an abrupt change, when the input value decreased to certain degtee, it will resume to former state and make the controlled circuit back to the former stare.
Features LED indicator show power and output status.

Package Content :

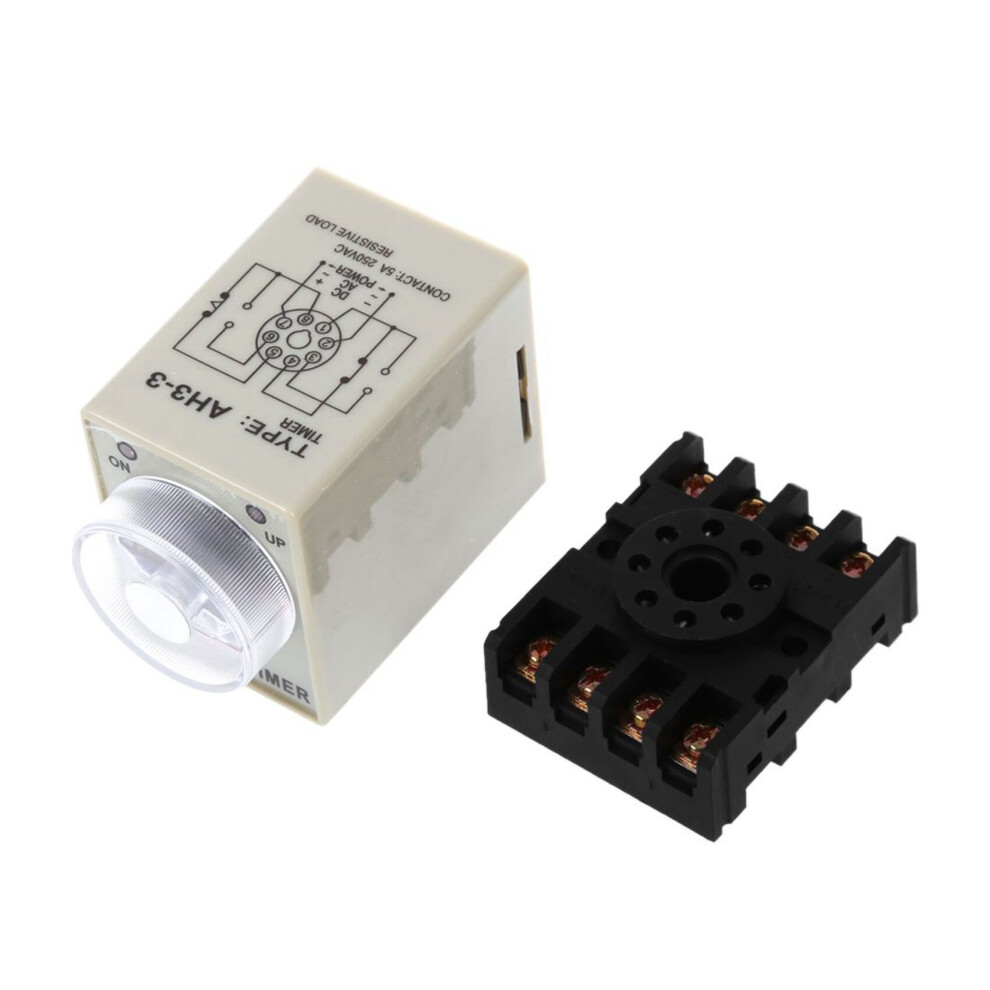

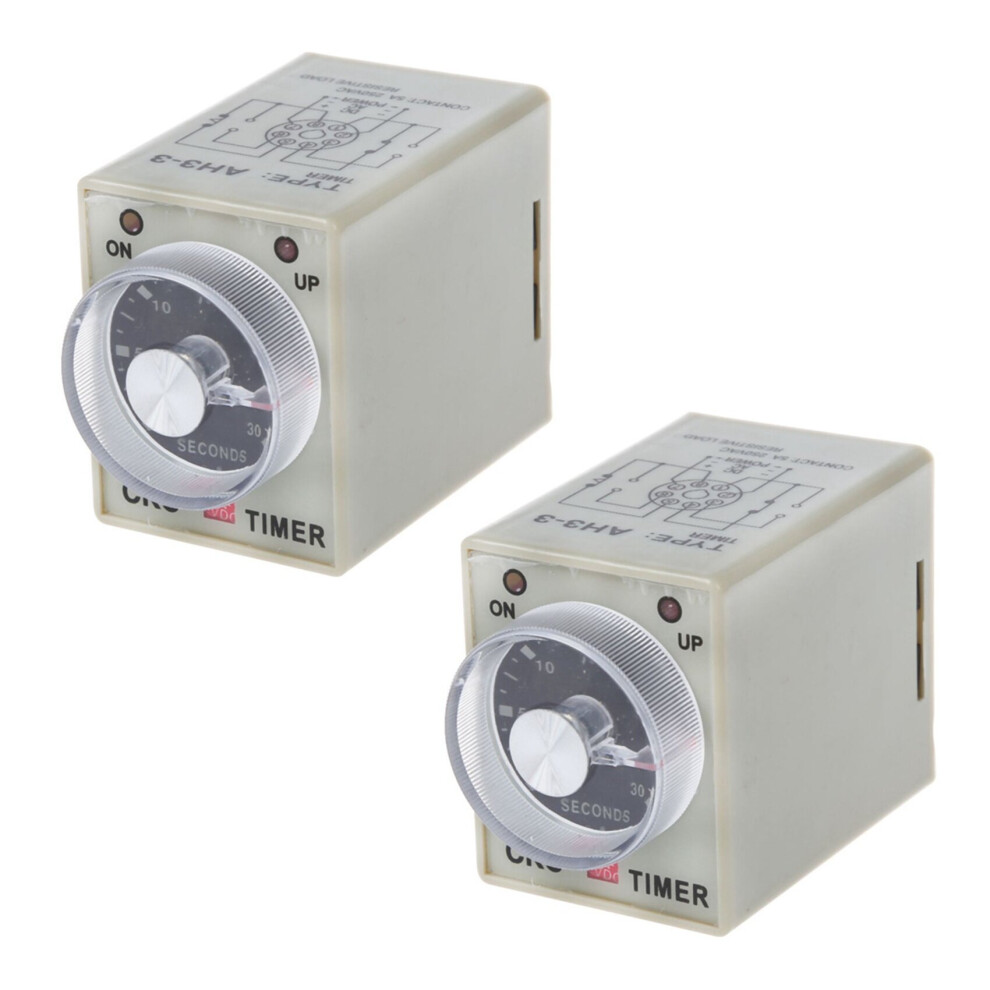

2 x Time Relay
2 x Base

Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
