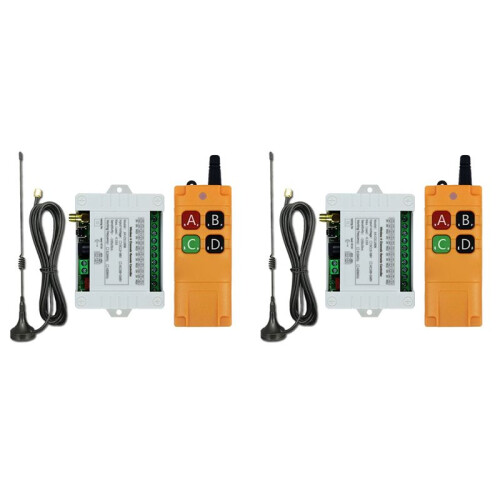

2X DC12-36V 4CH RF Wireless Remote Control Receiver with 2000M Long Distance Remote Controller Suckers Antenna

2X DC12-36V 4CH RF Wireless Remote Control Receiver with 2000M Long Distance Remote Controller Suckers Antenna Description

About Receiver: Model No.: AK-C211008
1. Working voltage: DC12V-36V
2. Quiescent condition: Less than 6mA. 3. Working temperature: -40 Degree +80 Degree. 4. Receiver sensitivity: more than -105dBm. 5. Working frequency: 433mhz. 6. Max load current: 10A
About Learning and clearing Method: Learning: Press learning button, the indicator flashes and OFF, loosen finger, press any button of the remote transmitter, indicator flashes three times, meaning learning succeeds.(how many times press the learning button according to the working way you need)
Clearning: Hold press learning button about 8 seconds,indicator light flashes several times and off, then press remote ,Relay did not Respond ,it means clearning code successful.

Color: white+orange+black
Material: PC+ABS
About Working way:
Working way changed by Learning button
Momentary: Press the Learning Button 1 times.
Relay: Press and hold -; Release -Off.
Toggle: Press the Learning Button 2 times.
Relay: Press -; Press same button again -Off·
Latched: Press the Learning Button 3 times.
Relay: Press -; Press other button -Off.
2channel Momentary +2channel Latched: Press the Learning Button 4 times.
2channel Momentary +2channel Toggle: Press the Learning Button 5 times.
2channel Toggle +2channel Latched: Press the Learning Button 6 times.
About Transmitter:
1.Buttons: 4 Buttons
2.Working Voltage:DC9V battery (battery not included)
3.Operating frequency:433MHz
4.Remote Distance: 200-2000M
5.Operating Current: 13 mAh
Due to different product batches, the appearance may be different, which does not affect use.

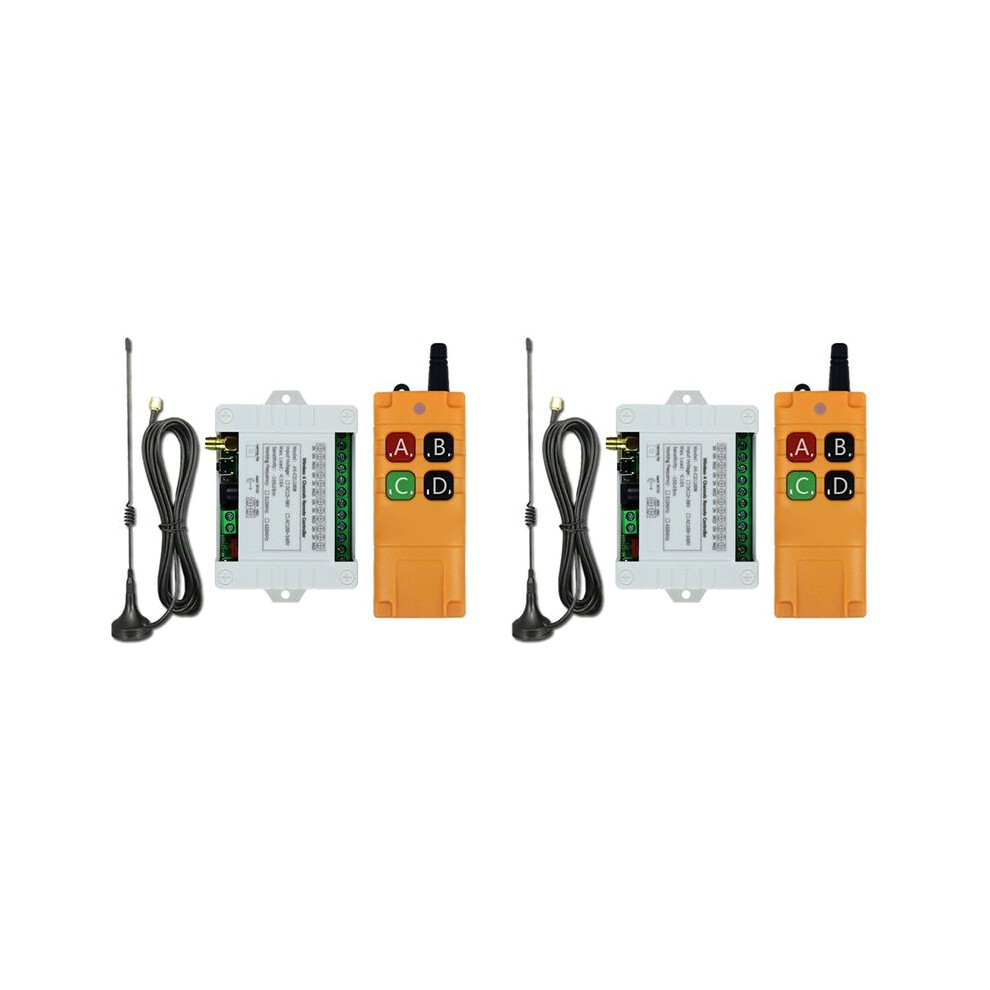

Package Contents:
2 x Wireless 4CH Remote controller Receiver
2 x Remote Control Transmitter
2 x Suckers Antenna
