2X KQ-130F Power Line Carrier Module / No External Components Required Description

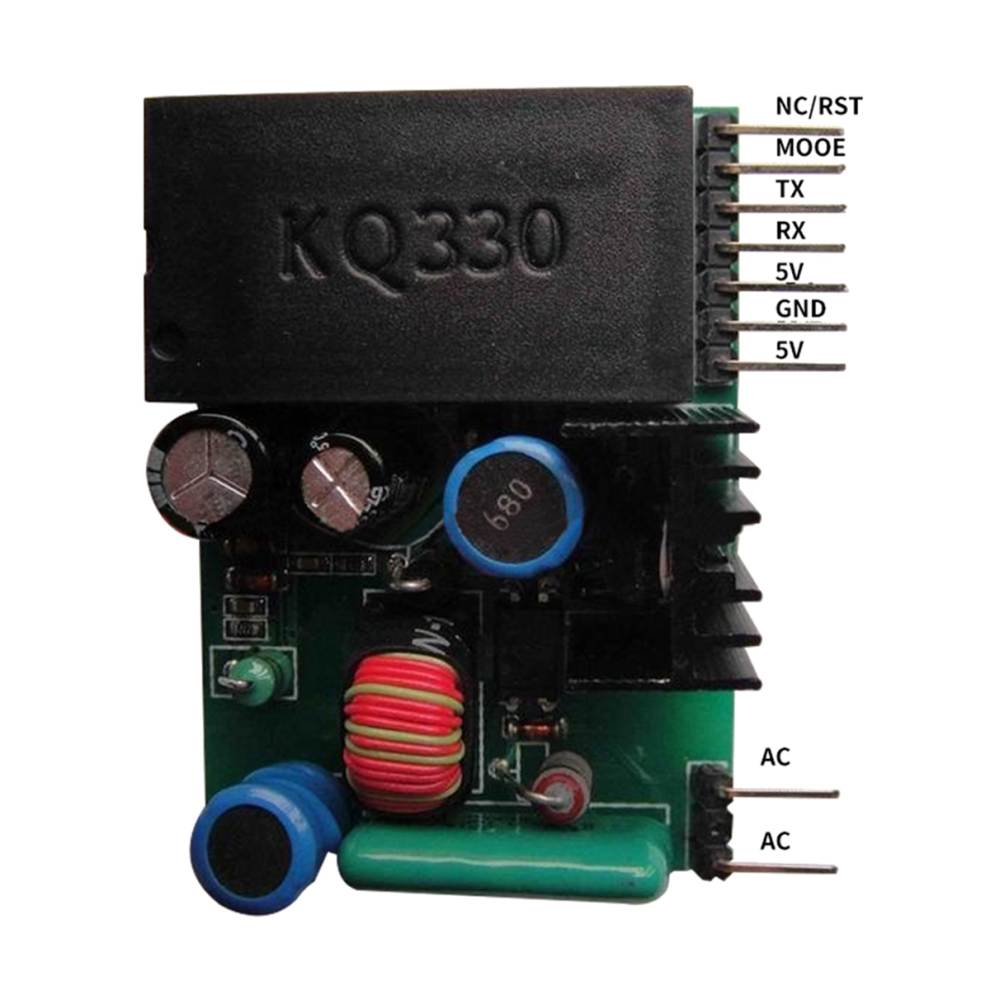

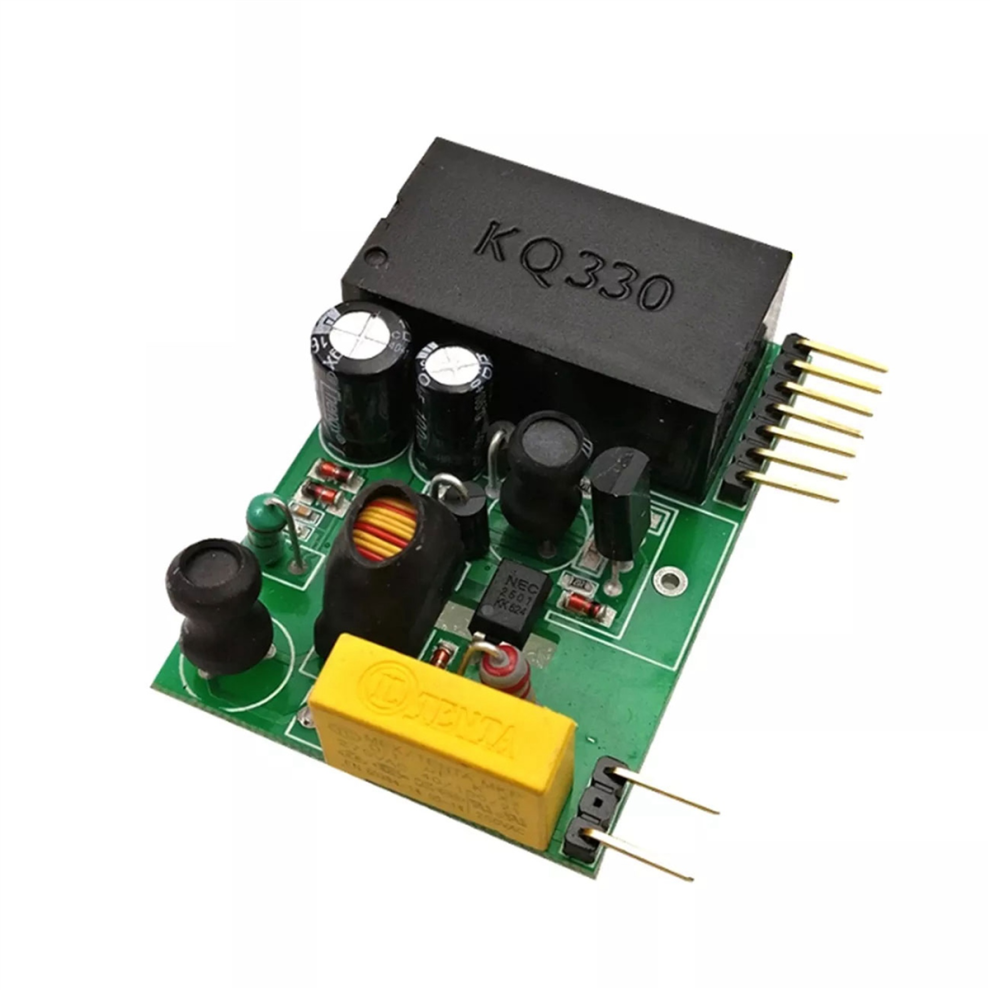

1.
The
carrier
board
that
integrates
the
KQ-330F
module
and
peripheral
circuits
does
not
require
other
coupling
components,
and
can
be
directly
connected
to
220V
AC
power.
The
external
dimension
is
53x38x17
mm
(LxDxH),
and
the
single
row
of
pins
leads
out.
1
and
2
pins
are
connected
to
220V
AC
power
supply
without
direction
(1
pin,
2
pin
spacing
2X0.1
inches),
2
feet
and
3
feet
are
1.1
inches
apart,
and
the
rest
of
the
feet
are
0.1
inches
apart.
2.
The
working
frequency
is
120~135KHZ,
and
the
interface
baud
rate
is
9600bps.
The
actual
baud
rate
is
100bps.
3.
The
maximum
length
of
one
frame
of
continuous
transmission
is
?252
bytes,
the
length
of
one
frame
of
continuous
transmission
is
defined
by
the
user
from
1
to
252,
and
the
module
not
send
redundant
data
4.
Receiving
sensitivity
?1mV
5.
Out-of-band
rejection
capability
?
60
dB
Bandwidth
?10
KHZ
Insulation
resistance
500V
?500M?
Power
supply:
DC
+5V
when
receiving:
?11mA
when
sending
?230mA
Power
frequency
insulation
withstand
voltage:
3000V
1min
test
between
AC
and
GND
has
no
breakdown
and
no
leakage
current.
Anti-
strike:
tube
protection
inside
the
board,
from
PCB
board
wiring
material
selection
to
component
material
selection,
are
designed
according
to
wide
temperature,
high
pressure
resistance,
and
high
pressure
shock
resistance.
Working
temperature:
-25?~70?
Humidity?90%

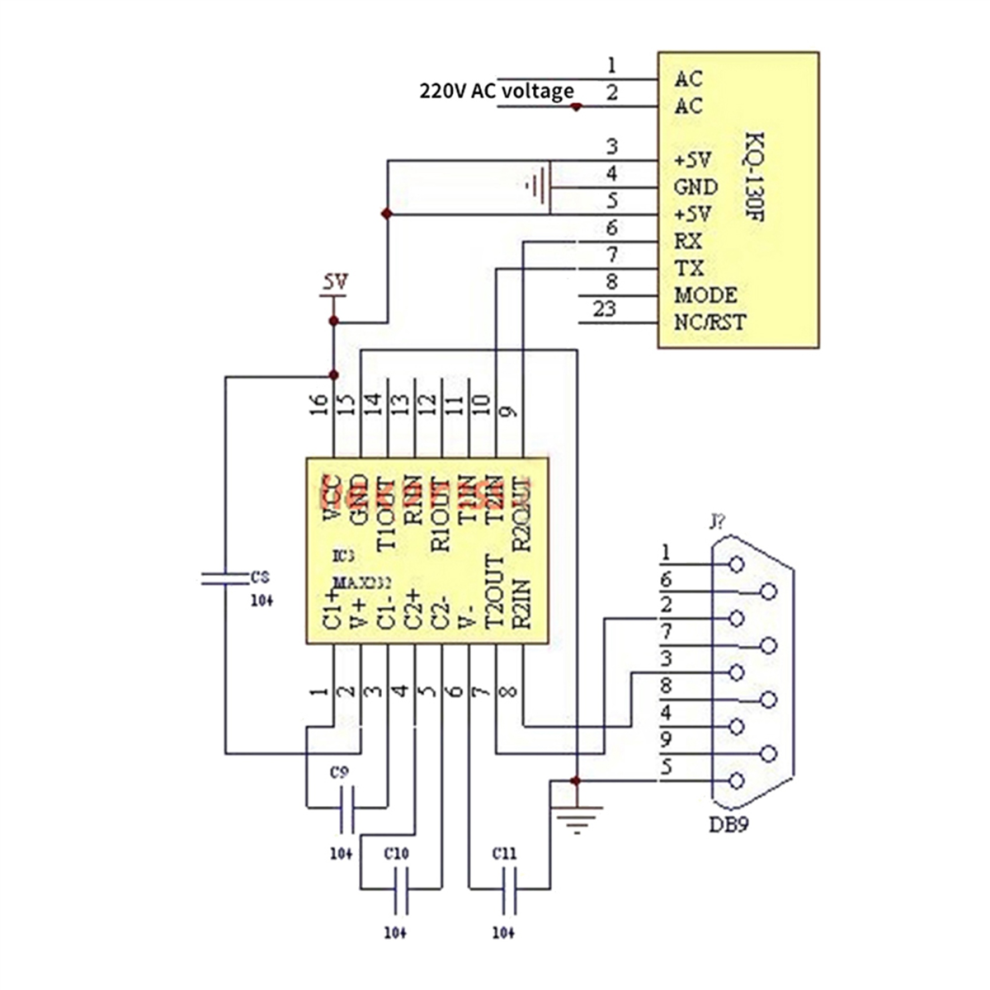

KQ-130F
power
carrier
module
does
not
need
any
peripheral
devices,
as
long
as
it
provides
a
5V
power
supply,
it
can
be
used.
The
transmission
power
supply
is
pin.
If
the
user
needs
bidirectional
transmission,
two
5V
pins
can
be
connected
in
parallel.

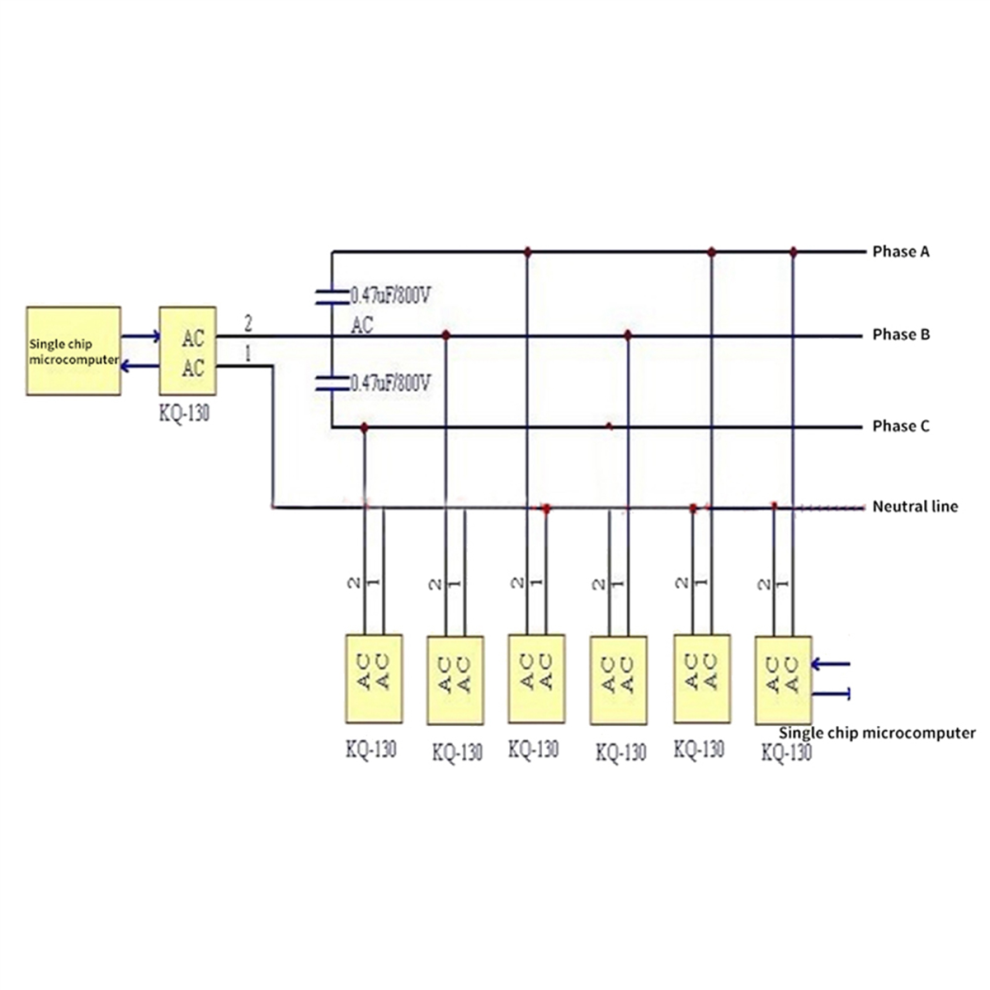

All
modules
of
our
company
support
point-to-point,
point-to-multipoint
networking
communication
mode,
and
control
of
multipoint
data
through
polling.
color:As
shown
Material:PCB

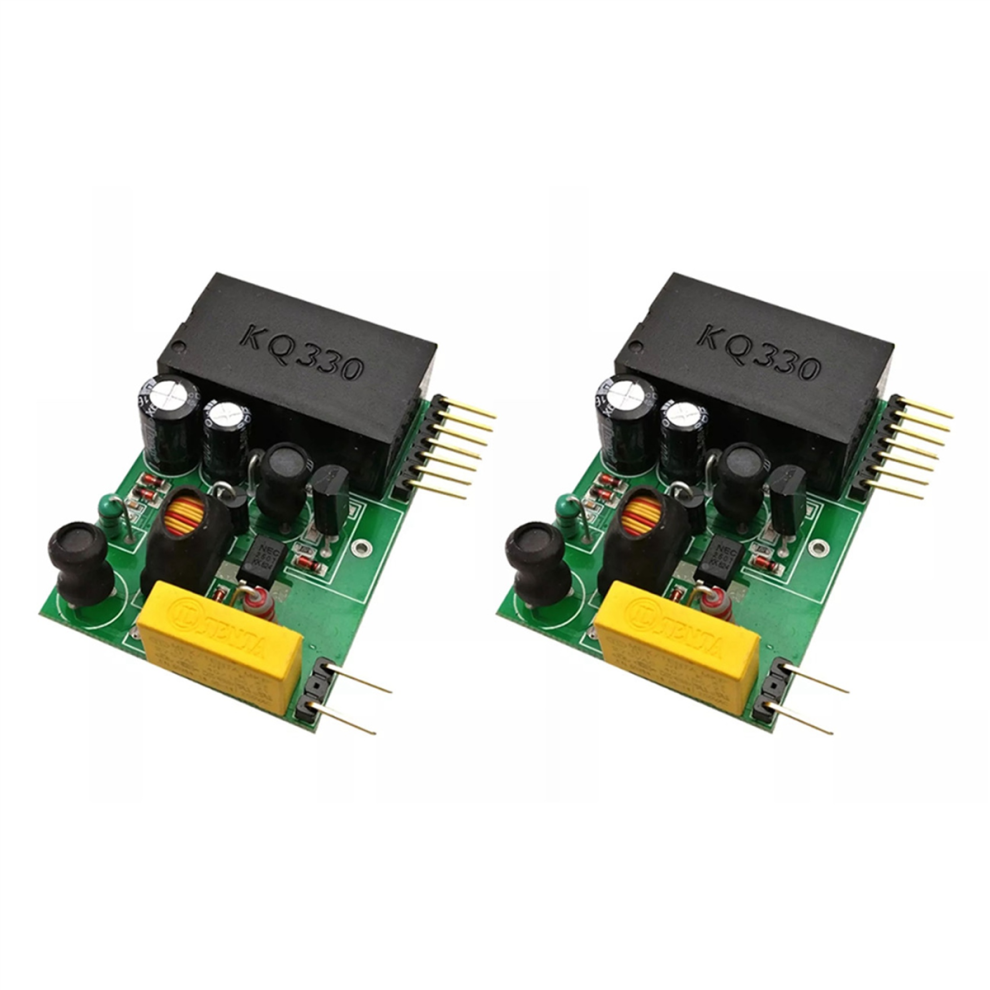

Package
Contents:
2
x
KQ-330F
module
Only
the
above
package
content,
other
products
are
not
included.
Note:
Light
reflection
and
different
displays
may
cause
the
color
of
the
item
in
the
a
little
different
from
the
real
thing.
The
measurement
allowed
error
is
+/-
1-3cm.
