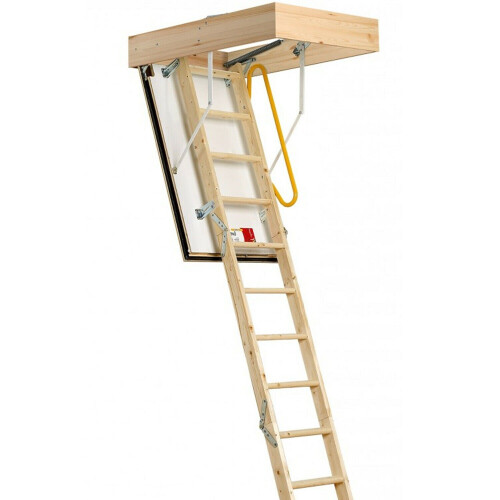

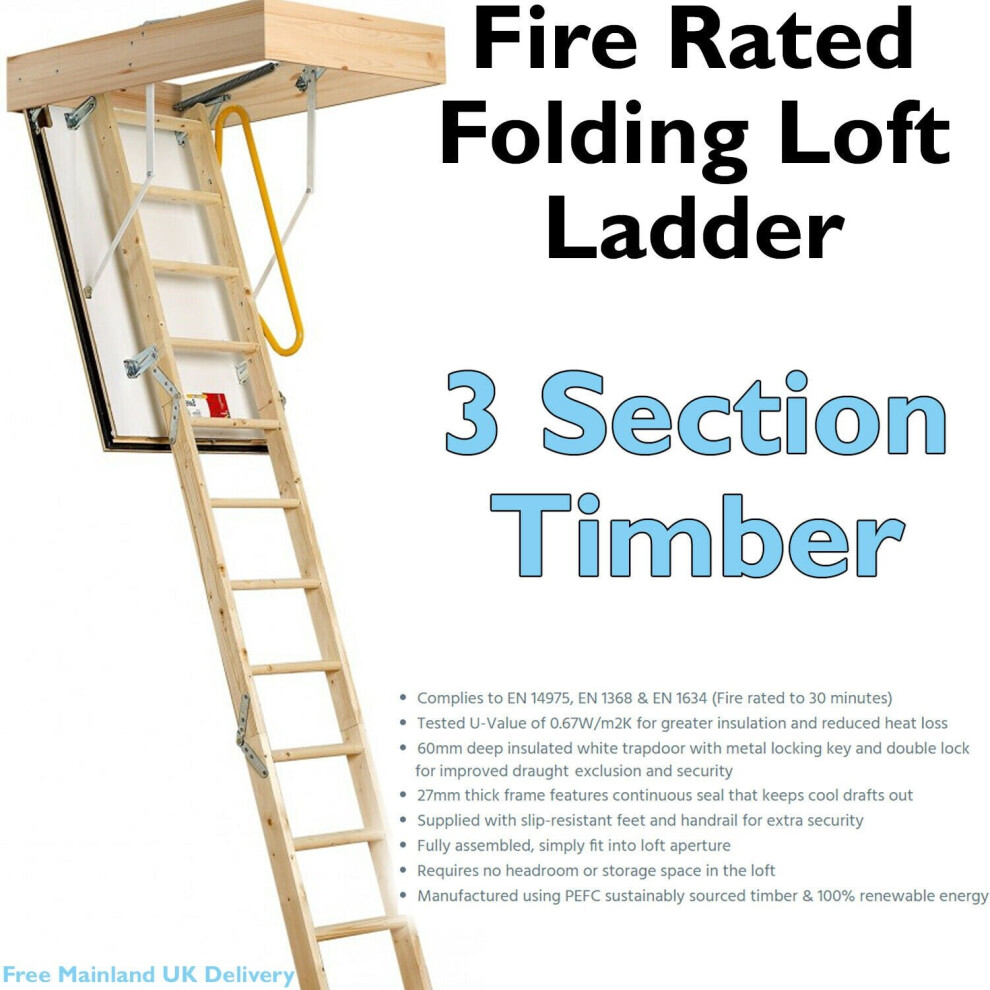

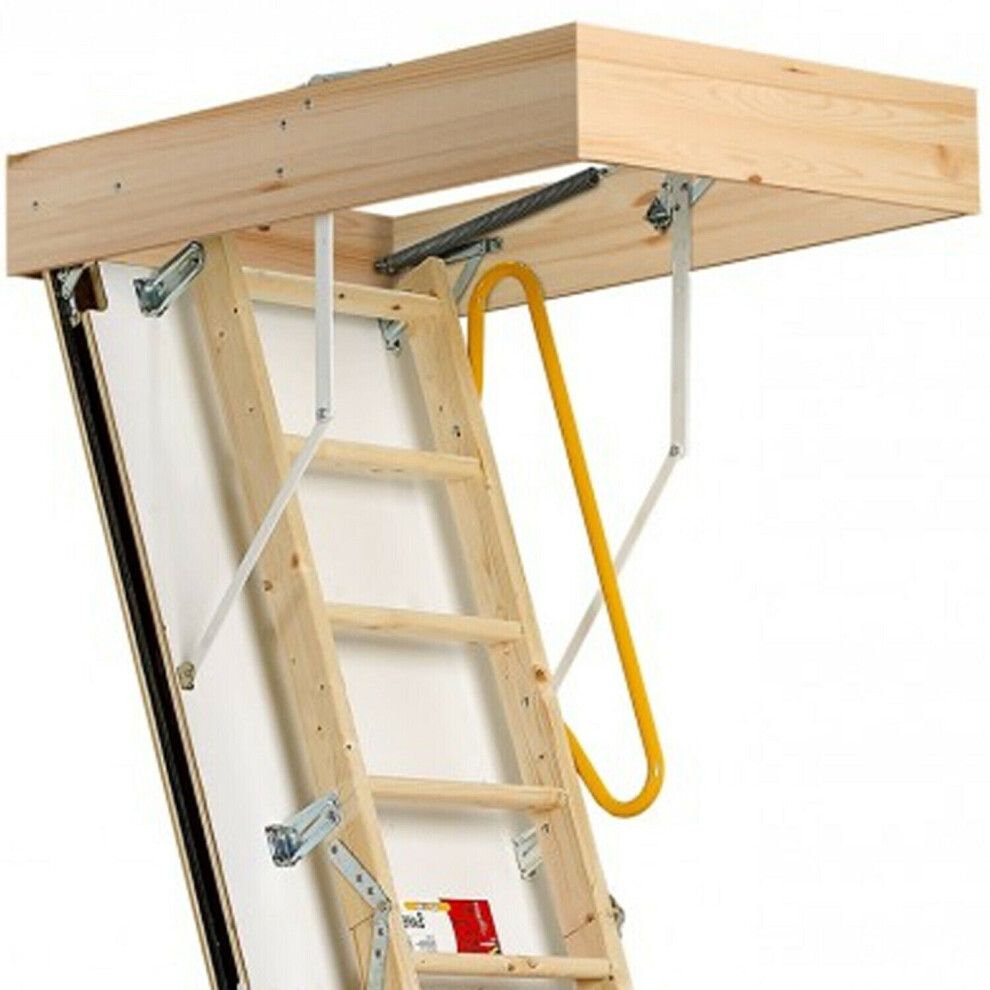

3 Section FIRE RATED Folding Loft Ladder & Handle Hatch & Frame 2.75m Height

3 Section FIRE RATED Folding Loft Ladder & Handle Hatch & Frame 2.75m Height Description

Fire Rated Timber Folding Loft Ladder Kit & Handles

12 Tread - 3 Section (4 x 3 Tread)

PLEASE NOTE - Delivery to the UK Mainland is Free! We can send to the Highlands & Islands but there is an additional fee to send to these locations. If you do require delivery to the Highlands or Islands, please get in touch with your postcode and we will be happy to give you a postage quote.

Product Description

Built to the same standard and specification as the LuxFold, but designed to withstand fire for up to 30 minutes (EL230) fire rating. Suitable for properties with more than 3 floors or passive houses that require a fire rated loft ladder. Fitted with a continuous seal to keep draughts out. The ladder is fully assembled, just requires final installation tweaks.

Technical Specification:

Treads - 12 Tread (4 x 3)
Distance Between Treads - 235mm
Tread Width - 345mm
Tread Depth - 80mm

Aperture (L x W) - 1200mm x 600mm
Frame Size (L x W) - 1190mm x 590mm
Max. Floor to Ceiling - 2750mm
Max. Swing Clearance Length - 550mm

Material - Timber
Frame - Plywood
Stile - Nordic Spruce
Tread - Nordic Spruce

Max Weight Load - 150KG
Insulated Hatch Thickness - 60mm
Tested U-Value - 0.667W/m²K
Standard - EN14975

Product Features

• Complies to EN 14975, EN 1368 & EN 1634 (Fire rated to 30 minutes)
• Tested U-Value of 0.67W/m2K for greater insulation and reduced heat loss
• 60mm deep insulated white trapdoor with metal locking key and double lock for improved draught exclusion and security
• 27mm thick frame features continuous seal that keeps cool drafts out
• Supplied with slip-resistant feet and handrail for extra security
• Fully assembled, simply fit into loft aperture
• Requires no headroom or storage space in the loft
• Manufactured using PEFC sustainably sourced timber & 100% renewable energy
