300mm Rolling Bending Machine,45# Steel Circular Bending Machine

300mm Rolling Bending Machine,45# Steel Circular Bending Machine Description

Application

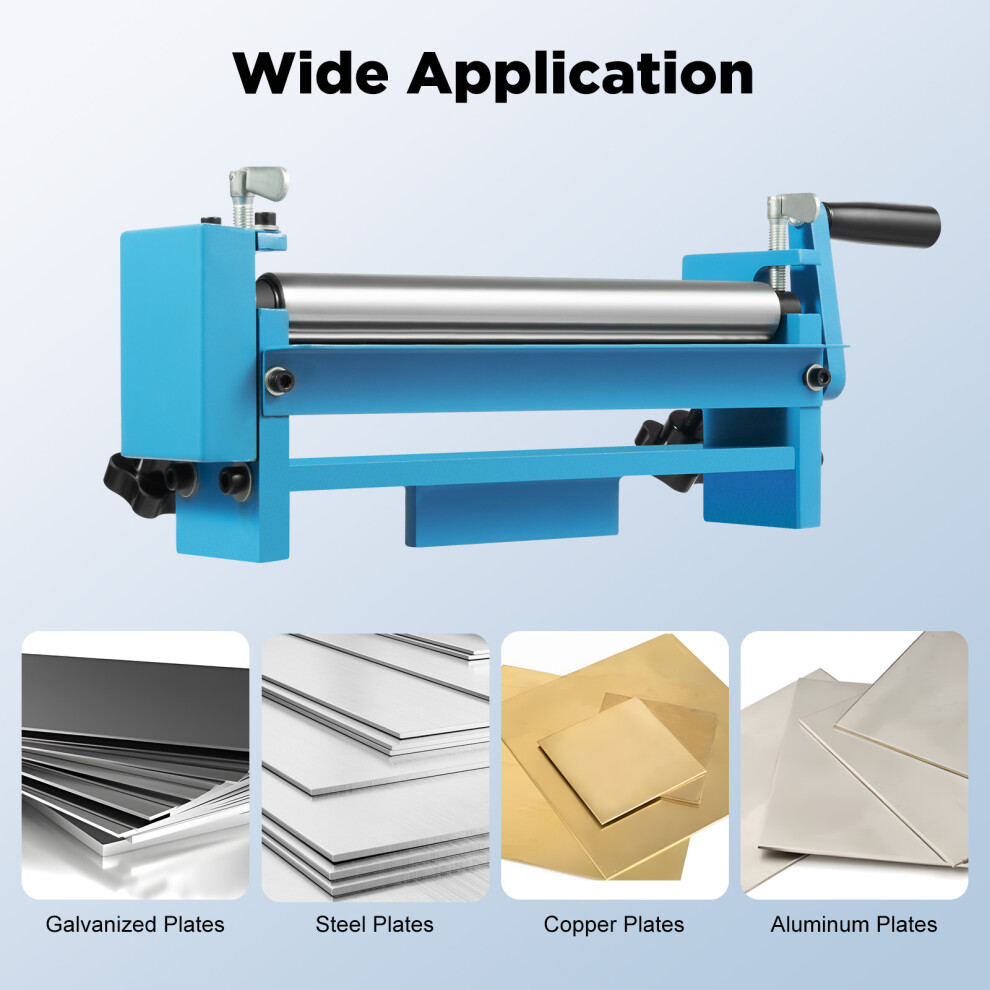

It can roll steel plates, copper plates, aluminum plates, galvanized plates, etc. It is widely used in architectural decoration, automotive parts manufacturing, aerospace structural component production, furniture design, and numerous handicraft creations.

Specification

Material: 45# Steel

Color: Silver, Blue

Assembly Required: No

Rolling Plate Max. Width: 300mm/11.81in (Plate Thickness 1mm)

Rolling Plate Max. Thickness: 0.8mm(Stainless Steel Plate), 1mm(Galvanized Plate), Below 2mm(Aluminum Plate)

Rolling Steel Wire Max. Diameter: 5mm

Rolled Circle Diameter: 32-75mm/1.26-2.95in

Roller Diameter: 32mm/1.26in

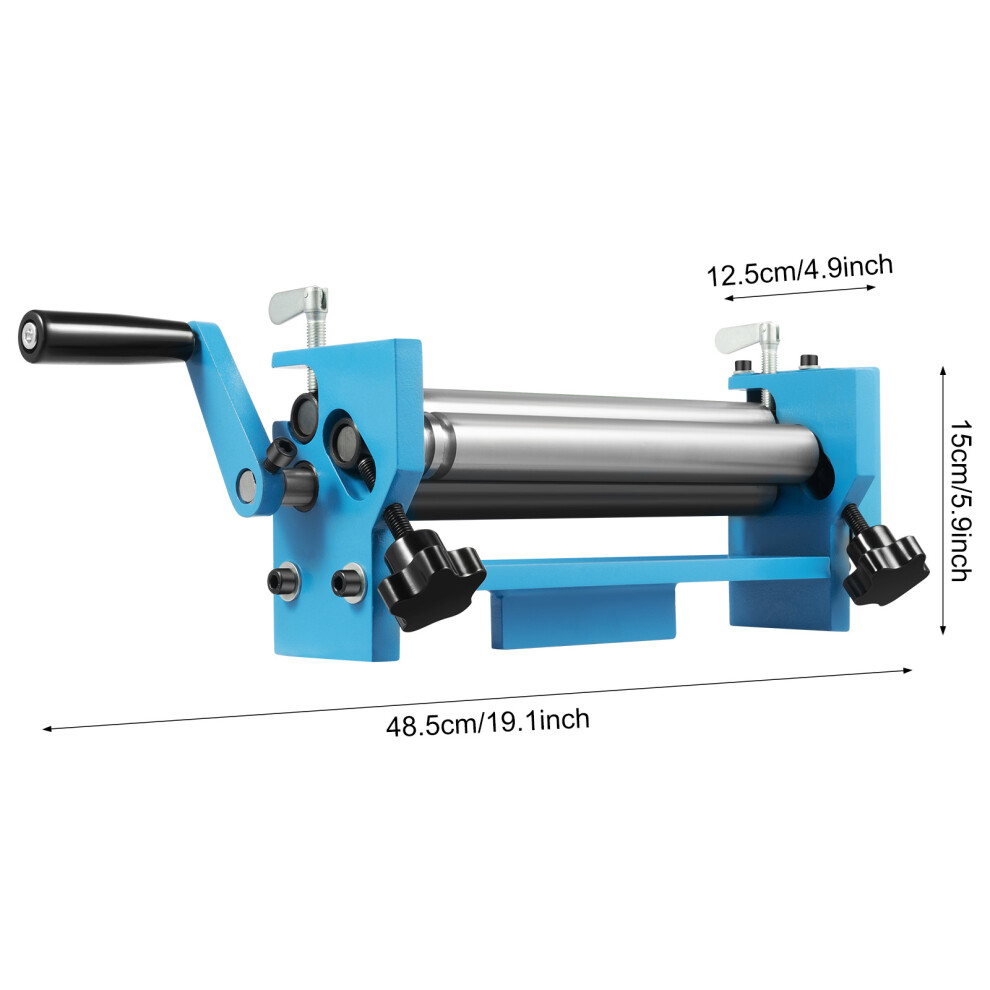

Product Size: 48.5*12.5*15cm/19.1*4.9*5.9in

Package Size: 47.5*25.5*22cm/18.7*10*8.7in

Net Weight: 12.3kg/27.1lbs

Gross Weight: 13kg/28.7lbs

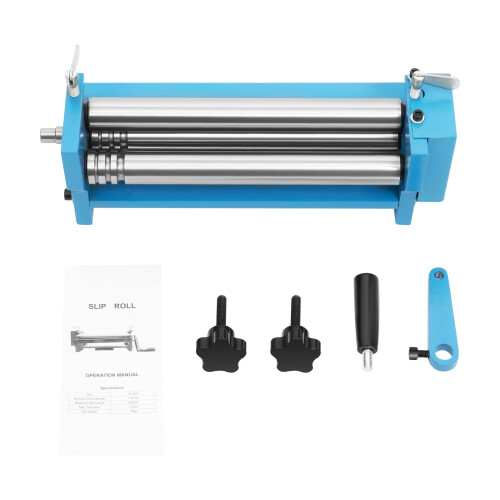

Package Included

1* Rolling Bending Machine

1* English Manual

Notes

1. Please note that this product must be clamped on a bench vice (not included) for use.

2. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.

Key Features

Fine Work: The roller has a smooth surface, which can reduce the friction between the metal plate and the roller to avoid scratching the plate, improving the surface smoothness and ensuring the quality of the finished plate.

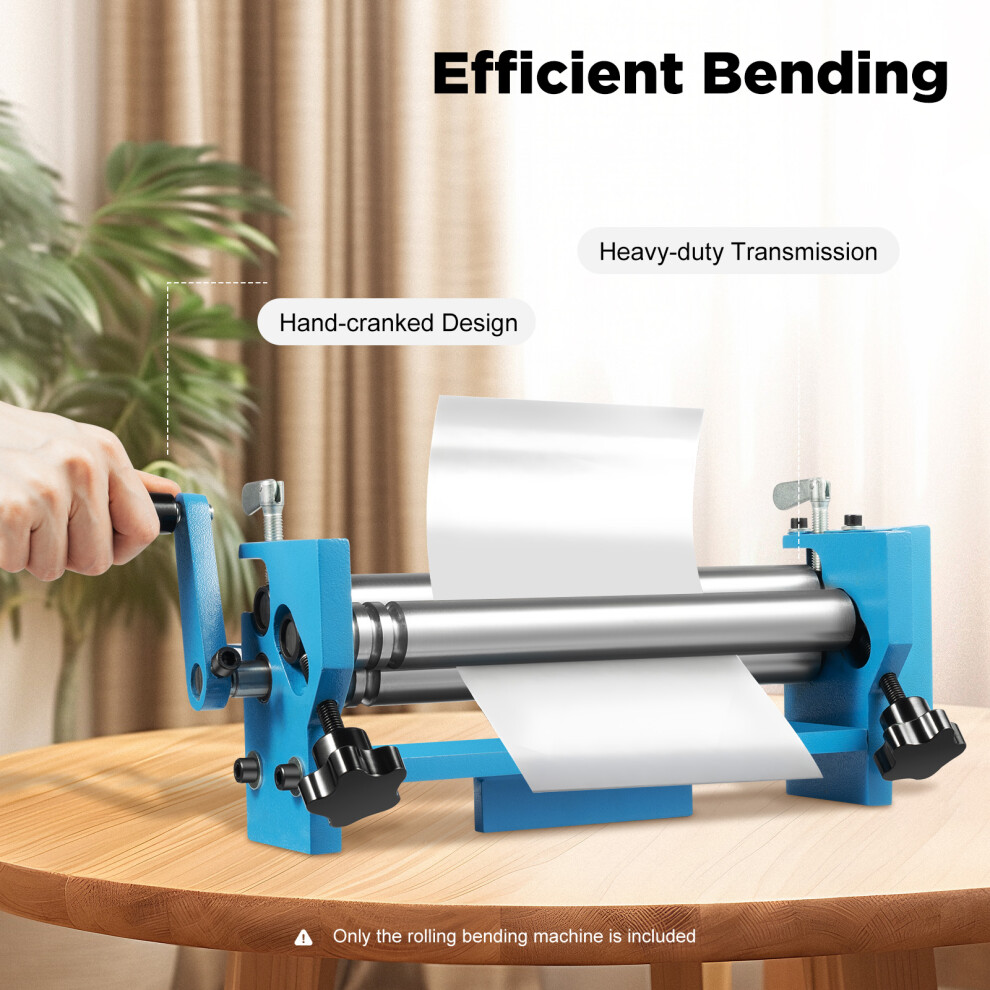

Efficient Bending: The hand-cranked design and heavy-duty transmission device enable the bending and forming of metal plates in a short period of time, significantly improving work efficiency.

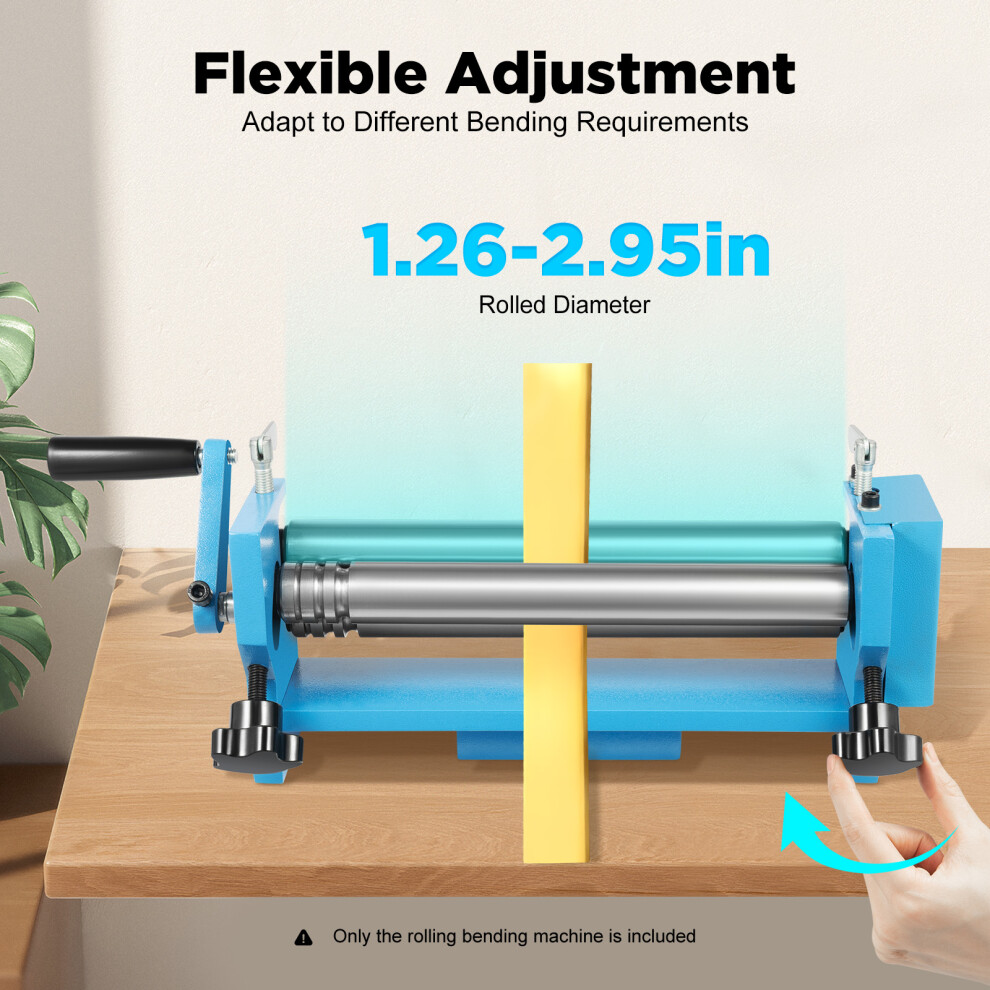

Flexible Adjustment: The black knobs can be used to adjust the diameter of the rolled circle (1.26-2.95in), increasing the versatility and flexibility of the machine and adapting to different bending requirements.

Safe to Use: There is a gear protection cover inside the roller, which can prevent accidental human contact with the gear during operation, making it safer to use. It can also prevent the gear from being exposed, extending the life of the machine.

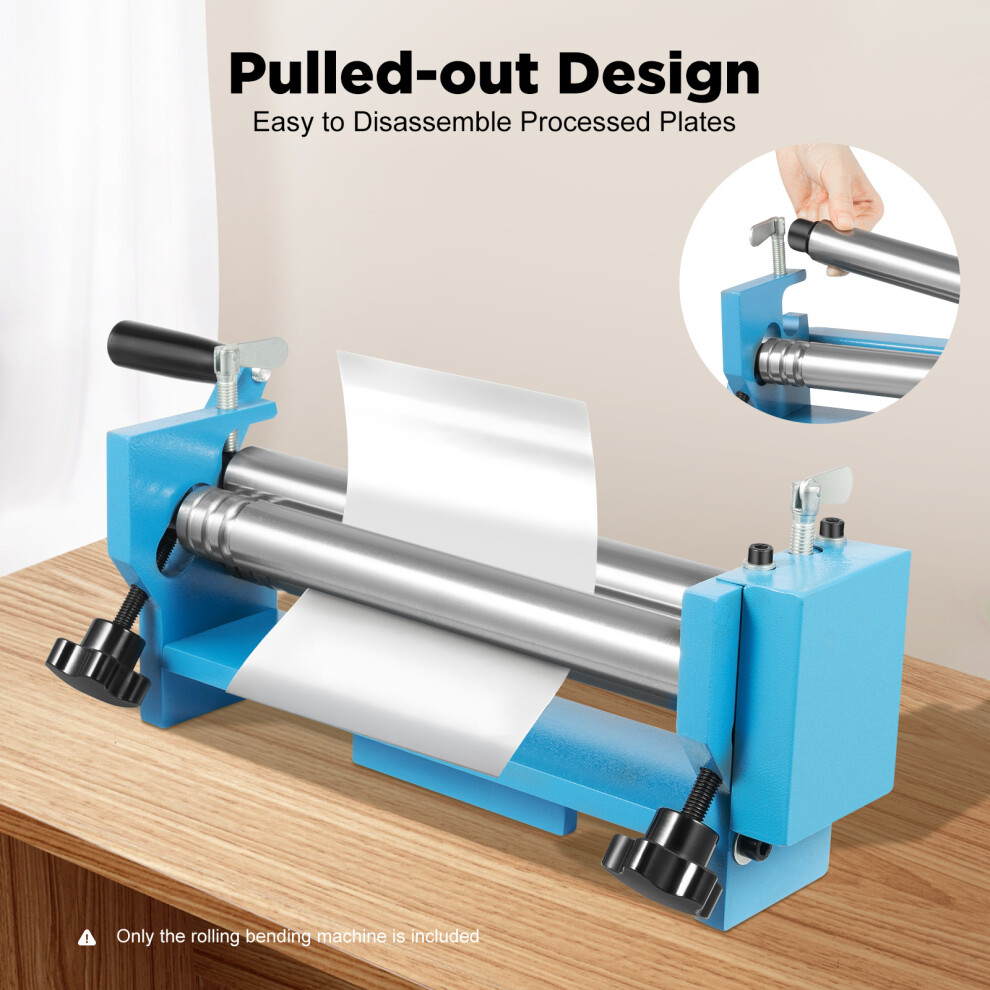

Thoughtful Design: The upper shaft can be easily pulled out, making it easy to disassemble processed plates. This simple and clear operation method can be easily mastered by even first-time users.

Ready to Use: The product is 95% pre-assembled when it leaves the factory, and users do not need to go through complex installation steps after receiving it, saving time and effort.

Stable Operation: In addition to the support plates on both sides, there is a support block in the middle of the bottom, which can make the machine more stable when clamped on the bench vise (not included) and prevent it from shaking or tilting during operation.

Guaranteed Customer Service: Our friendly customer service team will be happy to help you with any questions you may have regarding this product.

Details

Roller Grooves: Besides rolling metal plates of various thicknesses, it can bend wire with grooves on its end, meeting different needs.

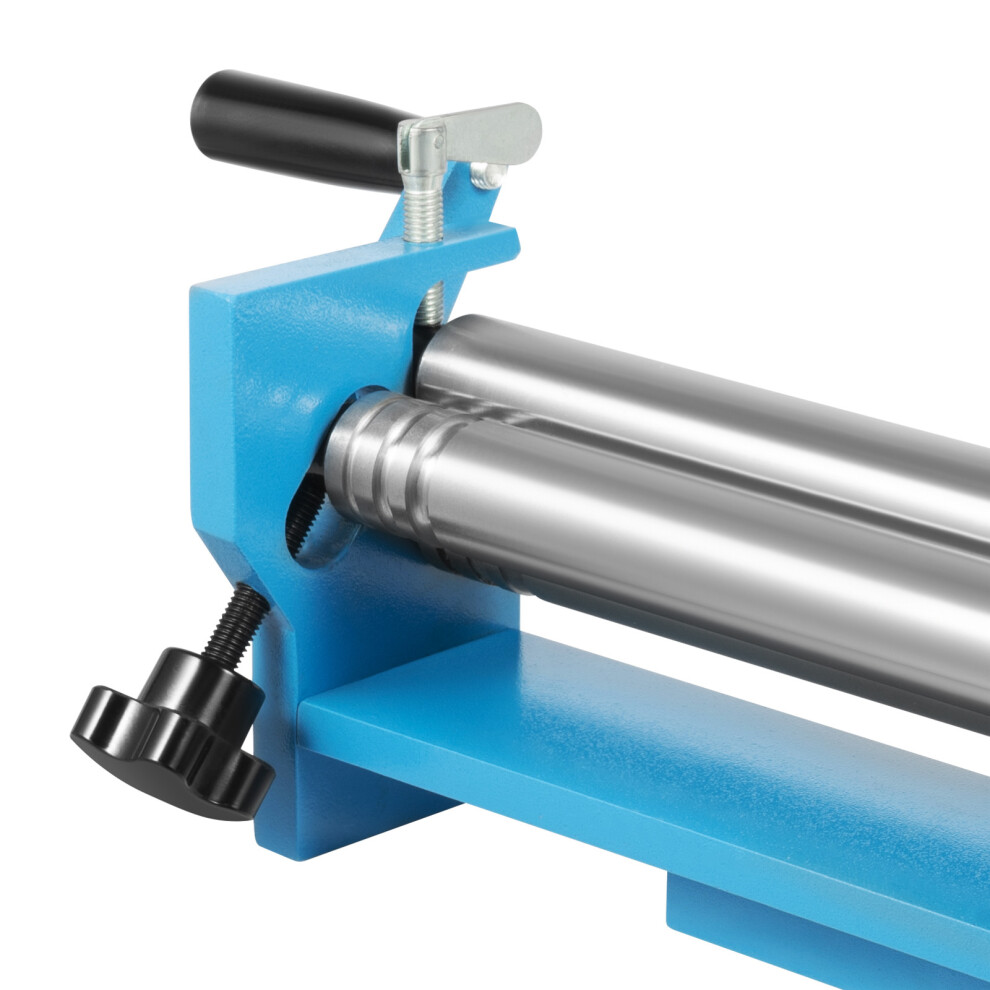

Top Wrenches: The top wrenches on both sides are used to press the rollers tightly to prevent them from falling off during operation, making it more reliable to use.
