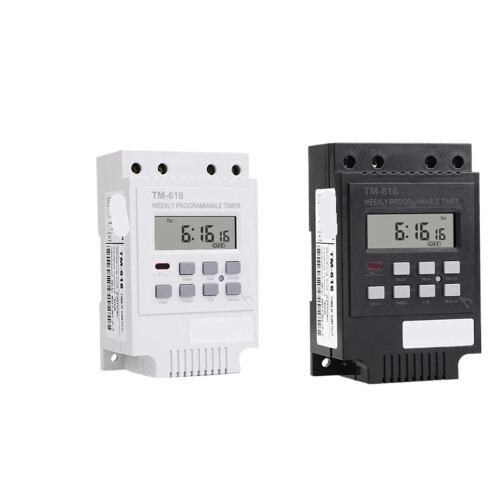

30A 220V Programmable Digital Timer Switch DIN Rail Mount, 7Day Time Relay with LCD Display and Backup Battery

30A 220V Programmable Digital Timer Switch DIN Rail Mount, 7Day Time Relay with LCD Display and Backup Battery Description

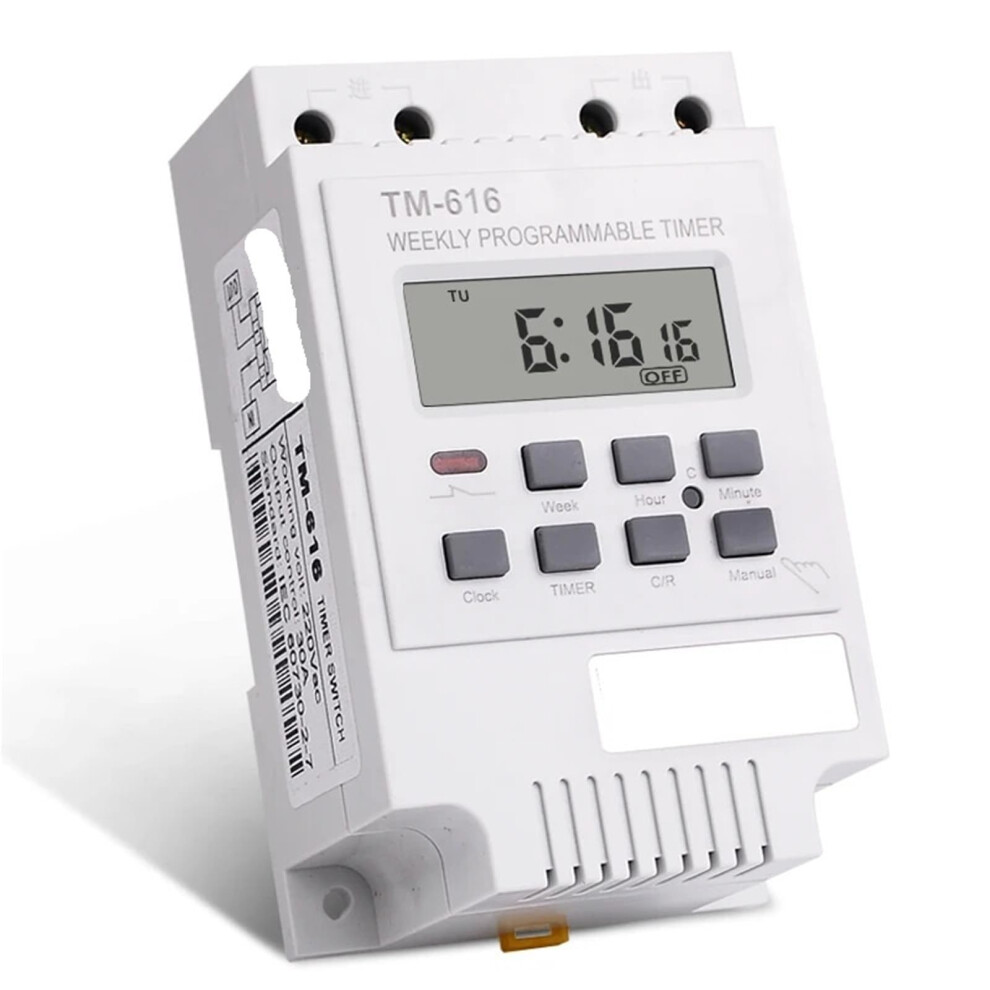

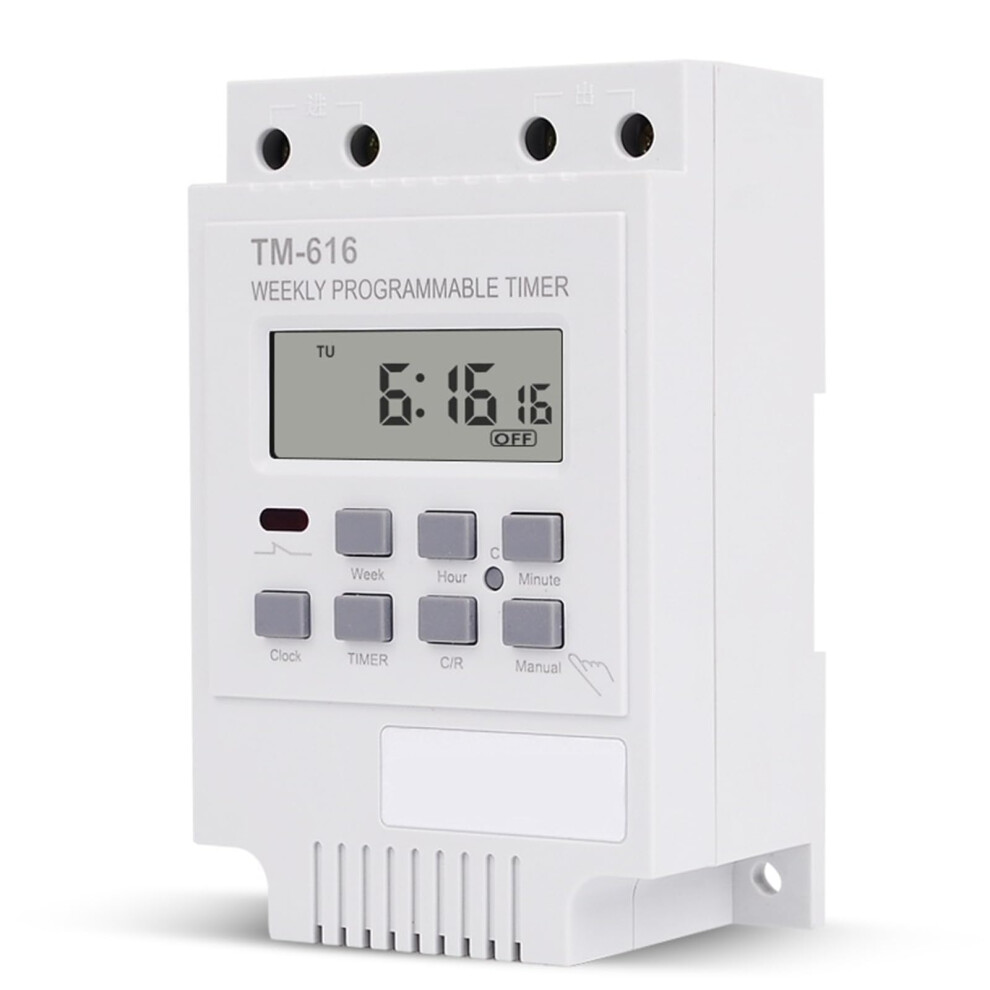

Model TM6162 programmable time relay for AC mains control Why choose this timer Reliable 24 hour, 7 day scheduling for automatic control of electrical loads. switching capacity supports up to 6500 W and 30 A, making it suitable for heavy appliances and motors. Builtin rechargeable backup battery preserves programmed schedules for up to 60 days during power interruptions. Precise timekeeping with auto correction and low average error minimizes schedule drift over longterm use. Key features Model: TM6162 (TM616) Power supply: 220 to 240 VAC, 50/60 Hz. Output voltage 220 V. Load capacity: 30 A (16 A for inductive loads) at 250 V AC; suitable for power switching. Maximum switched power: 6500 W at rated voltage. Programs: Up to 17 on/off events per day or week; weekly scheduling available. Timer range: from 1 minute up to 168 hours (one week). Minimum switching interval: 1 minute. Manual override: on/off manual control in addition to scheduled programs. Display: LCD for clear programming and status. Switching contact: single changeover contact. Power consumption: 4.5 VA maximum. Builtin rechargeable memory backup battery: 1.2 V, 40 mA; blackout memory retention up to 60 days. Time accuracy: average error approximately 1 second per 24 hours at 25 degrees C; automatic weekly time correction up to plus or minus 30 seconds. Hysteresis: 2 seconds per day at 25 degrees C. Temperature range: 20 degrees C to +50 degrees C. Timer theory: time relay with epoxy protection for internal components. Weight: 0.2 kg. Practical benefits Save energy and reduce manual intervention by automating lights, heaters, pumps, or other ACpowered equipment. Maintain reliable schedules during short power outages thanks to the internal rechargeable battery. Handle both resistive and inductive loads without external contactors for many applications because of the 30 A switching capability. Simple programming and clear LCD make setup and daily adjustments straightforward. Suggested applications Commercial or outdoor lighting: set nightly on/off schedules for parking lots, signage, or facade lighting. Water pumps and irrigation systems: automate regular watering cycles while protecting schedules during outages. HVAC and circulation equipment: control heaters, fans, or circulation pumps on a weekly timetable to match occupancy patterns. What to expect in use Weekly scheduling with up to 17 on/off pairs per day gives granular control of operational periods. Manual override lets you run equipment outside scheduled times when needed. Robust operation across typical indoor temperatures with low power consumption and compact weight for easy installation. This TM6162 time switch is a practical choice for reliable, capacity, programmable control of AC equipment where precise timing and memory retention are required.
