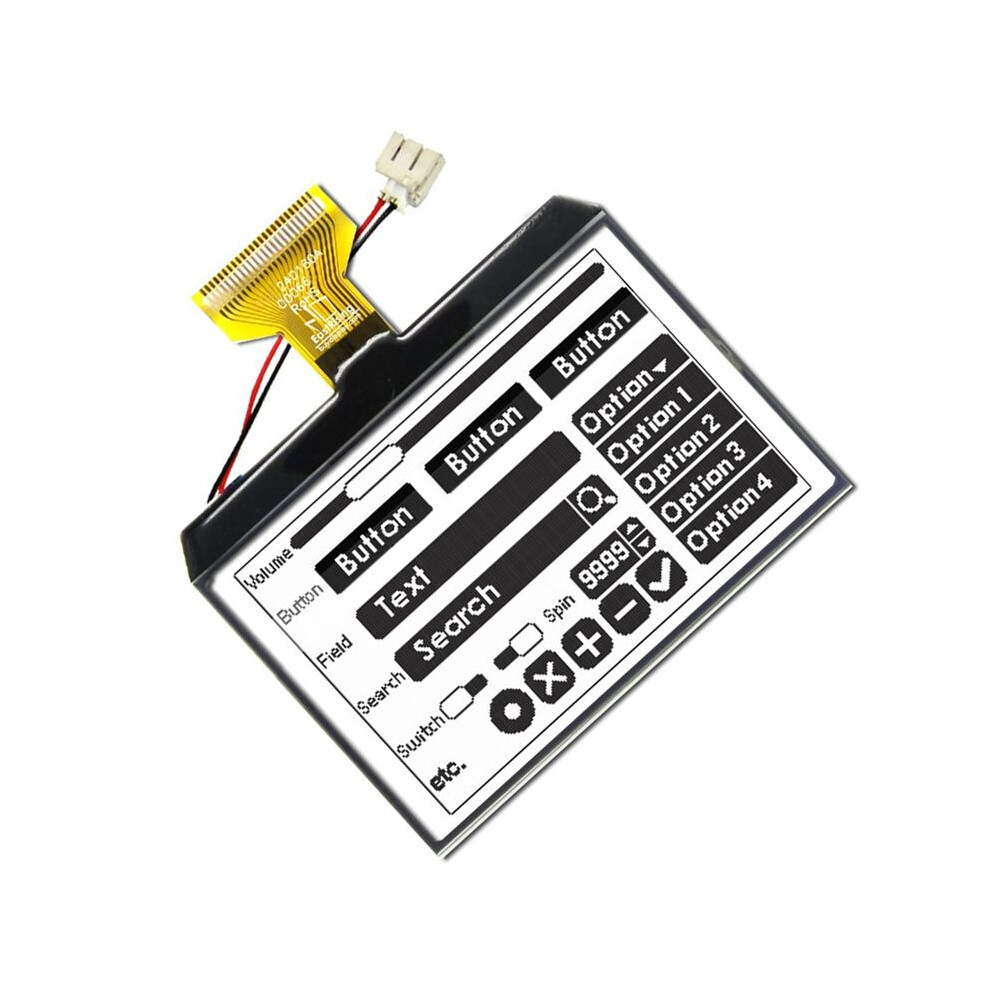

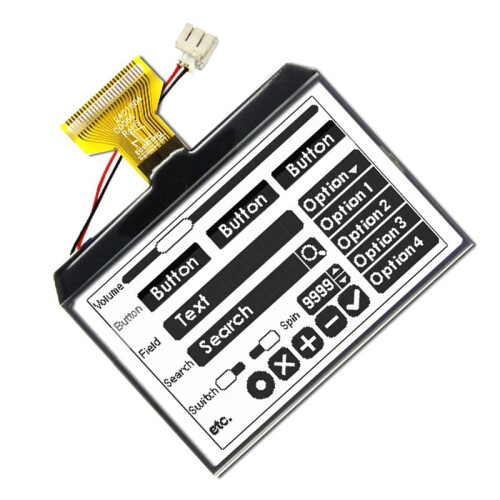

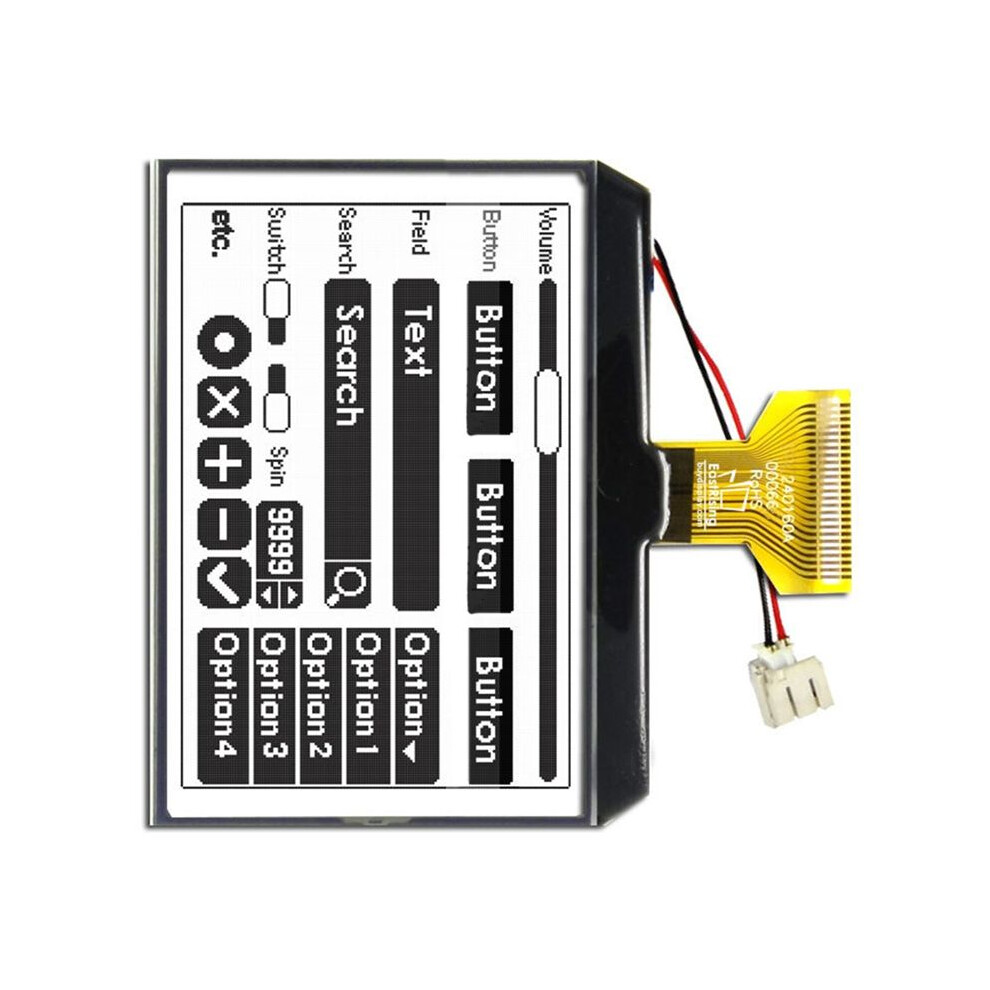

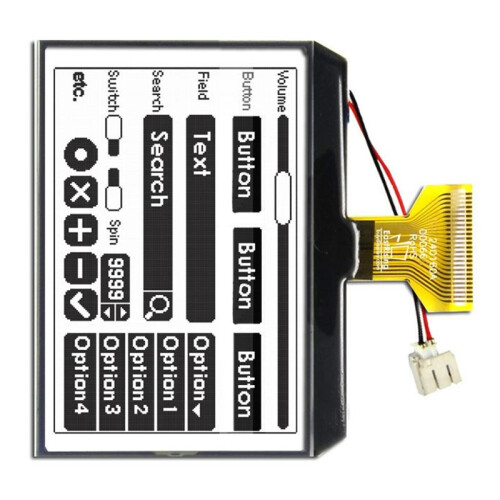

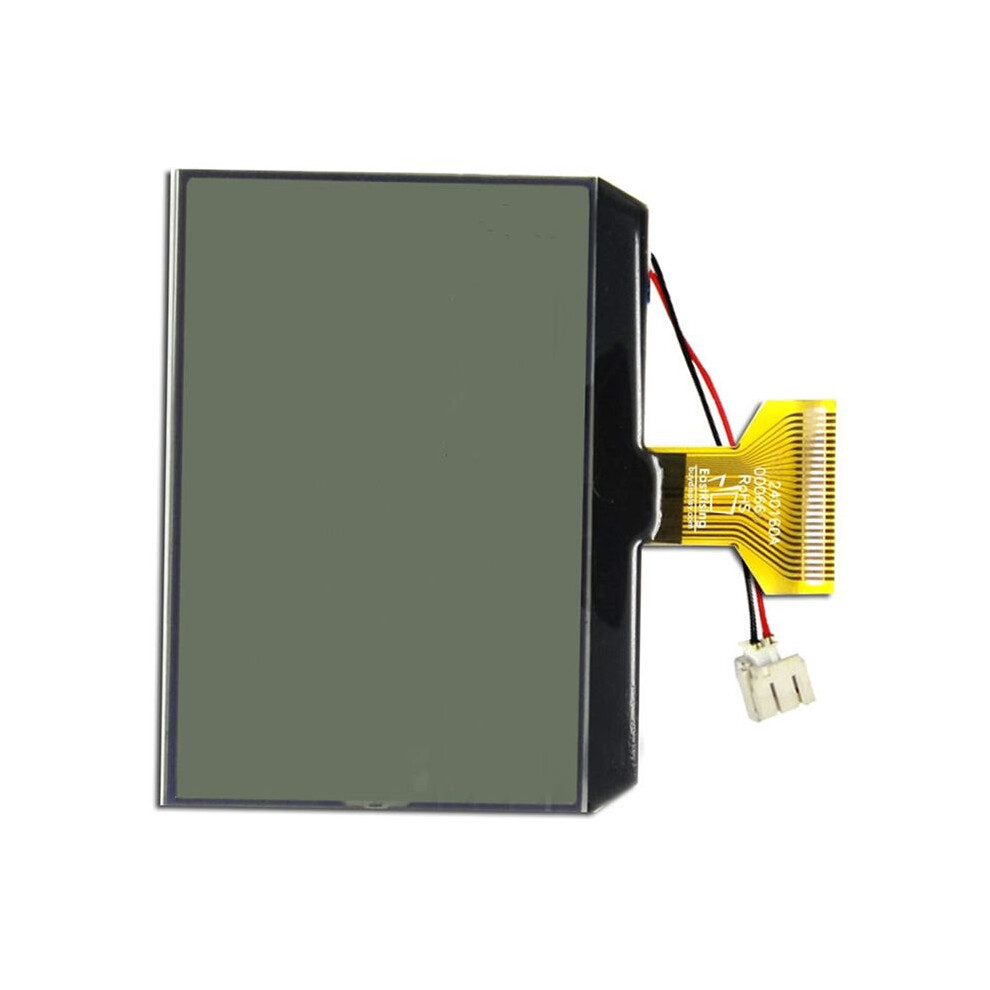

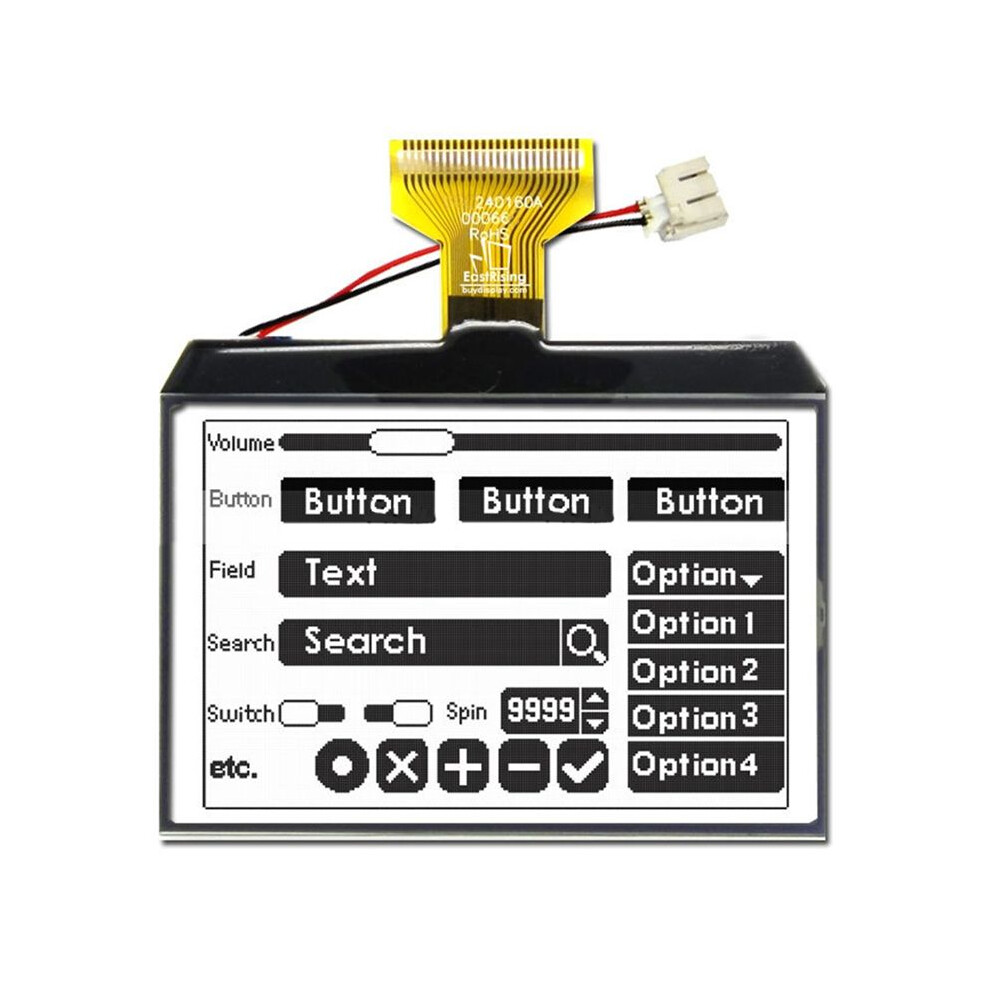

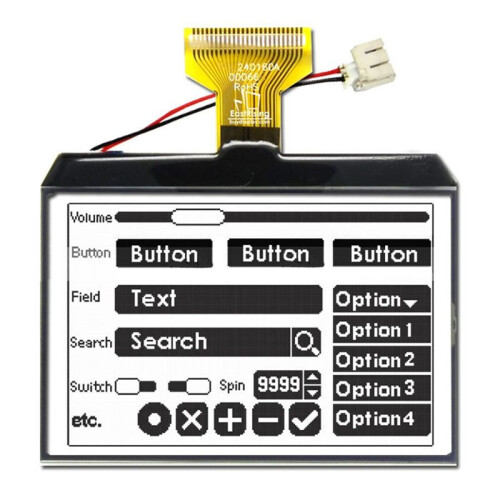

3.4inch 240x160 Dot Matrix LCD Display Serial Interface Black White Free Backlight Connector
Brand Tlily
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 130,000 Trustpilot reviews and an 'Excellent' rating
£19.04
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Mon 17th - Sat 22nd Aug
Sold by: RYWOLT, there is 1 other seller
Returns: 30 days
180-day payment protection
You might also like
Description & Details
Summary
- ERC240160FS-1 is 3.4 inch white background with 240x160 monochrome black pixels cog(chip on glass) lcd module,ST7586 controller,compact size,high contrast,wide operating temperature,wide view angle,white led backlight,fstn lcd,fpc connection,optional led backlight connector and 4-wire resistive touch panel.It supports 6800 8-bit,8080 8-bit parallel+3/4-wire serial spi interface.The FPC is the soldering type,no need connector.
- It's easily controlled by MCU such as 8051,for PIC,for AVR,for ARDUINO,ARM and for Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held equipment.
- Part Number: ERC240160FS-1
- Display Format: 240x160 Dots
- LCD Display Module Black on White
3.4inch 240x160 Dot Matrix LCD Display Serial Interface Black White Free Backlight Connector Description
ERC240160FS-1 is 3.4 inch white background with 240x160 monochrome black pixels cog(chip glass) lcd module,ST7586 controller,compact size,high contrast,wide operating temperature,wide view angle,white led backlight,fstn lcd,fpc connection,optional led backlight connector and 4-wire resistive touch panel.It supports 6800 8-bit,8080 8-bit parallel+3/4-wire serial spi interface.The FPC is the soldering type,no need connector.
It's easily controlled by MCU such as 8051,for ,for AVR,for ,ARM and for Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held equipment.
Part Number: ERC240160FS-1
Display Format: 240x160 Dots
Interface: 3-wire SPI, 4-wire SPI, 6800 8-bit Parallel , 8080 8-bit Parallel
IC or Equivalent: ST7586
Appearance: Black White

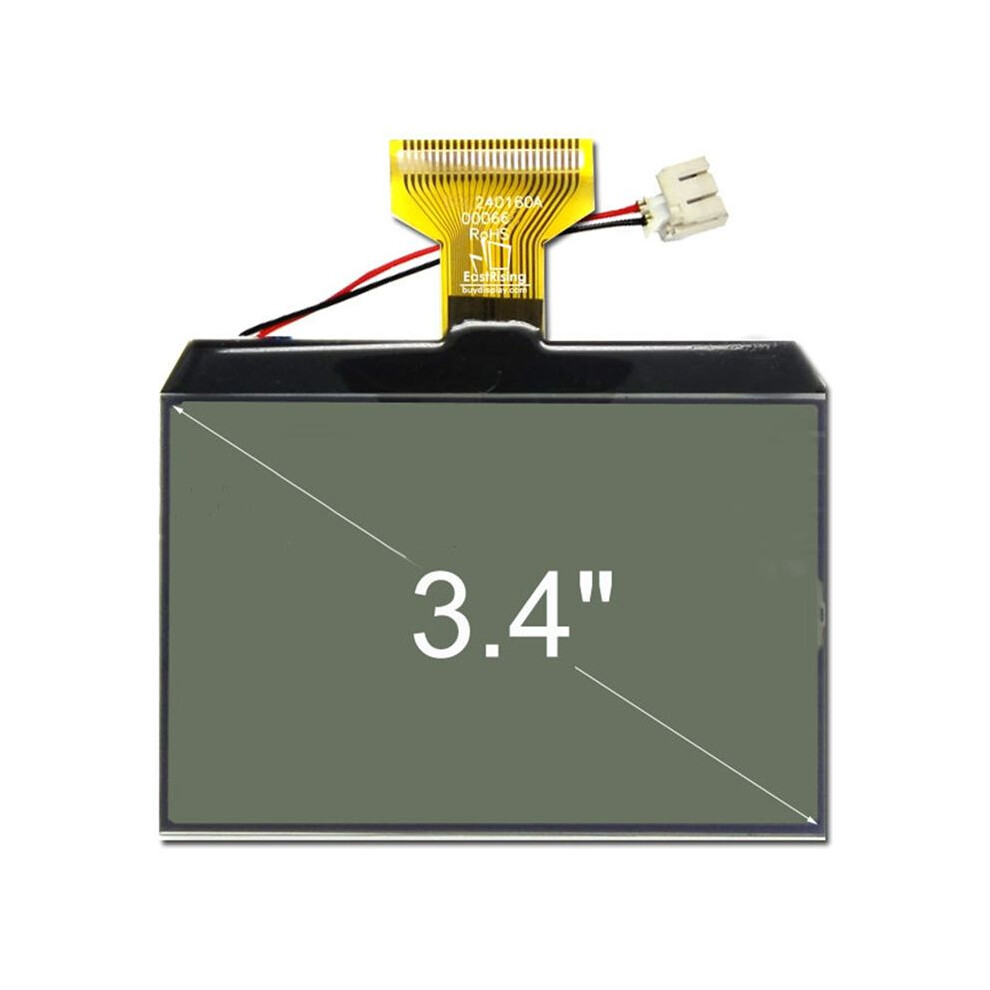

Diagonal Size: 3.4inch
Connection: Soldering FPC

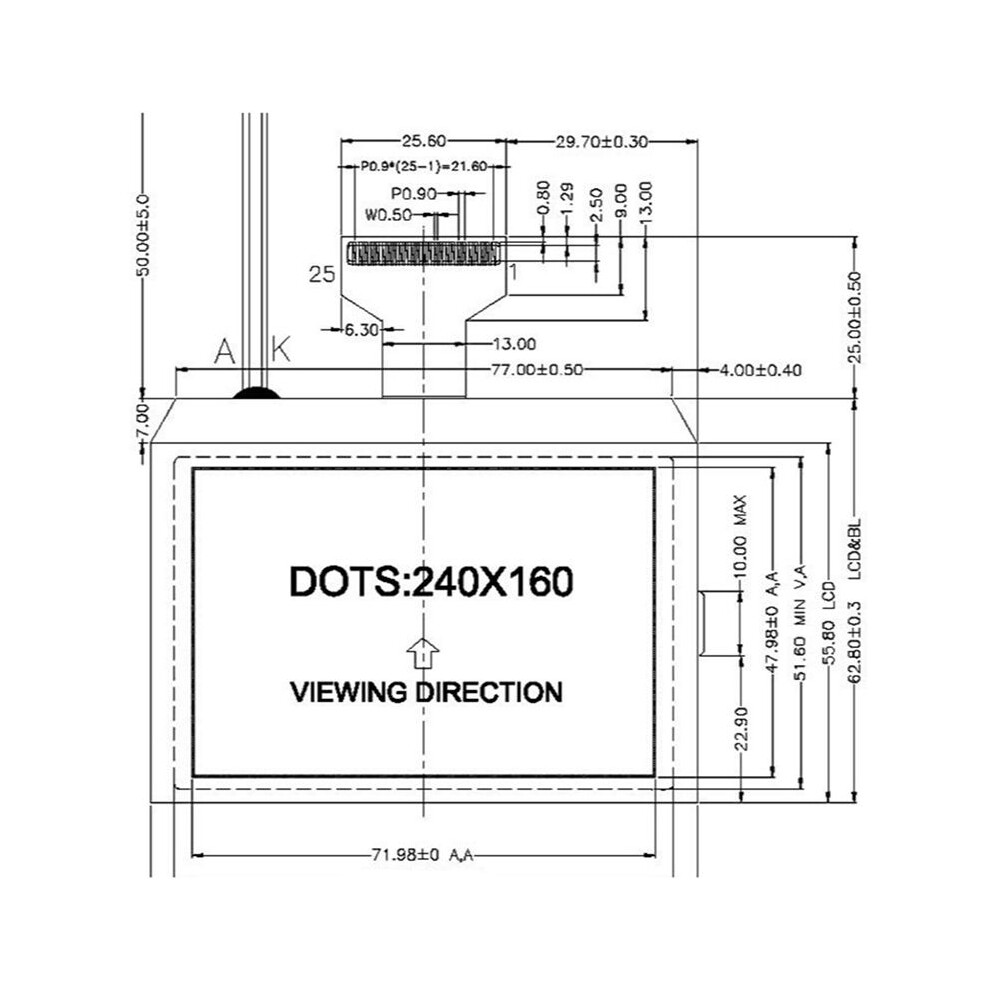

Outline Dimension: 85.0(W)x62.8(H)x4.4(T)mm
Visual Area: 77.58x51.6mm
Active Area: 71.98(W)x47.98(H)mm
Dot (Pixel) Size: 0.28x0.28mm
Dot (Pixel) Pitch: 0.30x0.30mm
IC Package: COG
Display Type: FSTN-LCD Grey
Touch Panel Optional: Yes
Sunlight Readable: Yes
Viewing Direction: 0.25
Backlight Color: White Color
Backlight Current (Typ): 75mA
Power Supply(Typ): 3V
Supply Current for LCM(Max): 1200uA
Operating Temperature: -20-70
Storage Temperature: -30-80
Color:As Shown
Material:PCB
Package Contents:
1 * LCD Display Module
Details
| OPC | PVX29P2 |
|---|---|
| Brand | Tlily |
| Codes | 4713270659934 (EAN) |
Product Data
| Height | 8cm |
|---|---|
| Width | 18cm |
| Length | 22cm |
| Weight | 0.114kg |
| Colour | As Shown |
| Material | PCB |
