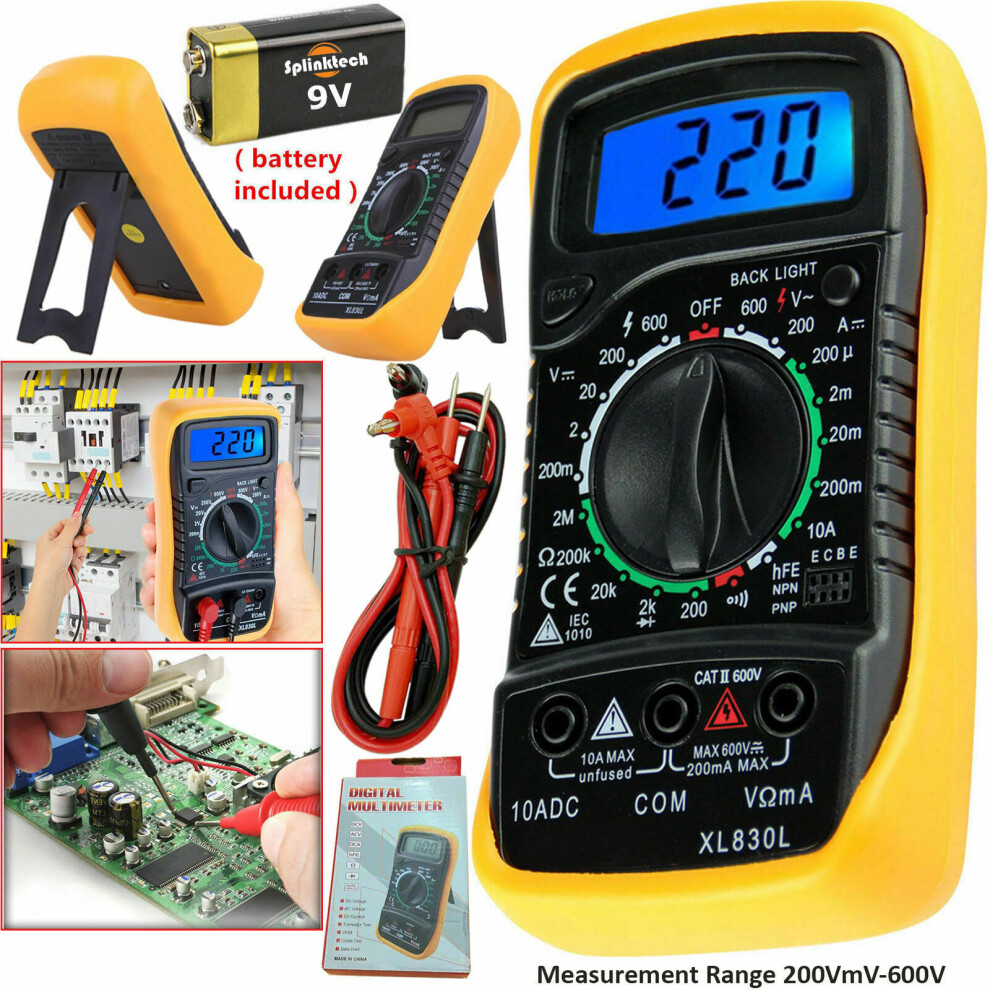

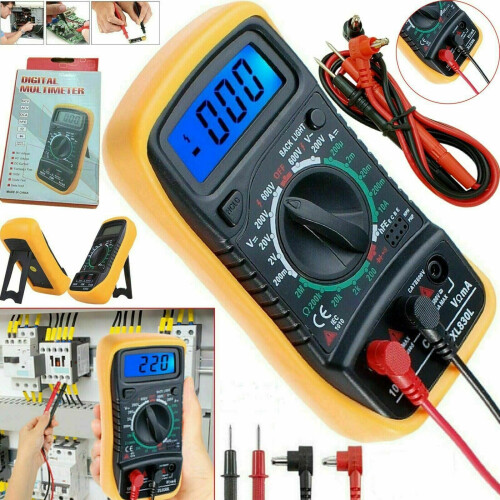

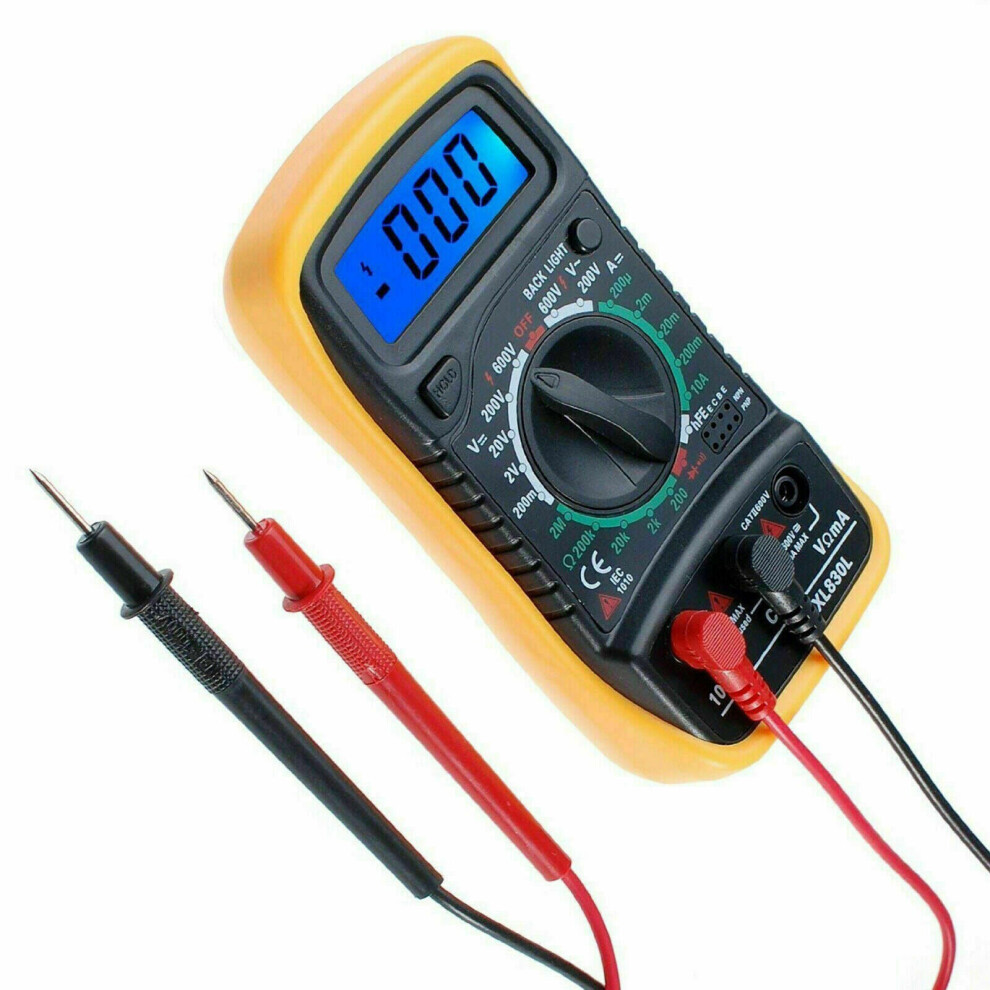

3.5-Inch LCD Digital Multimeter with Blue Backlight – AC/DC Voltage, DC/AC Current, Ohms, Diode/Transistor Tests, Continuity Buzzer, Auto Power Off
Brand Ezi-Tech
New
In stock
Product overview:
- Tests AC/DC voltage, DC/AC current, resistance, frequency, diodes
- Auto polarity, diode test, transistor hFE, buzzer continuity test
- 3.5-inch blue backlit LCD, 1999 counts, updates 2-3/sec
- Auto power-off, data hold, low battery alert
- Testing leads included, 9V battery, 250V fuse protection
£16.71
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Wed 2nd - Mon 7th Sep
Sold by: SUBUENAELECCION
Returns: 30 days
180-day payment protection
You might also like
Hot
Hot
Hot
Description & Details
Summary
- Tests AC/DC voltage, DC/AC current, resistance, frequency, diodes
- Auto polarity, diode test, transistor hFE, buzzer continuity test
- 3.5-inch blue backlit LCD, 1999 counts, updates 2-3/sec
- Auto power-off, data hold, low battery alert
- Testing leads included, 9V battery, 250V fuse protection
3.5-Inch LCD Digital Multimeter with Blue Backlight – AC/DC Voltage, DC/AC Current, Ohms, Diode/Transistor Tests, Continuity Buzzer, Auto Power Off Description
LCD Digital Multimeter Voltmeter Ammeter AC DC Current Tester Buzzer
Experience precise, versatile testing in a compact handheld meter. This Digital Multimeter handles AC/DC voltage, DC/AC current, resistance, frequency, and transistor tests, plus in-circuit continuity with audible buzzer-perfect for boards, machines, and electrical troubleshooting.
Digital LCD meter for Ohm, AC/DC volt tests and board overhaul; Auto polarity display; Diode test; Transistor P-N junction test; Transistor HFE test.
3 ½ Inch Display with Blue LCD Backlight; 1999 counts; updates 2-3/sec.
Auto Turn off & Data Hold function; Low battery voltage indication; Continuity test with buzzer in circuit; Overload protection on all ranges.

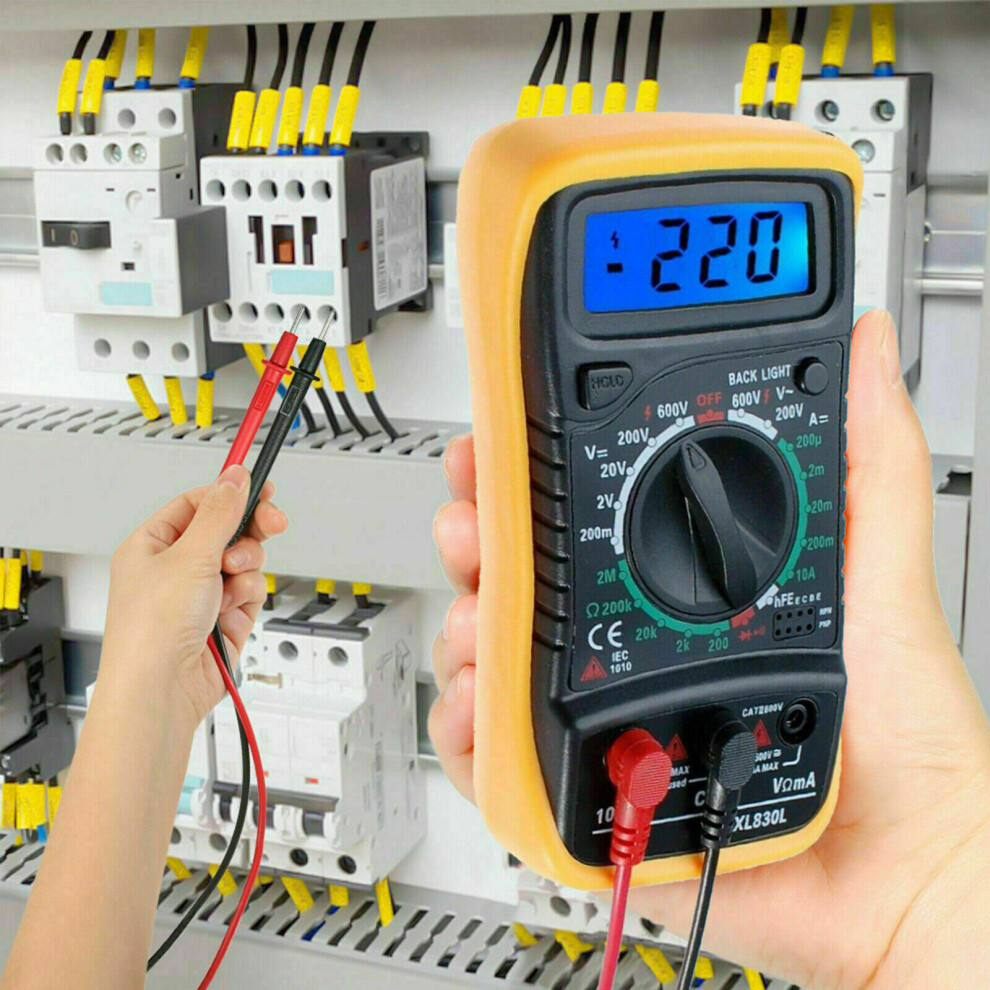

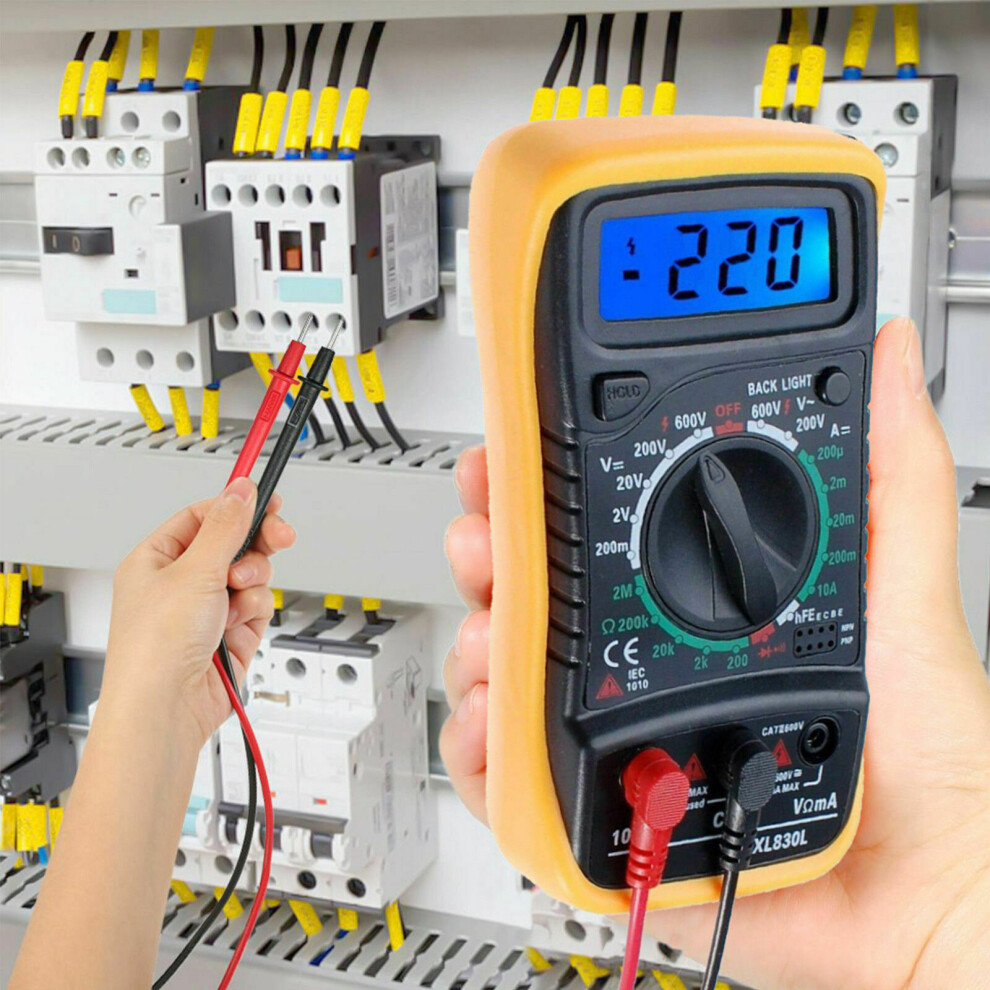

Use it anywhere: factory, school lab, home hobby, machine repairing, and more.
Specifications:
Measuring method: Dual-slope integration A/D Converter
Operating Environment: 0 to 40 C
Power: 9V Battery (Included)
Fuse Protection: 200mA/250V
Size: 138mm x 69mm x 31mm
Weight: Approx. 280g
Measurement Range: 200mV - 600V 0.5% of rdg 2 digits
Overload Protection: 250V rms
AC Voltage: Measurement Range 200V-600V 1.2% 10 digits; Overload Protection: 600VDC or rms
DC Current: Measurement Range DC 2000-10A; 1% of rdg 2 digits; Overload Protection: F 200mA/250V fuse (10A range unfused)
Resistance: Measurement Range 200 Ohms - 2M Ohms 0.8% of rdg 3 digits
Maximum Open Circuit Voltage: 3.2V
Transistor: Measurement Range hFE

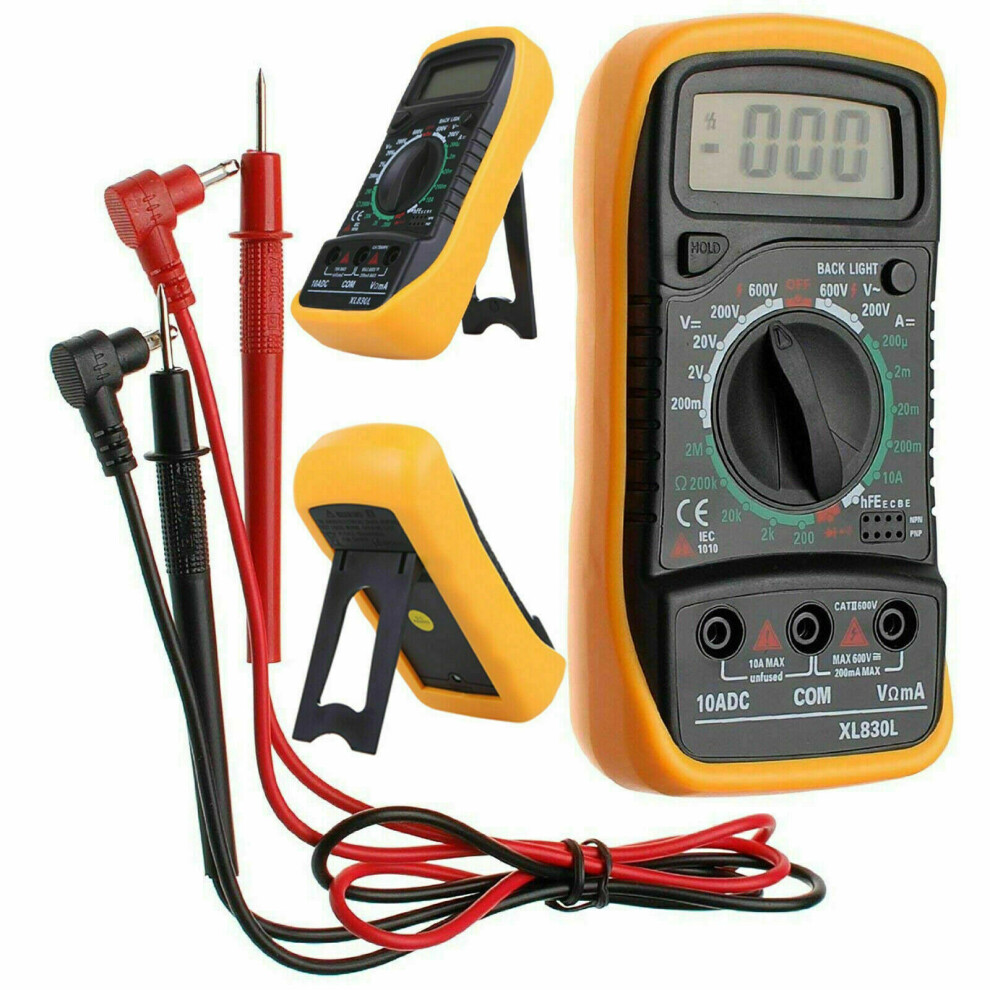

Includes: Digital Multi Meter Voltmeter AC DC Current with Testing Leads
Details
| OPC | P8ZCVZJ |
|---|---|
| Brand | Ezi-Tech |
| Codes | 0368982725749 (EAN) |
| 368982725749 (UPC) | |
| MPN | AC DC OHM Current Circuit Tester Buzzer |
| Rank | #205 Electrical & Test Equipment |
Detailed Product Information
| Colour | Yellow and Black |
|---|---|
| Weight | 280g |
