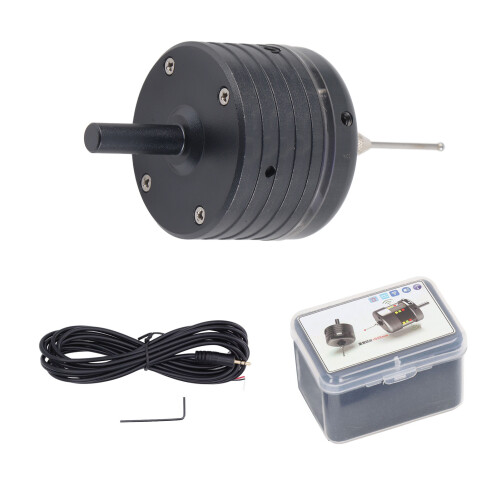

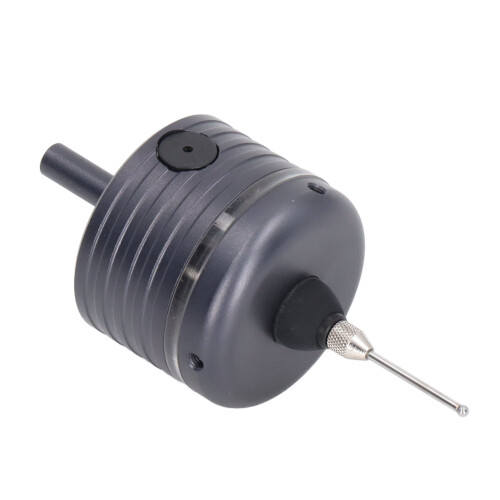

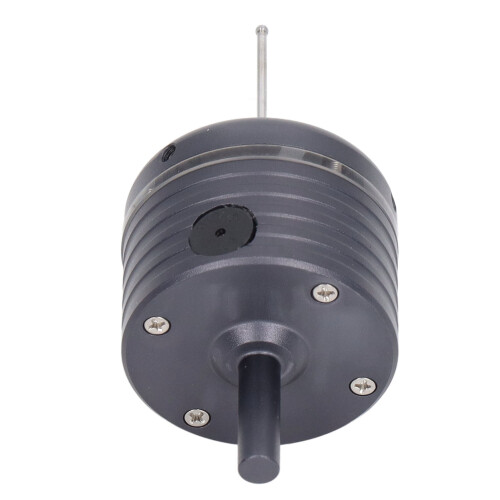

3D Edge Finder High Accuracy for CNC Milling 6-30V

3D Edge Finder High Accuracy for CNC Milling 6-30V Description

1、HIGH PERFORMANCE: The 3D edge finding locator, which is specially designed for CNC milling machines, with high accuracy and good structural stability. 2、MULTIPLE FUNCTION: The GND is connected with the output signal line, after the signal is obtained, the macro program is used to realize automatic centering, record coordinates, etc. 3、AUTO MEASURING: Online automatic measurement can be realized after connection, and it can be used as an acousto optic beam splitter in 5 directions after offline. 4、ALUMINUM ALLOY: The edge seeker is made of 7075 aluminum alloy material, the surface is anodized, wear and corrosion resistant, and has a long service life. 5、WITH BATTERY: The 3D edge locator has built in 1000mAh lithium battery, and is equipped with a data cable, which automatically charges after connecting.
Item Type: 3D Edge Finder
Material: 7075 aluminum alloy, anodized surface
Edge Finder Outer Diameter: Approx. 39mm / 1.5in
Probe Length: Standard approx. 20mm / 0.8in, user can replace
Clamping Diameter: Approx. 6mm / 0.24in
Clamping Length: Approx.
