3D Printer UCAN Board Based on STM32F072 USB to CAN Adapter Support

3D Printer UCAN Board Based on STM32F072 USB to CAN Adapter Support Description

UCAN is a small low-cost open source USB to CAN adapter, compatible with CANable hardware. The UCAN enumerates as a virtual serial port on the computer and acts as a serial-line for the CAN bus interface.
With the alternative Candlelight firmware, UCAN is enumerated as the native CAN interface on Linux.
The UCAN adapter is compatible with ARM-based embedded platforms such as for , for Zero, for ODROID, for BeagleBone, etc. At the same time, it can also be used as USB to CAN application on Klipper.

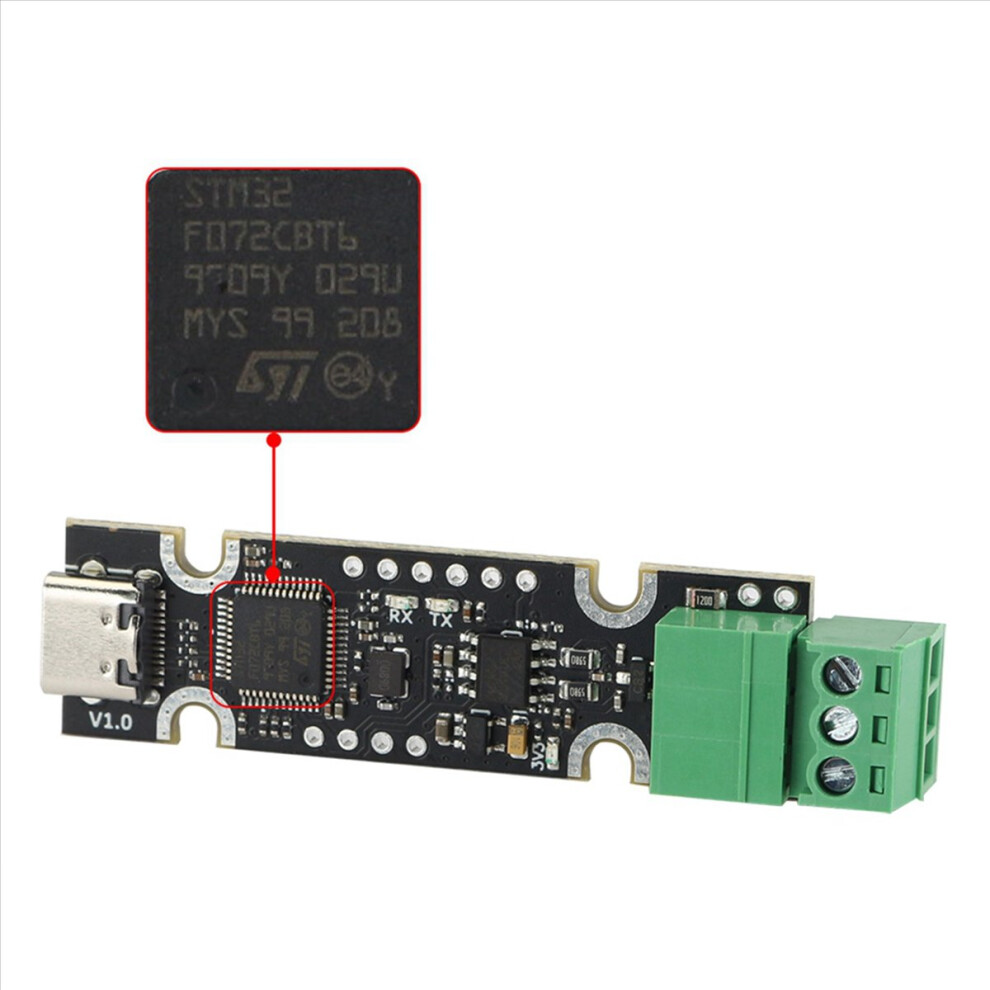

Based on STM32F072
Type-C USB socket
Supports CAN2.0A and B, baud rates up to 1M
Compatible with CANable
Support with for CAnable / CandleLight / Klipper firmware
3-pin screw terminal: CANH, CANL, GND
Jumper to enter bootloader for firmware updates
Onboard 120R termination default or Jumper to enable/disable termination
type: UCAN Board
color:Black+green
Material:PCB+plastic+metal

Package Contents:

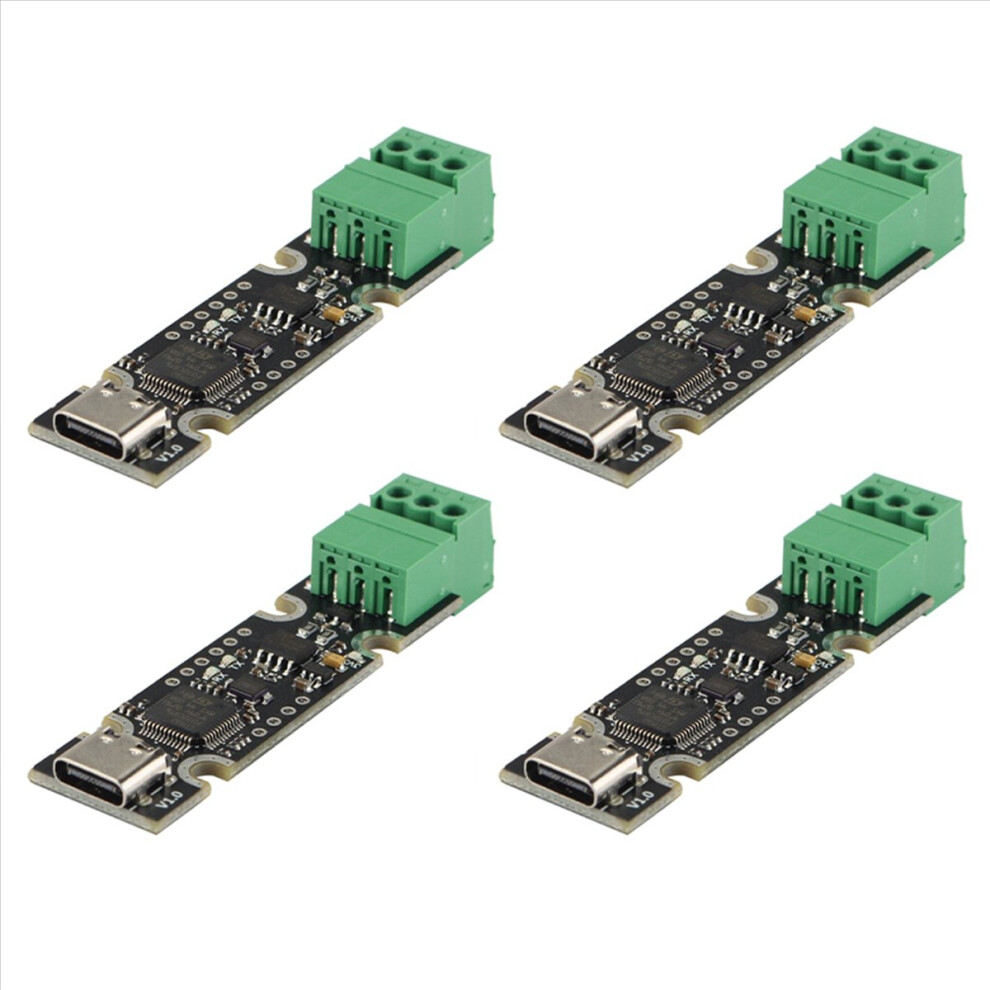

4 x UCAN Board

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
