3G-SDI over Fiber Optic Converter EU Plug

3G-SDI over Fiber Optic Converter EU Plug Description

The 3G/HD-SDI Fiber Optic Extender Kit enables real-time, long-distance transmission of uncompressed SDI video signals over LC single-mode fiber. It supports resolutions up to 1080p@60Hz, and is backward compatible with standard HD-SDI and SD-SDI formats.

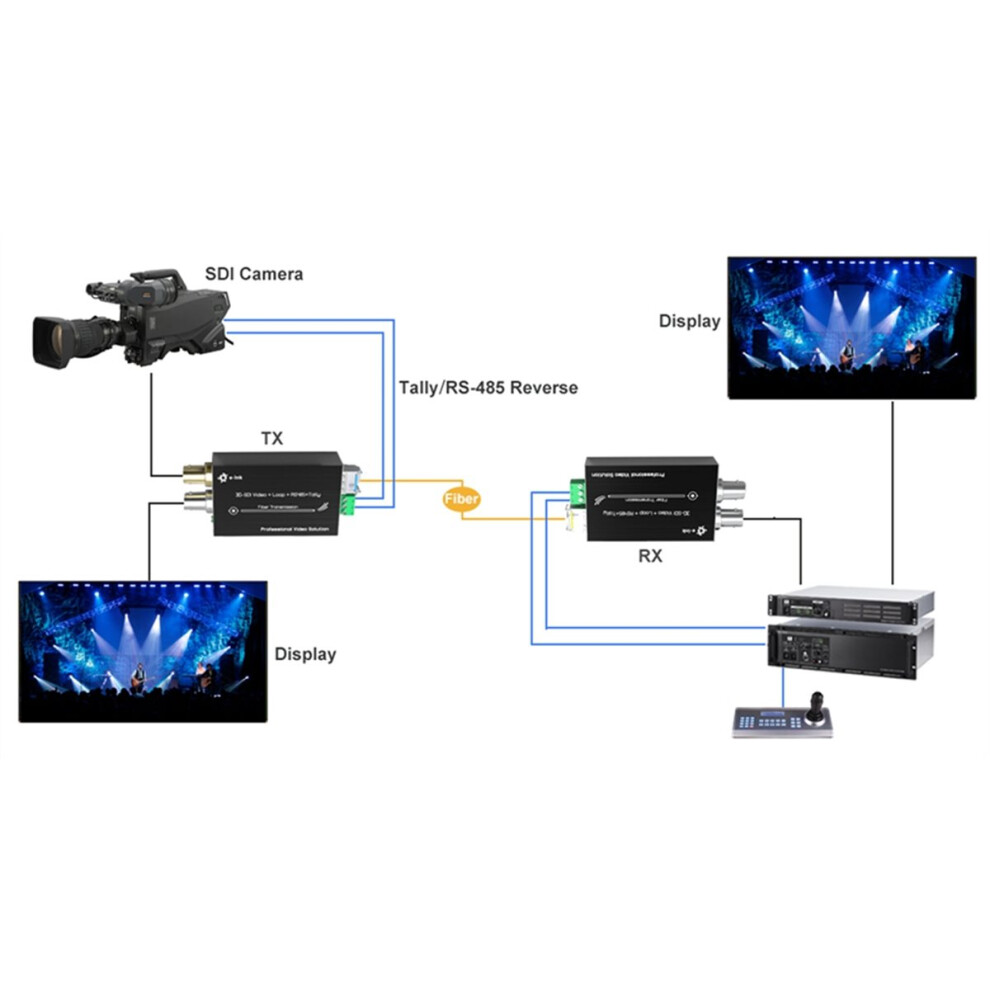

Designed for professional use. It also supports 1-channel reverse -485 or TALLY data transmission, making it ideal for scenarios where camera control or signal feedback is required.
With features like hot-swappable SFP, plug-and-play setup, and strong interference resistance, this SDI over fiber converter is well-suited for demanding applications where coaxial cables are insufficient due to distance or electromagnetic interference.

? video transmission
? HD surveillance systems over long distance
? Live broadcast and event production
? Outdoor performance video signal links
? Multimedia control centers and stadiums
?? Key Features
? Supports 3G/HD-SDI up to 1080p@60Hz
Compatible with SMPTE 424M/292M standards for uncompressed video.
? Up to 20km over single-mode LC fiber
Ideal for long-distance transmission with low signal attenuation.
? Built-in reverse -485 or TALLY signal transmission
Useful for camera tally or PTZ control feedback.
? Plug and play with hot-swappable SFP
No driver needed; easy and flexible to install.
? Compact and rugged design with wide voltage input
110x40x20mm; supports DC 5-24V, power Less than 2W.

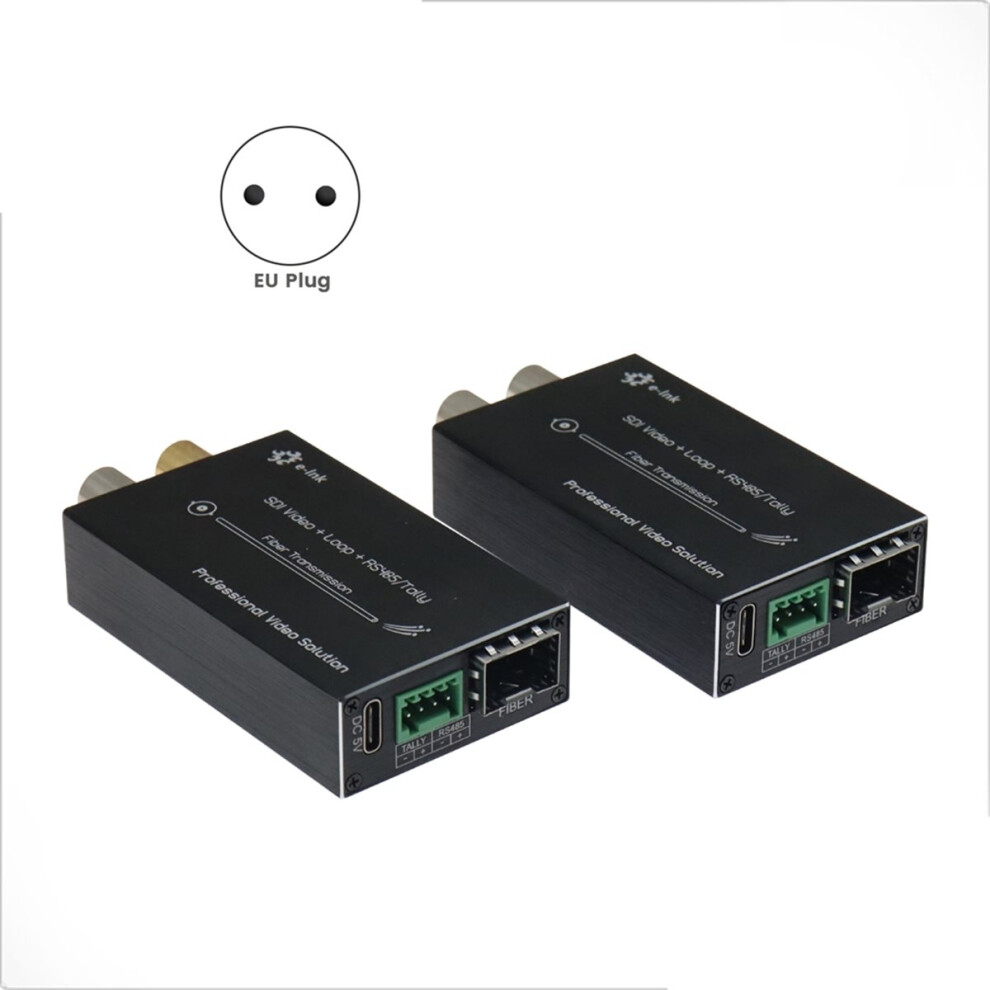

Plug Type:EU Plug,it applies to Indonesia, Germany, France, Spain, Italy and so on.
Voltage: AC220V
Color: As Shown
Material: Metal

Package Contents:
1x 3G-SDI Fiber Transmitter
1x 3G-SDI Fiber Receiver
2x Power Adapters

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
