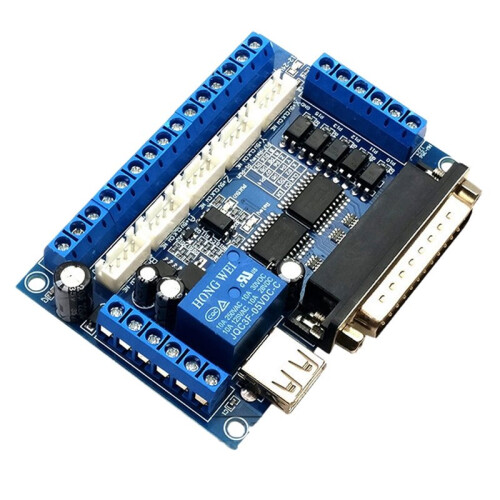

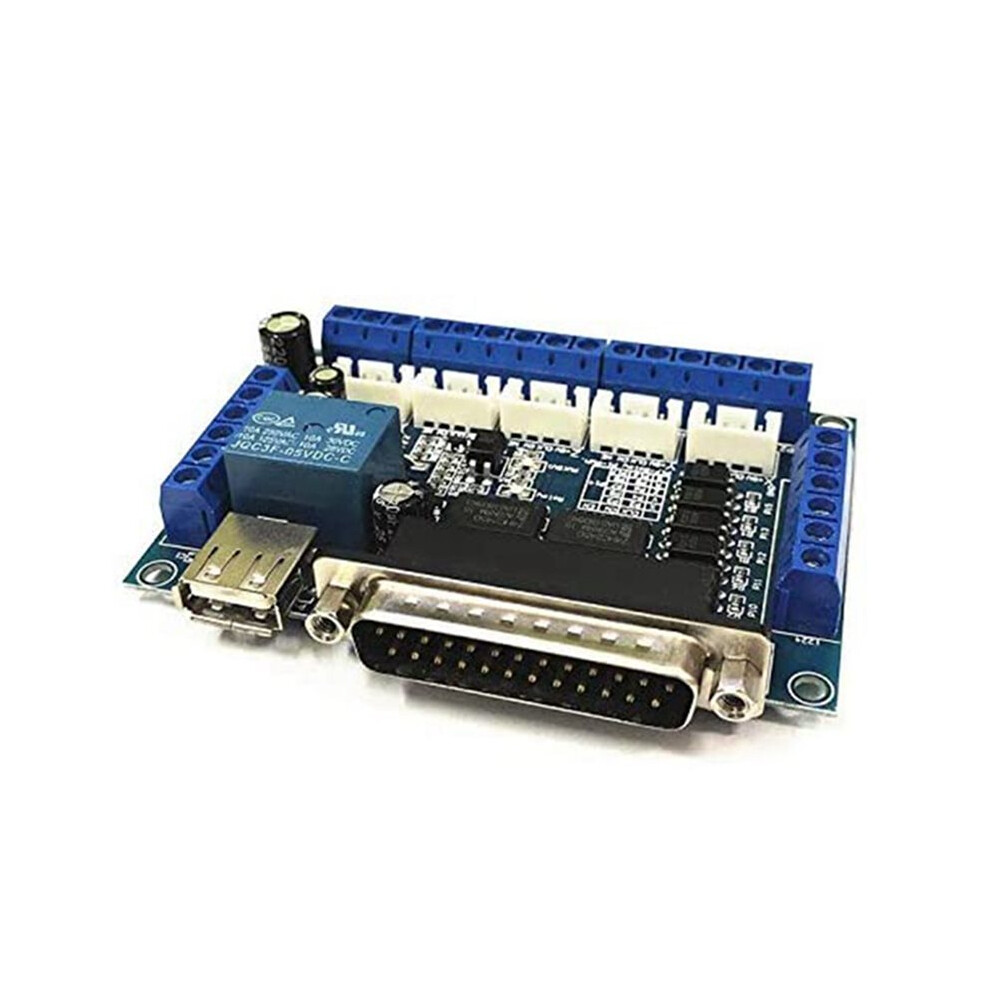

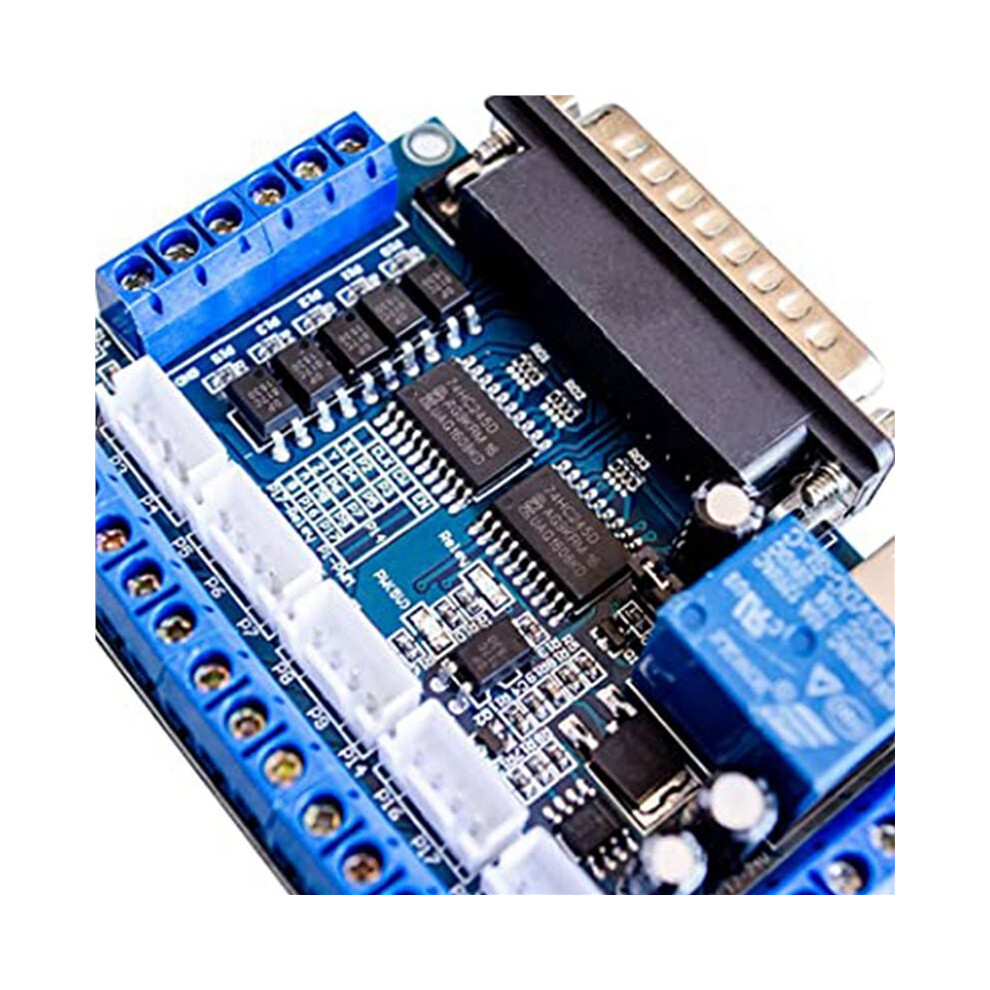

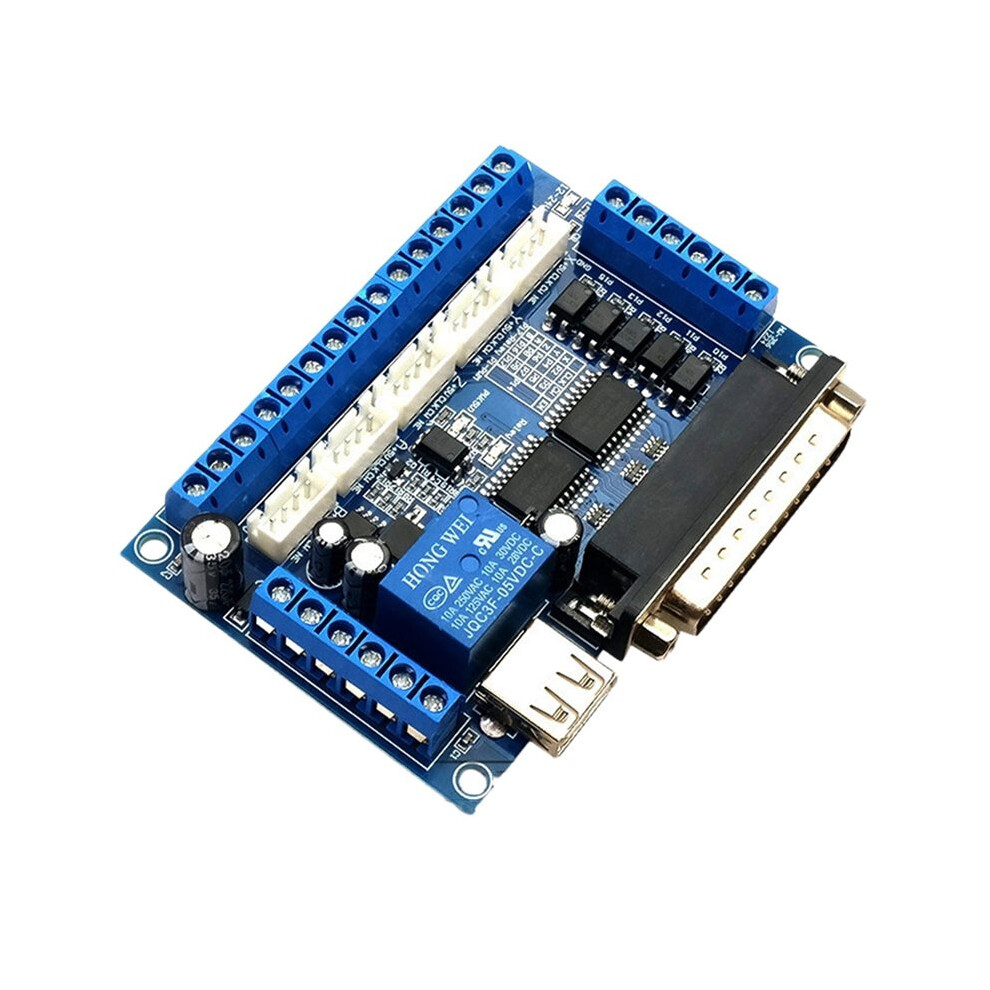

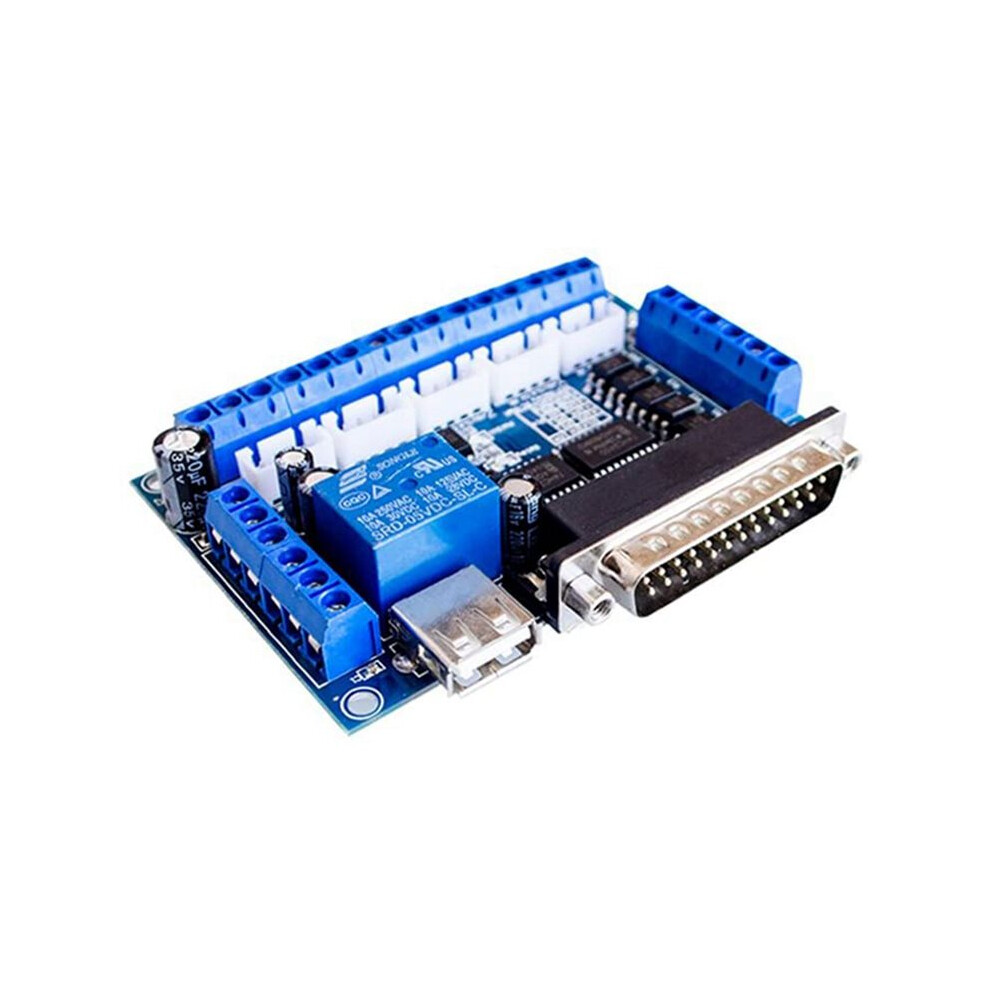

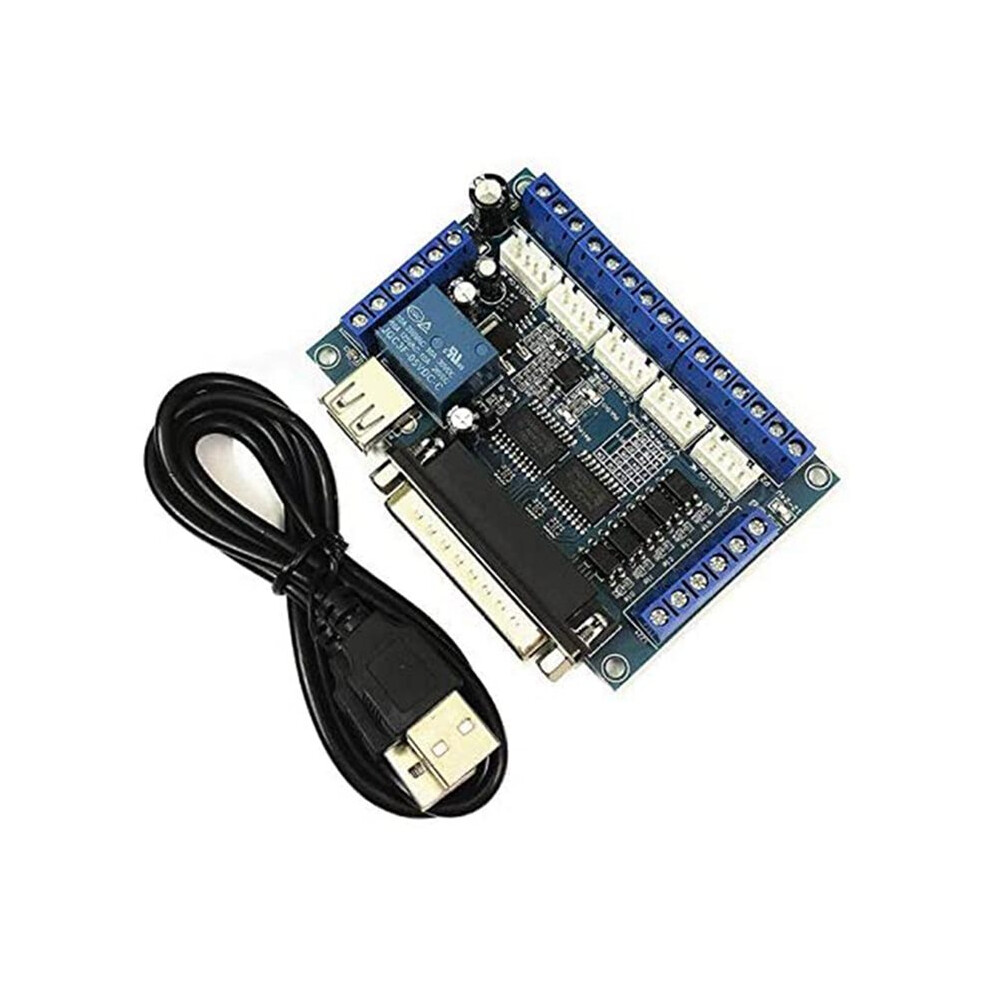

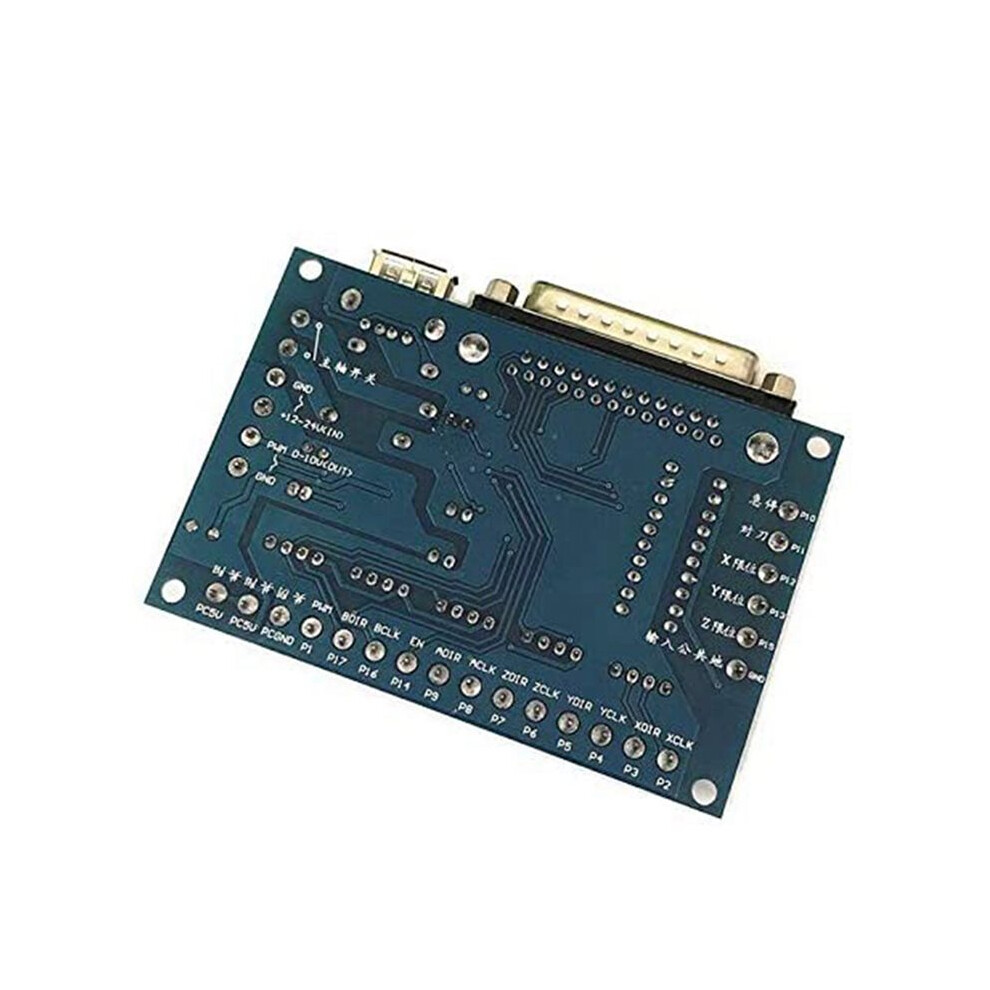

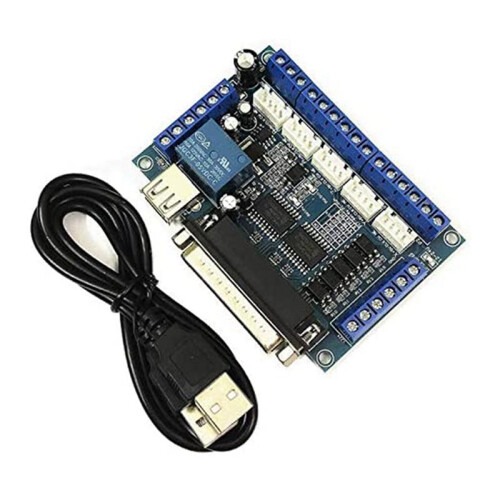

3X Driver Board MACH3 Engraving Machine 5 Axis CNC Breakout Board with Optical Coupler
Brand Tlily
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 136,000 Trustpilot reviews and an 'Excellent' rating
£15.93
£22.56
29% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Priority (Free) | Thu 22nd - Sat 24th Oct
Sold by: CNNOTEPAD
Returns: 30 days
180-day payment protection
You might also like
Description & Details
Summary
- 1. It is suitable for parallel port control supported by MACH3 and other computer software.
- 2. The USB power supply is separated from the power supply of the peripheral equipment to protect the safety of the computer.
- 3. Peripheral wide voltage input, 12-24V, with anti-reverse function.
- 4. All input signals are completely isolated, the lotus lamp is isolated, and the operation can be stopped by the knife, which limits the safety of the computer.
- 5. All the way to the relay output port. Control the spindle switch. Output port P17 port.
3X Driver Board MACH3 Engraving Machine 5 Axis CNC Breakout Board with Optical Coupler Description
1. It is suitable for parallel port control supported by MACH3 and other computer software.
2. The USB power supply is separated from the power supply of the peripheral equipment to protect the safety of the computer.
3. Peripheral wide voltage input, 12-24V, with anti-reverse function.
4. All input signals are completely isolated, the lotus lamp is isolated, and the operation can be stopped by the knife, which limits the safety of the computer.
5. All the way to the relay output port. Control the spindle . Output port P17 port.
All the way through the optocoupler isolation 0-10V analog voltage output, which can be controlled by the corresponding analog interface converter to control the spindle speed. Output port P1 port.
Open all 17 , which can be accessed through the optocoupler driver. Can control 5-axis stepper motors.
P1 as a PWM output can be controlled by inputting the spindle speed governor through the optocoupler.
The 5V driver can be connected to the common cathode or common anode input level.
Weighs approximately 366g
colour:
Material: metal + PCB
size: 89x68x19mm
Package Contents:

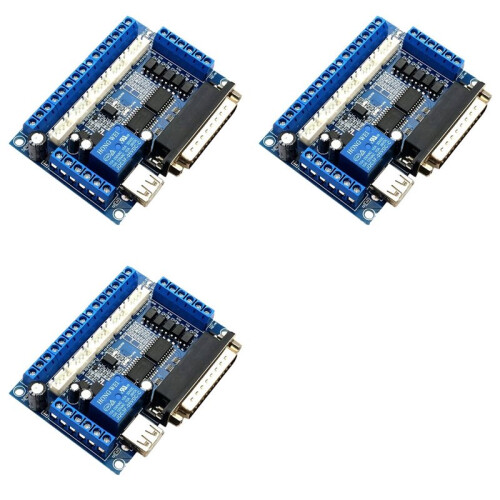

3 x Engraving Machine Driver Board
Details
| OPC | PYKPJ2W |
|---|---|
| Brand | Tlily |
| Codes | 6034051633584 (EAN) |
Product Data
| Height | 9cm |
|---|---|
| Width | 10cm |
| Length | 13cm |
| Weight | 0.2715kg |
| Colour | Blue |
| Material | Metal + PCB |
