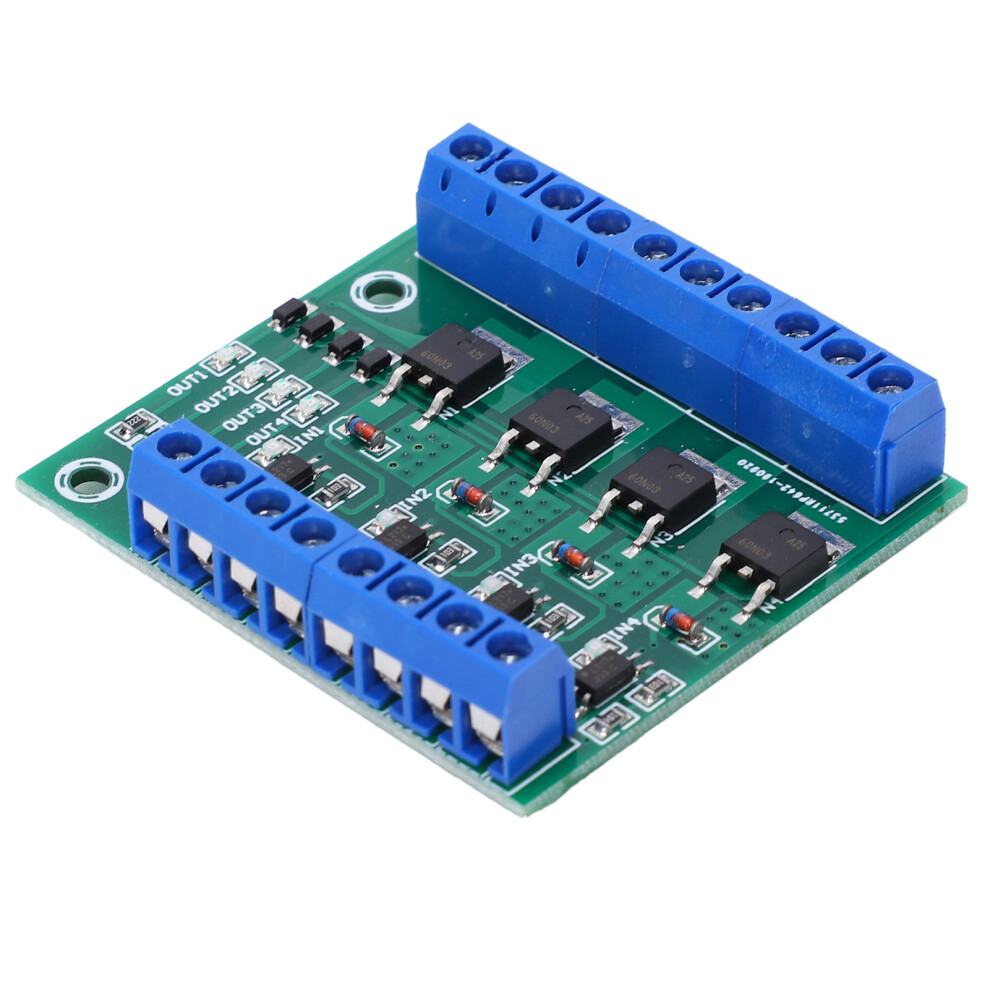

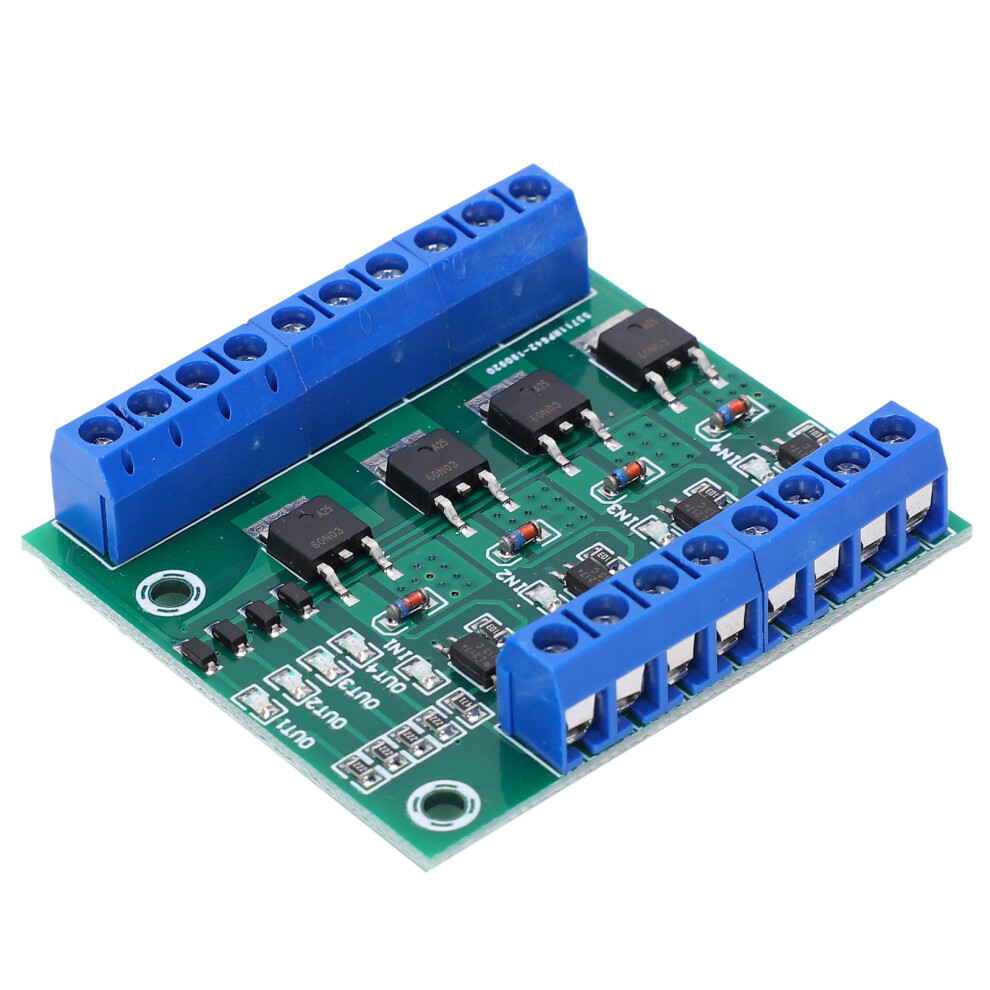

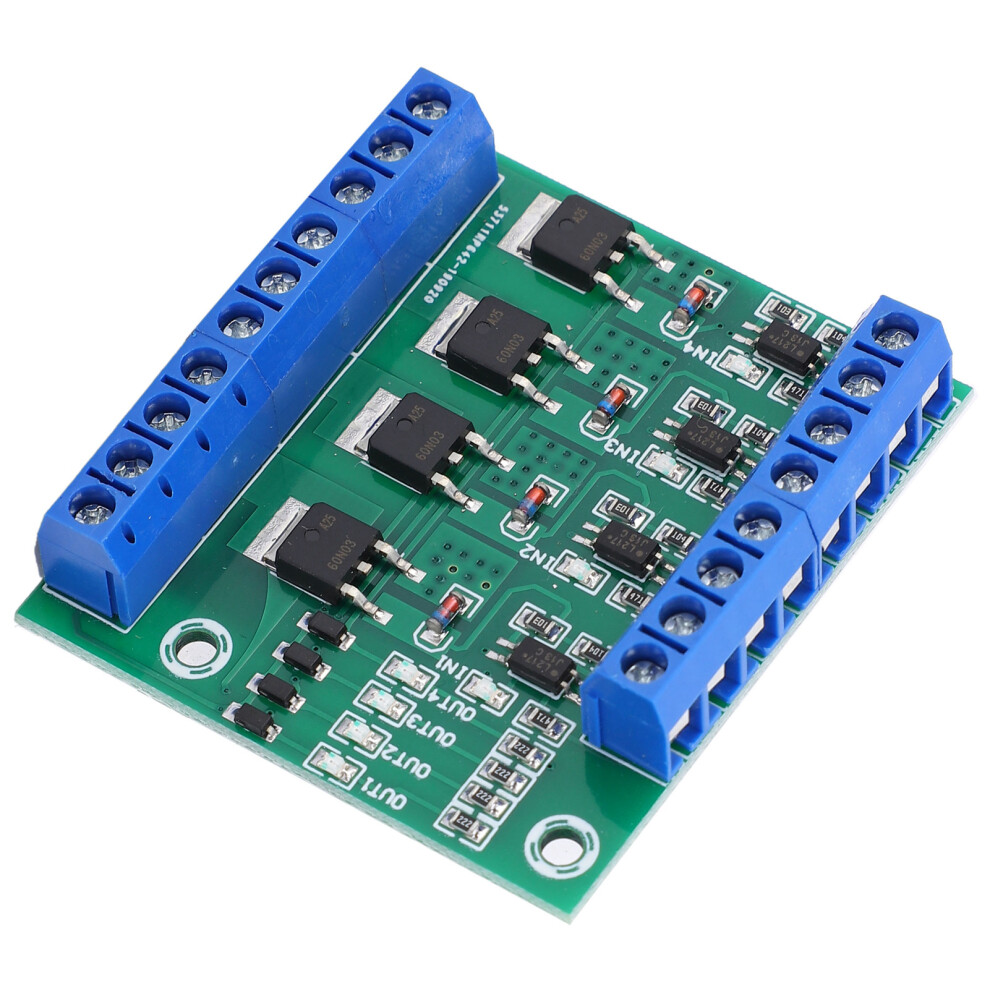

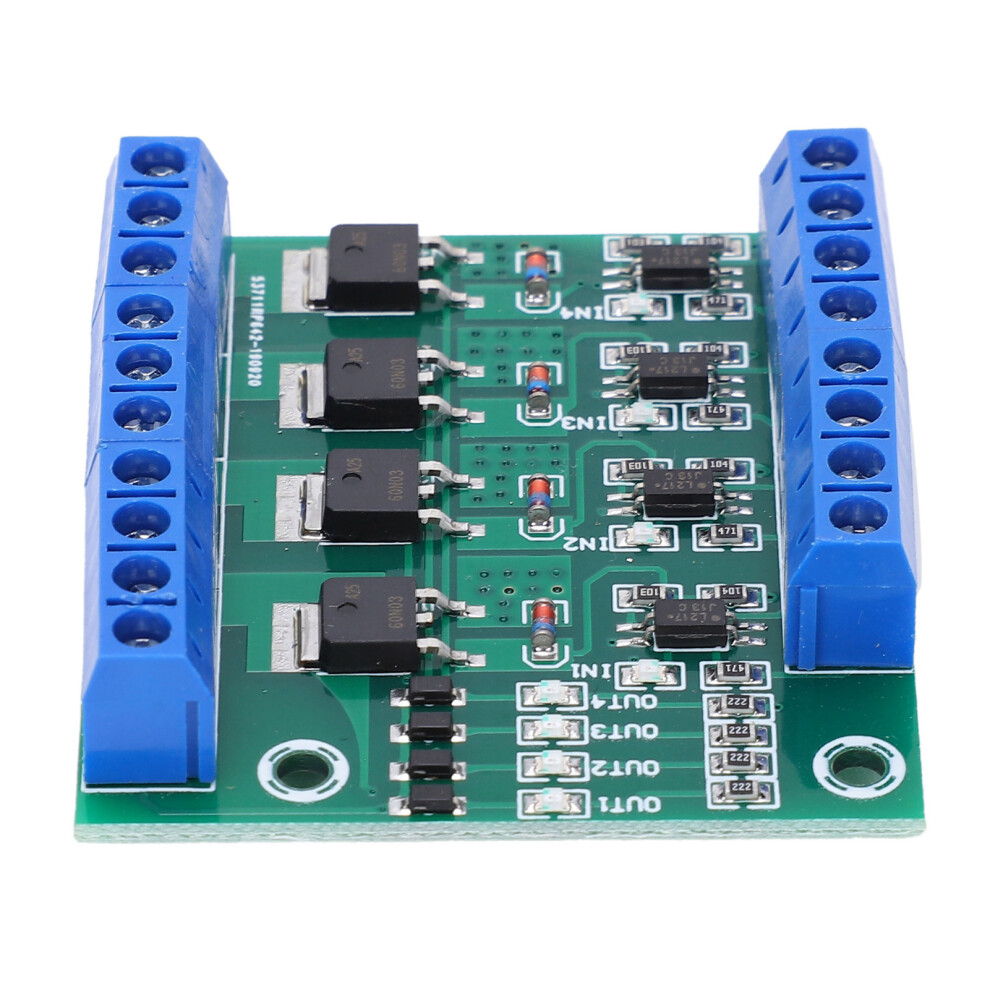

4-Way MOS Tube Module PLC Amplifier with Signal Indicator

4-Way MOS Tube Module PLC Amplifier with Signal Indicator Description

1、Strong anti‑interference ability and stable performance, input signal and output isolation 2、The output terminal can control high‑power equipment, motors, bulbs, LED strips, DC motors, micro water pumps and solenoid valves, etc. 3、The module can input PWM to control the motor speed, the brightness of the lamp, etc 4、The module output capacity is DC 3.7V~27V, current within 10A per channel 5、Adopted of high quality electronic components, and accuracy process, ensure for the durability
Item Type: 4-Way MOS Tube Module
Model: YYNMOS-4
Input Signal: PWM signal between 3~20V
PWM Frequency: 0~200HZ
Indicator Light: With input signal and output indicator
Module Interface Description:
DC+: The positive pole of the device's DC power supply
DC-: The negative pole of the device's DC power supply
PWM: Signal input terminal (connected to MCU IO port, PLC interface, DC power supply, etc.)
GND: Signal negative terminal
OUT+: Positive output terminal (connected to the positive pole of the device)
OUT-: The negative pole of the output terminal (connect to the negative pole of the device)
1 x Module
