48-72V 3000W E-Bike Brushless Motor Kit Electric Bicycle Controller

48-72V 3000W E-Bike Brushless Motor Kit Electric Bicycle Controller Description

Application

It is suitable for scooters, electric motorcycles, dune buggies, go-karts, modified bicycles, mechanical equipment, etc.

Specification

Material: Aluminum, Rubber

Brushless Motor Type: Pure Copper Motor

Speed Gears: Low / Medium / High (After Connecting Three-speed Line)

Motor Voltage: 48-72V

Motor Efficiency: 80％

Power: 3KW

Assembly Required: Yes

No-load Current: 8.8A

Rated Current: 43A

No-load Speed: 6000rpm

Rated Speed: 4900rpm

Rated Torque: 5.4 N.m

Protection Grade: IP33

Insulation Grade: E

Load Weight: Approx. 100-200kg/220.5-440.9lbs

Foot Pedal Accelerator Size: 5.5*17.5*12.8cm/2.2*6.9*5in

Controller Size: 21.6*8.3*4.4cm/8.5*3.3*1.7in

Leg Distance: 12cm/4.7in

Leg Height: 1.5cm/0.6in

Interface Length: 3cm/1.2in

Motor Size(φ*L): 10.2*13.2cm/4*5.2in

Package Size: 39*35*25.5cm/15.4*13.8*10in

Net Weight: 6.45kg/14.2lbs

Gross Weight: 7.7kg/17lbs

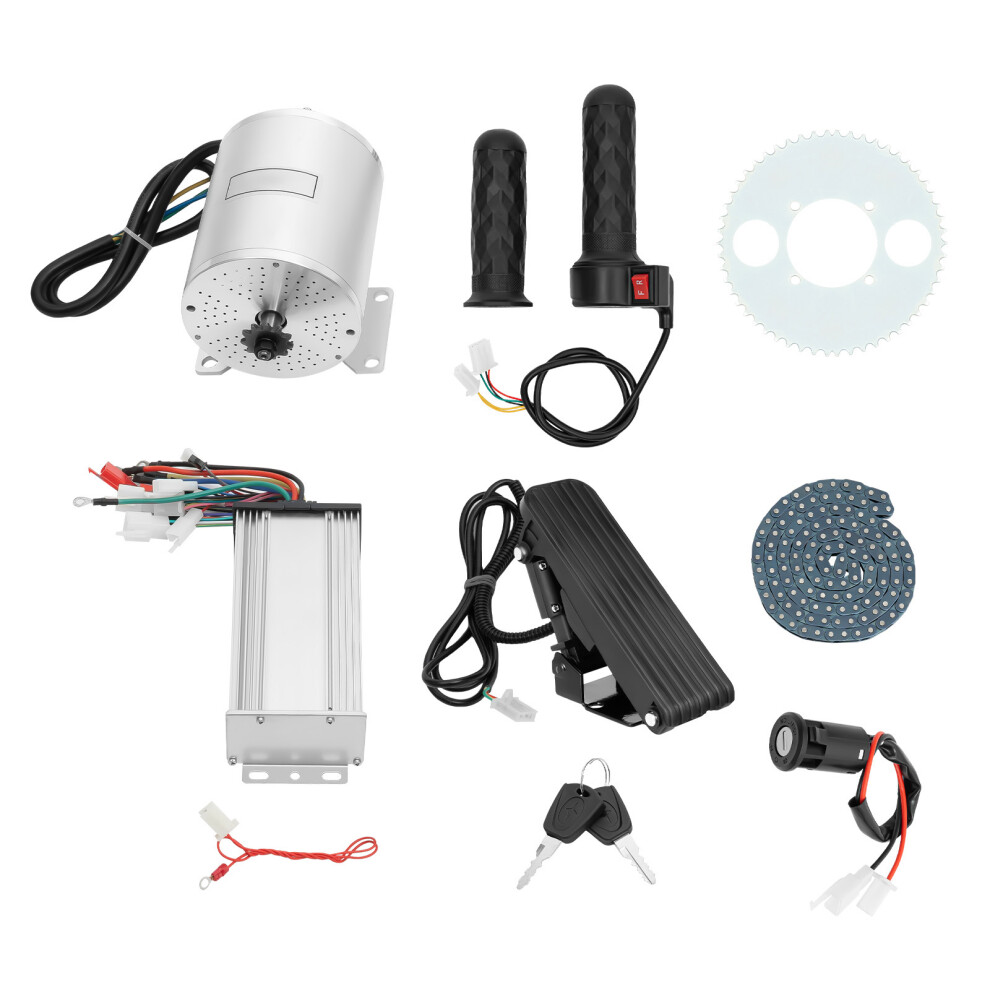

Package Included

1* Brushless Motor

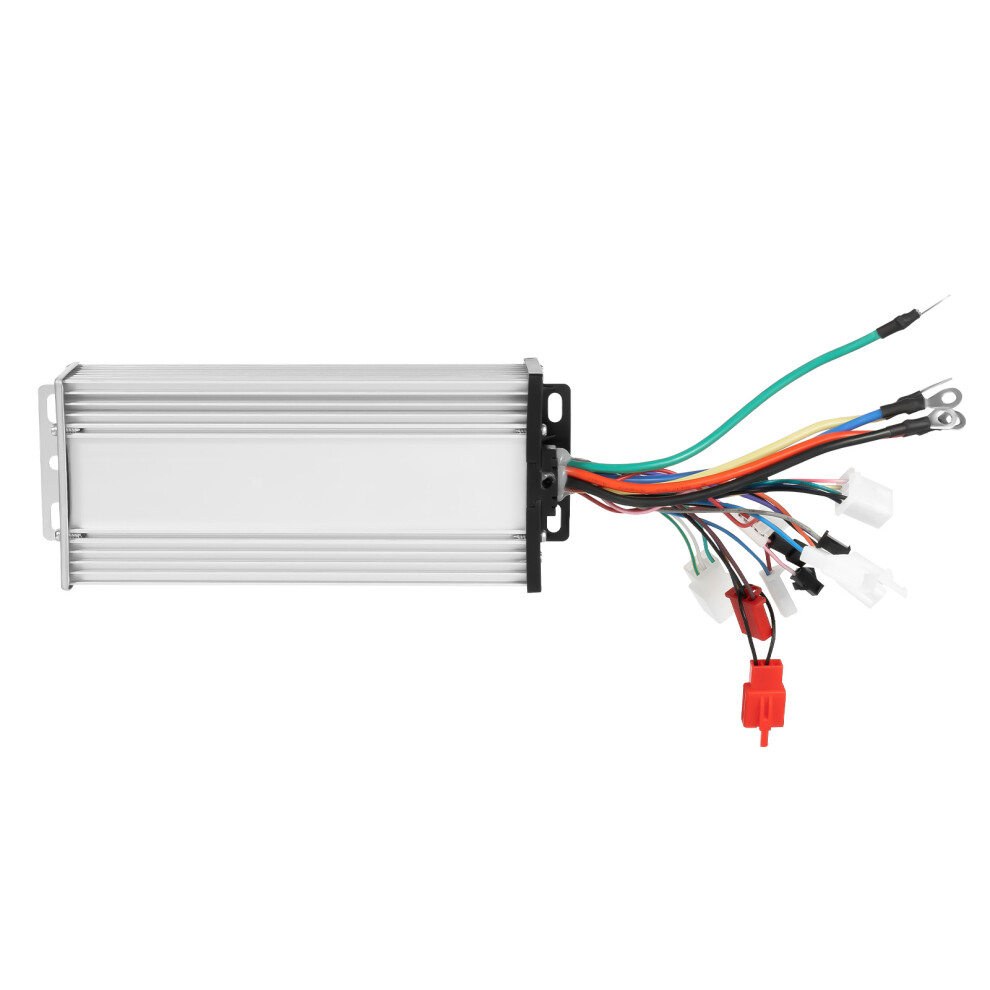

1* Controller

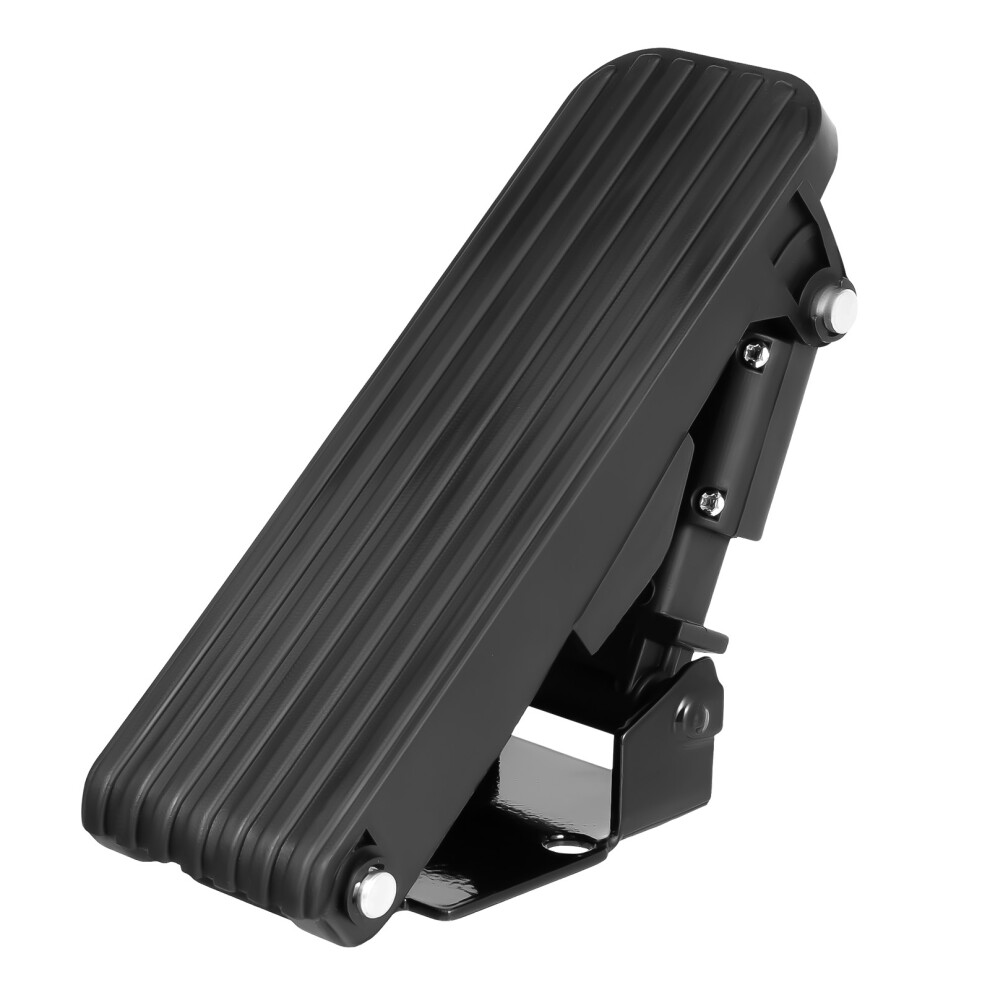

1* Foot Pedal Accelerator

1* Electric Door Lock

1* Chain

1* Chain Disk

1 Pair* Lock Keys

1 Set* Forward/Backward Handlebars

Other Accessories for Installation

Notes

1. Please note that the motor speed will be determined based on the load weight and other factors.

2. When connecting the controller to the wires, please make sure to connect the correct color to it. Otherwise, the controller may be damaged.

3. Please do not let the motor run in reverse for a long time, as this will shorten its service life.

4. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.

Key Features

Strong Load Weight: It has a strong load weight (220.5-440.9lbs). Whether a professional athlete or a leisure sports enthusiast, it can provide you with a thrilling cycling experience.

Impressive Performance: It adopts high power (3KW) that can provide a rated speed of 4900 rpm and a 6000 rpm no-load speed, as if weaving through a time and space tunnel intertwined with technology and speed, ideally interpreting the aesthetic of speed.

Safe to Use: It has an IP33 protection level, an E-class insulation level, and a design of locking power. Even in outdoor activities with slightly harsh environments, it can provide higher safety for you.

Built to Last: The motor is made of high-quality aluminum casing with pure copper coils, which has high-temperature resistance, low noise, anti-corrosion and rust prevention, guaranteeing a long service life.

Efficiency Improvement: Compared to brush motors, brushless motors have higher energy efficiency ( 80％) and can convert more electrical energy into mechanical energy, which can extend the range and improve usage efficiency.

Easy to Carry: Due to its lightweight (14.2lbs) and compact size (4*5.2in), the motor can be easily carried to any location, saving time and effort.

Free Speed Control: The package contains a foot pedal accelerator and a set of forward/backward handlebars. You can choose any one as your speed control throttle, which can help you achieve free speed control and meet your different needs.

Satisfaction Guarantee: No matter what problem you encounter or have any questions, please contact us. We will reply and solve the problem for you as soon as possible.

Details

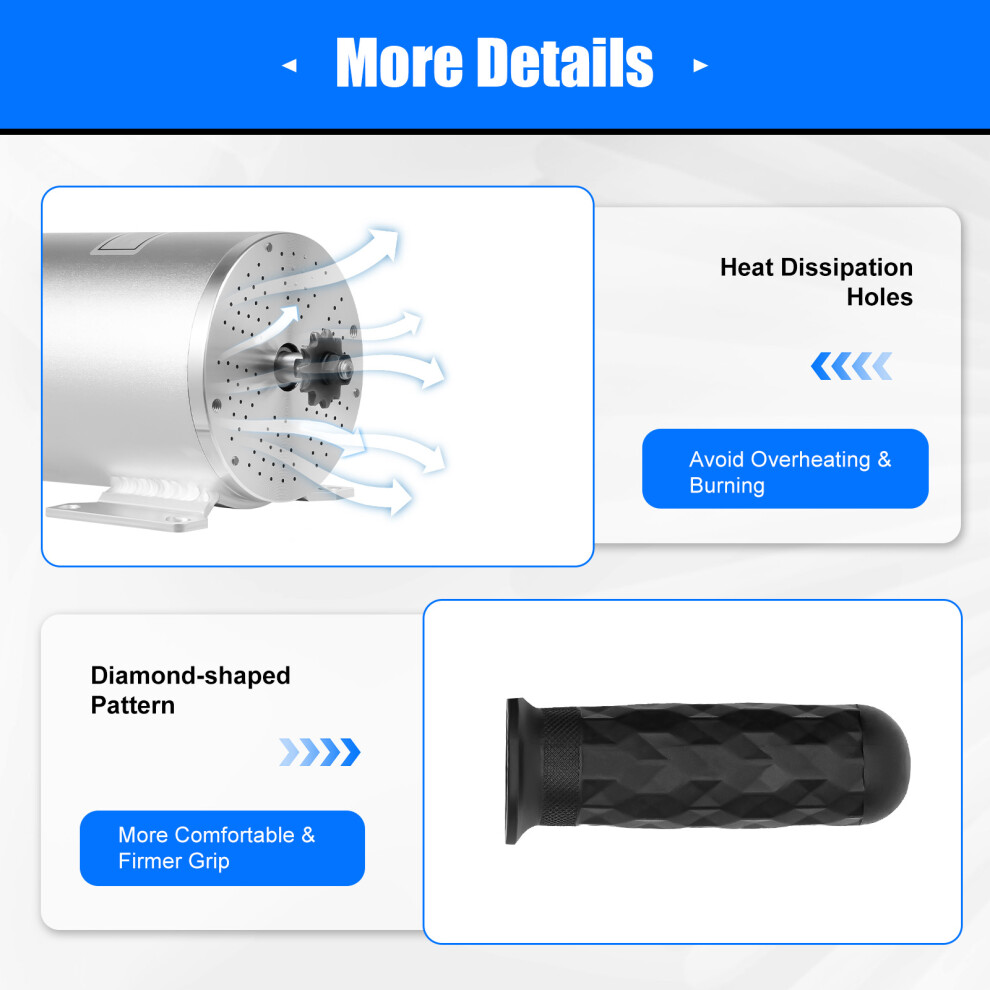

Heat Dissipation Holes: These holes on both sides of the motor can avoid overheating during operation without burning.

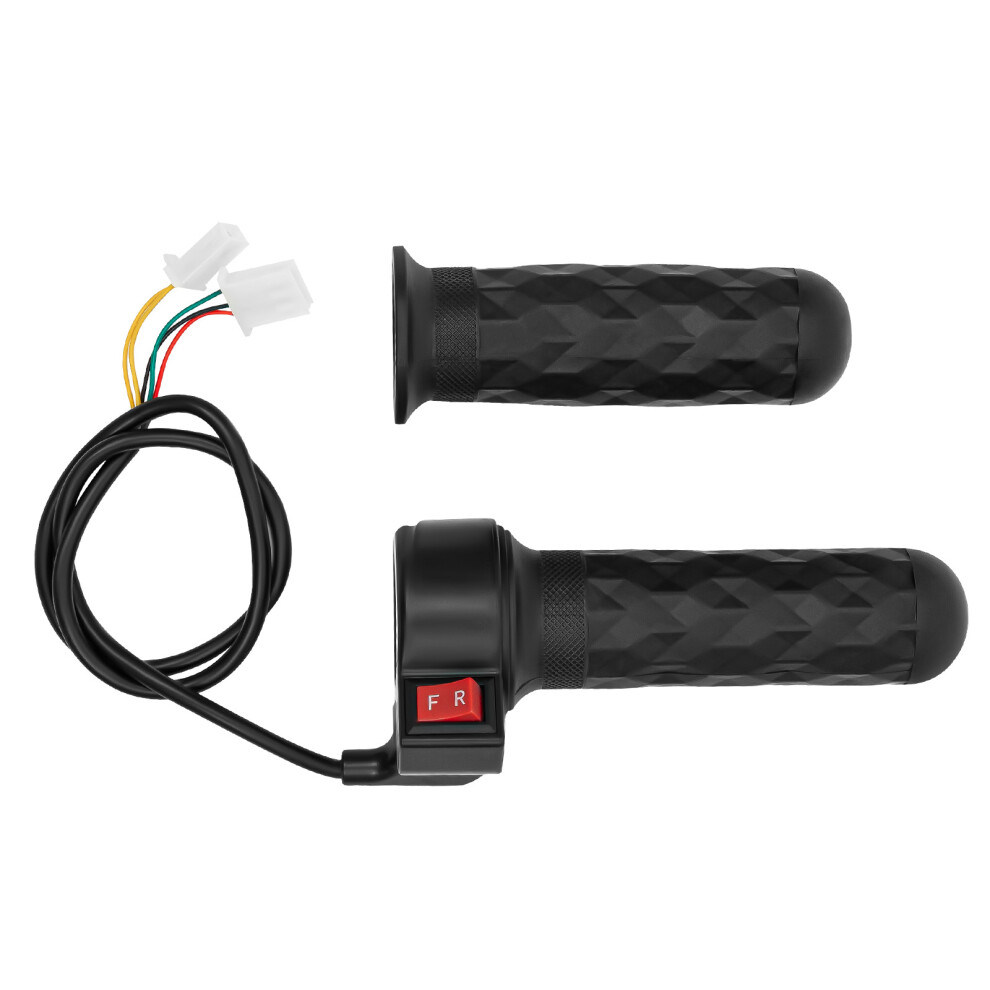

Diamond-shaped Pattern: The pattern on the handlebars can effectively enhance its friction, making the grip more comfortable and firmer.
