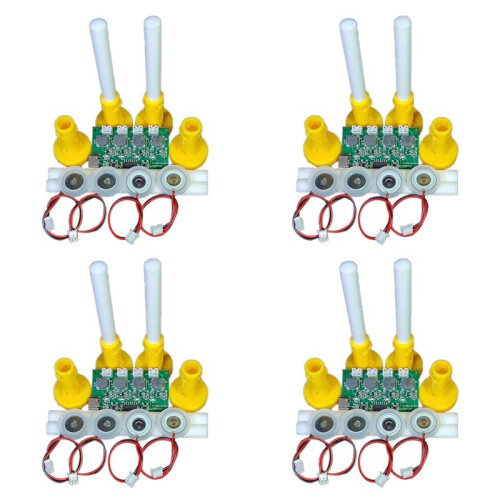

4X Four-Spray Humidifier Module Humidifier Control Board Atomizer Driver Board Four-Spray Humidifier Module,Set D

4X Four-Spray Humidifier Module Humidifier Control Board Atomizer Driver Board Four-Spray Humidifier Module,Set D Description

Features: 1. Four-Jet Humidifier Atomization Module
2. Large Amount Of Fog, Dynamic Spray
3. Widely Used In Ultrasonic Atomization Equipment, Usb Humidifier, Perfume Sprayer, Aroma Atomizer And Other Atomization Equipment
4. It Can Be Applied Well Water Surface, Absorbent Sponge Or Towel, With Finer Particles And Higher Spray Level.
5. The Fog Particles Are Fine, The Atomization Is Large, The Atomization Is High, And The Desktop Is Not Wet

Description: 1. Water Tank Capacity: 0.5-1L
2. Function: Ultrasonic
3. Timing Function: 2-8 Hours
4. Rated Power: 2 W
5. Material: PCB
6. Noise: Below 36dB
7. Humidification Method: Mist
8. Power Supply Mode: USB
9. Rated Voltage: 36V
10. Module Size: 25 x 50 x 1.2mm (Width x Length x Board Thickness)
11. Rated Voltage: 5V
12. Rated Current: 300mA
13. Power: 2.5-3W
14. Atmospheric Lighting: White Light
15. Atomization Frequency: 108KHZ2KHZ
Atomizer Parameters: 1. Name: Microporous Atomizing Sheet
2. Diameter: 16mm
3. Driving Voltage: DC3V-12V
4. Rated Power: 1.5W
5. Atomization Amount: 25-660M/H
6. Power Range: 0.6W-3W
7. Resonant Frequency: 103-113KHZ5
8. Outer Diameter Of Silicone Sleeve: 20mm
9. Wire Length: 100mm-300mm
10. Wire Terminal: 2.0
Color: As Shown
Material: PCB
The appearance, color and printing of the product may vary from batch to batch, but it will not affect the use

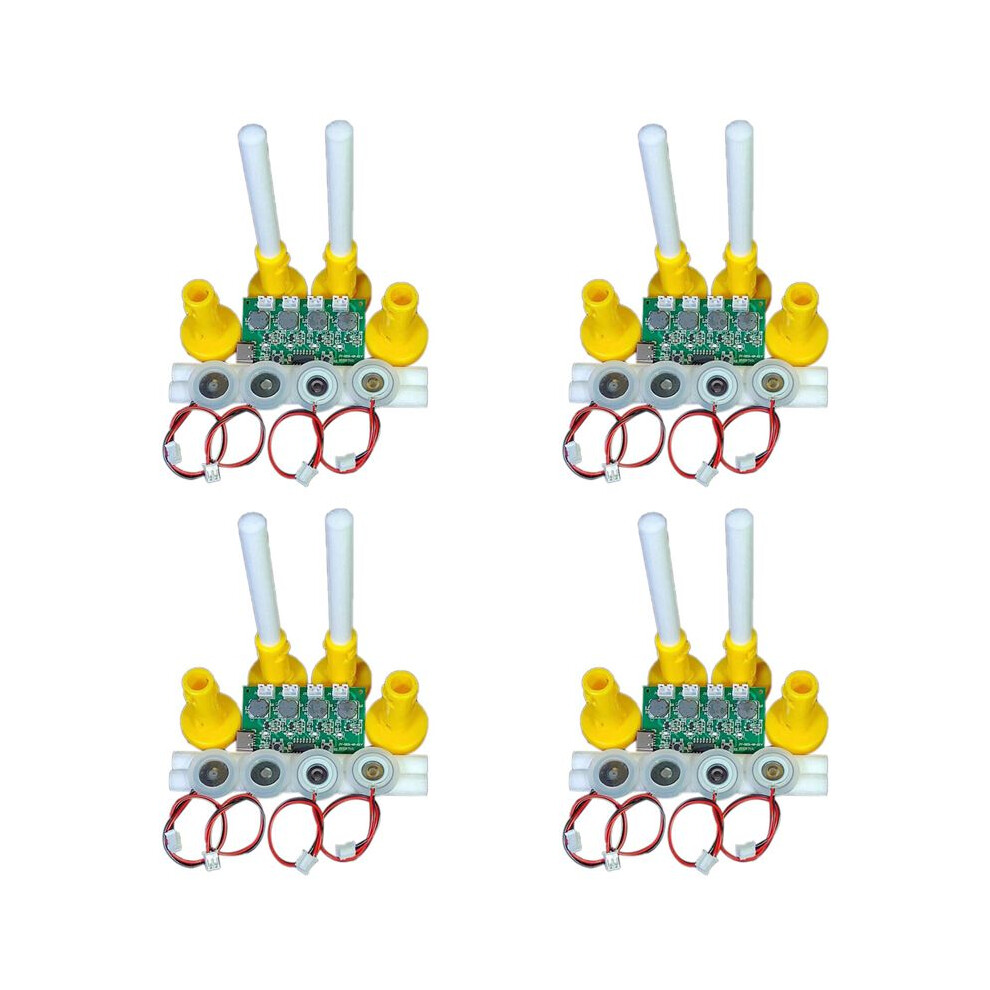

Package Contents:
4 x Controller Module
16 x Spray Sheet
16 x Yellow Bracket
16 x Cotton Swab
