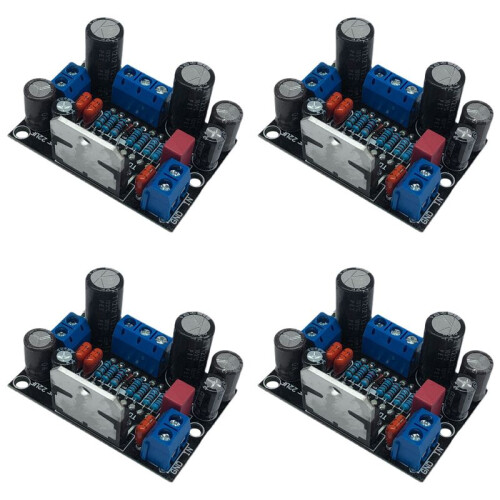

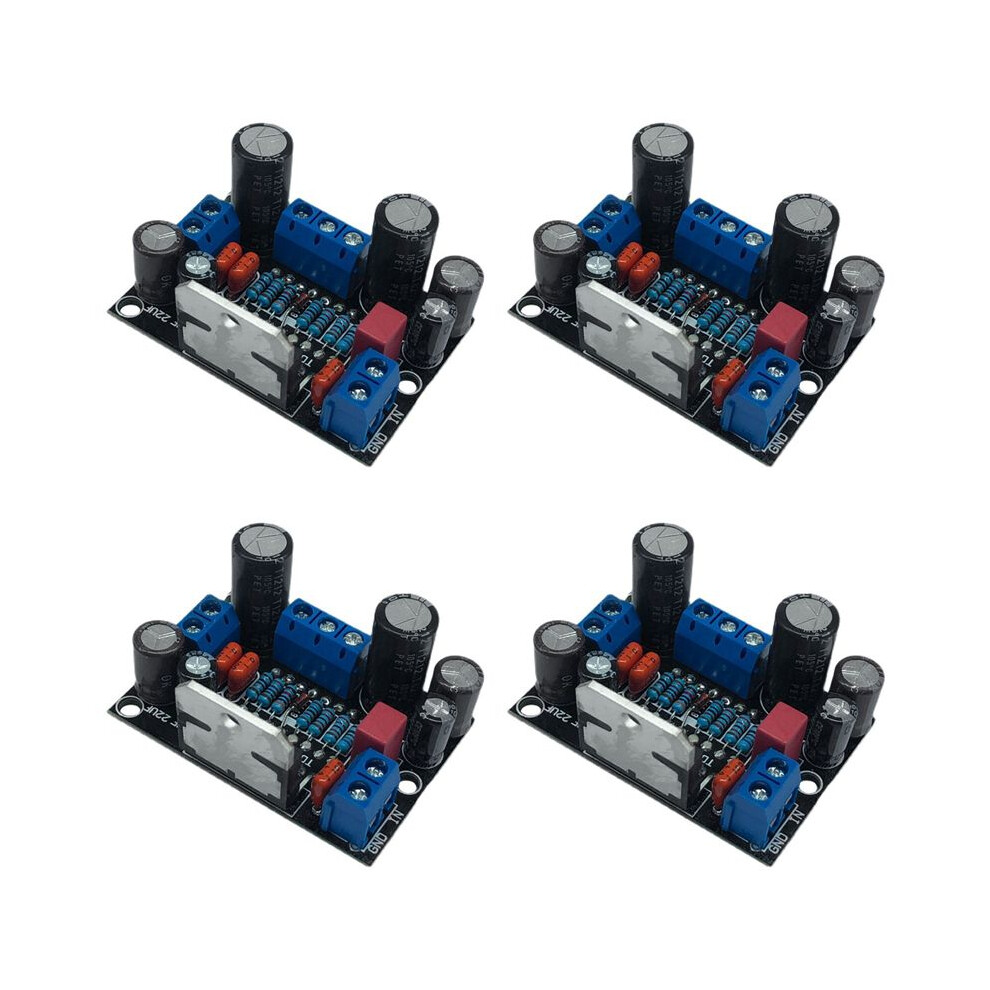

4X TDA7294 Mono 100W Power Amplifier Board Finished Board

4X TDA7294 Mono 100W Power Amplifier Board Finished Board Description

1. The noise of the is small and will not have too much impact the speaker. It is recommended to add a horn protection circuit. The horn protection circuit can not only eliminate the impact noise of the power amplifier machine, but also avoid the output burning the horn when the power amplifier is damaged.
2. The bottom noise is small. Zero floating small, do not need to do any debugging after installation, the output zero drift voltage will generally not exceed 50mv, and is relatively stable.
3. Free debugging. As long as the connection is correct, no one is wrong, basically it is a success, no need to do any debugging, beginners also have a very high success rate.

Note:
1.2SC5200 + ZSA1943 are disassemble parts,but in good condition.
2.The PCB board has change to black, but the function is same.
Operating voltage: Dual 10 - 45V recommended Dual 35V
Rated output power: 100W(4 Ohm 35V)
Maximum output power: 150W (4 Ohm 45V) enormous heat, is not recommended
PCB size: 30 x 50 x 35mm
Pitch: 5.08mm
Hole distance between two power tube: 47mm
color: As shown
Material: PCB
The panel color is random, no specification is accepted

Package Contents:
4 x Amplifier board
