4X VL53L1X Ranging Flight Time Sensor Module 3V-5V

4X VL53L1X Ranging Flight Time Sensor Module 3V-5V Description

Fully integrated miniature module;Emitter: 940 nm (Class1);SPAD (single photon diode) receiving array with integrated lens;Low-power microcontroller running advanced digital firmware
Pin-to-pin compatible with the FlightSense ranging sensor;Fast and accurate long distance ranging;Up to 400 cm distance measurement;Up to 50 Hz ranging frequency
Typical full field-of-view (FoV): 27 degree;Programmable region-of-interest (ROI) size on the receiving array, allowing the sensor FoV to be reduced;Programmable ROI position on the receiving array, providing multizone operation control from the host
Easy integration;Single reflowable component;Can be hidden behind many cover window materials
Software driver and code examples for turnkey ranging;Single power supply (2v8);I2;C interface (up to 400 kHz);Shutdown and interrupt pin

Description:
The VL53L1X is a state-of-the-art, Time-of-Flight (ToF), ranging sensor, enhancing the FlightSense product family. It is the fastest miniature ToF sensor on the market with accurate ranging up to 4 m and fast ranging frequency up to 50 Hz
Unlike conventional IR sensors, the VL53L1X uses 's latest generation ToF technology which allows absolute distance measurement whatever the target color and reflectance.
It is also possible to program the size of the ROI on the receiving array, allowing the sensor FoV to be reduced.
colour: black
Material: metal
size: 25x10.7x3.2mm

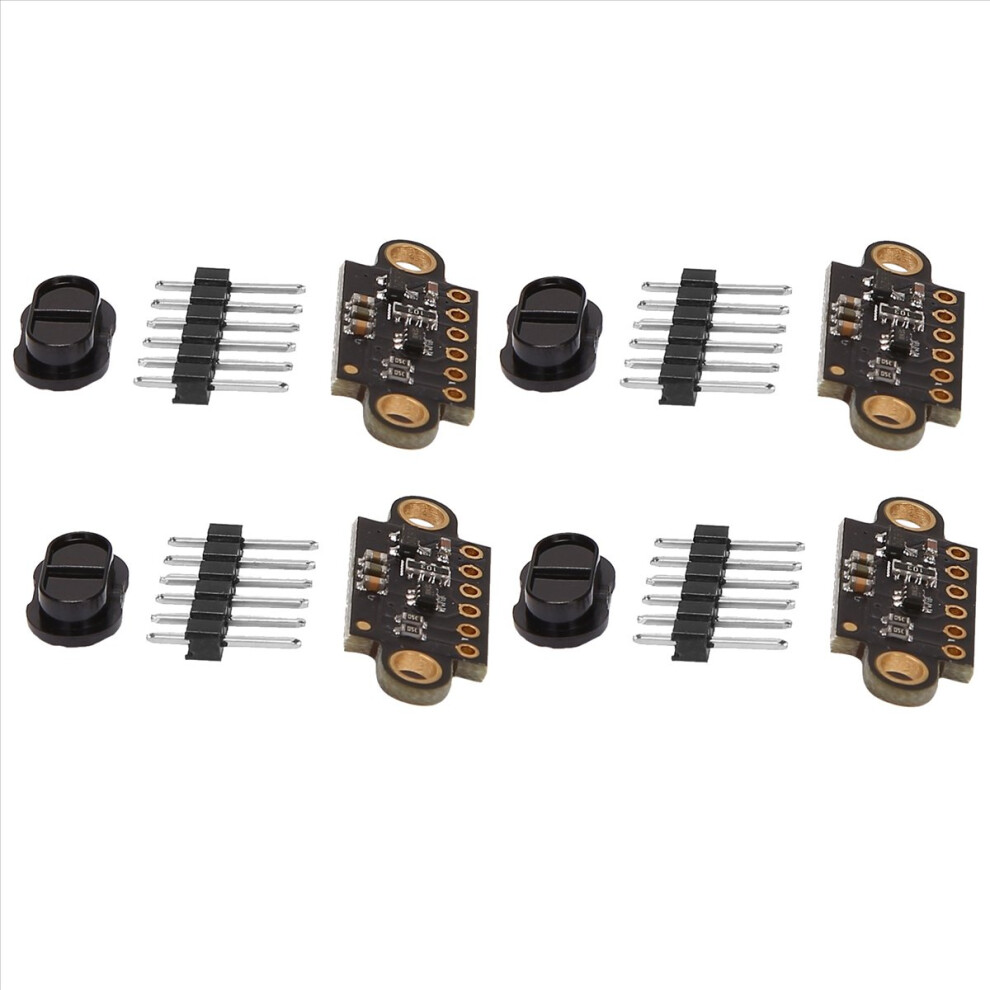

Package Contents:

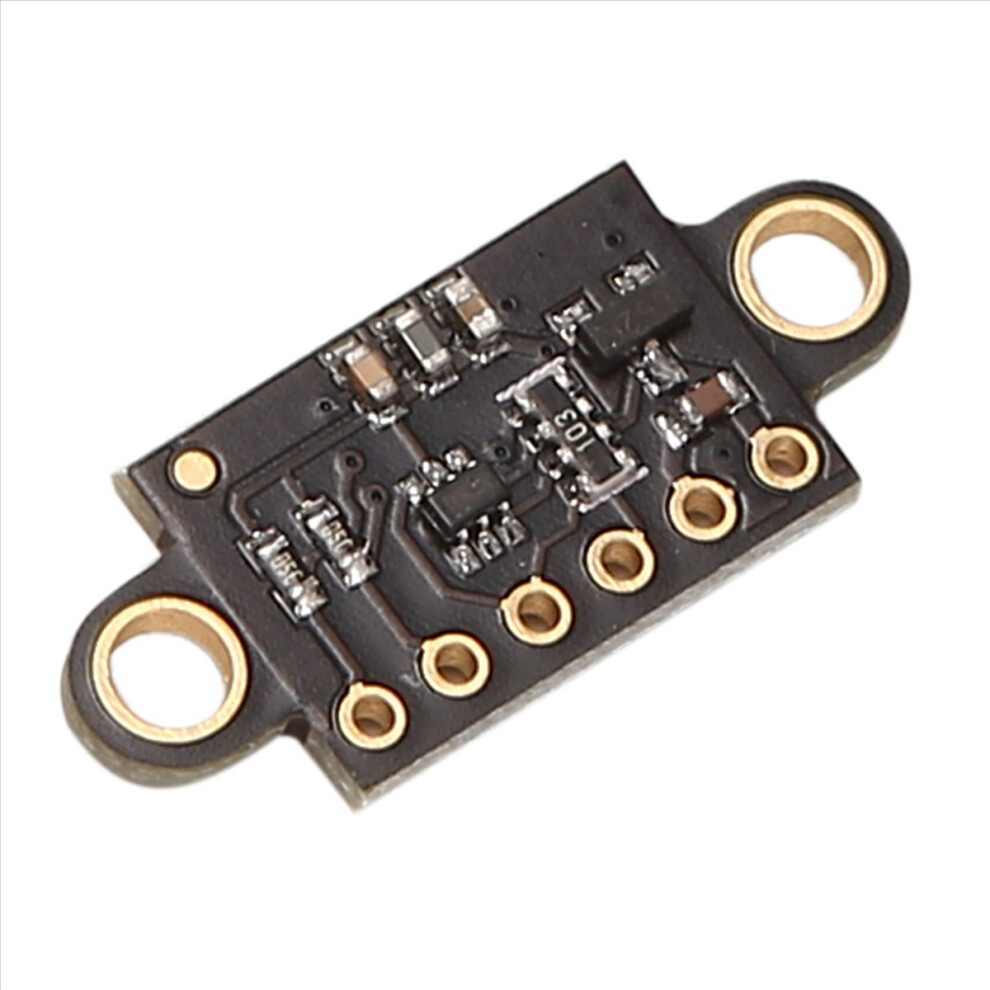

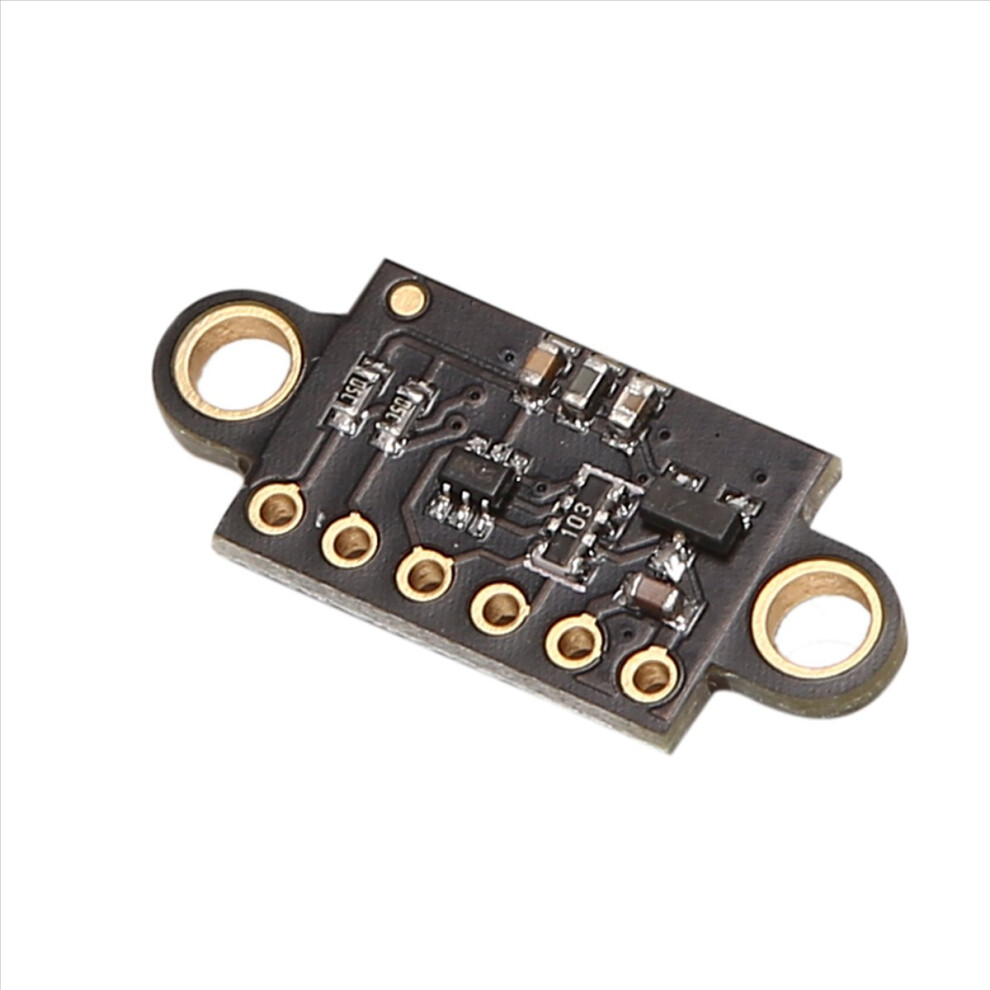

4 * VL53L1X Sensor Module

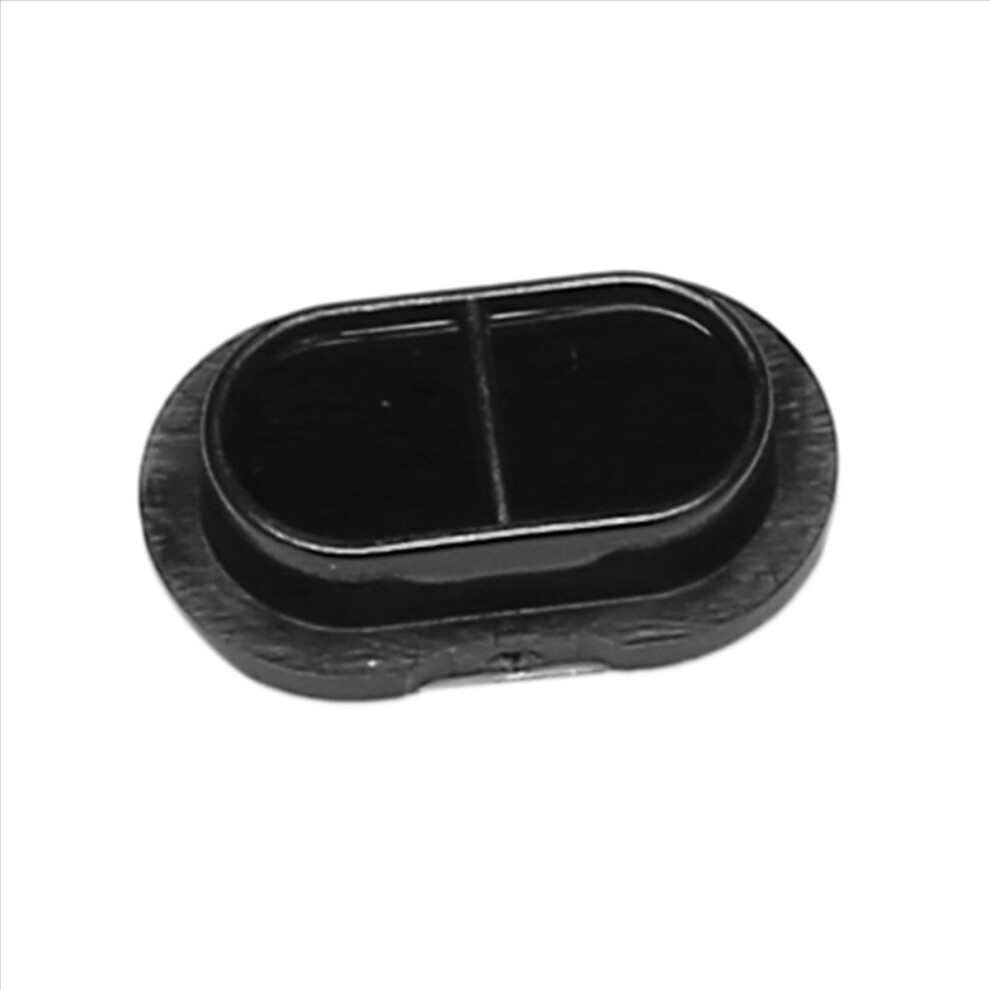

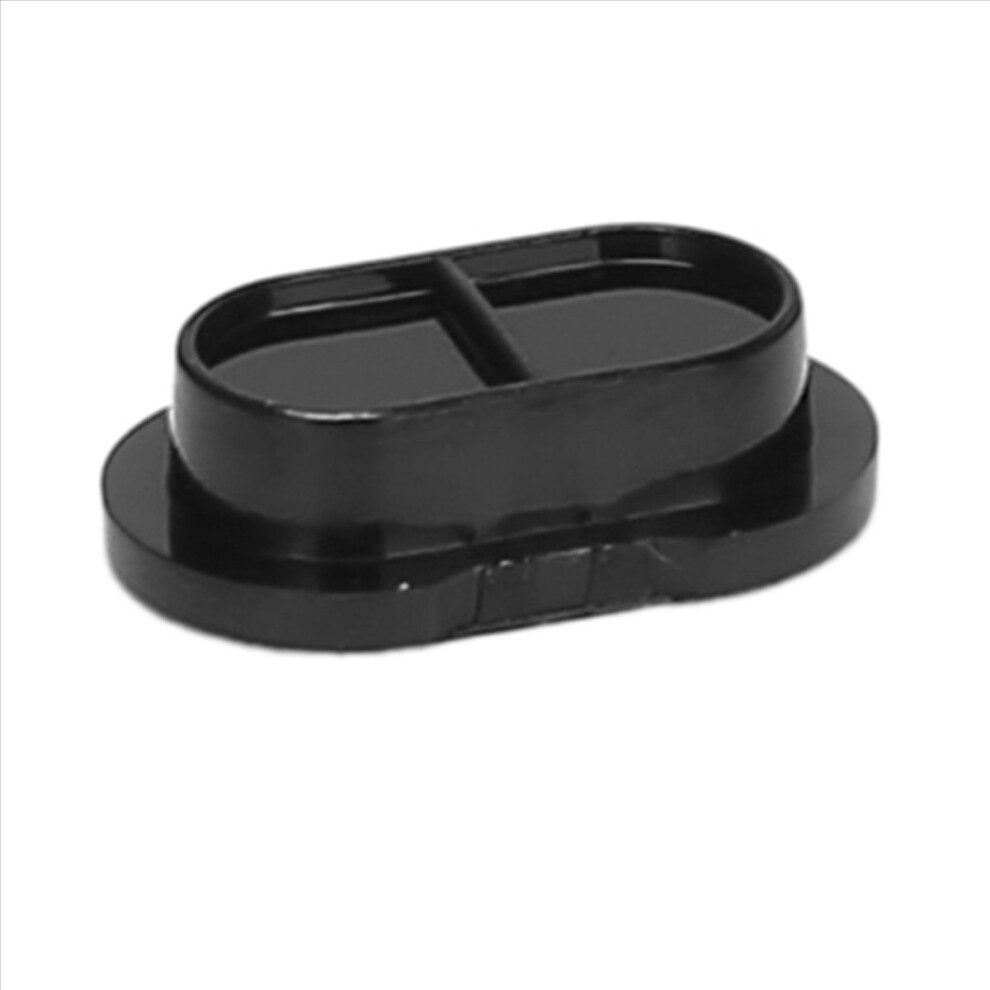

4 * Optical cover

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
