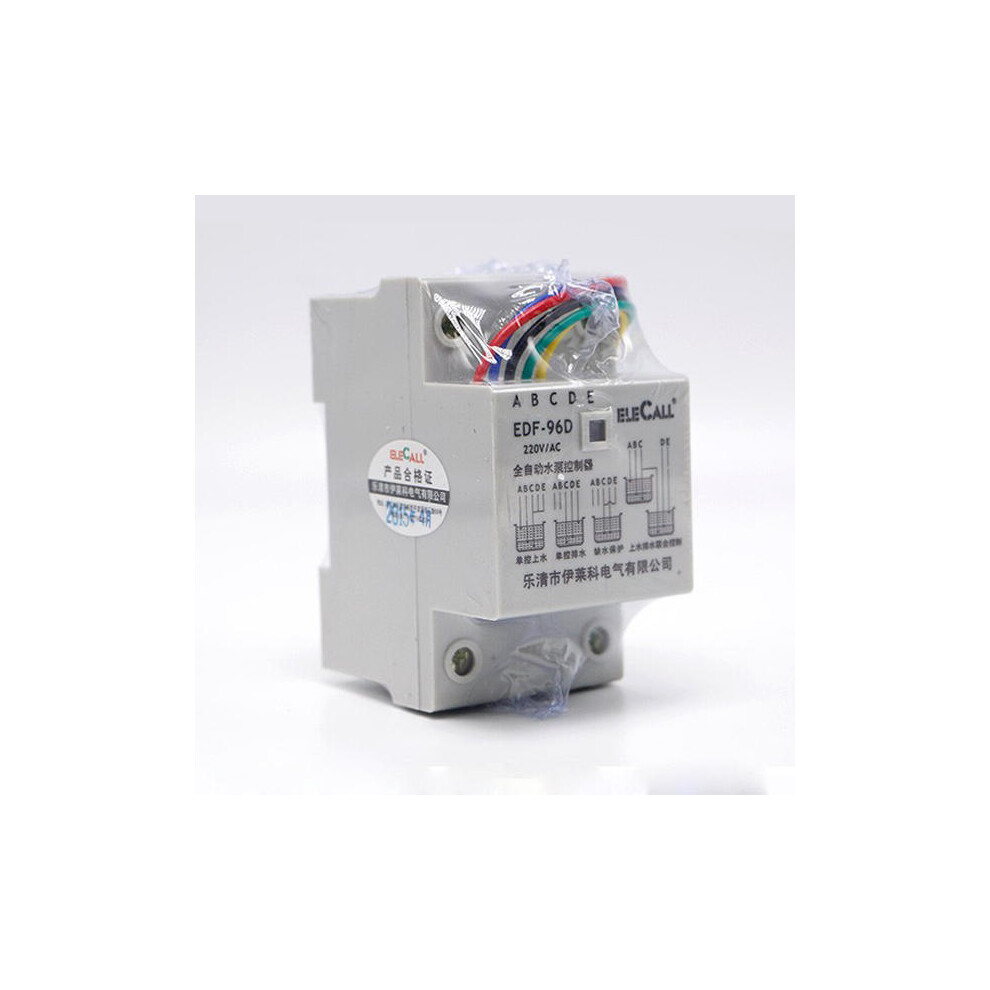

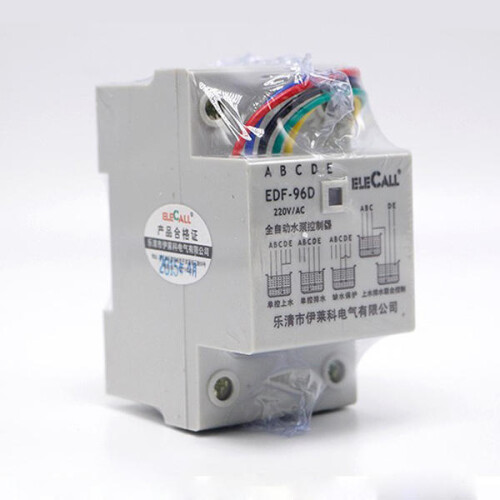

(5M) Auto Water Level Controller AC220V 5A Din Rail Mount Float Switch With 3 Probes Pump,5M/10M DF96D

(5M) Auto Water Level Controller AC220V 5A Din Rail Mount Float Switch With 3 Probes Pump,5M/10M DF96D Description

Features:
This product uses the integrated circuit, combined with the high-rise buildings,the sink (water tower) is designed to enhance the level classification has joint control under the sink,sink drainage and water protection and other functions, can automatically tank water, drainage,and effective pool water level to prevent water overflow or pump idling high damage, is an industrial,household products are applicable very suitable for urban, rural, school, where mining enterprises and domestic water wells.
Well Water Project, is widely used in printing and dyeing, chemical, food, beverage, wine, sugar and other industries.

Specification:
Voltage Range: AC220V;
Max Current: 5A;
Max Pump: 550w;

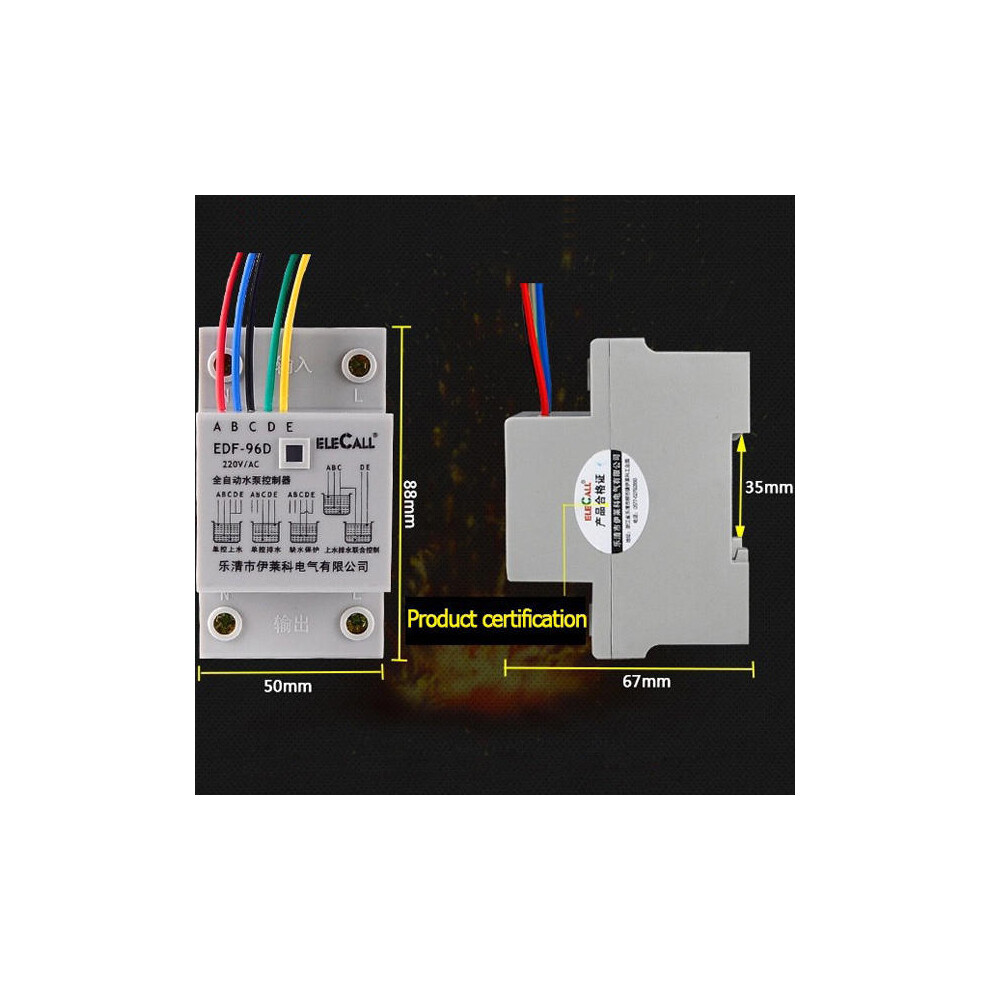

Dimension: 88mm*50mm*67mm;

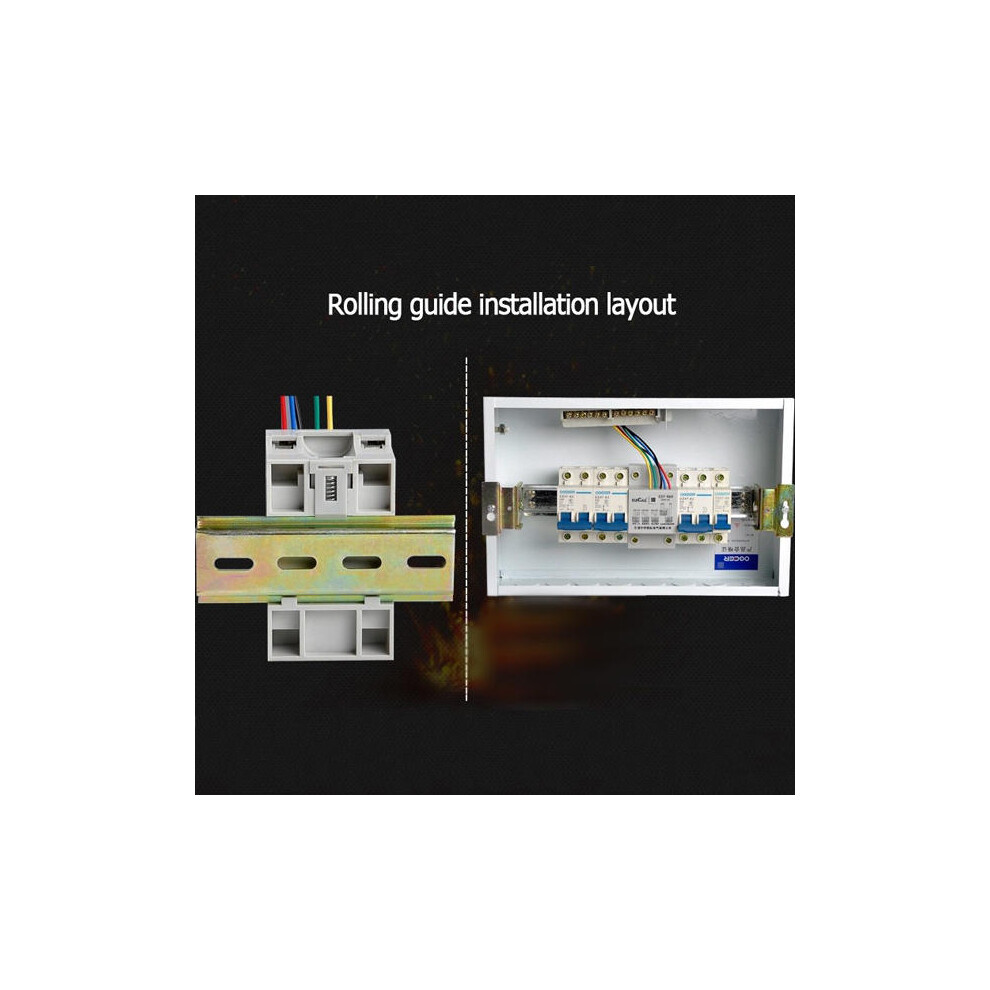

Installation: Din Rail Mount;

Operation:

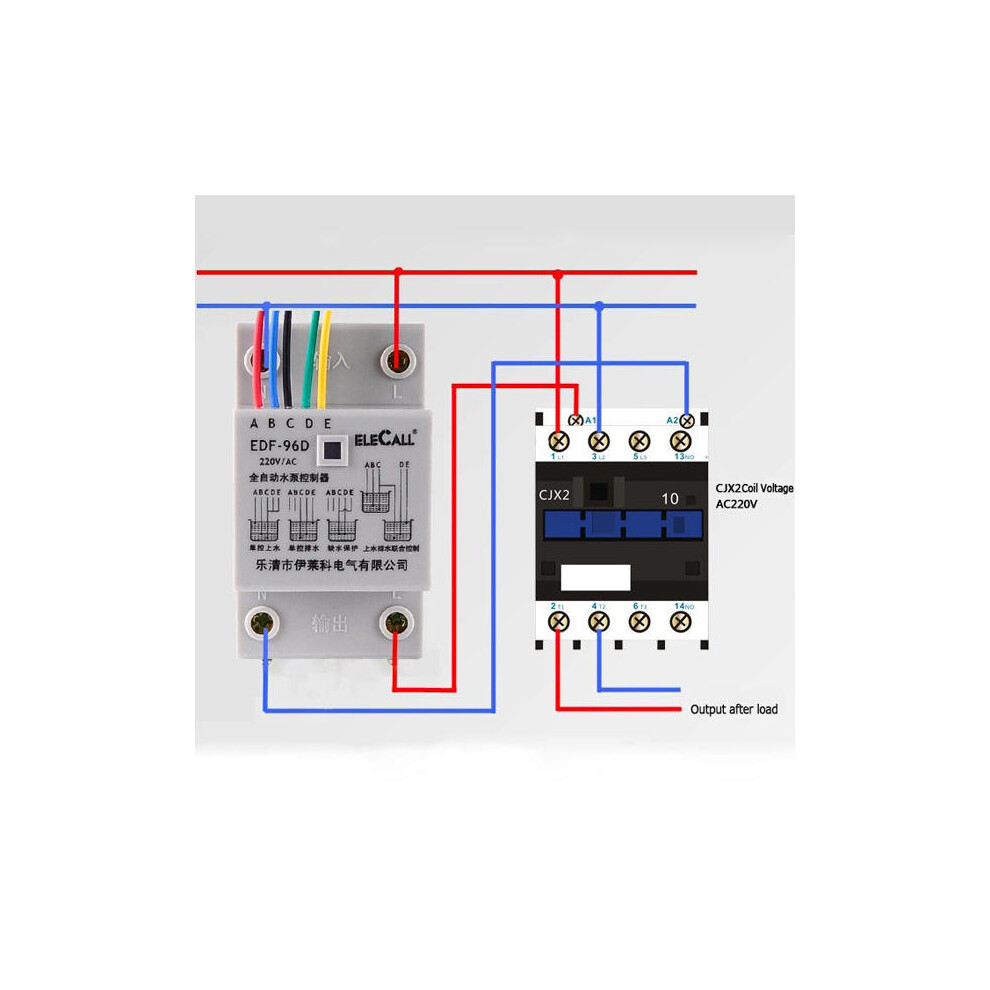

(A) single control head on the sink installation instructions to install the control diagram shown in Figure.
A (warp) - is the tank (water tower) upper level control point, the water level rises to reach point A water level, water in contact with the probe, the controller automatically shuts the water they pump;
B (blue line) - the upper pool (water tower) the lower level control point, the water level drops below the water table to point B, the probe out of contact with water, the water level controller automatically open the pump, pool filled with water;
C (black line) - for the pool (water tower) ground, the lowest point on the tank in contact with the bottom of the pool;
D (green line), E (yellow line) points and received C.

(B) under the control of a single pool (ie drainage pond) probe installation instructions to install the two shown in Figure:
E-limit pond level control for the next point, the water reached the point E are rising water level, water in contact with the probe, the water level controller automatically open the pump, pond drainage; Without drainage, the E point is not connected ;

D-limit for the next pond level control point, the water level dropped to D level, water control head disengagement, water level controller automatically shuts the pump to stop the drainage basin;
C-ground pool is the lowest point to put in contact with the bottom of the water tank;
A, B point is not connected.

(C) water protection probe installation instructions to install the diagram shown in Figure 3:
C, D point to the lower pool level control point, the water level down to the lower level, C, D probe and the surface of the disengagement, water level controller relay immediate action, cut output, the pump stopped working;
Point C and point E shorted;
A, B point is not connected.

(D) joint control up and down the pool installation instructions to install the probe is shown in Figure III:
A-is the pool (water tower) ceiling level control point, the water level rises to reach point A water level, water control head contact, the controller automatically shuts the water they pump;
B-is the pool (water tower) limit their fluid control point, the water level drops below the water table to point B, water and probe disengagement, automatic level control pump, pool filled with water;
C-upper, without the pool (water tower) public online, on the lowest point of contact with the bottom of the sink basin;
D-limit for the next pond level control point, the water level dropped to D level, water and probe disengagement, water level controller automatically shuts the pump to stop the drainage basin;
E-limit pond level control for the next point, the water level rises to the point E water level, water in contact with the probe, the water level controller automatically open the pump, pond discharge head; Without drainage, the E point is not connected.

Other installation instructions:
1. In order to ensure the normal work of the liquid level controller, please check again after installed input and output of the wiring, probe connections are reliable contact. It can move up, down probe, make its contact, from the surface of the water, the simulated test of water controller is installed correctly and can according to your needs to work properly.
2. Proposed to each point probe fixed on the inner wall of the pool, in order to avoid the probe location deviation cause water level controller misoperation, (if the tank wall is a metal, in addition to the C point ground wire should not be in the wall, in order to avoid short-circuit, lead to water level controller does not work).
3. According to the above wiring method, check the products on the right side of the "manual/automatic switch (DF - 96 - d), whether it can according to user's need to manually open and close the water pump, after using the adjustment back to" automatic "position, water level controller.
4. Temporary need to open and close the water pump, please use the left side of the water level controller "manual/automatic switch control (DF - 96 - d) no manual switch.
5. To avoid misoperation, please do not install the product moisture, corrosion and high metal content gas environment.
6. It is recommended that you company produces the water level control use special probe.

Troubleshooting:
1. Connect the power does not work:

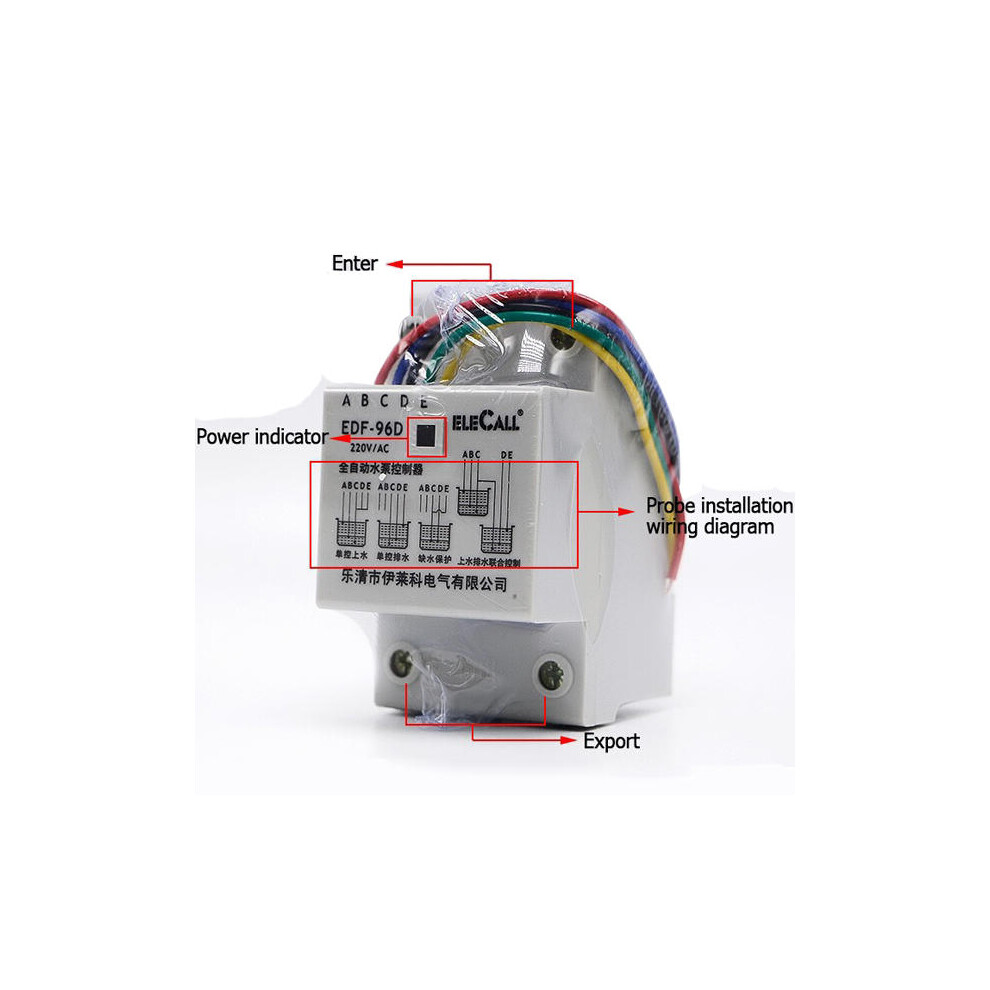

A. Look for light red power indicator light, if not, check whether the input and output terminals are good contact;
B. Check product on the left side of the "manual/automatic switch", whether in the "off" the adjustment will be back to "automatic" position, water level controller.
2. Over or below the water line probe control point, the pump not automatically closed or open, please press the "auto/manual switch control pump manually. And check:
A. Probe whether the deviation in situ, the position is too high (low), cause the water level can't contact (out);
B. Upper and lower water level, ground probe whether connection with other lines, whether there is wrong or short circuit;
C. Probe rustily and falls off phenomenon, probe line with the product, the probe line contact with the probe whether the connection between the good;
D. C ground wire are placed on the pool bottom.

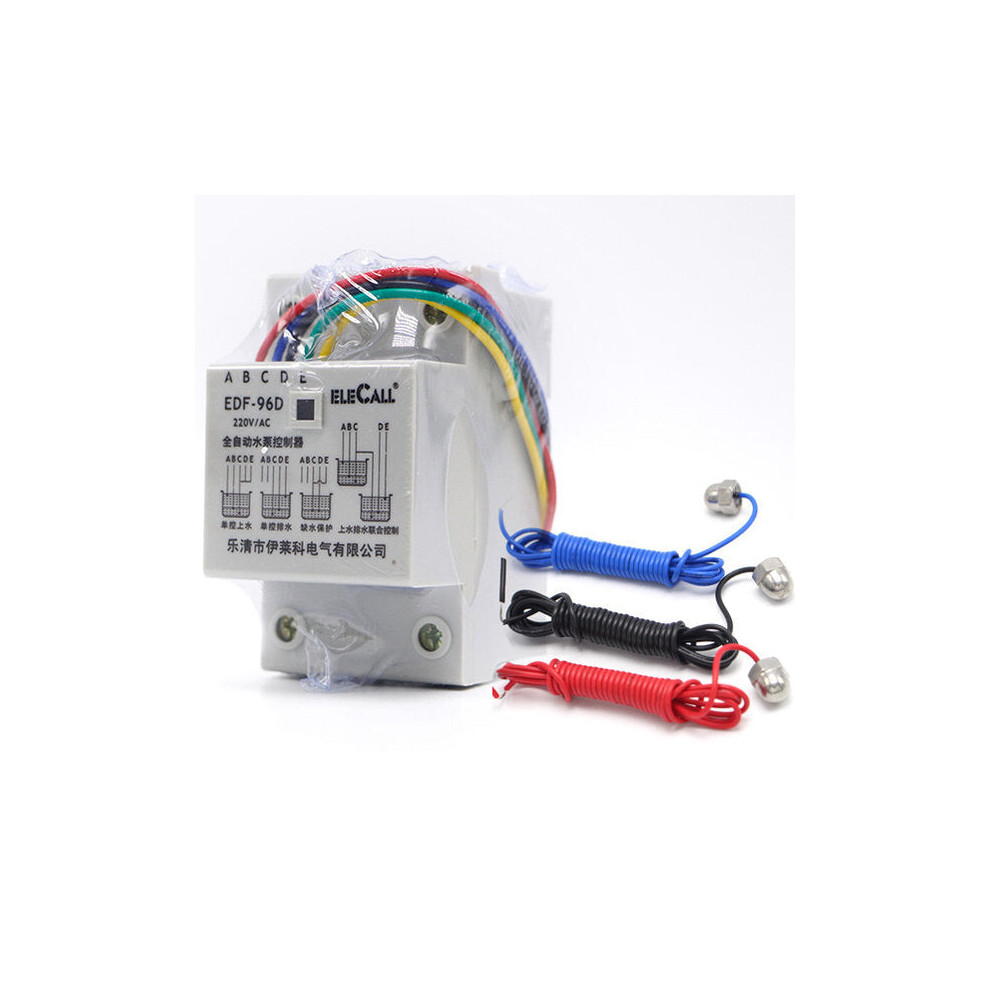

Package Included:

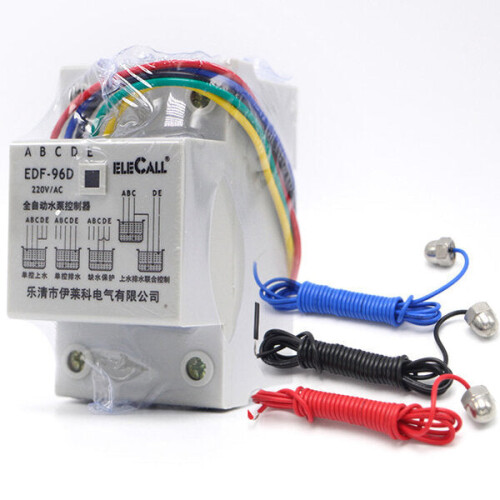

1 xAC220V 5A Din Rail Mount Float Switch;

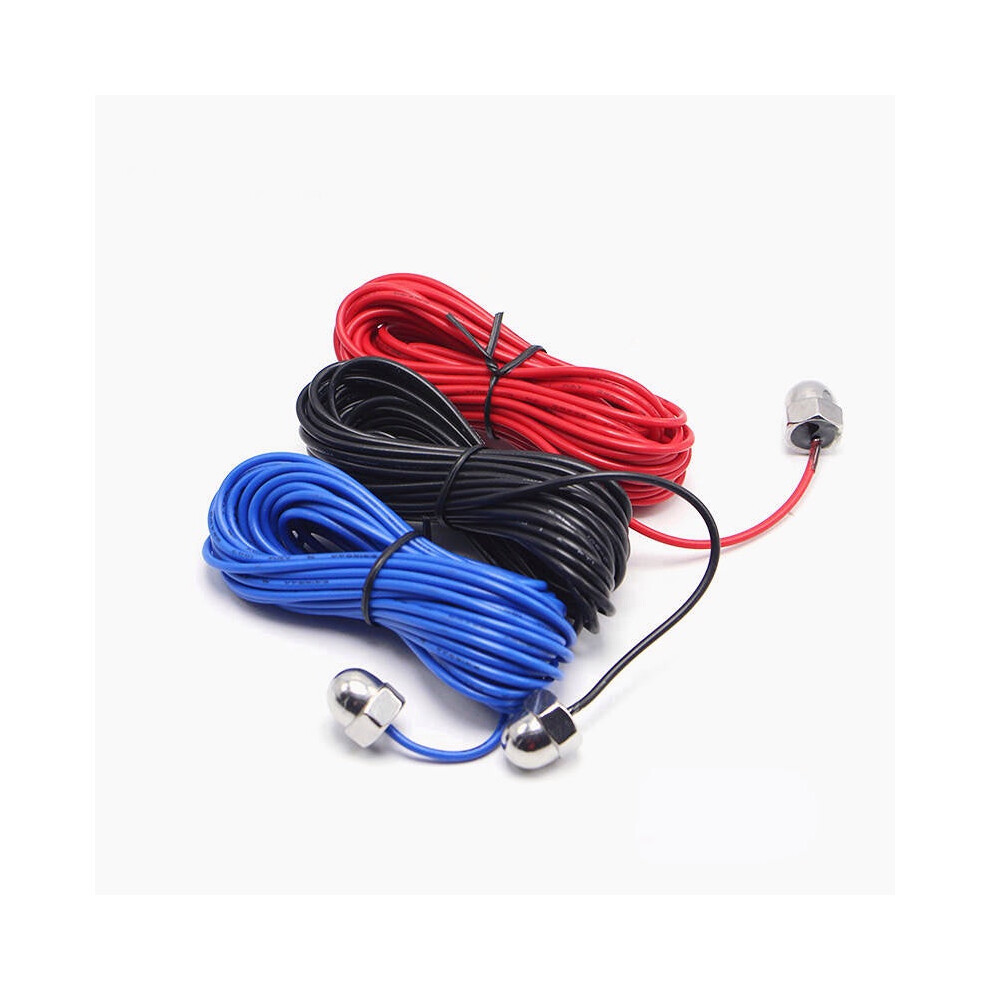

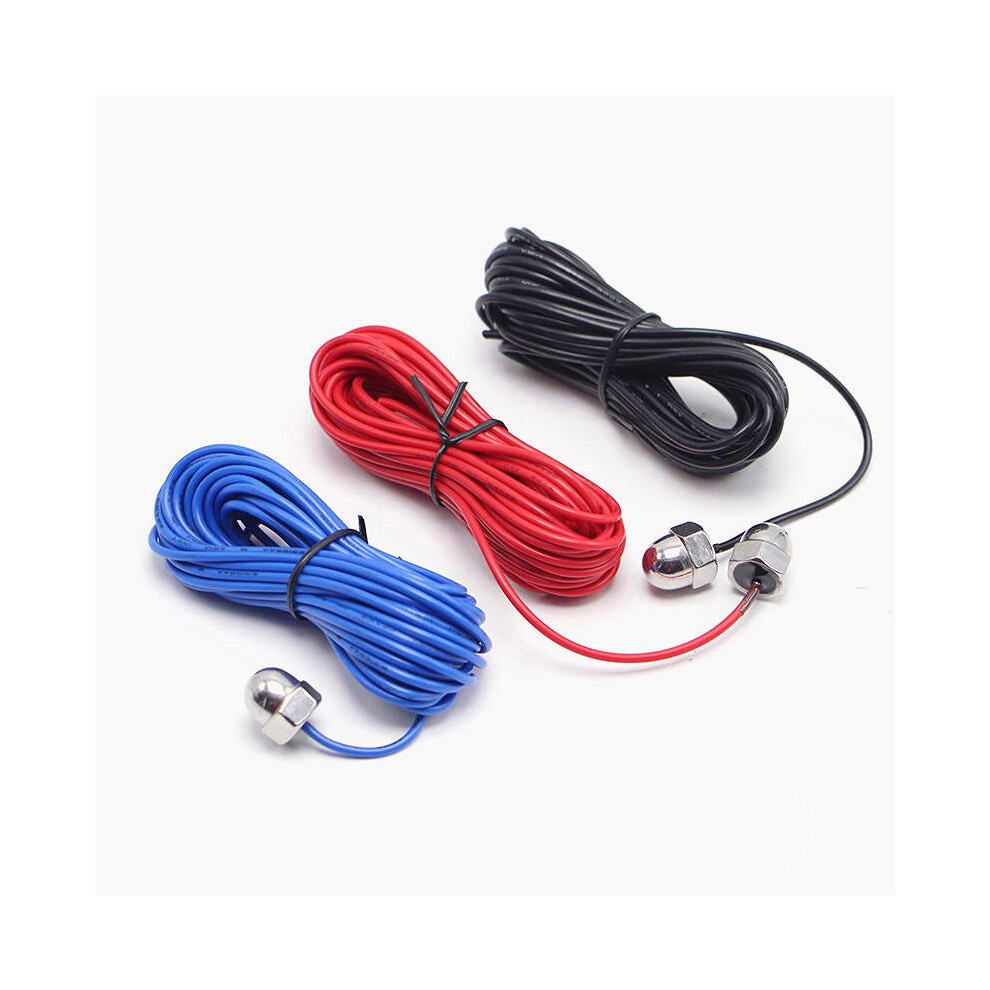

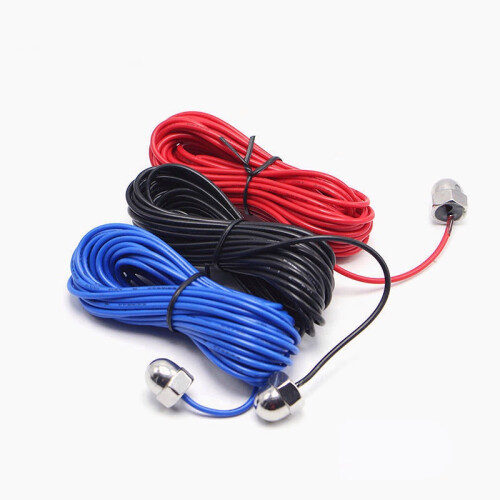

3 x 5M/10m Probes
