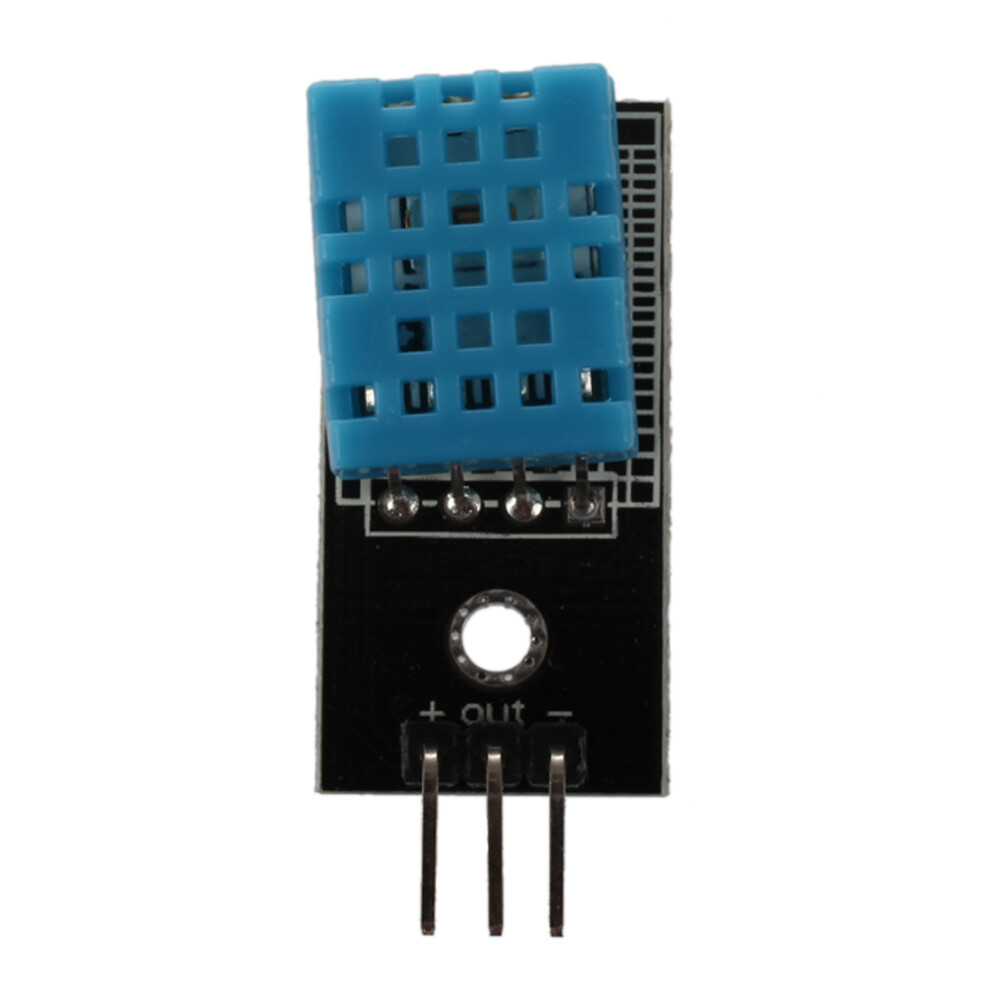

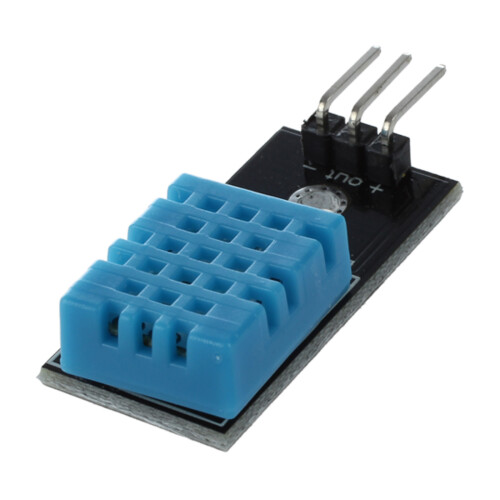

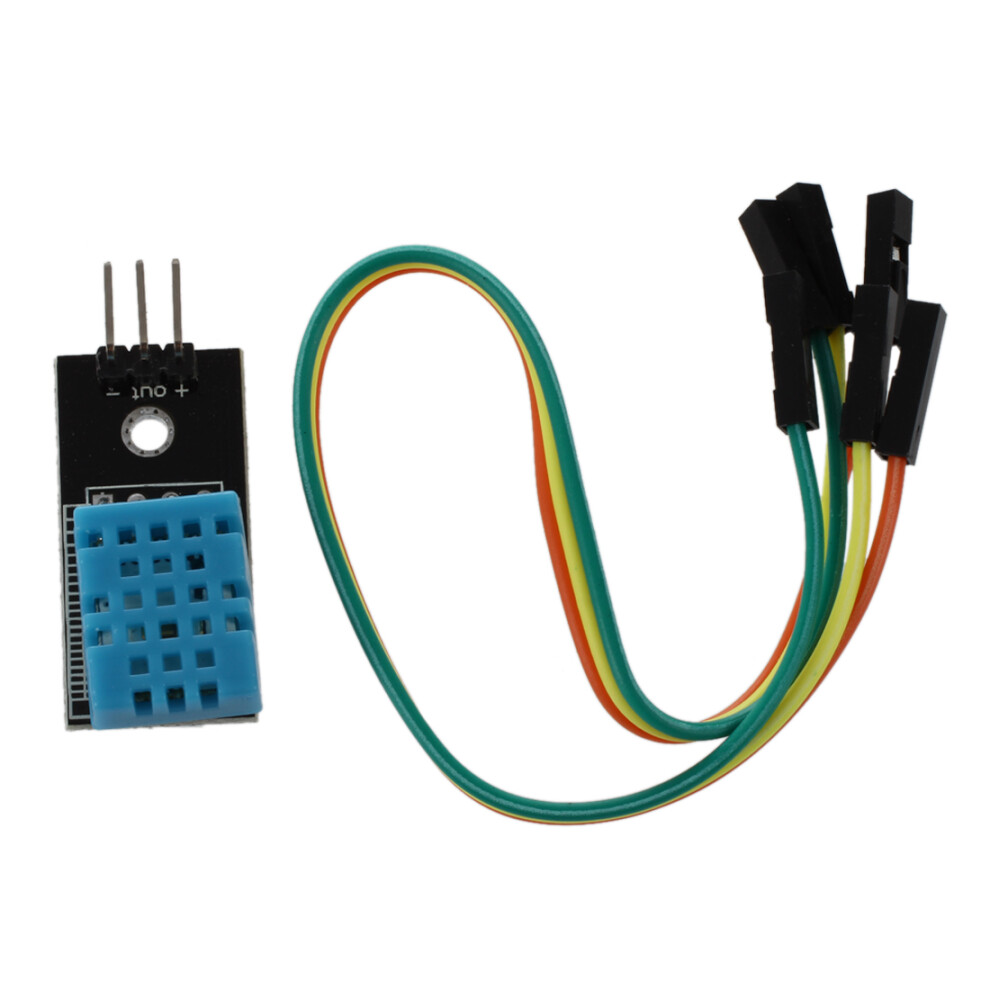

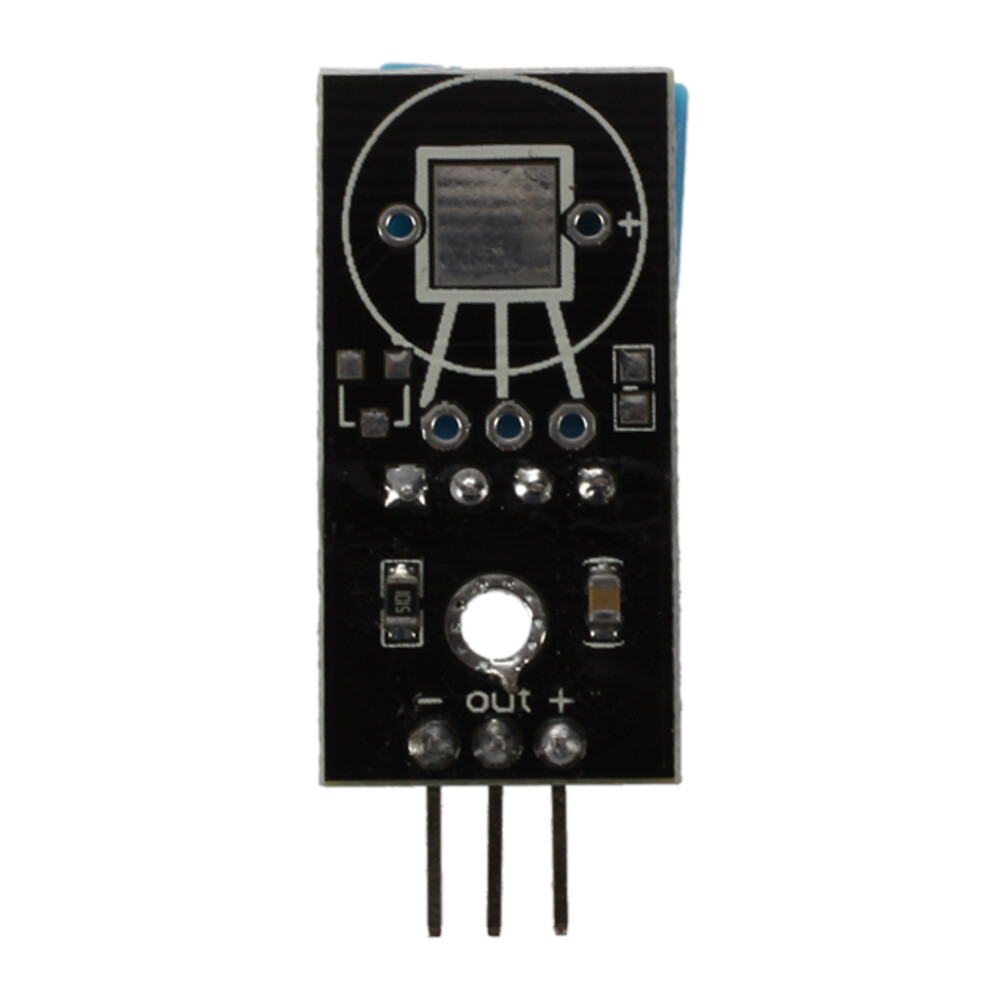

5x DHT11 Temperature and Relative Humidity Sensor Module for 3pin cable

5x DHT11 Temperature and Relative Humidity Sensor Module for 3pin cable Description

DHT11 digital temperature and humidity sensor is a digital signal output with a calibrated temperature and humidity combined sensor.
It uses a dedicated digital modules and acquisition of temperature and humidity sensor technology to ensure that products with high reliability and excellent long term stability.
Sensor consists of a resistive elements and a sense of wet NTC temperature measurement devices, and with a high-performance 8-bit minicontroller connected.
Therefore, the product has excellent quality, fast response, anti-interference ability, high cost and other advantages.
Each DHT11 sensors are extremely accurate calibration of humidity calibration chamber.
Calibration coefficients stored in the OTP program memory, internal sensor, signal processing in the detection process to call these calibration coefficients.
Single-wire serial interface, allowing the system to become simpler and quicker integration.
Ultra-small size, low power consumption, signal transmission distance to 20 meters, making it a wide range of applications and even the most demanding applications is the best choice.
Product is 4-pin single-row pin package.
Easy connection, special packages can be provided according to user needs.
Technical Specification
Power supply: 3-5.5V
Output signal:digital signal via single-bus
Operating range:humidity 20-90%RH, temperature 0-50Celsius Accuracy: humidity +-4%RH(Max +-5%RH) , temperature +-1Celsiu Resolution: humidity 1%RH, temperature 1Celsius
Repeatability: humidity +-1%RH, temperature +-1Celsius Response : Average:10s ( Max15s)
Humidity hysteresis: +-1%RH
Stability: +-1%RH/Year
interchangeability: fully interchangeable
Dimensions: 2*15.5*5.5mm
Packing Included: 5 x DHT11 Sensor
Note:Light shooting and different displays may cause the color of the item in the picture a little different from the real thin
