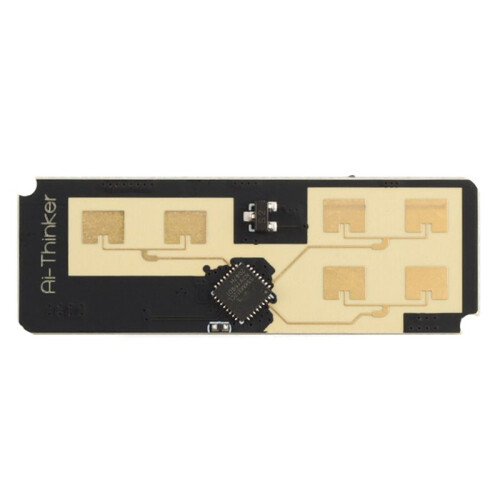

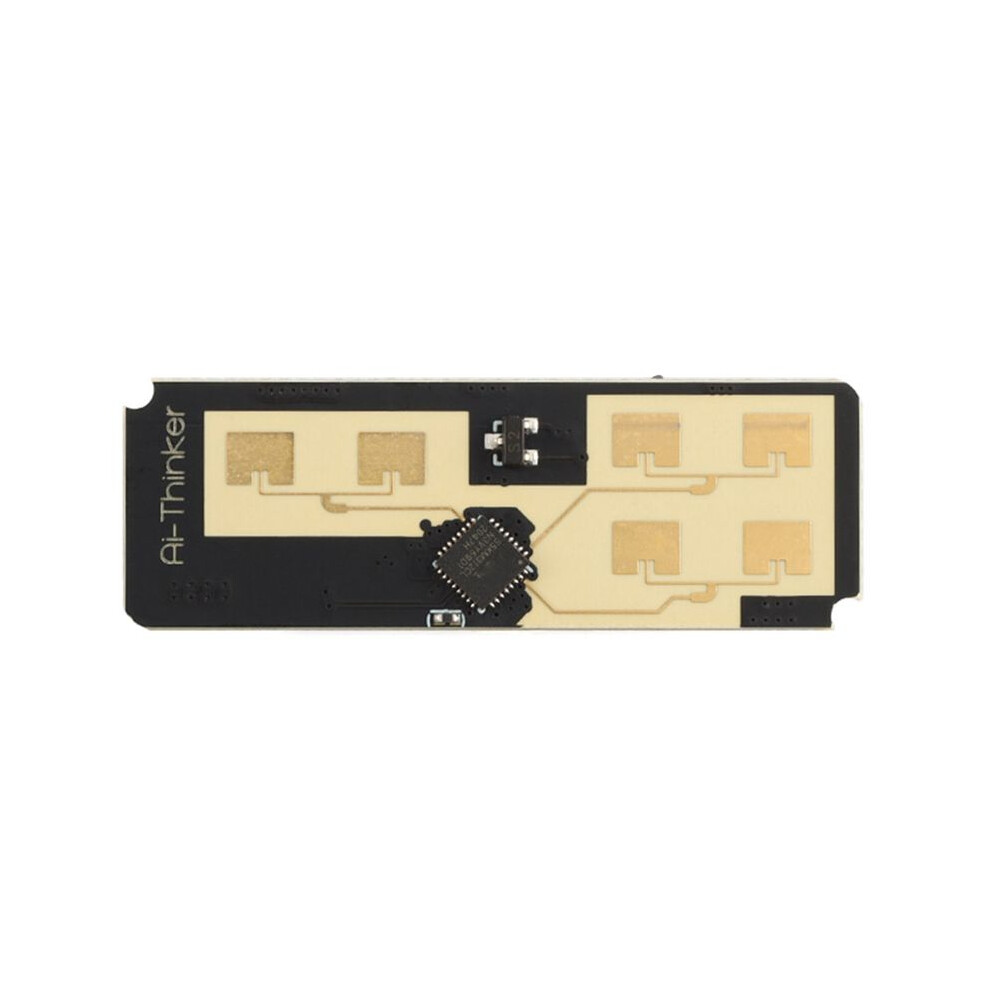

5X Rd-03D 24G Multi-Target Human Motion Trajectory Localization and Tracking Module -Board PCB Antenna
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 128,000 Trustpilot reviews and an 'Excellent' rating
£28.67
£40.12
29% off!
+£1.27 Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (£1.27) | Fri 24th - Thu 30th Jul
Sold by: Hoeappt
Returns: 30 days
180-day payment protection
Most Popular in Motion Sensors
Hot
Description & Details
Summary
- Rd-03D is a radar module equipped with Silicon Microelectronics' S5KM312CL chip. S5KM312CL is an integrated microcontroller millimeter wave sensor SoC based on FMCW radar transceiver technology. It operates in the 24 GHz K-band with a maximum sweep bandwidth of 0.25GHz.
- This module uses FMCW waveform and S5 series chip's proprietary advanced signal processing technology, combined with MCU's proprietary radar signal processing and built-in intelligent positioning and tracking algorithm, to detect multiple targets in a designated area and report the results in real time. Users can quickly Develop corresponding targeting tracking products.
- The Rd-03D module accurately senses the motion status of the human body and the area.
- It is equipped with an intelligent algorithm to realize motion trajectory recognition and tracking, and can measure the speed and distance of targets in the area.
- The recognition speed is faster and the power consumption is lower. The module can be quickly configured and is suitable for various publicity facilities.
5X Rd-03D 24G Multi-Target Human Motion Trajectory Localization and Tracking Module -Board PCB Antenna Description
Rd-03D is a module equipped with Silicon Microelectronics' S5KM312CL chip. S5KM312CL is an integrated microcontroller millimeter wave sensor SoC based FMCW transceiver technology. It operates in the 24 GHz K-band with a maximum sweep bandwidth of 0.25GHz.
This module uses FMCW waveform and S5 series chip's proprietary advanced signal processing technology, combined with MCU's proprietary signal processing and built-in intelligent positioning and tracking algorithm, to detect multiple targets in a designated area and report the results in real . Users can quickly Develop corresponding targeting tracking products.
The Rd-03D module accurately senses the motion status of the human body and the area.
It is equipped with an intelligent algorithm to realize motion trajectory recognition and tracking, and can measure the speed and distance of targets in the area.
The recognition speed is faster and the power consumption is lower. The module can be quickly configured and is suitable for various publicity facilities.
It can intelligently distinguish the human body in motion, micro-motion and stillness, and control the of the equipment. This module has good resistance to external interference and is not affected by wireless signals such as WIFI.
Package: Standard 1 x 4P-1.25mm socket connector

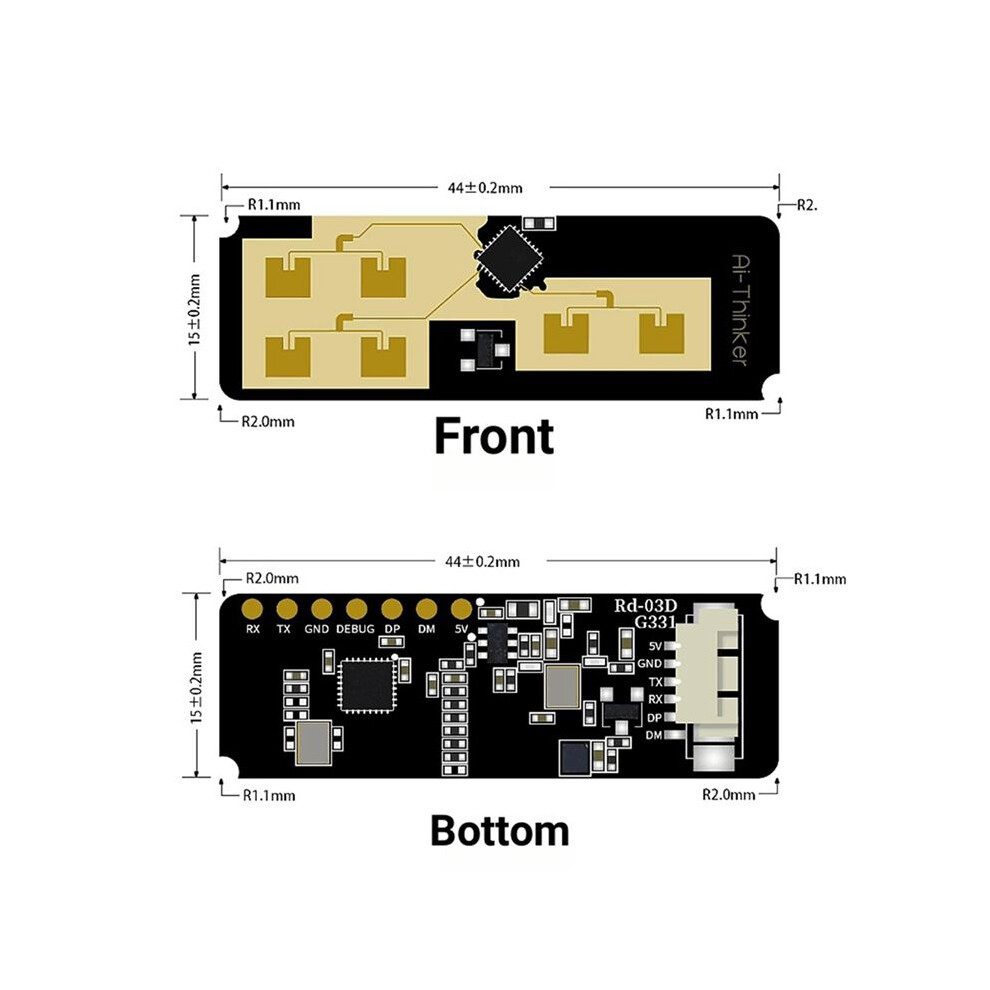

Size: 15.0 x 44.0(0.2)mm

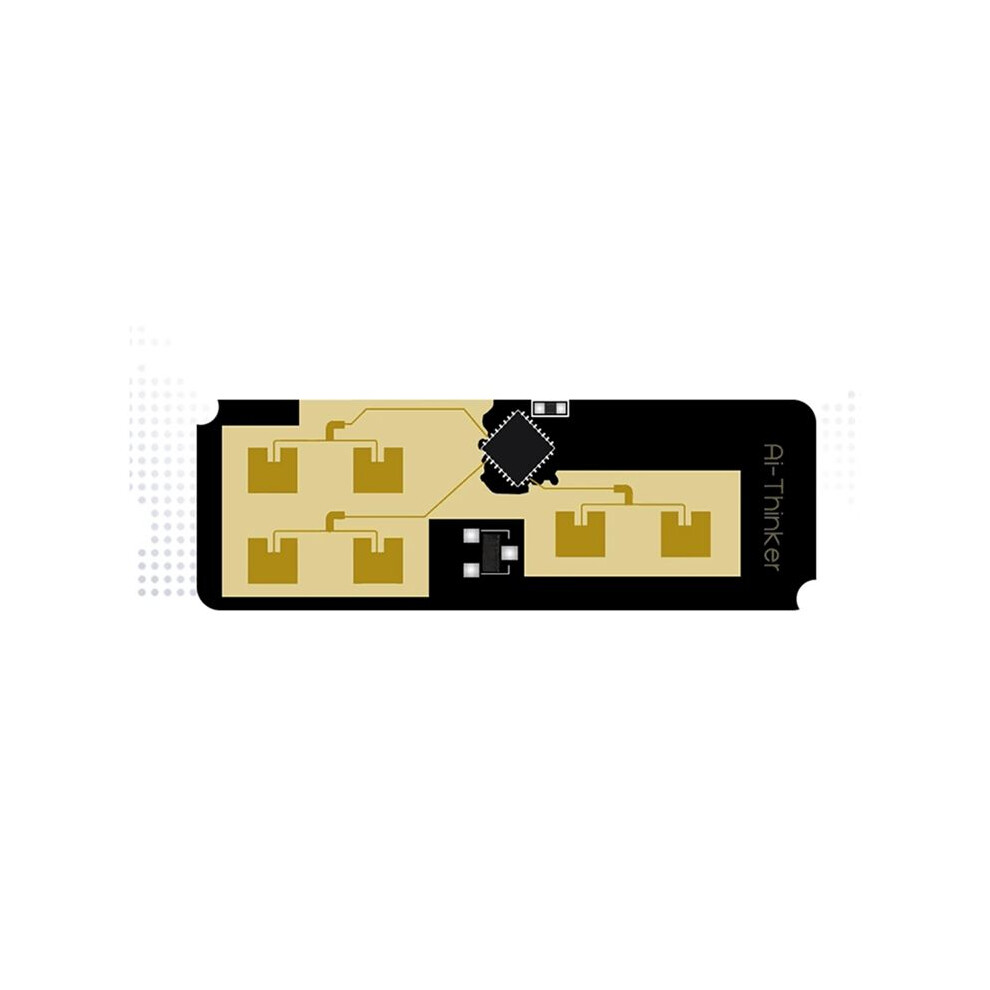

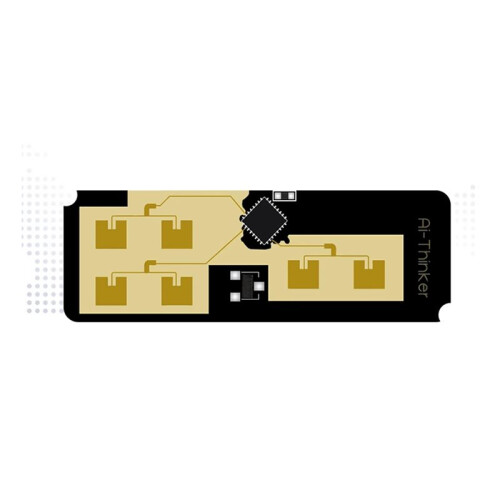

Antenna: -board PCB antenna
Frequency: 24G ~24.25GHz
Working temperature: -40 ~ 85
Storage temperature: -40 ~ 125, Less than 90%RH
Power supply: Support voltage 5V, supply current 200mA
Interface UART: UART rate Default 256000 bps
Colour:Black
Material:PC+metal
Package Contents:

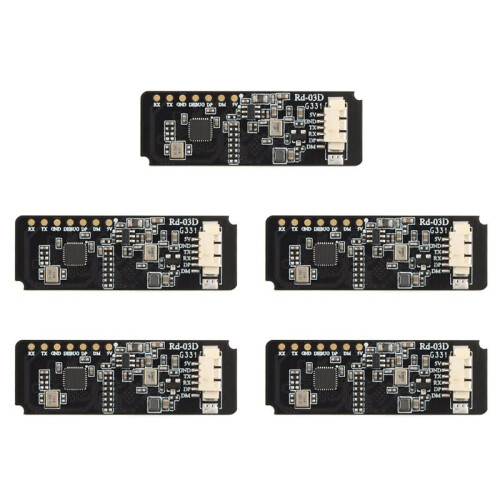

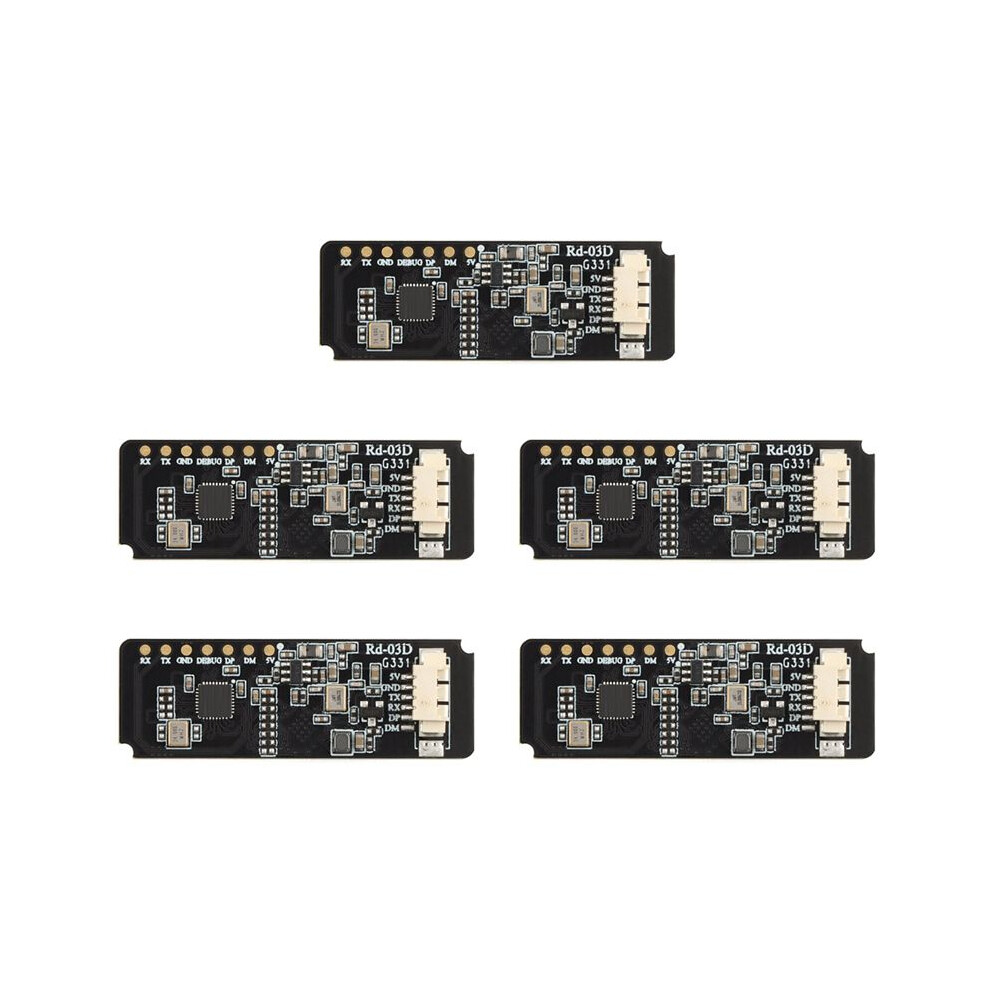

5 x Module
Details
| OPC | PSTFNSX |
|---|---|
| Codes | 6031029757693 (EAN) |
Product Data
| Height | 5cm |
|---|---|
| Width | 11cm |
| Length | 13cm |
| Weight | 0.035kg |
| Colour | Black |
| Material | PC+Metal |
