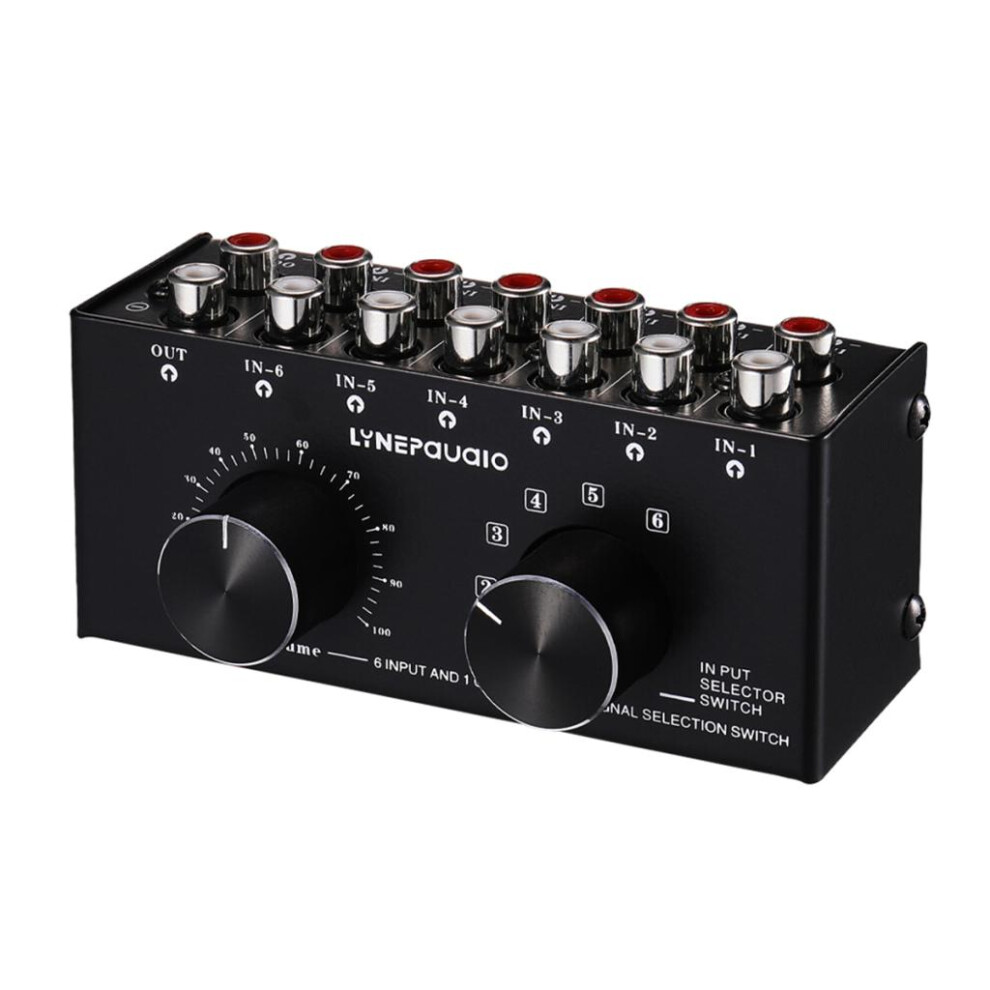

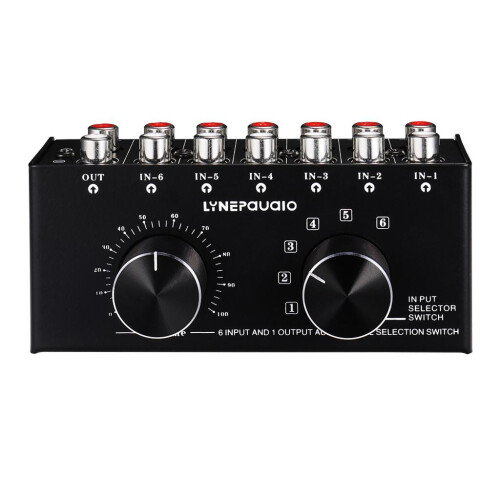

6 Input 1 Output Audio Signal Source Selection Selector Switcher Split

6 Input 1 Output Audio Signal Source Selection Selector Switcher Split Description

Description:

6 Input 1 Output Audio Signal Source Selection Switcher, Output Volume Adjustment Control RCA Port

6-channel stereo audio signal selection switcher with output volume adjustment function,

The product adopts passive design, direct insertion, and has lossless switched transmission of input and output signals,

The product is mainly used to select and switch among a variety of stereo signal input and output through a common set of equipment, that is, a variety of stereo signal sources of devices, such as TV audio, MP3 player, CD player, video game, mobile phone, tablet, computer, record player, need to be output on the amplifier or on active speakers,

The 6-channel audio signal selection switcher solves complicated line plug in and plug out, which uniformly connects device input signal sources to the switcher for easily selection.

The product uses standard RCA port design for input and output, and uses precise 6-level manual switch design for the switcher, with independent stereo volume adjustment control.

Specification:

Material:Metal Case

Cilor:Black

Size:113x50x38mm

Power supply: passive design, direct insertion

Input and output impedance: 10KΩ- 50KΩ

Frequency response: 20 - 20kHz

Distortion:<0.002%

Insertion loss:<0.01dB

Signal gain: 0dB

Signal to noise ratio S/N: >98dB

Input port: standard RCA port

Output port: standard RCA port

Number of input channels: 6-channel stereo input signal sources

Number of output channels: 1-channel stereo output

Control switch: 6-level precise manual selection switch

Switching channel: 6 channels

Package Includes:

1 X 6 input 1 output stereo audio signal selection switcher

Note:

The product is not equipped with input and output audio signal cables
