600W 24V MPPT Wind Turbine Charge Controller Waterproof Dustproof Regulator for Off Grid Systems

600W 24V MPPT Wind Turbine Charge Controller Waterproof Dustproof Regulator for Off Grid Systems Description

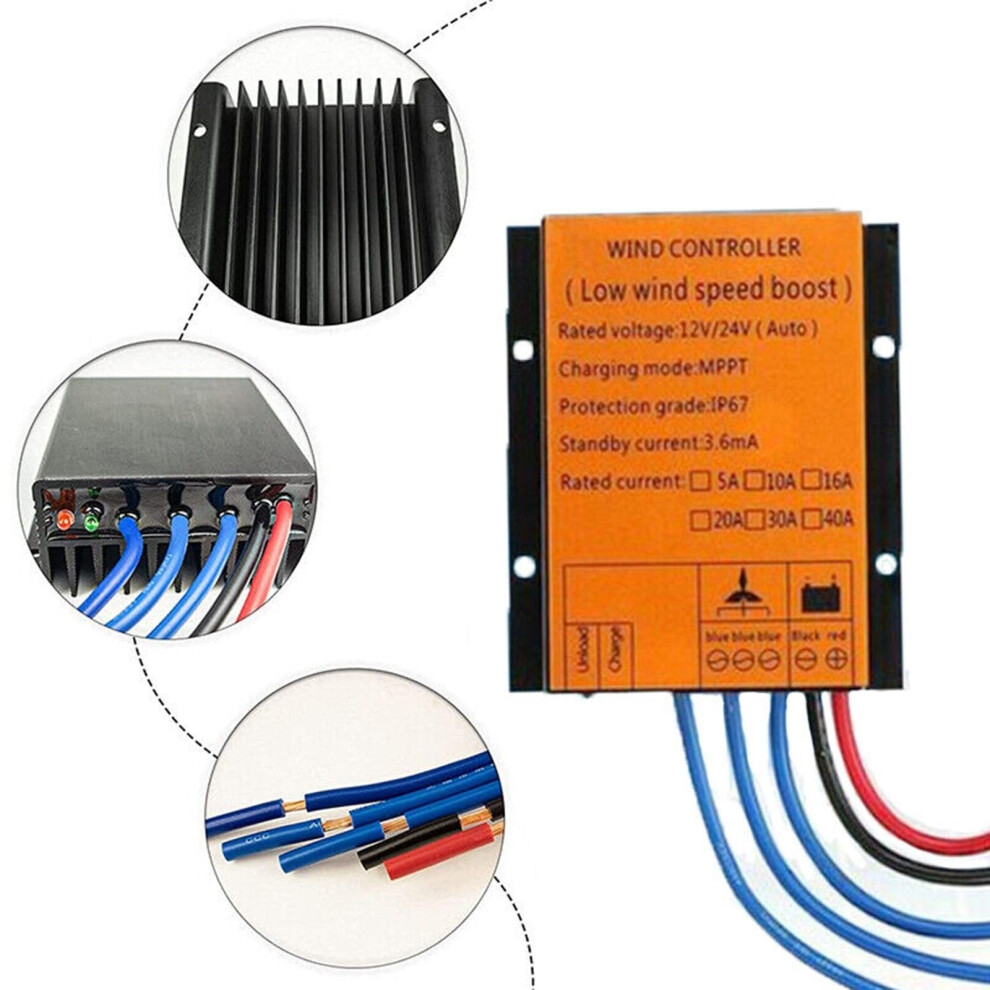

Wind turbine controller designed for reliable MPPT charging and stable battery management in off grid systems. It maximizes energy capture from wind generators while protecting batteries and the generator with multiple safety functions. Parameters can be adjusted to match specific system configurations. Key benefits Efficient MPPT charging collects maximum power from the wind generator to charge storage batteries. Multi level protection prevents overcharge, overdischarge, reverse battery connection, overloading, lightning, and excessive current. Stepless, noiseless MPPT unloading reduces mechanical stress on the turbine and improves system stability. Waterproof and dustproof housing allows outdoor installation in a variety of environments. Voltage and current control keep batteries at charge state to improve conversion efficiency and prolong battery life. Main specifications Color: 600W 24V Supported voltage: 12V or 24V automatic selection; 48V option available Wind generator rated current options: 10A, 16A, 20A, 30A Maximum current output options: 14A, 20A, 25A, 35A Function: MPPT charging and BOOST; no buck function Indicator light: LED Mode: Charge mode operation Unloading method: MPPT stepless and noiseless unloading Working temperature range: 35 C to +75 C, 85 percent RH, no condensation Remarks: Parameters can be adjusted based on your configuration requirements Protection and control features Overcharge and overdischarge protection to protect battery health Reverse connection protection to prevent damage from incorrect wiring Overload protection and current control to prevent excessive load on the system Lightning protection and automatic or manual braking control for the wind generator Performance and construction technical components for stable and reliable operation Voltage and current control charging ensures batteries remain at the state of charge Waterproof and dustproof enclosure suitable for outdoor mounting near turbines or battery banks LED indicator provides clear operating status Compatibility and configuration Works with small to medium wind generators matched to the listed current and voltage ranges Select appropriate rated current and maximum current output for your wind generator and battery bank Parameters are adjustable to match different system layouts and battery chemistries Applications and use scenarios Off grid cabins and rural homes: manage wind turbine charging into a 12V, 24V, or 48V battery bank for lighting and appliances. Remote telecom or monitoring stations: provide stable charging and protection for battery backups powered by wind generators. Marine and RV systems: integrate with wind generators to keep onboard batteries charged while at anchor or campsite. Package contents 1 x Wind Turbine Controller Notes Due to monitor and lighting differences, actual item color may vary slightly from images. Allow slight manual measurement deviation in the data. Parameters can be adjusted to meet specific installation and configuration requirements.
