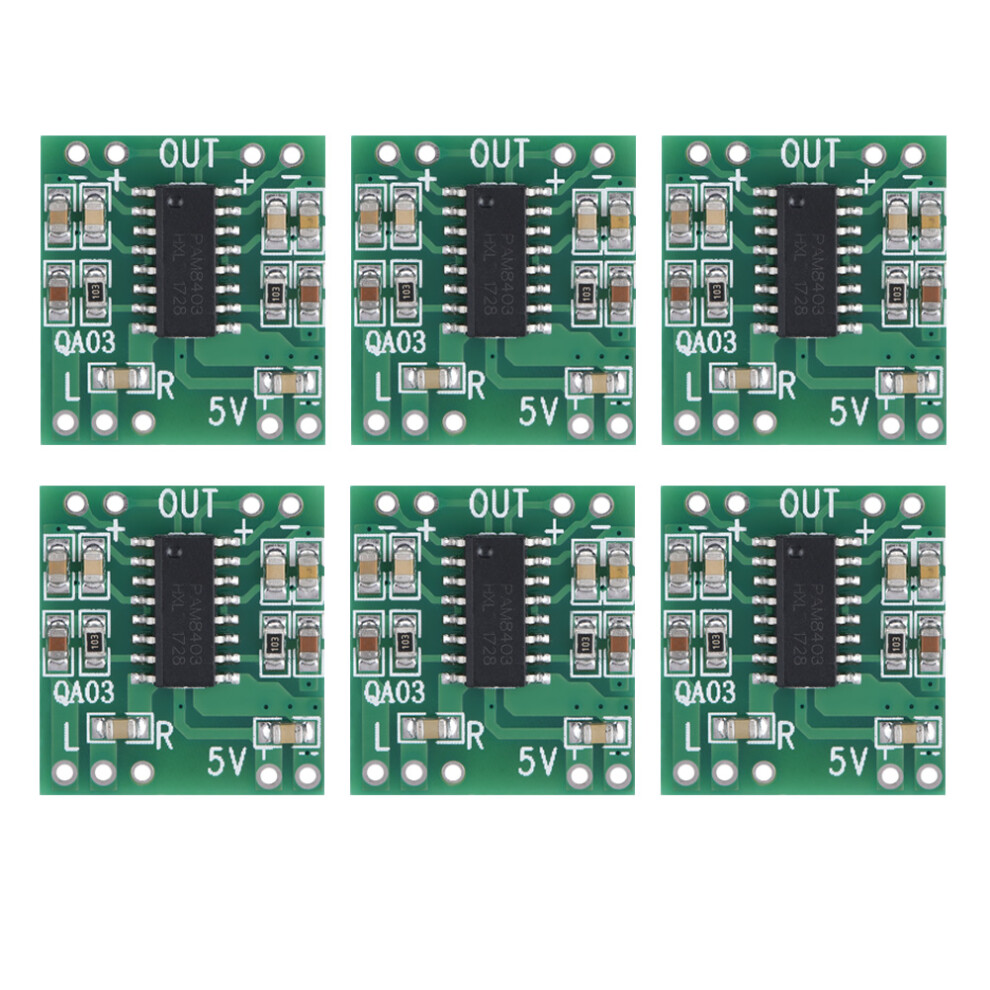

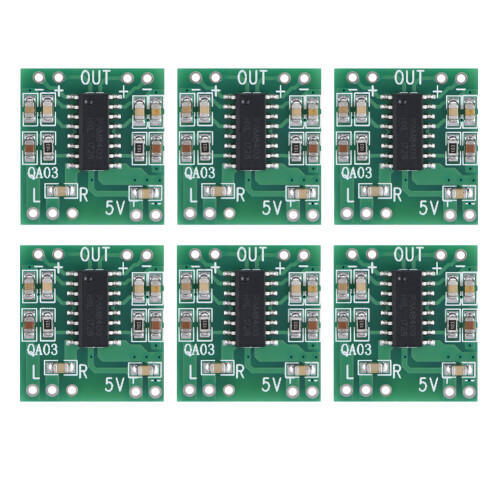

6pcs 3W+3W Digital Audio Power Amplifier Module 2.5V-5.5V Compact

6pcs 3W+3W Digital Audio Power Amplifier Module 2.5V-5.5V Compact Description

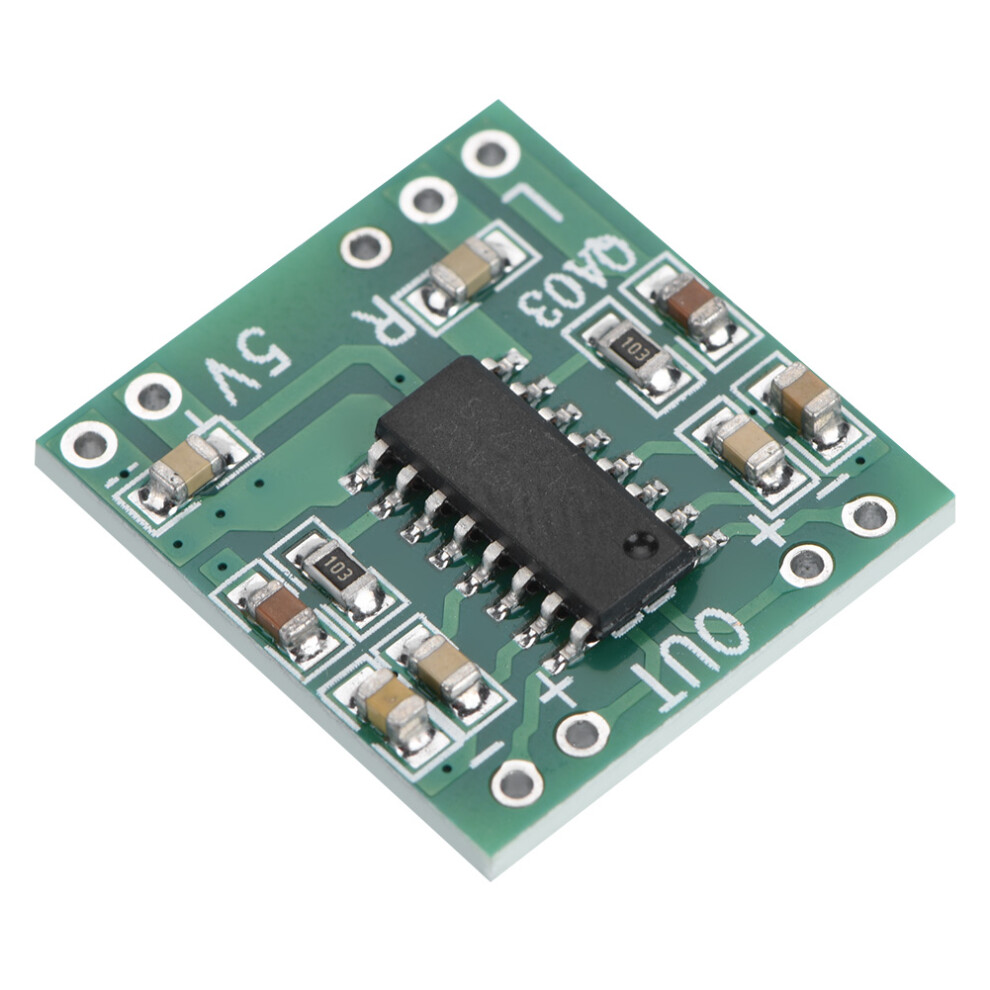

6pcs Super Small 3W+3W Type D Digital Audio Amplifier Power Amp Module 2.5V-5.5V

Features:

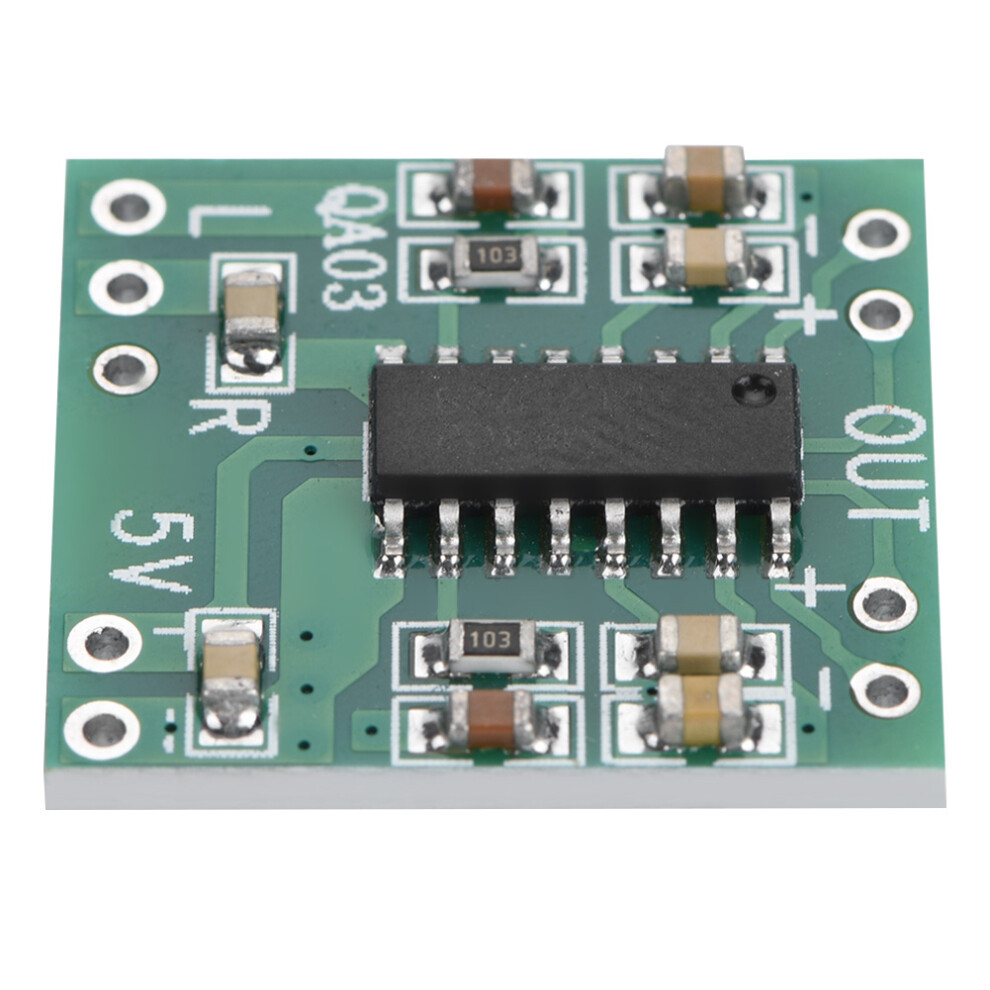

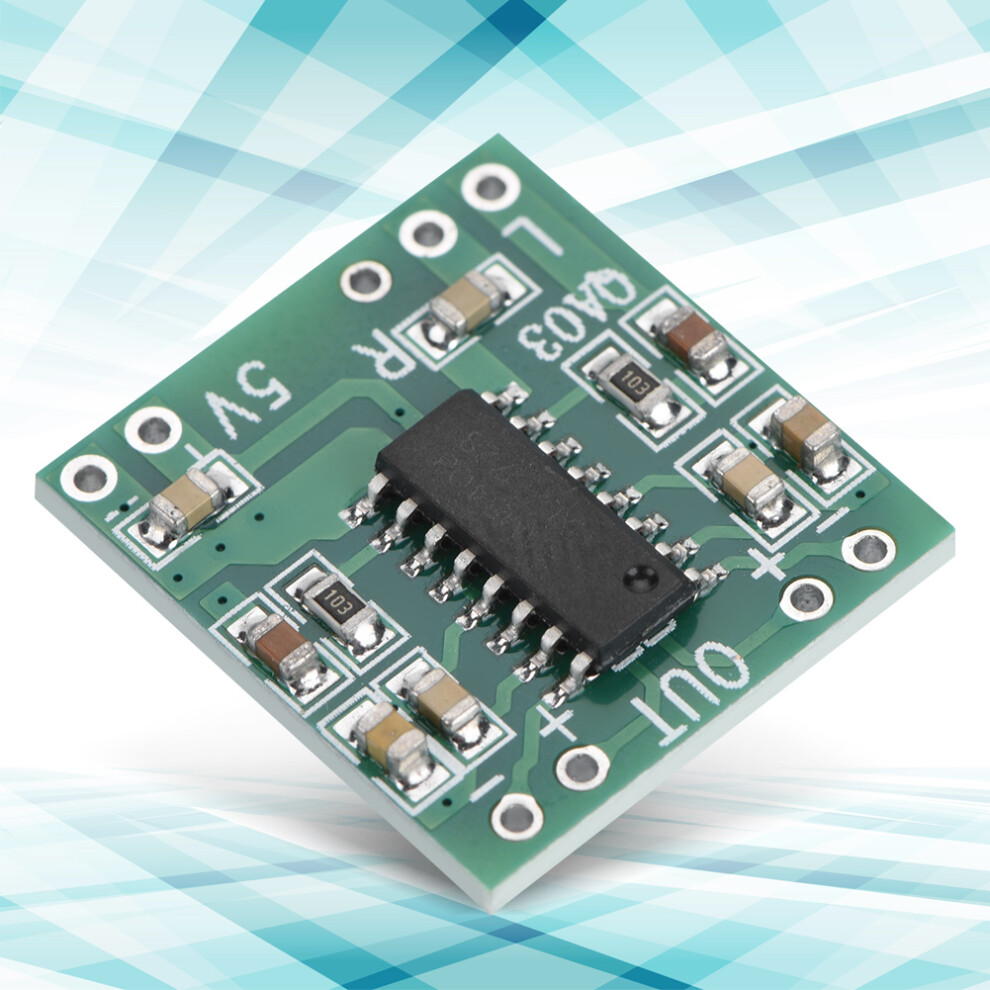

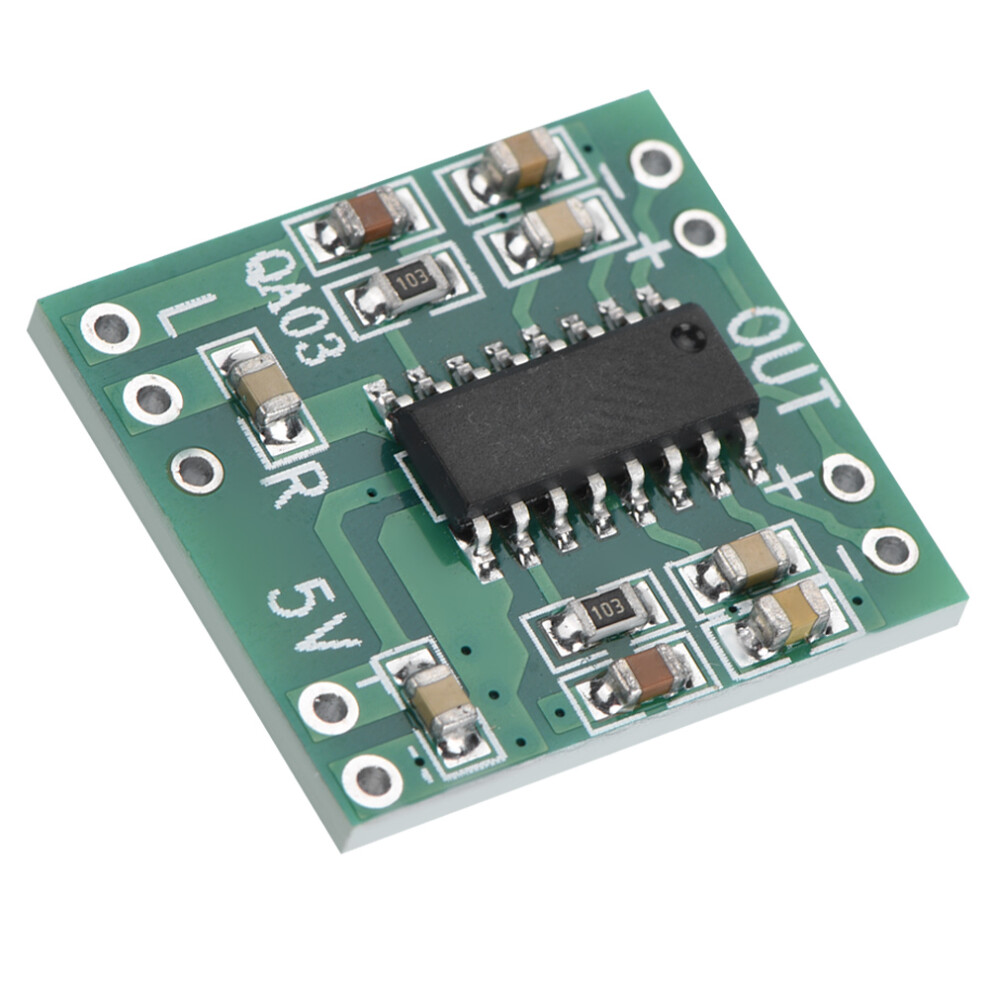

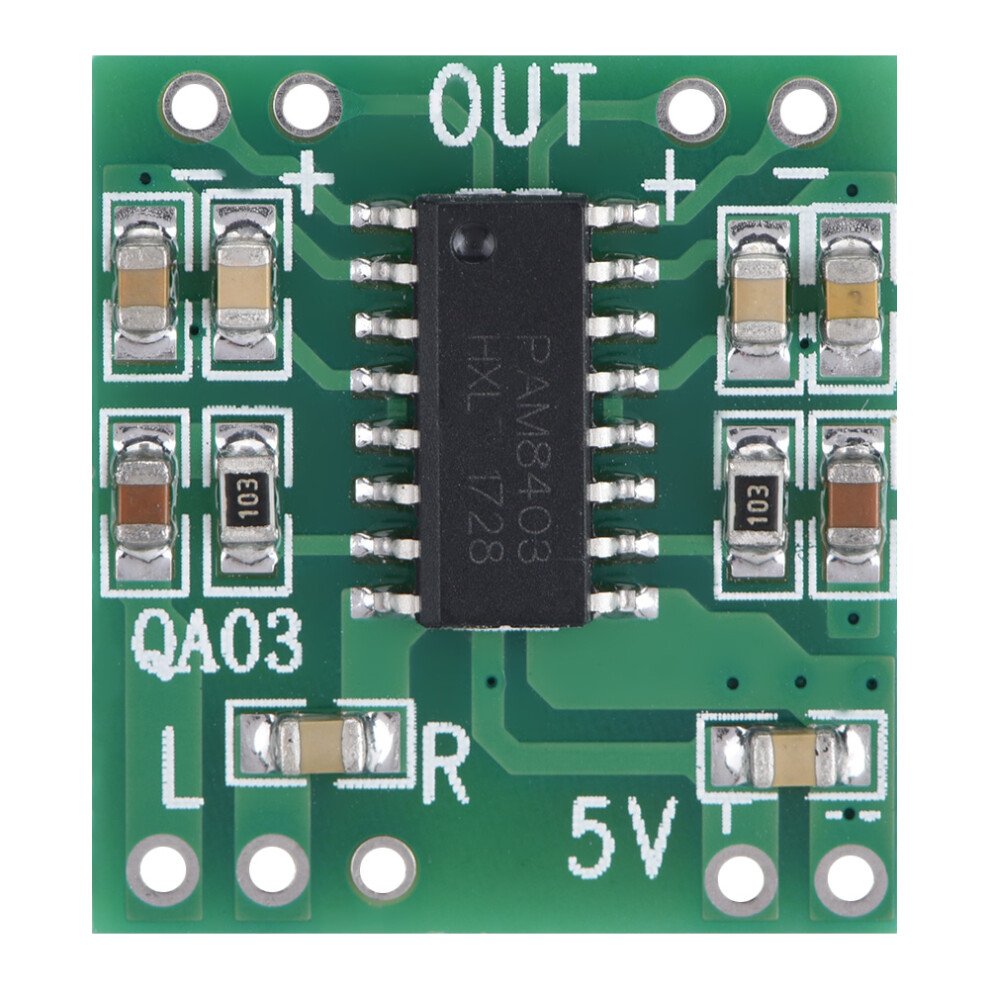

PAM8403
mini type D digital power amplifier can be easily put in small space of
many digital products, high amplification efficiency.



It can be powered by computer USB 5V, or phone charger 5V, or lithium battery.



High efficiency 90%, can provide 3W (left channel)+3W (right channel) when using 4Ω load and 5V power supply.



Type
D power amplifier has very high amplification efficiency, sound quality
will not be effected by temperature rise, no need of heat sink.


Build-in
noise reduction circuit, no noise when power on/off, supports short
circuit, over current and over temperature protection.


Widely used for LCD TVs, monitors, laptops, portable speakers, DVD players, game players, phones.





Specification:


Working Voltage: 2.5V-5.5V DC (should no over 5.5V, pay attention to polarity)


Suitable Speaker: 4-8Ω (4Ω is recommended); speaker power 2-8W


Output Power: 3W+3W

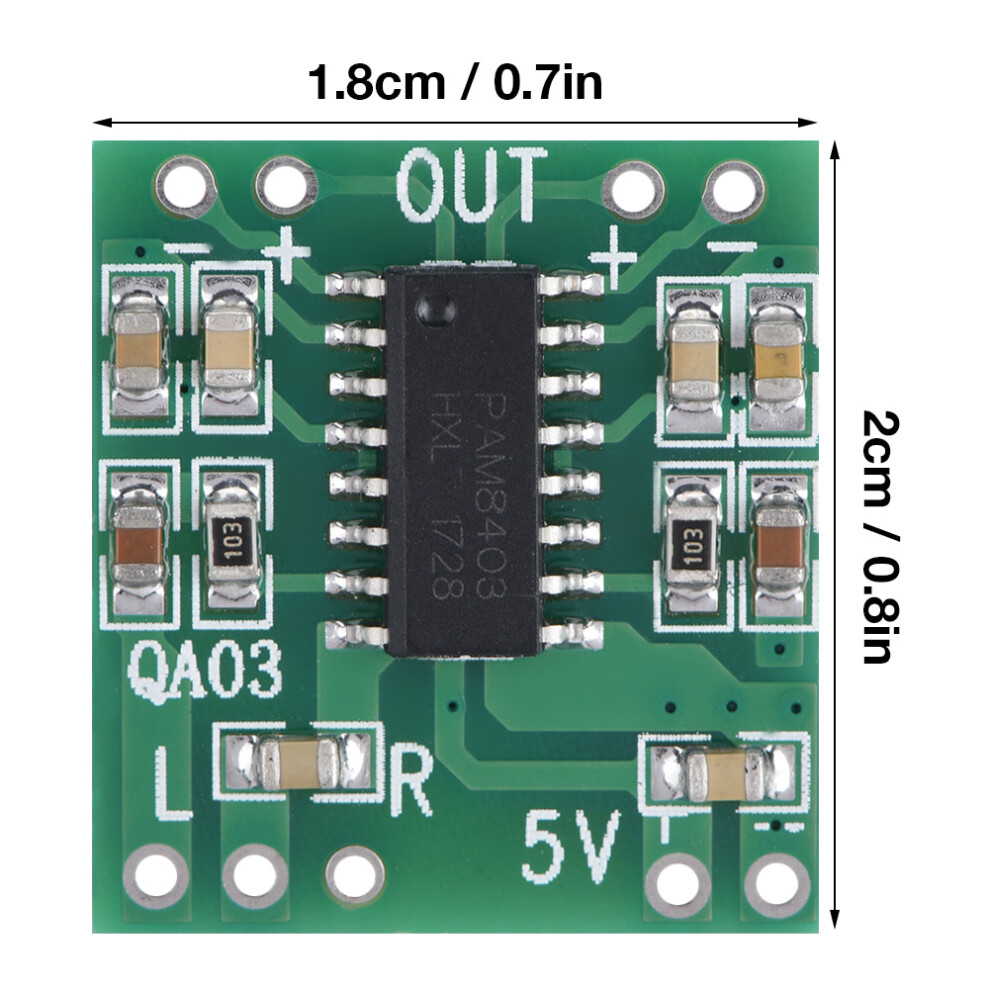

Size: 2*1.8cm / 0.8*0.7in


Quantity: 6pcs


Weight: 10g / 0.4oz(approx.)






Package list:


6 x Power Amplifiers






Note:

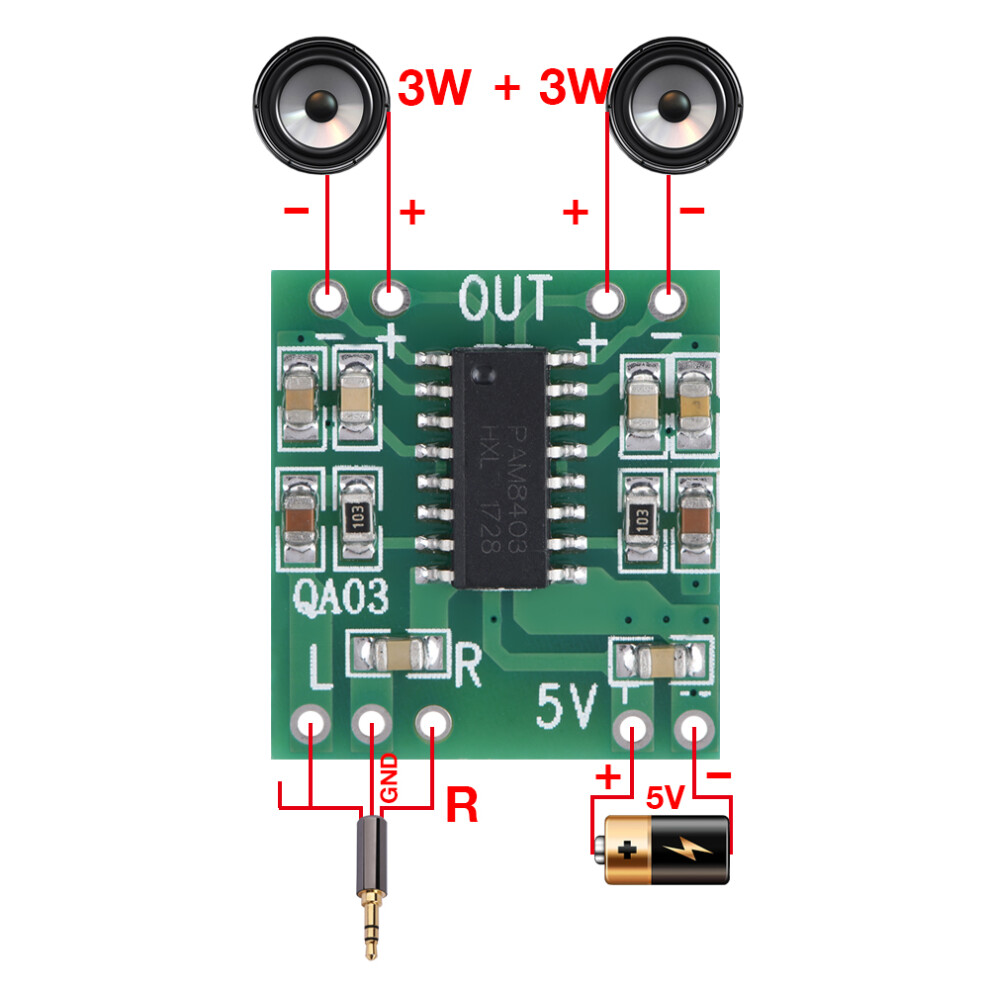

1, Connect to speaker first, then connect to power, otherwise the chip might be broken.

2, Since digital volume control of module has large gain, do not make the input audio signal too big.
