Product Images
7 inch Display for Raspberry Pi 4 Capacitive Touchscreen HDMI LCD (C) 1024x600 Resolution IPS with 170 View Angle Support All Raspberry Pi/Windows
Brand Waveshare
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 128,000 Trustpilot reviews and an 'Excellent' rating
£80.22
FREE Delivery
1%
Earn £0.80 instantly
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Mon 13th - Tue 14th Jul
Sold by: Ecommerce Enterprise
Returns: 30 days
180-day payment protection
Most Popular in Computer Monitors
Hot
Description & Details
Summary
- 7inch IPS screen, 1024x600 hardware resolution; Capacitive touch control;Backlight can be turned off to lower power consumption
- Supports popular mini PCs such as Raspberry Pi, BB Black, as well as general desktop computers; When works with Raspberry Pi, supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IOT, driver free; When work as a computer monitor, supports Windows 10/8.1/8/7, five-points touch, and driver free
- Note:Please set the config.txt file by adding [hdmi_drive=1] into the end of code if you connect it with raspberry pi. (like manual in picture)Otherwise the LCD could not work properly.
- Note:If the LCD work in abnormal states for long time, it may be broken if you don't set the config.txt file at the beginning.After setting config file,please power off the screen and put it aside for a few hours to avoid the flickers.
- Note: There is a protective cover on the screen which may remain the scraches after we do the touch test with testing pen,you can peel it off from the green tape on the edge; to use the LCD with following mini-PCs, additional cables are required and should be purchased separately: Raspberry Pi Zero: HDMI cable, USB-type-A-receptacle-to-Micro-B-plug-cable; BB Black: HDMI cable
7 inch Display for Raspberry Pi 4 Capacitive Touchscreen HDMI LCD (C) 1024x600 Resolution IPS with 170 View Angle Support All Raspberry Pi/Windows Description
Waveshare
7
inch
Display
for
Raspberry
Pi
4
Capacitive
Touchscreen
HDMI
LCD
(C)
1024x600
Resolution
IPS
with
170
View
Angle
Support
All
Raspberry
Pi/Windows
10/8.1/8/7
PC
Monitor
Features
- 7inch IPS screen, 1024x600 hardware resolution
- Capacitive touch control
- Supports popular mini PCs such as Raspberry Pi, BB Black, as well as general desktop computersWhen works with Raspberry Pi, supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IOT, driver free
- When work as a computer monitor, supports Windows 10/8.1/8/7, five-points touch, and driver free
- Backlight can be turned off to lower power consumption

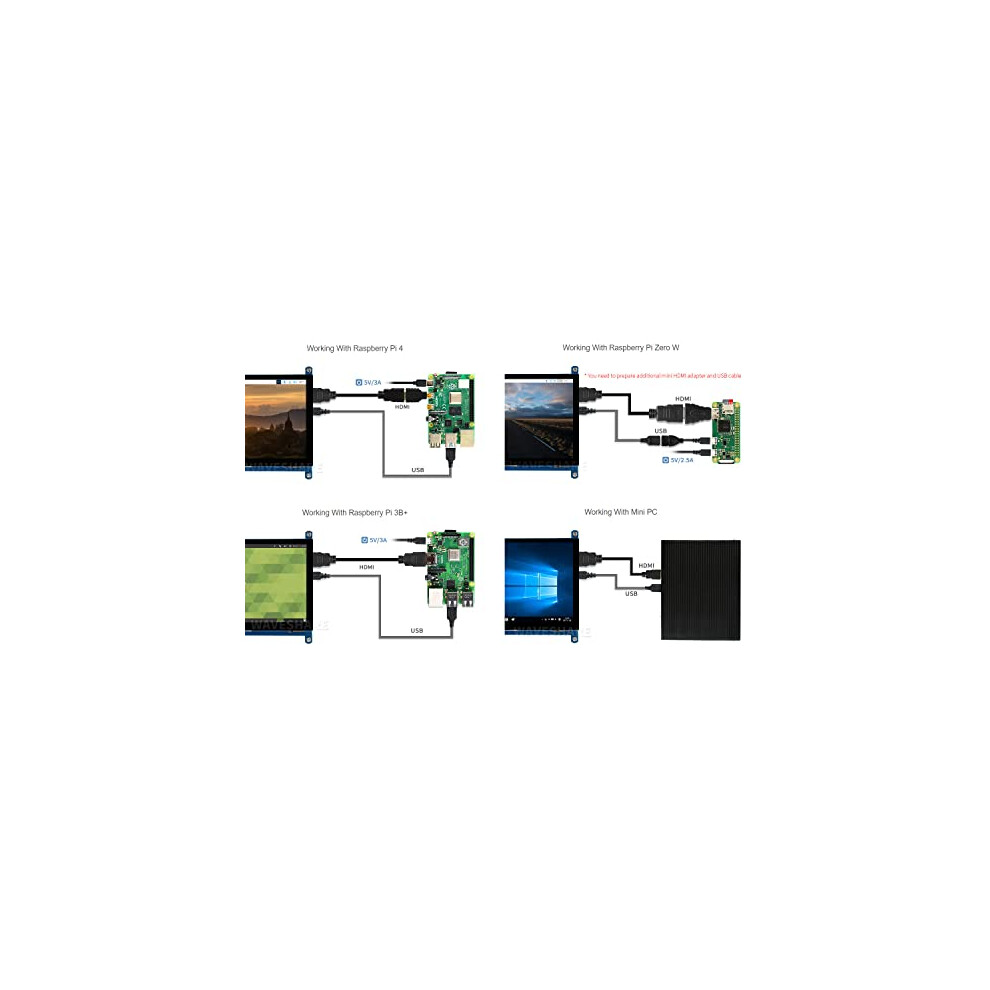

Note: to use the LCD with following mini-PCs, additional cables are required and should be purchased separately:
- Raspberry Pi Zero: HDMI cable, USB-type-A-receptacle-to-Micro-B-plug-cable
- BB Black: HDMI cable

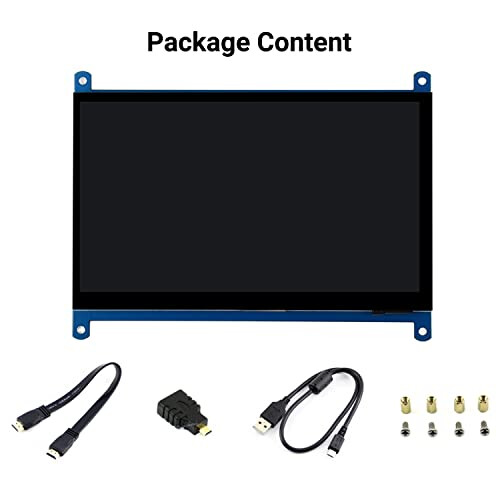

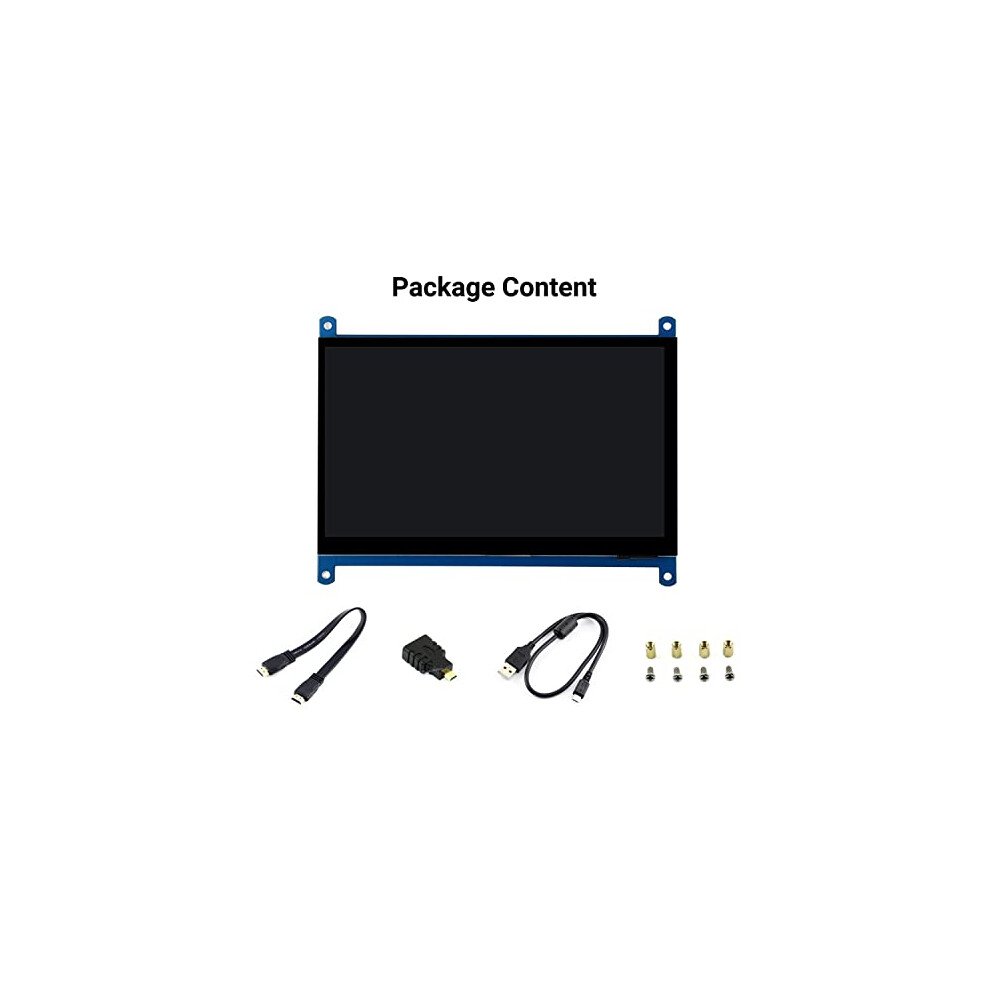

PACKAGE CONTENT
- 7inch HDMI LCD (C) x 1
- HDMI cable x 1
- USB type A plug to micro B plug cable x 1
- RPi screws pack (4pcs) x 1
- Quick start sheet x1
FAQ
1.What should we do if there are some red lines on the edge of the screen?
Please adjust the config.txt file by adding [hdmi_drive=1] into the end of code
After that please power off the srceen and put it aside for a few hours to avoid the flickers
2.What should we do if there are some ghost pictures?

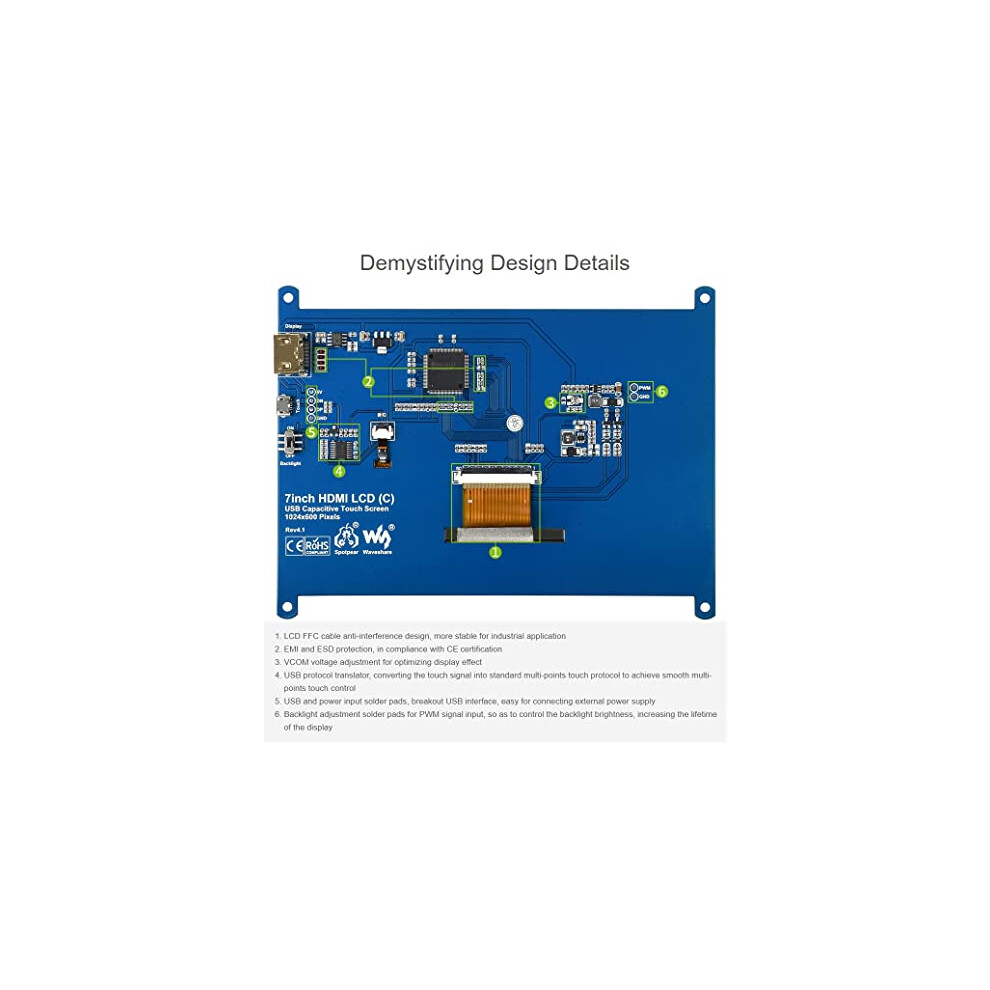

Please adjust the adjustable resistor on the back which we point out in the picture
And after the screen can display the desktop, rotate the resistor until it can get the best display of desktop
Then please leave the screen for a while,waiting for the ghost to disappear (may take several hours)
Development
Resources
Wiki
:
www.waveshare.com/wiki/7inch_HDMI_LCD_(C)
Brand:
Waveshare
Model:
7inch
(C)
Color:
Black
Size:
7inch
(C)
Manufacturer:
Waveshare
Item
dimensions:
10.6H
x
0.5L
x
15W
cm
Features
- Keywords: HDMI
Details
| OPC | PDV8WC9 |
|---|---|
| Brand | Waveshare |
| Codes | 0614961950061 (EAN) |
| Links | HDMI Monitors |
