700W Solar Micro Inverter Grid Tie Microinverter WiFi Control Automatic Identification DC to AC 120/230V

700W Solar Micro Inverter Grid Tie Microinverter WiFi Control Automatic Identification DC to AC 120/230V Description

Features:
PROTECTION FUNCTION - The micro inverter can independently control each component in parallel, minimizing potential safety hazards.
HIGHACCURACY METER - Builtin highaccuracy meter, you can see the working status of each component.
POWER POINT TRACKING - The micro inverter can achieve maximum power point tracking, which maximizes the overall output power.

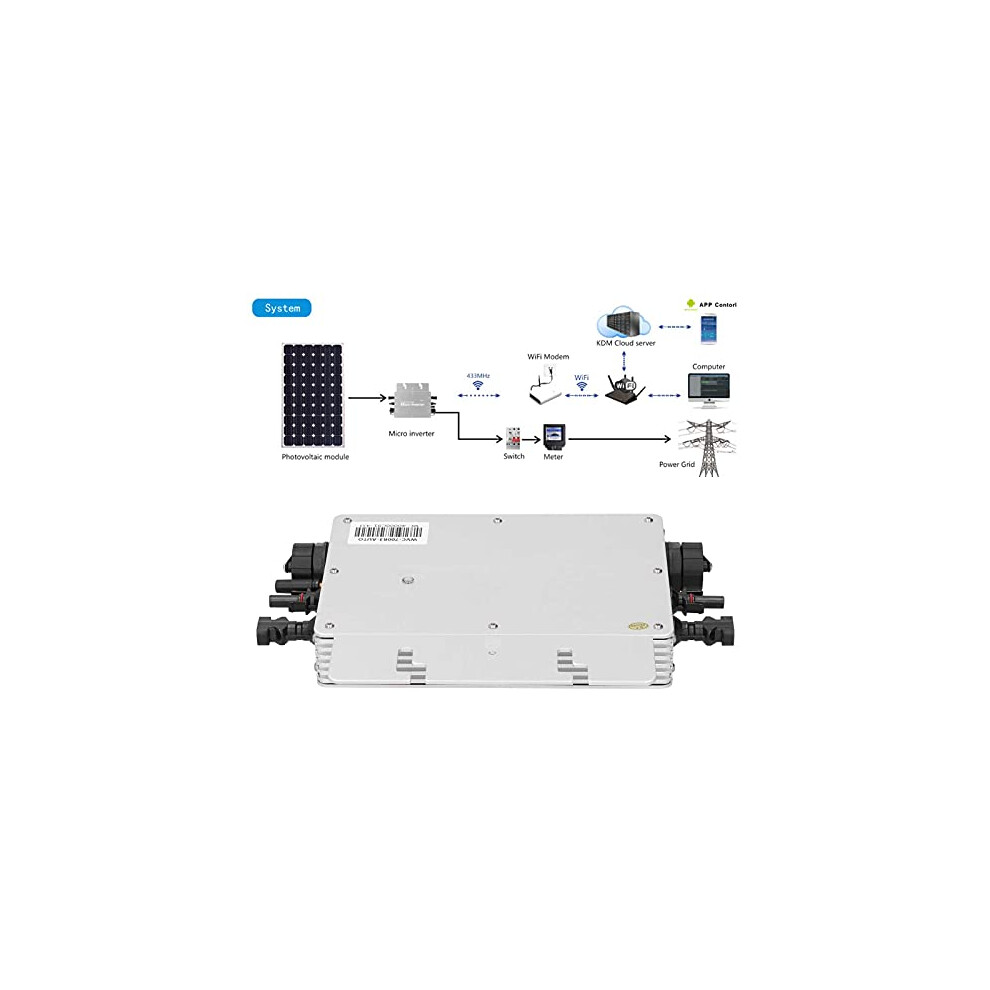

REMOTE CONTROLL - Can be operated and monitored through WiFi or mobile APP, which can greatly improve the overall efficiency.
EASY TO MAINTAIN - The micro inverter can be installed directly behind the module or on the bracket, which is easy to maintain.

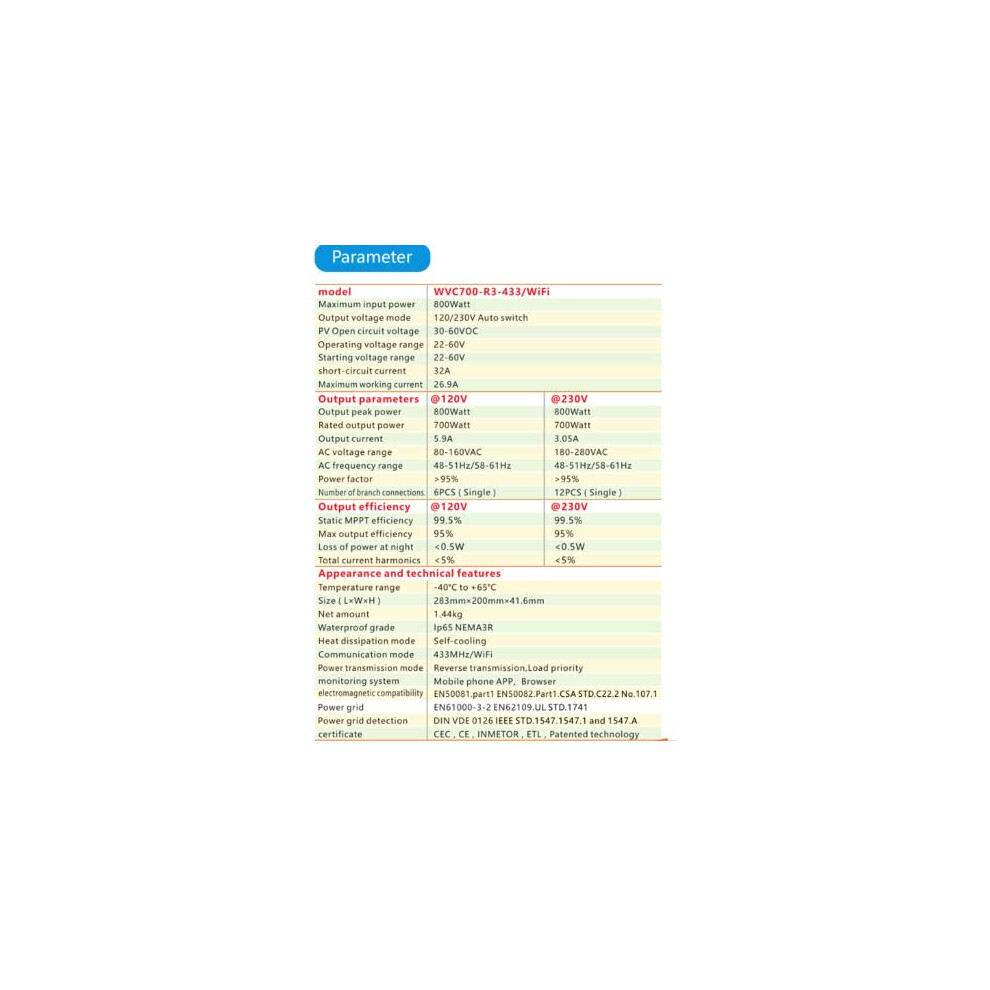

Specification:
Item Type: Inverter.
Model: 700R3-433/WiFi.
AC Output Voltage: 120V/230V (automatic identification).
Rated Output Power: 700W.
Operating Temperature Range: -40 - +65.
Monitoring System: Mobile APP.
Waterproof Rating: IP65 NEMA3R.
Cooling Method: Self-cooling.
Rated Frequency Range: 48-51Hz/58-61Hz.

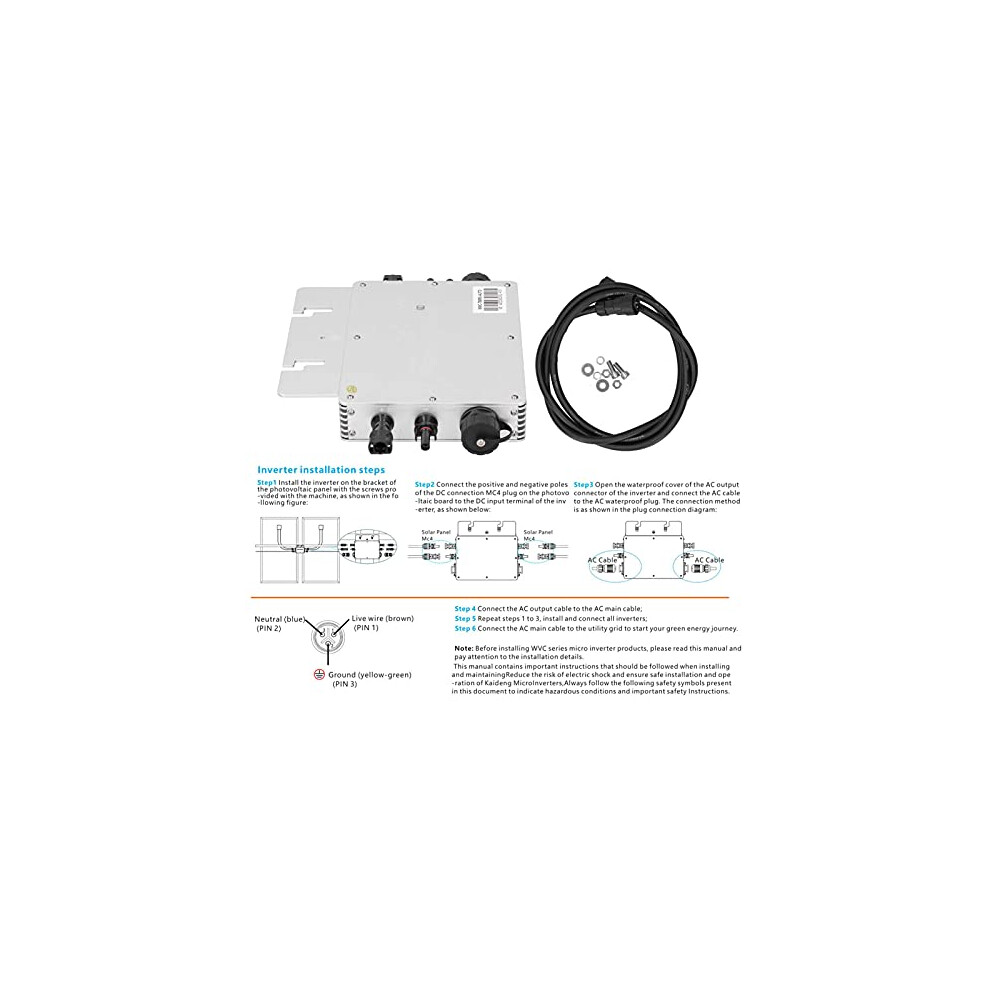

How to use:
Step 1: Install the inverter on the bracket of the photovoltaic panel with the screws provided with the machine.
Step 2: Connect the positive and negative poles of the DC connection plug on the photovoltaic board to the DC input terminal of the inverter.
Step 3: Open the waterproof cover of the AC output connector of the inverter and connect the AC cable to the AC waterproof plug.
Step 4: Connect the AC output cable to the AC main cable;
Step 5: Repeat steps 1 to 3, install and connect all inverters;
Step 6: Connect the AC main cable to the utility grid to start your green energy journey.

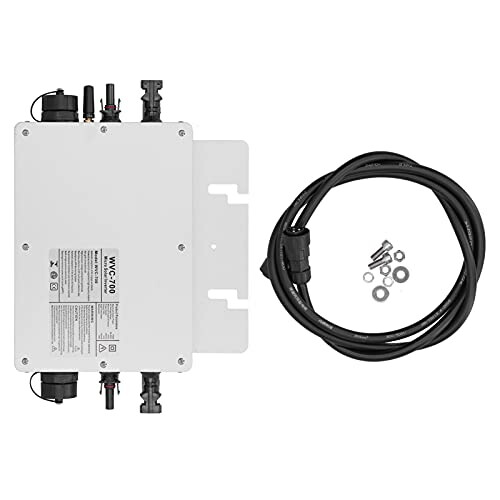

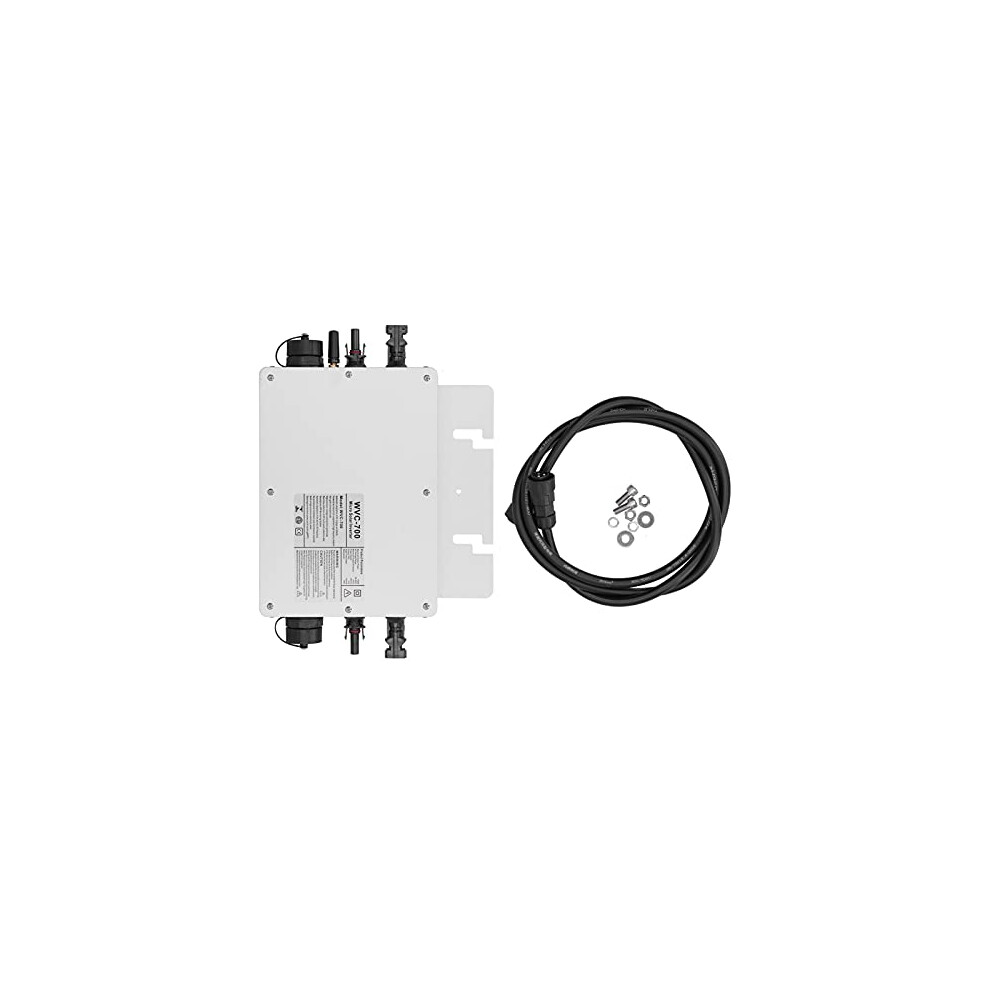

Package List:
1 x Inverter.
1 x User Manual.
1 x Ac Connection Line.
2 x Fixing Screw.
2 x Fixing Nut.
2 x Fixed Gasket.
2 x Fixed Washer
