700W Waterproof Solar Grid Tie Micro Inverter IP65 US Standard

700W Waterproof Solar Grid Tie Micro Inverter IP65 US Standard Description

Features:
PremiumMaterial:The inverter is made of aluminum alloy, which is durable, corrosion-resistant, and not easy to rust. You can use it for a long time without frequent replacement, and your cost can be saved.
High Efficiency:The inverter has built-in high-precision maximum power point tracking, which can optimize the power collection from the solar panel, accurately capture and lock the maximum output power point, and greatly increase power generation to more than 25%. In addition, the efficient power reverse transmission technology can transmit the power that can not be used up to the grid in the reverse direction to other places for use, and the power transmission rate can reach 99.9%.

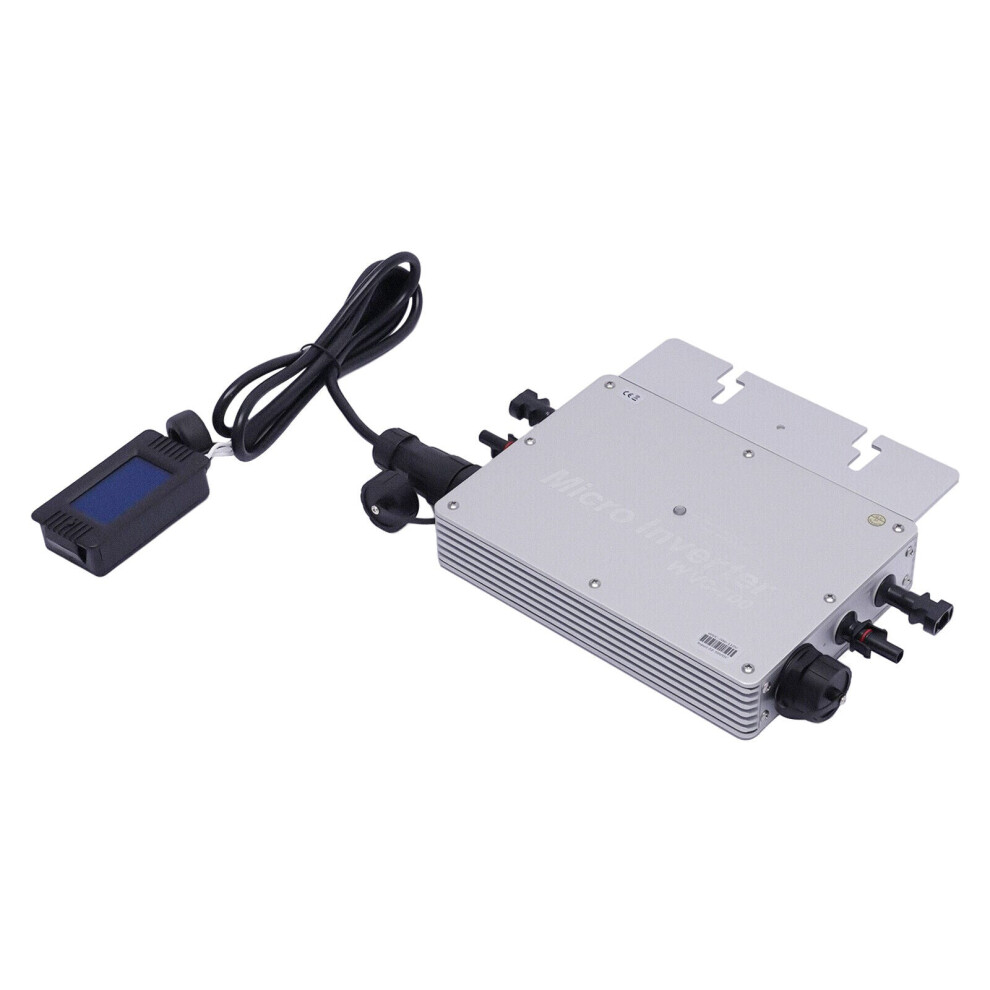

LCD Display: The inverter is equipped with an LCD display screen to monitor voltage, power, frequency, current, etc. so you can see the machine clearly in operation.
Digital Control:The inverter adopts intelligent soft switching technology, high-frequency switching power supply technology, and 32-bit DSP full digital SPWM control technology, making the product strong anti-interference ability, fast operation speed, high intelligence, and a powerful functional system, which can meet the needs of users.
Electrical Isolation:The output and input of the system are completely electrically isolated, the insulation performance of the entire power distribution system is good, and the fully isolated booster circuit is safer and more reliable.
Safety Guard:The inverter has six protection functions: over-temperature protection, under-voltage alarm, under-voltage protection, over-voltage protection, short circuit protection, overload protection, etc. Besides, the IP65 waterproofdesign can prevent rain from eroding its surface, so you can use it with confidence.
Easy Maintenance: After the installation of the power station, you don't need to do maintenance work. After a long period of use, you only need to remove the dust from the photovoltaic panel.
Small Footprint:With a size of 8.39*2.28*9.84inch, the inverter adopts high-frequency telephone, micro processing, and other technologies, so it is smaller, lighter, and wont occupy too much space.

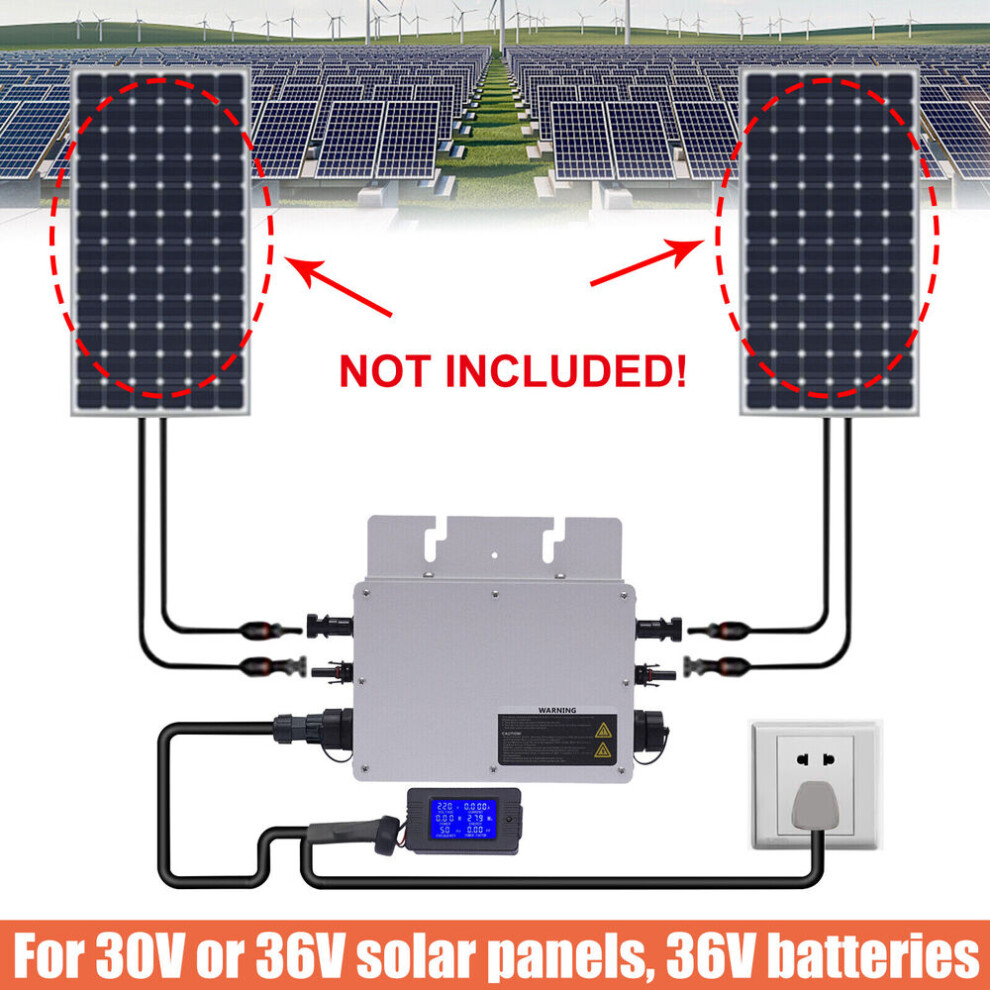

Flexible Installation Mode:During installation, you can stack multiple inverters at will, form a single-phase parallel stacking system, or conveniently form a three-phase system to provide a three-phase AC.
Worry-freeService:We have been working hard to provide better service and quality for our customers, which is our goal. If there is any quality problem with our inverters. Please contact us in time.

Specification:
Color: Silver.
Material: Aluminium Alloy.
Power: 700W.
Voltage: 110V.
Plug Type: US Standard.
Maximum Input DC Voltage: 54V.
Peak Power Tracking Voltage: 22-45V.
Operating Voltage Range: 17-50V.
Min/Max Start-up Voltage: 22-50V.
Maximum DC Short Circuit Current: 40A.
Maximum Input Operating Current: 30A.
Output Peak Power: 700watt.
Rated Output Power: 650watt.
Rated Output Current: 6.36A.
Rated Voltage Range: 80-160VAC.
Rated Frequency Range: 57-62.5Hz.
Power Factor: 99.
Number of Circuit Connections Per String: 6.
Static MPPT Efficiency: 99.5%.
Maximum Output Efficiency: 91.2%.
Night Time Power Loss: <1W.
Total Flow Distortion: <5%.
Operating Temperature Range: 40~60/40~140.
WaterproofRating: IP65.
Cooling Method: Self-cooling.
Communication Mode: Power Line Carrier.
Power Transmission Mode: Reverse Transmission, Load Priority.
Gross Weight: 2.48kg/5.47lbs.
Net Weight: 1.63kg/3.59lbs.

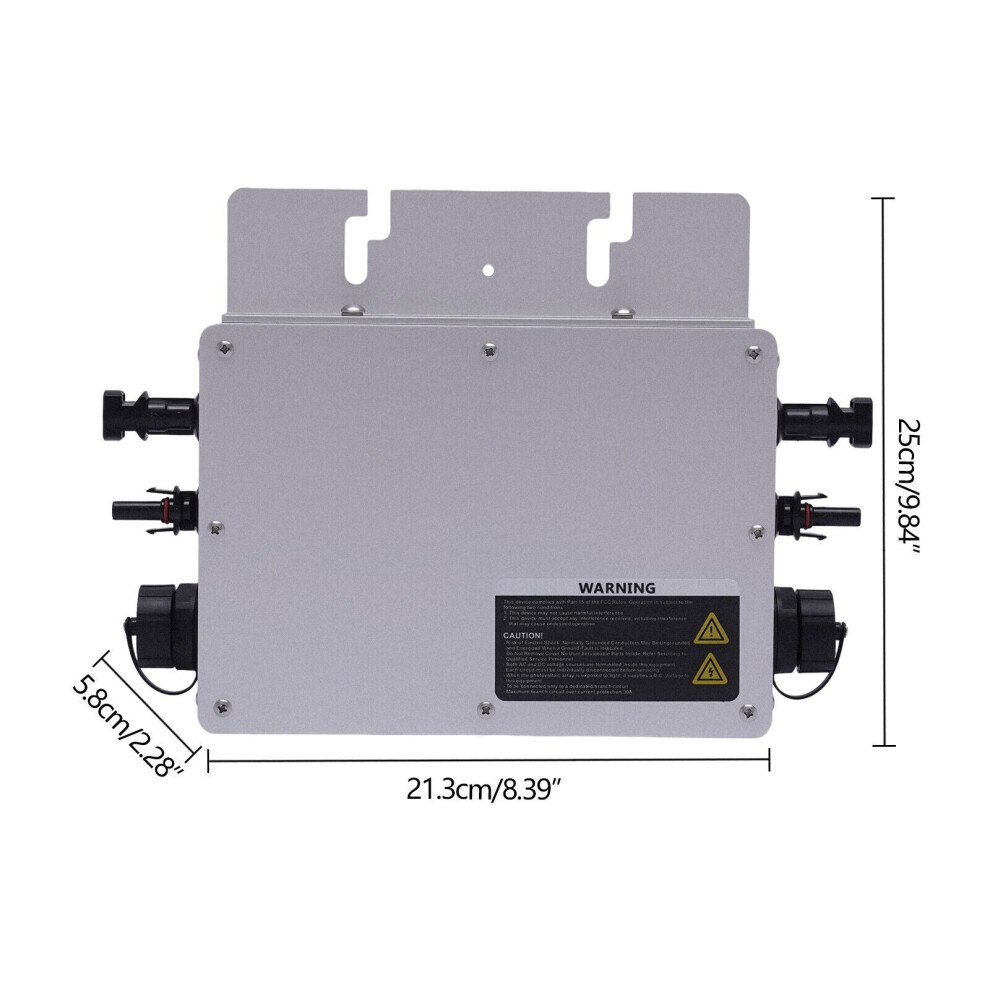

Product Size: 21.3*5.8*25cm/8.39*2.28*9.84inch.
Package Size: 34*24*11.5cm/13.39*9.45*4.53inch.

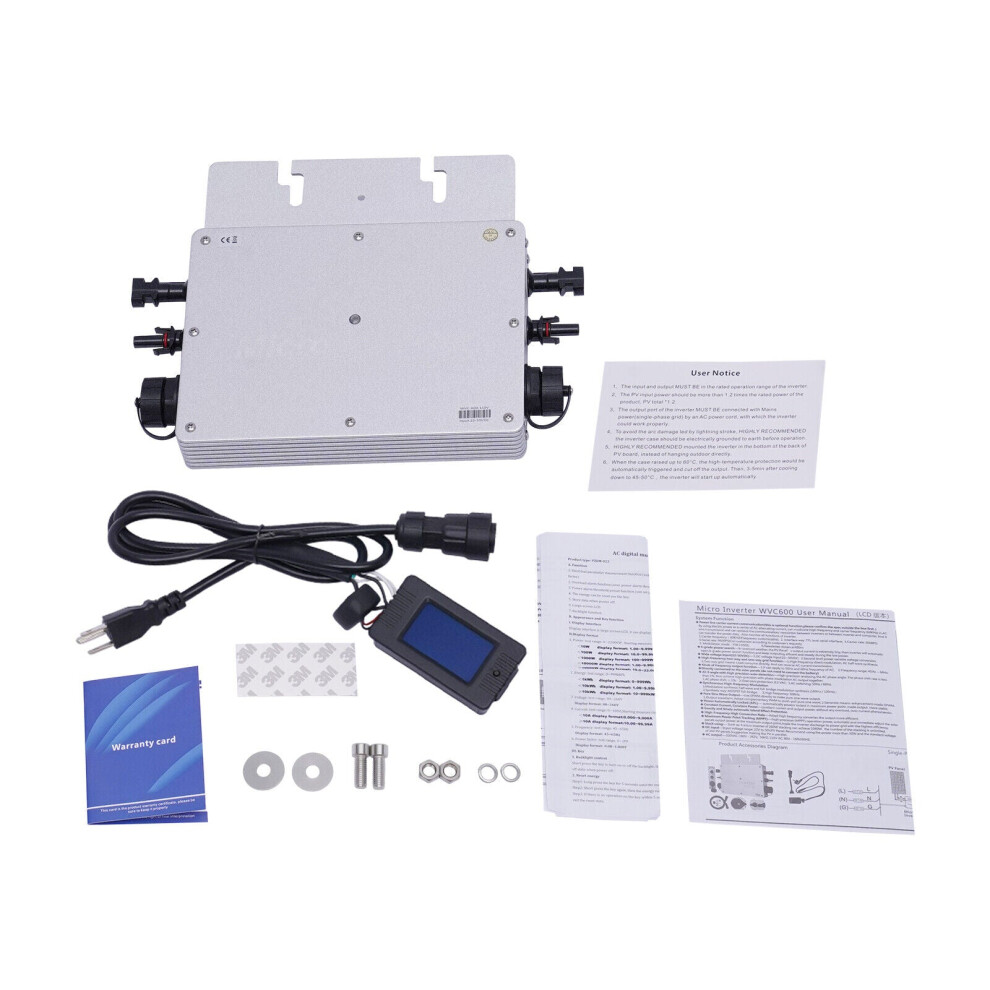

Package Included:
1* Solar Grid Tie Micro Inverter.
1* Power Cord.
1* English Manual
