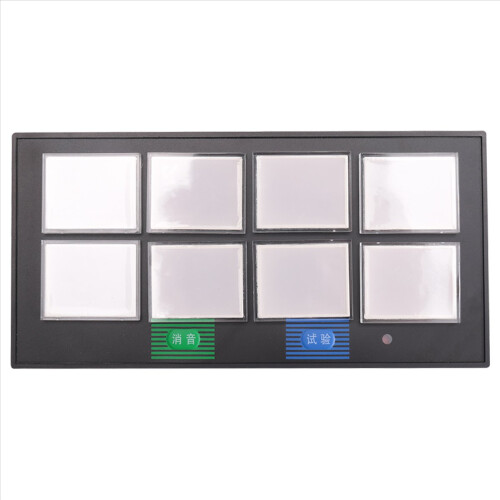

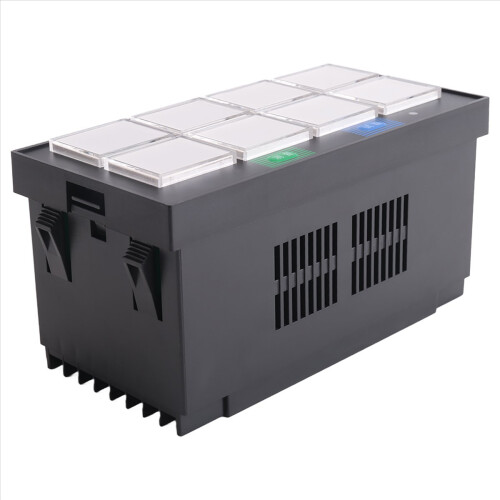

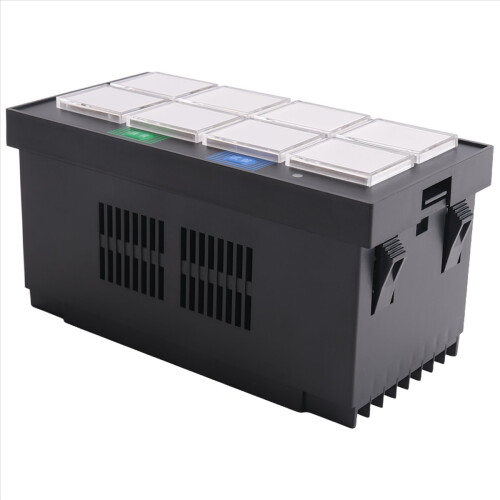

8-Channel Alarm Annunciator Panel Sound and Light Flash Controller AC220V Industrial LED Indicator

8-Channel Alarm Annunciator Panel Sound and Light Flash Controller AC220V Industrial LED Indicator Description

NOTE: This 8-channel flashing alarm device supports standard TTL level (0-5V, high-level alarm) and relay control output (ON/OFF). Power Supply: AC220V. Verify power supply before installation to avoid damage. Operating Environment: 0~50C, 85% RH. Avoid strong gases. Input Method: Passive contact only. No additional input power allowed.
Alarm & Mute: If multiple alarms occur, pressing the mute button silence the buzzer, but the indicator stay on until the alarm is cleared. Optional Features: External mute and test buttons are available upon request. Environment Temperature: 0~50C. Relative Humidity: 85% RH, Avoid strong gases
TTL Level: Standard 0-5V, High-level alarm. Contact Capacity: AC220V/3A;(Resistive Load). Input Method: Passive contact, no additional power. Power Supply: AC220V 50Hz. Output: Relay control output (ON/OFF)

Power Consumption: 5W
Multi-channel Monitoring - Supports eight-channel input signal monitoring with optoelectronic isolation for enhanced safety.
Real-Time LED Display - High-brightness LED indicators show each channel's status clearly.
Comprehensive Alarm System - Provides sound and flashing alarms when parameters exceed set values, ensuring timely alerts.
Flexible Control Functions - Includes built-in mute and test buttons, with remote mute and self-test functionality.
and Reliable - Designed for industrial environments with high interference resistance and reliability.
Applications:
Petroleum and Chemical Industry
Metallurgy and Power Plants
Light Industry Automation
Safety Monitoring Systems
FAQs:
Q: Can the device be used in high-humidity environments?
A: Yes, it can operate in relative humidity 85% RH, but avoid gases.
Q: Is external power needed for input signals?
A: No, it uses passive contact input without additional power requirements.
Q: What alarm methods are available?
A: It supports sound alarms (built-in buzzer) and flashing alarms for active alerts.
160 x 80
Color: As Shown
Material: plastic

Package Contents:
1 x 8-Channel Alarm Annunciator

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
